SHURE 596LB MICROPHONE Handheld, omnidirectional, 40Hz-10kHz

Artikelnummer
74-6219
Hersteller
Shure
Typennummer
  • 596LB
SHURE 596LB MICROPHONE Handheld, omnidirectional, 40Hz-10kHz
SHURE 596LB MICROPHONE Handheld, omnidirectional, 40Hz-10kHz

Bestellangaben

MwSt. / Versand
Nicht mehr hergestellt.Leider können wir zur Zeit keine Alternative anbieten.
RoHS Konform

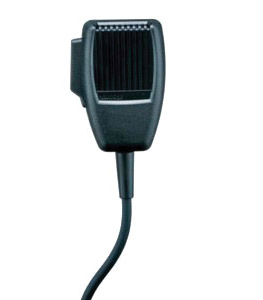

596LB Handheld Microphone

The Shure Model 596LB is a compact, hand-held dynamic, low-impedance communications microphone with a 200 to 5,000 Hz frequency response. Designed especially for voice communications use, it is an economical unit for applications in budget-restricted paging and other installations. The 596LB microphone is compatible with many popular paging amplifier inputs. Its tailored frequency response provides clear, intelligible operation. The ARMO-DURcase is small, light and sturdy, and fits comfortably in the palm of the hand. It has a long-life push-to-talk switch, and a durable coiled cable for years of reliable performance. The 596LB has a low-impedance output.

596LB with attached cable

Features

  • Tailored frequency response for clear, intelligible operation
  • Low-impedance
  • Push-to-talk switch
  • Omnidirectional dynamic
  • Frequency response: 200 to 5,000 Hz

Specifications

(Test conditions unless otherwise specified: audio output measured between white lead and green lead; PTT switch depressed; dc voltmeter 10 megohms or greater input impedance; ac voltmeter 1 megohm or greater input impedance.)

Type
Dynamic
Frequency Response
200 to 5,000 Hz
  view larger
Polar Pattern
Omnidirectional
Impedance (at 1,000 Hz)
400 ohms
Output Level (at 1,000 Hz)
-33 dB +/- 3.0 dB
(0 dB = 1 V/10 Pascal. 1 Pa = 94 dB SPL)
Hum Sensitivity
36 dB maximum equivalent SPL per 1 mOe electromagnetic field
Environmental Conditions
Operating Temperature: -40 degrees to 74 degrees C (-40 degrees to 165 degrees F)
Storage Temperature: -54 degrees to 85 degrees C (-65 degrees to 185 degrees F)
Relative Humidity: 0 to 95% (non-condensing)
Switch
Double-pole, double-throw, push-to-talk, normally open
Cable
1.5 m (5 ft) extended length, 4-conductor (2 shielded), vinyl-jacketed coil-cord
Construction
Case Black textured high-impact ARMO-DUR
Dimensions
See User Guide
Net Weight
260 grams (9.17 oz) with cable

User Guides

SHURE MICROPHONES - Fist microphones

Handheld microphones with press-to-talk switches, for use with paging, public address and communications systems.

596LB

abgekündigt

A low impedance, omnidirectional, dynamic, microphone, this is 'designed especially for voice communications use'. It is an 'economical unit for applications in budget-restricted paging and other installations'. Vinyl coated coiled cable, no connector. Supplied mounting bracket fits hang-up button on back of microphone.

514B

abgekündigt

The Shure 514B is a low impedance, omnidirectional, dynamic, handheld microphone designed for paging and public address systems. It provides 'clear, natural voice response and high intelligibility'. Neoprene-jacketed, coiled cable, no connector. Supplied mounting bracket fits hang-up button on back of microphone.

527B

abgekündigt

An 'extremely reliable', low impedance, omnidirectional, dynamic microphone with an extended low- and high-frequency response, 'particularly suited to ham radio use, mobile FM transmission, and top-quality paging systems'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.

527C

abgekündigt

This is similar to the 527B, an 'extremely reliable', low impedance, omnidirectional, dynamic microphone with an extended low- and high-frequency response, fitted with an internal pre-amplifier to reduce sensitivity to hum and RF interference. It is 'designed for use in a variety of mobile and fixed station applications, including police, transportation, amateur radio and similar applications'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.

577B

abgekündigt

This is a low impedance, cardioid, dynamic, microphone using the pressure gradient between two entry points to provide noise cancelling. Designed for 'communications and paging applications that require highly intelligible, low noise output', it can be used in 'all types of mobile communications, from amateur radio to helicopter news and traffic reports'. It is also 'suitable for public address and paging systems in noisy areas such as factories, airport terminals, and restaurants'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.
