This range of lighting floor stands from K&M complements their long established microphone stands and loudspeaker stands. Options with folding tripod base or flat base are available, along with steel or aluminium as the main manufacturing component. Unless otherwise stated the tube diameter is 35mm and the stand is height adjustable by way of telescopic tubing.

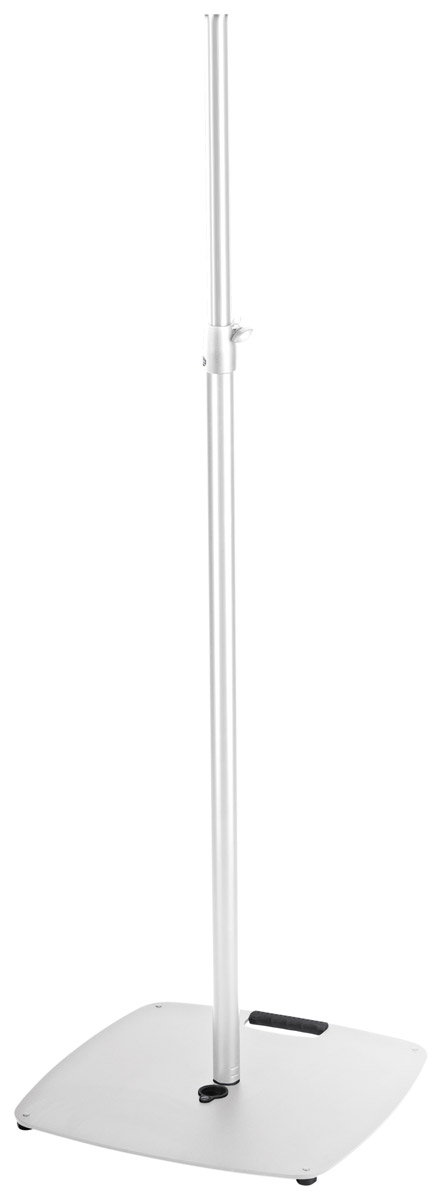

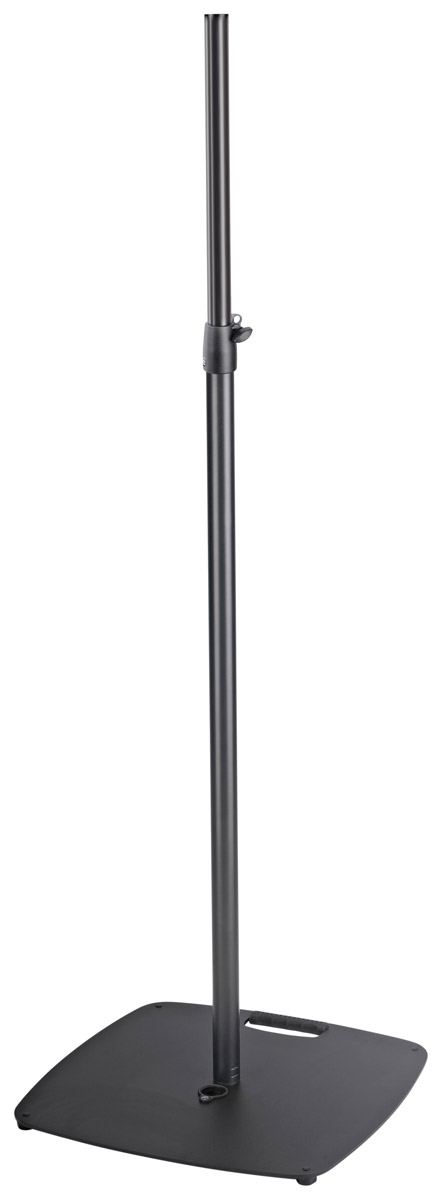

24624 Lighting Stand - Flat steel base
abgekündigt
Available in black or white finishes, K&M 24624 is a floor standing lighting stand with heavy flat steel base – making it ideal for application whereby floor space is too limited for larger tripod bases. The two-piece telescopic tube allows height adjustment from 1400mm to 2400mm, and can withstand a maximum payload of 30kg. The tube is attached to the base via an M20 thread.
Optional accessories: 26709 additional weight, 24627 base plate carry case.

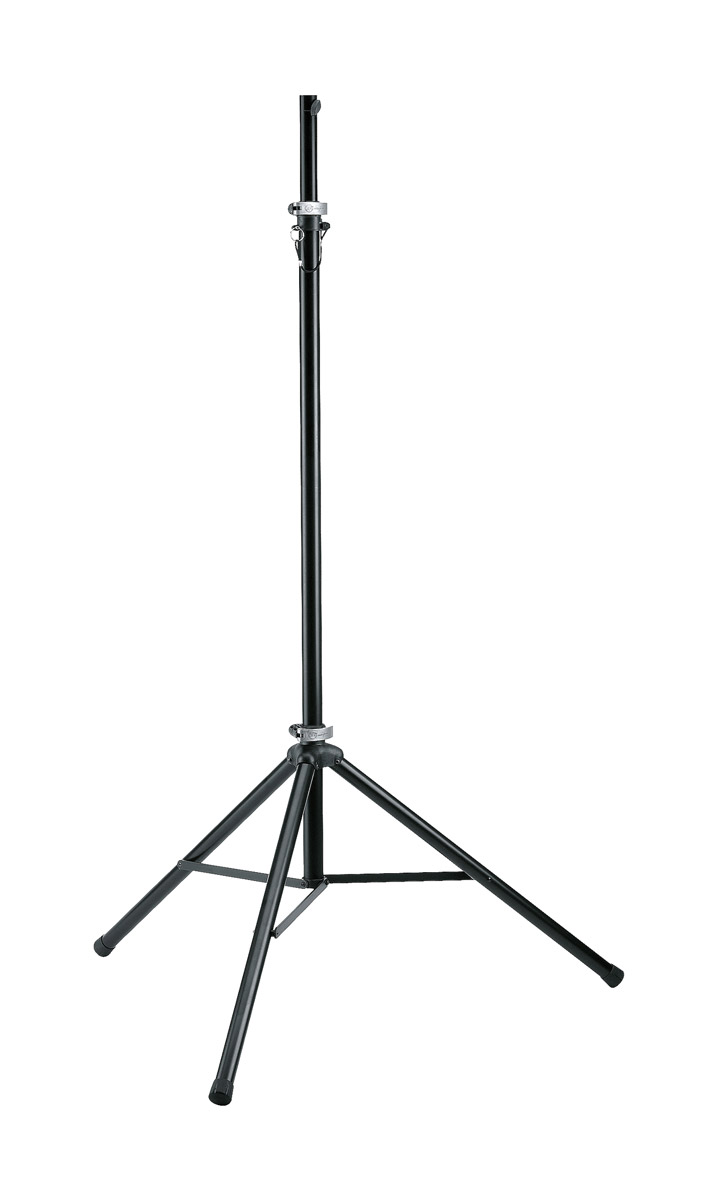

24620 Lighting Stand - Tripod with crossbar
A tripod based lighting stand complete with clamping level, safety pin, and 24622 crossbar. Height adjustment from 1750mm to 3000mm, and load capacity of 20kg. The base diameter is 1150mm and the length when folded is 1550mm. Tube diameter: 35mm. Weight: 3.66kg.
24625 Lighting Stand - Tripod
An aluminium manufactured tripod based lighting stand complete with clamping level and safety pin. Height adjustment from 1800mm to 3220mm, and load capacity of 20kg. The base diameter is 1150mm and the length when folded is 1590mm. Tube diameter: 35mm. Weight: 2.71kg.
24630 Lighting Stand - 35mm with integrated M10 thread
A steel manufactured lighting stand with height adjustment of 1955 to 2915mm. The tube designed legs have cross braces for stability whilst a locking screw and push button system allow for safe height adjustment and positioning. The 1260mm base diameter aid capacity of up to 20kg, and the stand folds to 1600mm when folded. Weight: 7.11kg

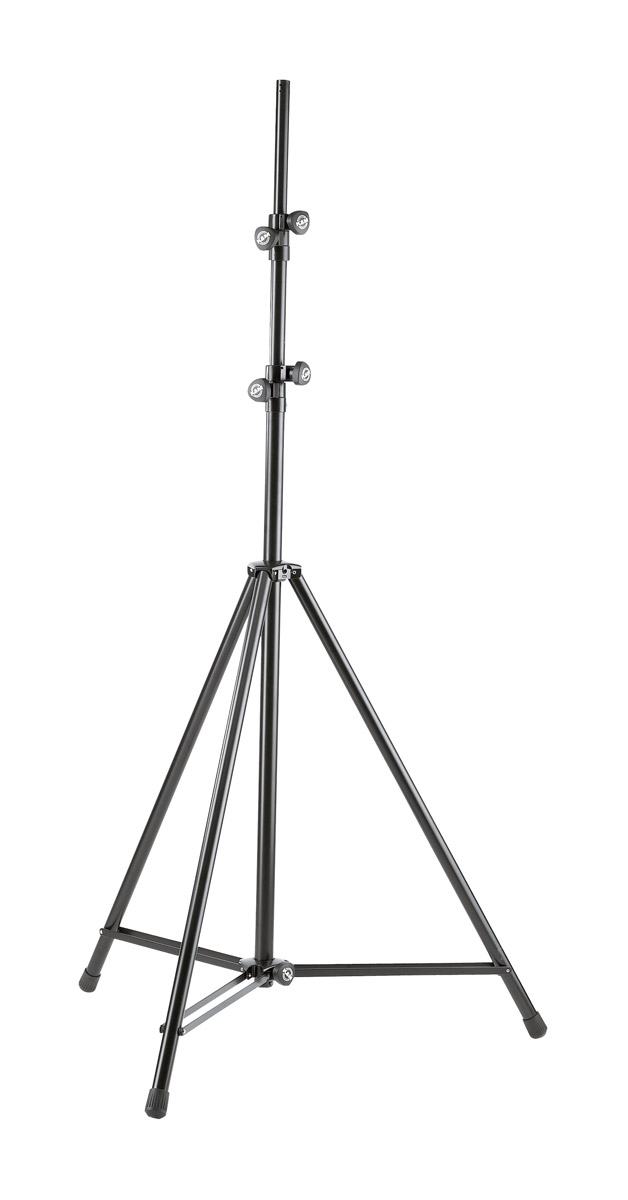

24640 Lighting Stand - 30mm with M10 thread
A three-piece steel manufactured tripod based lighting stand complete with die-cast clamps and safety pin. Height adjustment from 1590mm to 4025mm, and load capacity of 20kg. The base diameter is 1300mm and the length when folded is 1500mm. Tube diameter: 30mm with M10 thread for crossbar. Weight: 12.68kg.
24615 Lighting Stand - Tripod, crank handle

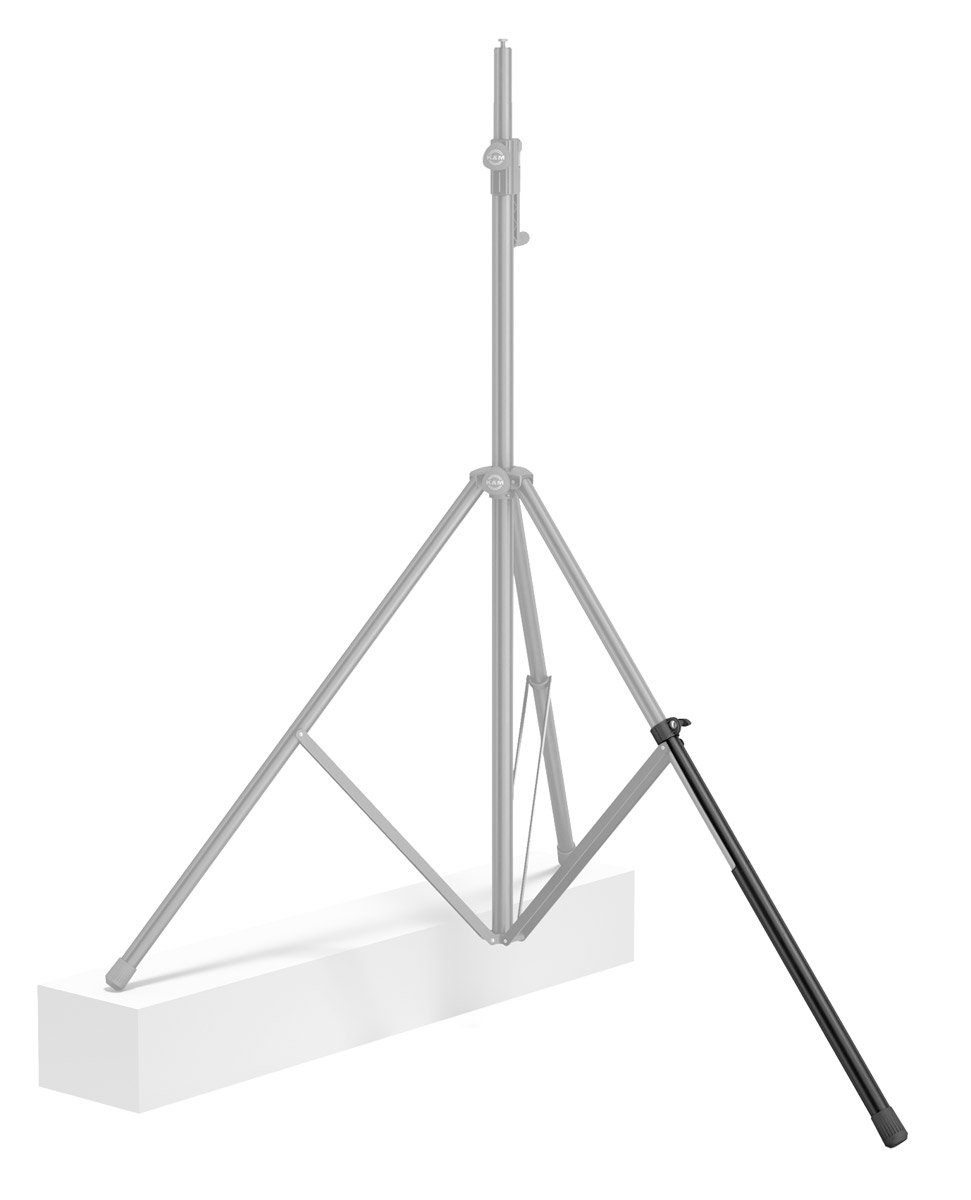

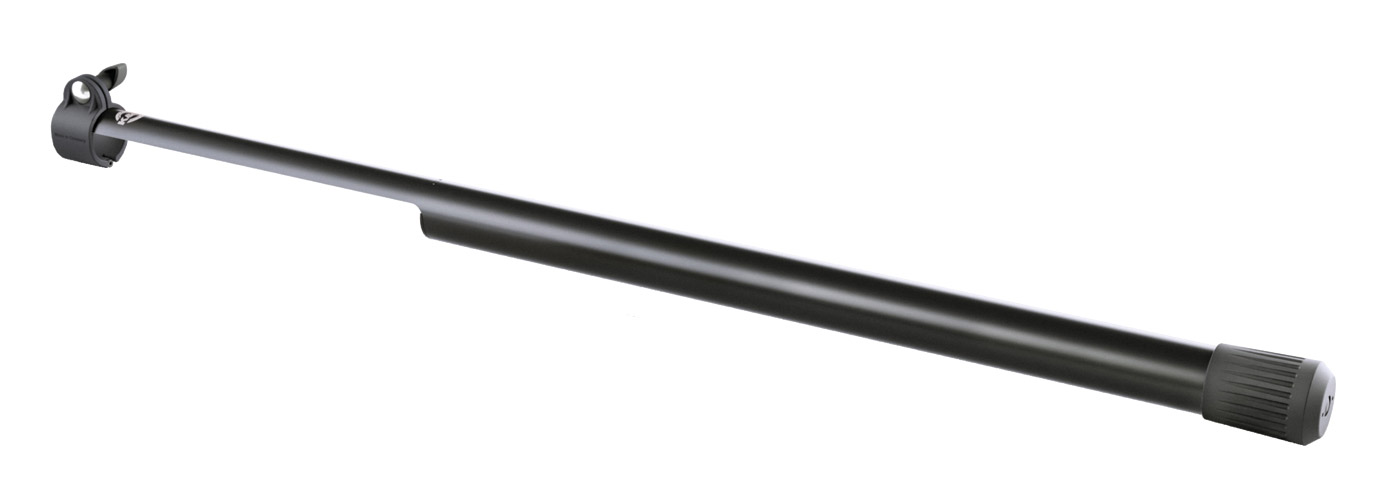

Manufactured from aluminium, 24615 lighting stand has a height adjustment range of 1755-3000mm with a crank-handle operation. As well as being tested to DIN 56950-3 standards (5 degree stability with load of 35kg), the user can combine the stand with 24618 levelling leg. When folded, the stand measures 1733 x 150 x 202mm with a weight of approximately 8kg.

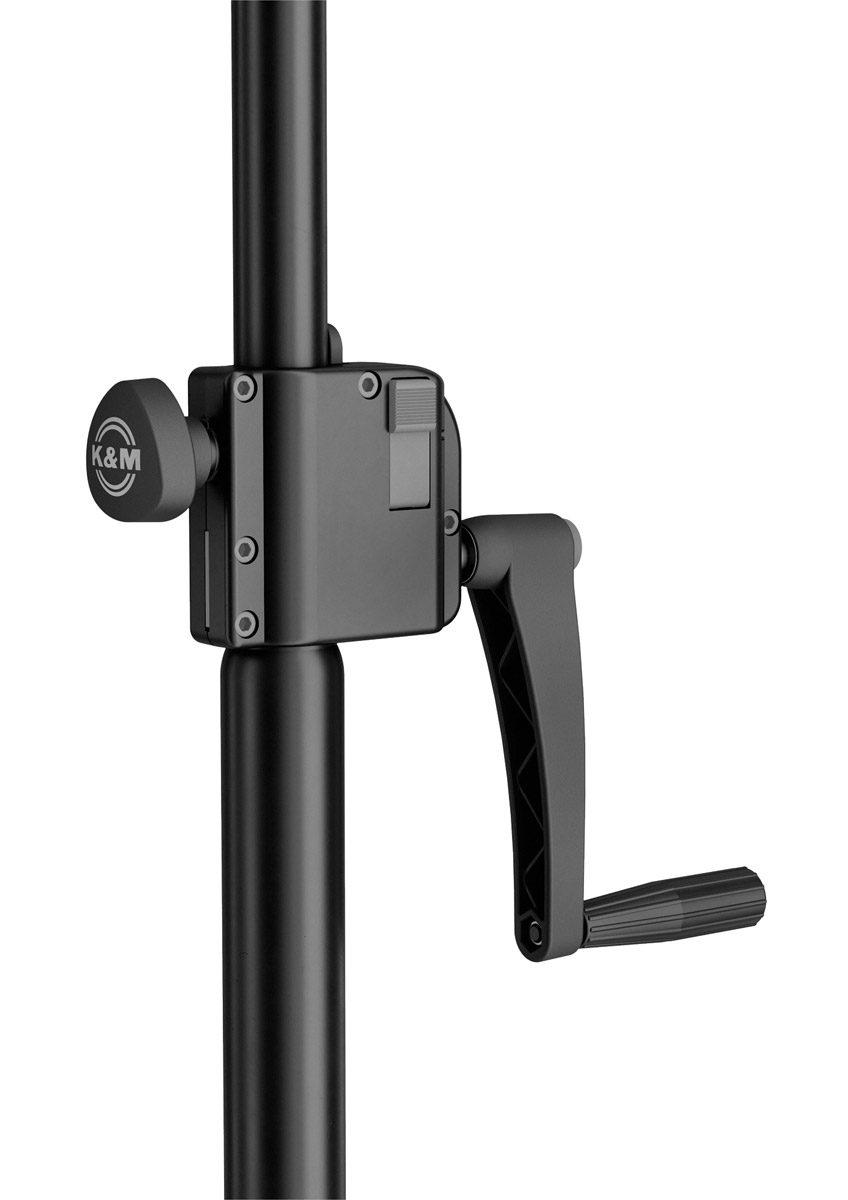

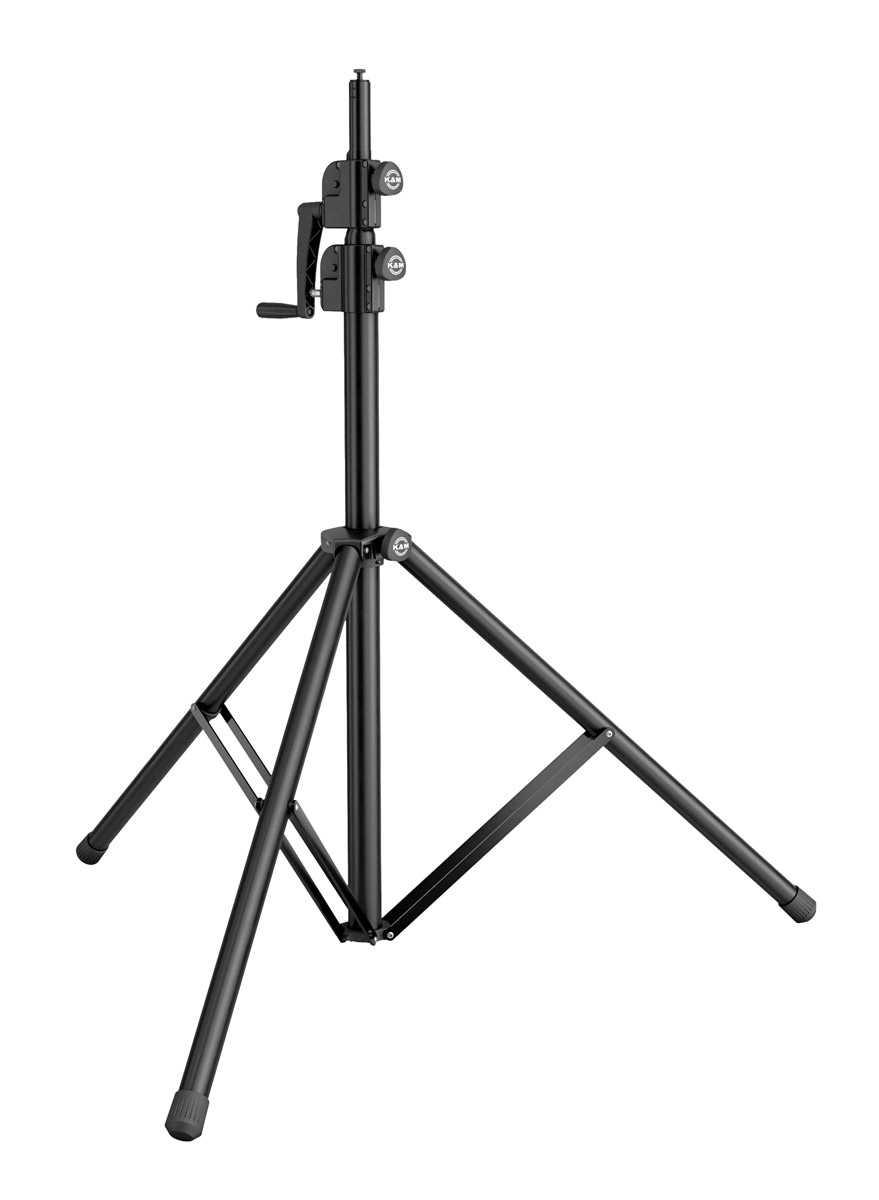

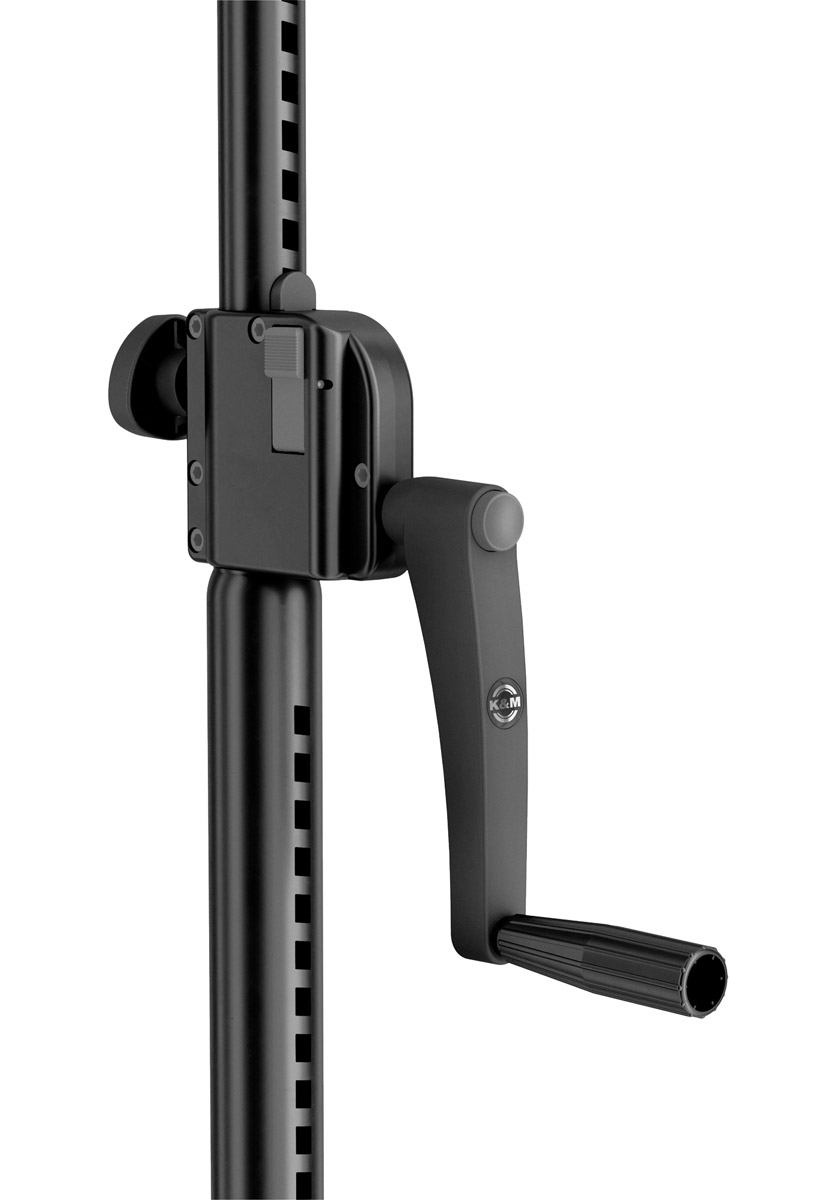

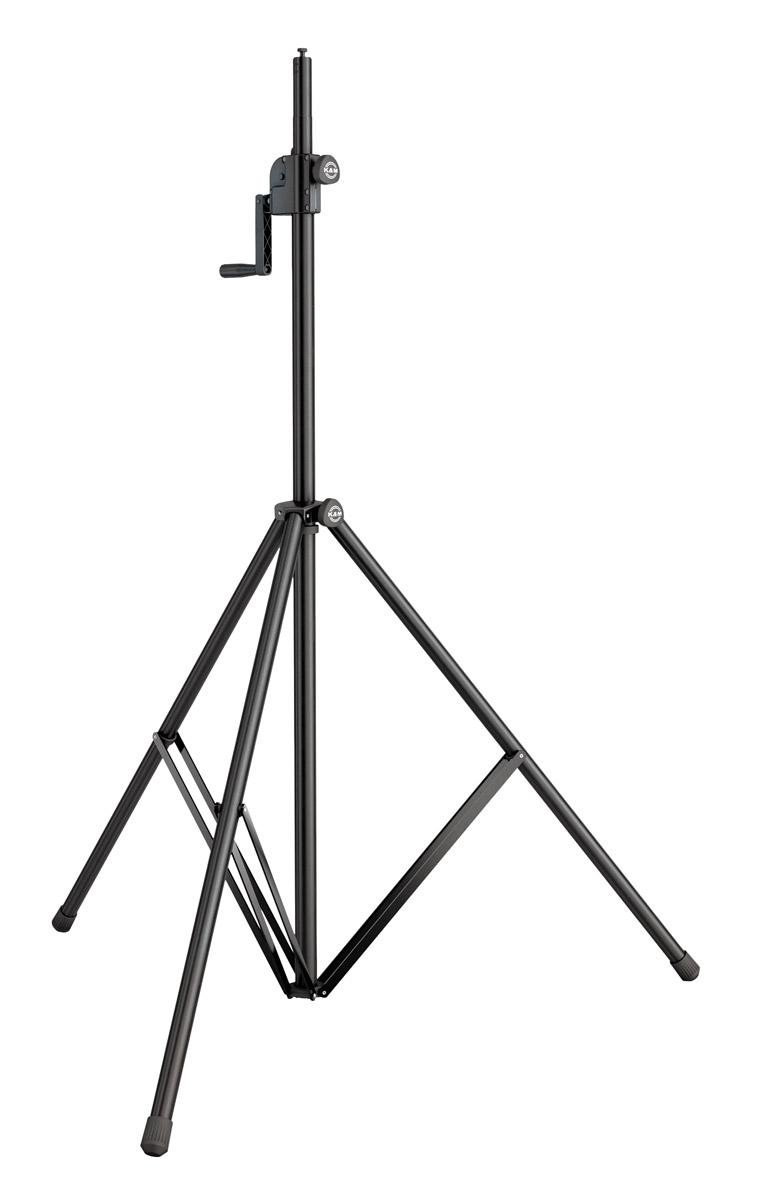

24730 Lighting Stand - 1405-3000mm, dual-crank system
Designed for professional use, 24730 has an adjustable height range of 1405-3000mm with a low base height of 1405mm. The 3-piece tube system can be lifted or lowered using the dual-crank system, whilst an integrated 'Auto-Lock' prevents sudden lowering. Once positioned the crank handle can be removed to prevent unauthorised use. As well as being tested to DIN 56950-3 standards (5 degree stability with load of 40kg), the user can combine the stand with 24738 levelling leg. The tripod base has a diameter of 1550mm when deployed. When folded, the stand measures 1390 x 200 x 165mm with a weight of 12kg.

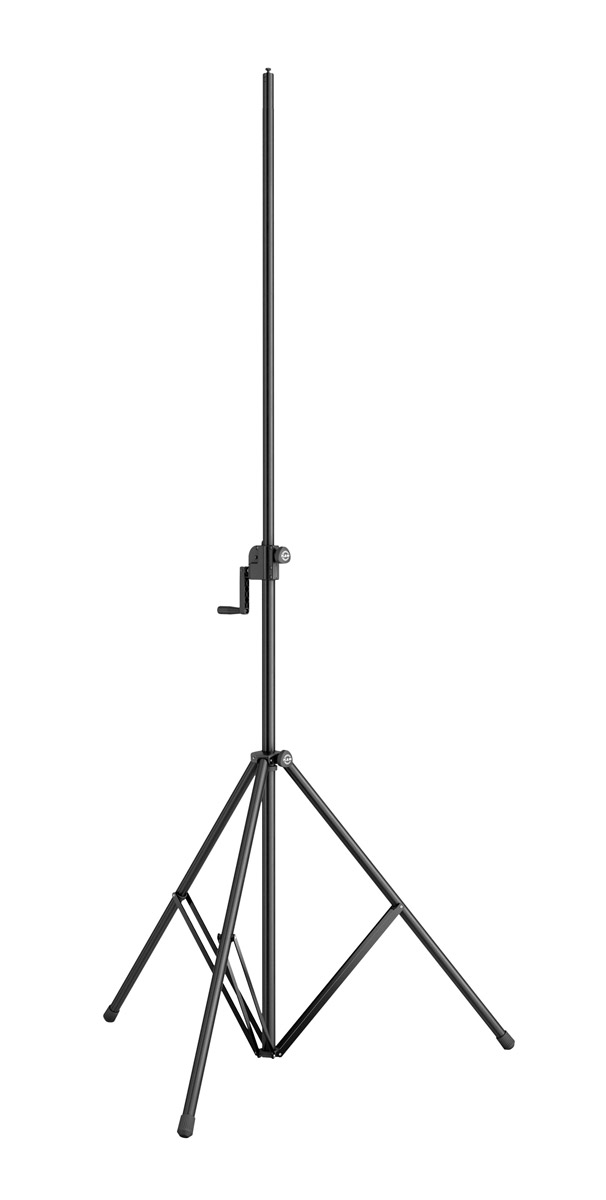

24740 Lighting Stand - 1715-4000mm, dual-crank system
24740 has the same attributes as 24730 however it has a tripod base diameter of 2000mm, and a height adjustment of 1715-4000mm. Compatible with 24748 levelling leg. Weight: 14.2kg

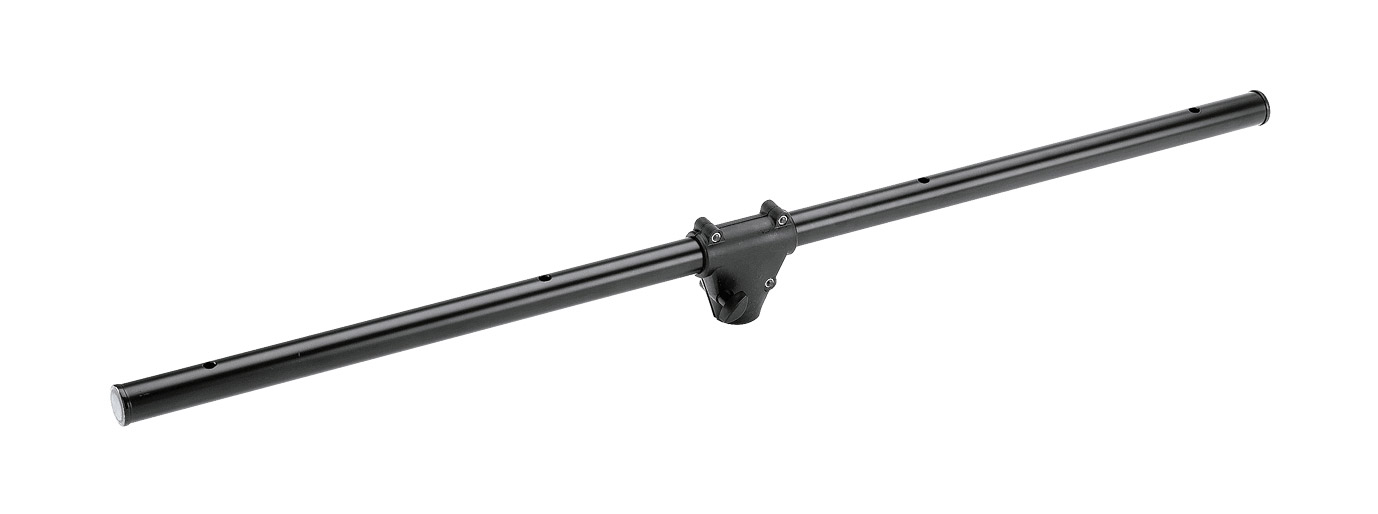

24622 Lighting Stand - Crossbar
An aluminium crossbar with 4 pre-drilled boreholes for use with up to eight fixtures. Suitable for use with 35mm lighting stands. Dimensions (Diam. x L): 36 x 1230mm. Weight: 0.65kg
