SHURE SBC-AX BATTERY CHARGER MODULE for SBRC-UK, compatible with SB900-A

Artikelnummer
74-5298
Hersteller
Shure
Typennummer
  • SBC-AX
SHURE SBC-AX BATTERY CHARGER MODULE for SBRC-UK, compatible with SB900-A
SHURE SBC-AX BATTERY CHARGER MODULE for SBRC-UK, compatible with SB900-ASHURE SBC-AX BATTERY CHARGER MODULE for SBRC-UK, compatible with SB900-A

SHURE WIRELESS SYSTEMS - Axient Digital - AD Series

These professional, digital, UHF wireless systems are intended to provide reliable RF reception and clear audio suited to single or multi-channel use in applications such as touring, broadcast, theatre, conferences or presentations.

All receivers and transmitters share a wide bandwidth of 470 - 636MHz, so the Axient Digital series can be transported from location to location, re-tuning to country or area-specific bands without the need for country-specific hardware - particularly useful for touring. Redundancy is also a main feature of the Axient Digital series, offering the facility of redundant RF, DANTE and audio output. Redundant power is available via an optional DC power module factory installed at time of order.

The audio signal is converted from analogue to digital, so no compression, EQ, or other processing is required in preparation to transmit the audio with a flat frequency response of 20Hz-20kHz before two identical signals are transmitted on independent frequencies. The AD4D or AD4Q receiver can then switch between the two frequencies to retain the best signal and therefore the best audio quality.

When switching between the two frequencies, the Axient system samples the last received data on the first frequency to ensure a seamless change. A standard transmission mode results in a latency of 2ms from transmitter to receiver analogue output. A high-density mode returns a latency of 2.9ms. AES (Advanced Encryption Standard) 256-bit technology is also employed to ensure the transmission signal is secure.

Frequency band: 470-636 MHz (G56).

Usage Note: Licensing and legal use information for radiomic equipment in this product group is applicable to the UK only. Customers should check with the relevant regulatory body for the territory the equipment is to be used in prior to purchase to ensure appropriate legal usage and local environmental restrictions.

RECEIVERS

TRANSMITTERS

ACCESSORIES


SBRC-UK - Battery charger

This is a 1U rack-mounting, battery-docking station for up to four optional SBC-AX caddies, each capable of charging two SB900-B Lithium-Ion batteries. Batteries can be charged to 50 percent capacity within one hour and full capacity can be reached within three hours. A front panel display shows the state of charge for any inserted battery as well as estimated time until full charge in hours and minutes, percent of capacity display, or battery-health metrics including cycle count and percentage of original capacity. The rear panel hosts a single AC power input with latching rocker power switch. Also on the rear panel is a RJ45 Ethernet socket to connect to a network and thereby adding the ability to use Shure Wireless Workbench software to monitor it remotely. Weight: 4.4kg. Dimensions (HxWxD): 44 x 483 x 366mm.

Included accessories: IEC AC power cable, 3 foot Ethernet cable, rack mount hardware kit, 8x mounting screws for optional charger modules.

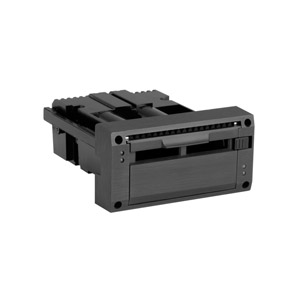

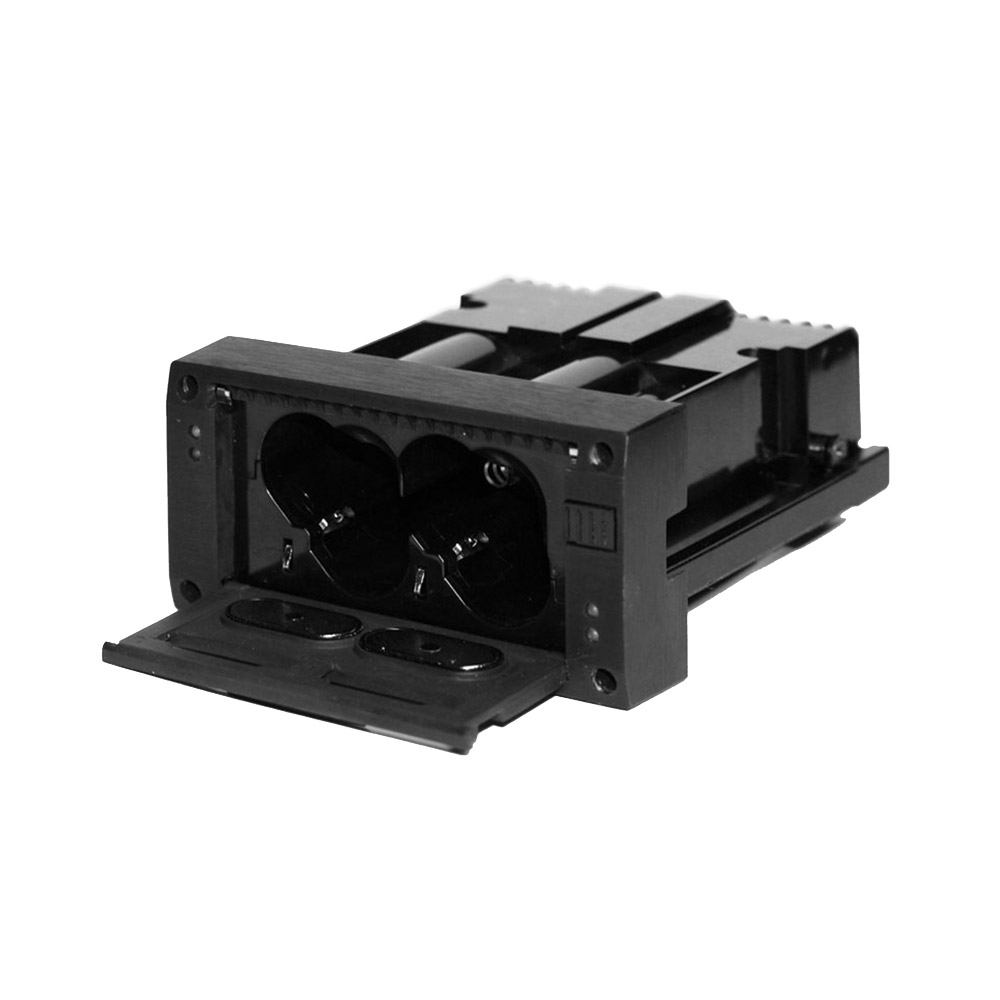

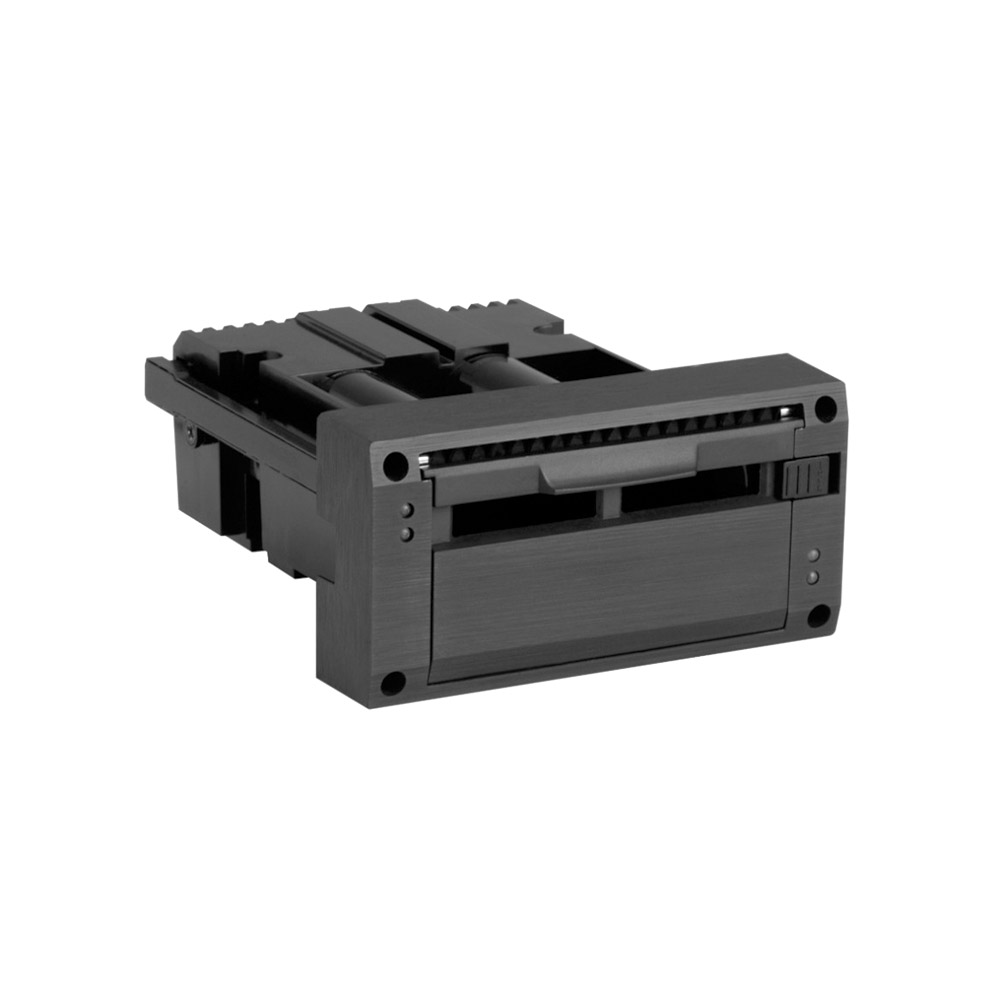

SBC-AX

Shure SBC-AX is a charging module compatible with the SBRC-UK battery docking station. It has the capacity to take two SB900-B rechargeable Lithium-Ion batteries.
