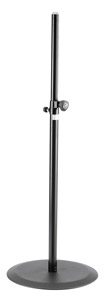

K&M 26735 LOUDSPEAKER STAND Floor, round base, up to 30kg, 1100-1810mm, black

Artikelnummer
53-3653
Hersteller
K&M (König & Meyer)
Typennummer
  • 26735
  • 26735-000-55
Farbe
  • BlackBlack
K&M 26735 LOUDSPEAKER STAND Floor, round base, up to 30kg, 1100-1810mm, black
K&M 26735 LOUDSPEAKER STAND Floor, round base, up to 30kg, 1100-1810mm, black

K&M LOUDSPEAKER STANDS - Floor stands

This range of loudspeaker floor stands from K&M complements their long established microphone stands. All models are manufactured in steel with a black finish and supplied with rubber feet, unless otherwise stated and have telescopic stems. Height is adjustable by locking screw fixing, push-button release or crank-handle mechanism to facilitate easy raising of equipment.

TRIPOD BASE


19500 - Quad base, 1240-1940mm

This has a low-profile base made of four folding square tubes. Spring-loaded bolt and locking screw adjustment. Height range: 1240-1940mm. Top diameter: 35mm, to suit flanges. Rated load capacity: 50kg. Weight: 6.5kg.


213 - Tripod base, 1385-2180mm, crank handle

This is a tripod stand with tubular legs, each with a double brace. Hand crank mechanism with push-button and locking-screw adjustment. Height range: 1385-2180mm. Top diameter: 35mm, to suit flanges, integrated M10 threaded bush for fastening crossbars. Rated load capacity: 50kg. Weight: 8.57kg.


21302 - Tripod base, 1385-2180mm, crank handle

A tripod stand with braced, folding legs, this has a hand crank with push-button and locking screw adjustment. Height range: 1385-2180mm. Top diameter: 35mm, to suit flanges, integrated M10 threaded bush for fastening crossbars. Rated load capacity: 40kg. Weight: 7.65kg.


214/6 - Tripod base, 1375-2185mm, lightweight

A lightweight aluminium stand with steel extension tube, this has a spring-loaded bolt and locking-screw adjustment. Finish: Black or white. Height range 1375-2185mm. Top diameter: 35mm, to suit flanges. Rated load capacity: 50kg. Weight: 4.38kg.


21420 - Tripod base, 1375-2185mm, lightweight

A lightweight aluminium stand for smaller speaker loads, this has a clamp with locking-screw adjustment. Height range: 1265-2105mm. Extension tube diameter: 25mm, flange adapter 19665 available. Rated load capacity: 12kg. Weight: 1.32kg.


21435 - Tripod base, 1430-2240mm, 50kg capacity

A steel tripod stand, the improved model has 35mm legs and locking-screw with push-button adjustment. Height range: 1430-2240mm. Top diameter: 35mm, to suit flanges. Rated load capacity: 50kg. Weight: 5.91kg.


21436 - Tripod base, 1430-2240mm, 40kg capacity

Aluminium tripod stand with steel stem, the improved model has 35mm legs and locking-screw with push-button adjustment. Height range: 1430-2240mm. Top diameter: 35mm, to suit flanges. Rated load capacity: 40kg. Weight: 3.41kg.


21449 - Pair of stands with bag, 40kg capacity

A package including 2x aluminium speaker stands and carry case. The loudspeaker stands feature a patented push-button system that allows height adjustment with ease. The legs can be unfolded using a clamping lever. Pole diameter is 35mm and 21326 38mm diameter adapter sleeve is included. Weight: 5.88kg


21450 - Tripod base, 1270-1930mm, 50kg capacity

Aluminium tripod stand with fibreglass-reinforced fittings, lever clamp with safety-pin adjustment. Finish: Black and anodised aluminium. K&M 21326 adapter for speaker flanges included. Height range: 1270-1930mm. Top diameter: 35mm, to suit flanges. Rated load capacity: 50kg. Weight: 2.34kg.

Available in pair with accompanying carry case as 21459.


21459 - Pair of stands with bag, 50kg capacity

This package includes 2x 21450 in black, along with accompanying carry case.


21454 - Tripod base, 990-1430mm, push button system

An aluminium manufactured speaker stand with cross-braced tripod legs and height adjustment of 990-1430mm. Height positioning is via push-button system with locking screw, and the load capacity is 30kg. Weight: 1.8kg.


21467 - Tripod base, 1370-2170mm, ring lock

Aluminium tripod stand with steel stem, improved model has 35mm legs and locking-screw with push-button adjustment. Height range: 1370-2170mm. Top diameter: 35-37mm due to expanding-mandrel locking system. Rated load capacity: 40kg. Weight: 3.41kg.

SQUARE BASE


26727 - Square base, 1110-1810mm, 50kg capacity

A 35mm diameter stand designed for use where space is at a premium. The base allows the tube to be mounted in three positions including centric, off-center position, and corner. The usable height is between 1110-1810mm and can be reached in 4 steps of 175mm, and the position is locked via clamping screw locking bolt. K&M suggest the maximum centric load capacity with full extension is 50kg, when used on horizontal surface and without lateral forces such as wind or shock. Dimensions: 550 x 550mm, base plate. Weight: 16.45kg, total.


26729 - Square base, 1110-1810mm, 18kg capacity

Like 26727 however with a base plate dimension of 406 x 406mm, and a maximum load capacity of 18kg. Weight: 10.1kg.


26731 - Square base, 1135-1835mm, 15kg capacity

This loudspeaker stand has a flat steel plate at the bottom. The plate has an integrated handle and cable management slot. The height is fixed with a safety hook and secured with a clamping screw, with height adjustment from 1135 to 1835mm in 5 steps of 140mm. When fully extended the stand is capable of 15kg capacity. Weight: 10.2kg


26732 - Square base, 1110-1810mm, 35kg capacity

A 35mm diameter speaker stand with flat steel plate measuring 489 x 489mm and weighing 13.38kg in total. The stand has an adjustable height range of 1110-1810mm and is fixed with a safety hook and clamping screw. The base has a central M20 fixing point only. Maximum load capacity is 35kg when fully extended however K&M suggest this is when used on horizontal surface and without lateral forces such as wind or shock. Weight: 13.38kg


26733 - Square base, 1135-1835mm, 30kg capacity

This loudspeaker stand has a flat steel plate at the bottom with an integrated handle and cable management slot. The height is fixed with a safety hook and secured with a clamping screw, with height adjustment from 1135 to 1835mm in 5 steps of 140mm. K&M's patented Ring Lock system provides steady speaker orientation. When fully extended the stand is capable of 30kg capacity. Weight: 13.2kg


24650 - Square base, 1420-2420mm, 20kg capacity

This lighting or speaker stand has the same feature set as 26732 however the base measures 489 x 489mm and the telescopic tube, which has an M10 bushing at top, is adjustable from 1420-2420mm. Maximum load capacity: 20kg. Weight: 14.48kg, total.


24651 - Square base, 1420-2420mm, 30kg capacity

Available in black or white finish, this lighting or speaker stand has a base plate measuring 550 x 550mm, telescopic pole with 35mm diameter upper and M10 threaded bush with range of 1420-2420mm. The tube has an integrated shock absorber and is secured using a spring-loaded bolt and locking screw. The base has a centralised M20 mounting thread only. Weight capacity: 30kg. Weight: 17.5kg.


24653 - Square base, 1420-2420mm, 20kg capacity

Like 26732 but with 3x fixing points on base, and telescopic range of 1420-2420mm. Weight: 14.4kg.


24654 - Square base, 1420-2420mm, 30kg capacity

Available in black or white finish, 24654 lighting or loudspeaker stand has the same features as 24651 however the base has three positions for mounting. Weight: 17.5kg.

ROUND BASE


26735 - Round base, 1100-1810mm, 30kg capacity

Steel stand with a 450mm diameter, round, cast iron base. Spring-loaded bolt and locking-screw adjustment. Finish: Black and white. Height range: 1100-1810mm. Top diameter: 35mm, to suit flanges. Rated load capacity: 20kg. Weight: 10.44kg.


26737 - Round base, 1125-1810mm, 30kg capacity

Similar in design to the 26735, with the extension tube fitted with the expanding mandrel locking system to secure speakers. Spring-loaded bolt and locking-screw adjustment. Height range: 1125-1810mm. Rated load capacity: 30kg. Weight: 10.00kg.


26750 - Round base, 1100-1810mm, 35kg capacity

Steel stand with a 450mm diameter, round, cast iron base. Wing nut locking screw with safety pin adjustment. Height range: 950-1430mm. Top diameter: 35mm, to suit flanges. Rated load capacity: 35kg. Weight: 8.34kg.

For a range of accessories for use with these floor mounting stands see K&M LOUDSPEAKER AND LIGHTING STANDS - Accessories
