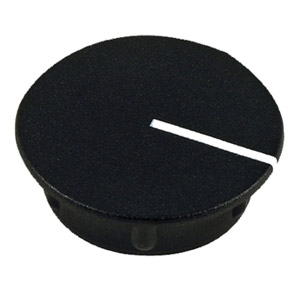

SIFAM C151 KNOB CAP For S150, S151, K150, W151, with line, black

Artikelnummer
58-930
Hersteller
Sifam (Sifam Controls, Sifam Meters)
Typennummer
  • C151
Farbe
  • BlackBlack
SIFAM C151 KNOB CAP For S150, S151, K150, W151, with line, black
SIFAM C151 KNOB CAP For S150, S151, K150, W151, with line, black

SIFAM KNOBS

Collet knobs

The collet knob design features a nut tightening chuck which tightens onto all pot shafts, with or without flats. Moulded in black nylon with satin-matt finish, this well known range of knobs offers various finishing and accessory options. Sifam's range is very extensive, but the types usually relevant to the pro-audio industry are stocked. The various caps and accessories all push fit onto the basic knob. Stock types are with white line on body, and with or without radial white or black line on cap.

Type Diameter Height Line Wing Shaft diameter Fixing torque
S111-004 11.5mm 13.5mm Yes No 4mm 3cm.kg
S150-250 15.5mm 13.5mm No No 0.25 inch 8cm.kg
S151-004 15.5mm 13.5mm Yes No 4mm 8cm.kg
S151-006 15.5mm 13.5mm Yes No 6mm 15cm.kg
S151-250 15.5mm 13.5mm Yes No 0.25 inch 15cm.kg
S211-006 21.5mm 17.0mm Yes No 6mm 15cm.kg

Caps

Available in various colours, and with white or black line.

Knob Cover with line
S111 C111
S150/S151/K150/W151 C151
S210/SW211 C211

Nut covers ('skirts')

Available in black in two sizes – N111 and N151, to suit collet knobs S111 and S151 respectively. Type S211 knobs have a large enough base to accommodate a nut recess. Depth of N111 3.5mm, N151 4.0mm: diameters 14.0mm and 18.5mm respectively.

Dials

Stock type D152 suits S151 and is calibrated 1-12 at 30 degree intervals. Other calibrations and knob sizes to special order.

Other type variations

All other types in the Sifam range are available to special order (may be subject to minimum order quantities). Please contact sales with enquiries.

Ordering note: Knobs and caps are sold separately.
