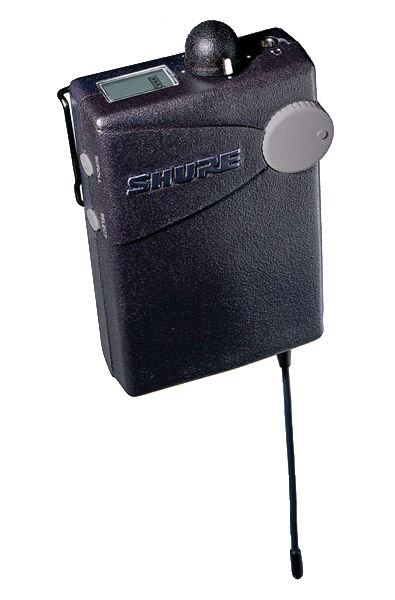

P4R Wireless Bodypack Receiver
PSM 400 Wireless Bodypack Receiver
Features
P4R Wireless Bodypack Receiver
|
Key Features |
|
- High-impact plastic chassis
- Frequency locator
|
|
Operating Controls |
|
- Operating mode (Stereo, Mono, MixMode)
- Volume knob
- Balance
- Defeatable limiter
- High-frequency boost
- Frequency select
|
|
Backlit LCD Indicators |
|
- RF reception
- Battery life
- Operating mode
- Frequency
|
Specifications
- RF Frequency Range
- 722 to 952 MHz (country dependent)
- Operating Range
- 300 feet (environment dependent)
- Audio Frequency Response
- 50 Hz to 12 kHz (+/- 3 dB)
- RF Sensitivity
- 1 mV typical
- Image Rejection
- 55 dB typical
- Spurious Rejection
- 60 dB typical
- Squelch Threshold
- 4.5 mV typical
- Antenna
- attached whip
- Power Requirements
- 9 V alkaline battery
- Battery Life
- up to 8 hours, volume dependent
- Audio Output Connector
- 3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
- Minimum Load Impedance
- 16 ohms
- Net Weight
- 125 g (.28 lbs.)
- Overall Dimensions
- 82.6 mm X 63.5 mm X 26.2 mm (3 1/4 in. X 2 1/2 in. X 1 1/32 in.)
