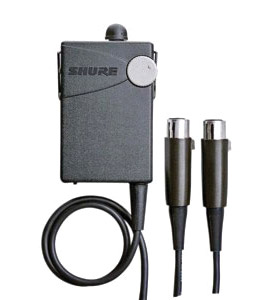

P4HW Wired Bodypack Personal Monitor
PSM 400 System Components
PSM400 Hardwired Bodypack.
Features
P4HW Wired Bodypack
Hardwired Bodypack
|
Key Features |
|
- Attached input cable
- High-impact plastic chassis
|
|
Operating Controls |
|
- Operating mode (Stereo, Mono, MixMode)
- Volume knob
- Balance knob
- Defeatable limiter
- High-frequency boost
- -15 db Pad
|
|
Backlit LCD Indicators |
|
- Battery life
- Input level
- Operating mode
|
Specifications
- Frequency Response
- 20 to 20,000 Hz
- Total Harmonic Distortion
- < .1% (measured at -10 dBu out)
- Channel Separation
- 35 dB (minimum)
- Signal-to-noise ratio
- 85 dB (minimum)
- Maximum Output Level
- +5 dBu at 1% THD
- Maximum Input Level
- +7 dBu, input pad OFF
- +22 dBu, input pad ON
- Actual Input Impedance
- > 40 kilohms
- Audio Output Connector
- 3.5 mm stereo (left=tip, right=ring, ground=sleeve)
- Power Requirements
- 9 V Alkaline battery
- Battery Life
- Up to 8 hours, volume dependant
- Phantom Power Protection
- Up to 60 VDC
