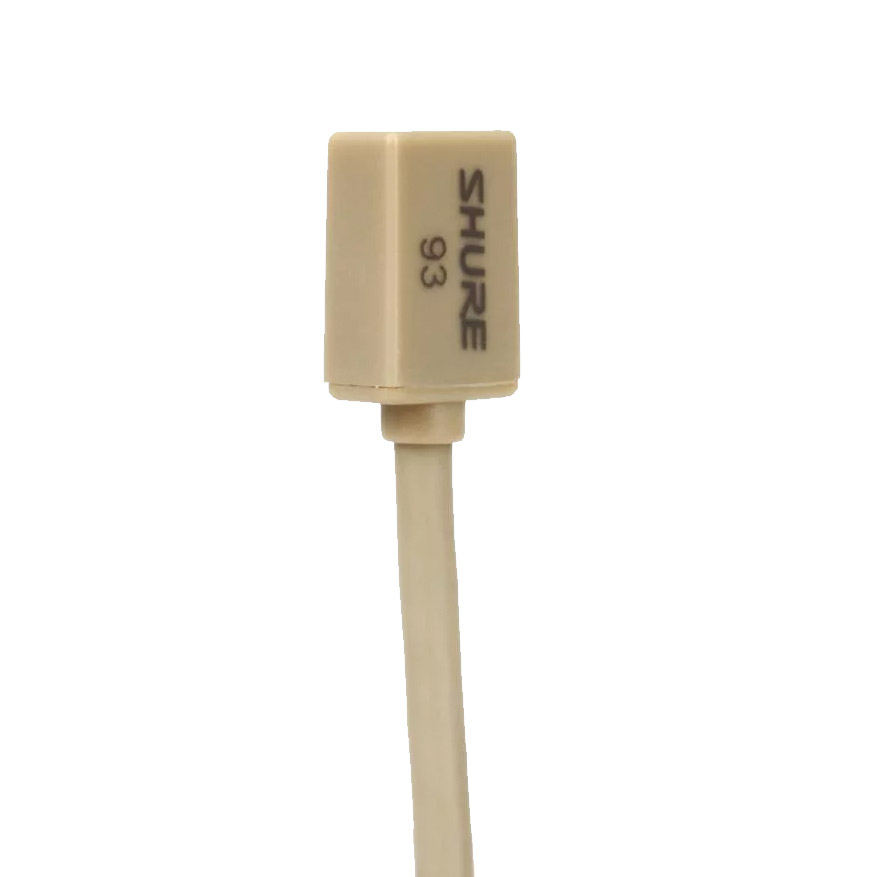

SHURE WL93T MICROPHONE Miniature lavalier, omnidirectional, TA4F connector, 1.2m cable, tan

Artikelnummer
74-6446
Hersteller
Shure
Typennummer
  • WL93T
Farbe
  • TanTan
SHURE WL93T MICROPHONE Miniature lavalier, omnidirectional, TA4F connector, 1.2m cable, tan
SHURE WL93T MICROPHONE Miniature lavalier, omnidirectional, TA4F connector, 1.2m cable, tan

Bestellangaben

MwSt. / Versand
160,65 
pro Stück (zzgl. MwSt.)
Dieses Produkt wird speziell für Ihre Bestellung eingekauft. Bei Stornierung können Gebühren entstehen, lieferbar in 2‑3 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an

WL93 Series Subminiature Condenser Lavalier Microphones

Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

  • WL93- Black, with 4-foot (1.2 m) Cable
  • WL93-6 Black, with 6-foot (1.9 m) Cable
  • WL93T - Tan, with 4-foot (1.2 m) Cable
  • WL93-6T - Tan, with 6-foot (1.9 m) Cable

Features

  • Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
  • Small, inconspicuous mounting hardware
  • Full, clear sound comparable to larger microphones
  • Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
  • Controlled low-frequency rolloff reduces low-frequency clothing and room noise
  • Low distortion, wide dynamic range
  • Uniform omnidirectional polar pattern
  • Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
  • Wide-range phantom powering (SM93) accepts all commonly used voltages

Specifications

SPECIFICATIONS WL93 MICROPHONE (with standard test circuit
shown in User Guide Figure 3)
SM93 MICROPHONE (with preamplifier)
Type Condenser (electret bias) Condenser (electret bias)
Frequency Response 50 to 20,000 Hz 80 to 20,000 Hz, 12 dB/octave rolloff below 100 Hz
  view larger
Polar Pattern Omnidirectional, uniform with frequency Omnidirectional, uniform with frequency
Output Impedance 3000 ohms Rated at 150 ohms (90 ohms actual)
Recommended minimum load impedance: 800 ohms
(May be used with loads as low as 150 ohms with reduced
clipping level)
Output Level
(1 Pascal = 94 dB SPL)
Open Circuit Voltage: -38 dBV/Pa (13 mV) Open Circuit Voltage: -43 dBV/Pa (7.0 mV)
Output Clipping Level
(at 1,000 Hz)
0.25 V at 120 dB -18 dBV (0.13 V) minimum
Total Harmonic Distortion Less than 1% at 120 dB Less than 1% at 120 dB
Maximum SPL 120 dB 120 dB
Dynamic Range (maximum SPL
to A-weighted noise level)
102 dB 98 dB
Output Noise (equivalent SPL) 18 dB typical, A-weighted 22 dB typical, A-weighted
26 dB, weighted per DIN 45 405
Hum Pickup (electromagnetic) N/A -4 dB equivalent SPL in a 1 mOe field (60 Hz)
Signal-to-Noise Ratio 76 dB at 94 dB SPL (IEC 651) 72 dB at 94 dB SPL (IEC 651)
Polarity Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)* Positive pressure on microphone diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output cable connector
Recommended Operating
Voltage
2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4) 11 to 52 Vdc phantom. Protected against reverse voltage application
Current Drain 40 microamps typical 0.33 mA
Environmental Conditions Operating Temperatures: -18 to 57 degrees C (0 to 135 degrees F)
Storage Temperatures: -29 to 74 degrees C (-20 to 165 degrees F)
Operating Temperatures: -18 to 57 degrees C (0 to 135 degrees F)
Storage Temperatures: -29 to 74 degrees C (-20 to 165 degrees F)
Cable Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature connector type TA4F (WL93T: Tan 1.27 m [4.17 ft]) Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature connector type (TA4F)
Case
Case Microphone: Black ABS thermoplastic case with
stainless-steel-mesh grille
Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
Preamplifier: Steel case with non-reflective black finish, black�chrome belt clip
Net Weight Microphone: 16 g (0.57 oz) Microphone: 16 g (0.57 oz)
Preamplifier: 118 g (4.17 oz)

* Produces positive voltage at pin 2 of Shure wireless receiver three-pin connector.

SHURE MICROPHONES - Miniature

Intended for use wired with a cable, or with a radiomic transmitter, this selection of Shure lavalier microphones includes dynamic and electret condenser types from the popular MicroFlex series, TwinPlex series, and DuraPlex subminiature series.

SM Series

MX Series

WL Series


WL183M, WL184M, WL185M

Shure describe these condenser lavalier microphones as 'professional, low-profile' mics, and they have been designed to improve on the ever-popular WL18x series. The main difference is that the microphones are 8mm shorter than their predecessors, however they also have a higher dynamic range with improved maximum SPL.

WL183M is omnidirectional, has a dynamic range of 121dB/111.5dB (TA4F/LEMO), and a maximum SPL of 141dB/133.5dB (TA4F/LEMO).
WL184M is supercardioid, has a dynamic range of 121dB/114dB (TA4F/LEMO), and a maximum SPL of 144dB/138dB (TA4F/LEMO).
WL185M is cardioid, has a dynamic range of 120.5dB/114.5dB (TA4F/LEMO), and a maximum SPL of 140.5dB/134dB (TA4F/LEMO).

All models have a frequency response of 70Hz - 20kHz, have capsules measuring 13.55 x 12.74mm (length x diameter), and have a weight of 20g.

Included accessories: Single tie clip, snap-fit windscreen, storage bag.


WL183, WL184, WL185

abgekündigt

WL183, WL184 and WL185 are electret condenser designs; each has a 1.2m cable terminated with a miniature 4-pin connector. The included tie clip mount can be rotated in 90 degree intervals for placement flexibility. The condenser cartridges are interchangeable.

Optional accessories: RB183B, RB183W, RB184B, RB184W, RB185B. RB185W alternative cartridges; C122 replacement cable and housing.


WL93, WL93-6, WL93T, WL93-6T

Model WL93 Microphones are economical, omnidirectional, sub-miniature, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. They have cable terminated with a 4-pin miniature connector which connects directly to a Shure wireless body-pack transmitter. Cable lengths are 1.2m (WL93 and WL-93T) and 1.9m (WL93-6 and WL93-6T).
