Billed by JBL as “The most significant advance in sound contractor’s tools since the fishtape”, this range is designed “for indoor and outdoor applications ranging from restaurants, clubs and upscale retail establishments to health clubs and amusement parks”.
These speakers are intended for permanent installation. Enclosures are moulded from high-impact polystyrene, lightly textured, ready for painting when decor matching. High frequency drivers offer horn-tailored directivity and the compact dimensions and adjustable mounts supplied help the installer to place the full-range cabinets unobtrusively, with the easily-placed sub-bass unit available, for low-distortion low-band output.
Connection is by screw down terminal strip. Models with factory-installed 100V/70V line transformers are available, and the extensive use of high-tech materials promotes speaker life expectancy while increasing weather resistance. (Note that while some of the products are splash-proof, they are not claimed to be totally weather proof. The sub-bass unit is not intended for outdoor use). Protection circuitry is included inside the Control 23-1, 25-1 & 28-1L providing power limiting to protect cross-over network and transducers.
Mounting options
All models except the sub-bass unit are supplied complete with “InvisiBall” mounting kits. The shaft consists of a short steel rod with a ball at one end, and threaded at the other. This fits to a wall-mounting plate, which must be fastened to a suitable surface or one of the accessory products, prior to fitting the speaker. At the final installation phase, perhaps after decoration or refinishing the cabinets, the speaker is placed onto the ball so that it sinks within the cabinet and is gripped by the internal clamp. Vertical rotation of up to 37° off axis and horizontal rotation of up to 44° off axis is possible. The clamp is tightened up, after pointing the speaker, using the hex key provided, through a hidden access behind the logo badge, thus giving a high degree of theft prevention. Alternative shafts are available (MTC-**CM types) which may be used with suitable hook clamps or connected to Omnimount systems (see below).
abgekündigt
JBL Control 23-1 and Control 23-1L are 'ultra-compact' loudspeakers designed for installation where space is limited, for example in foyers, retail or other applications where foreground/background music and paging are required, with minimum aesthetic impact. All Control 23 models feature 76mm woven fibreglass coned woofer and 13mm high frequency diaphragm. Control 23-1 and Control 23-1-WH have a fitted line transformer for single tap: 1.8/3.7/7.5/15W at 70V, or 3.7/7.5/15W at 100V. Control 23-1L has the same audio properties as Control 23-1 however doesn't feature an internal transformer and is therefore only applicable to 8ohm operation.

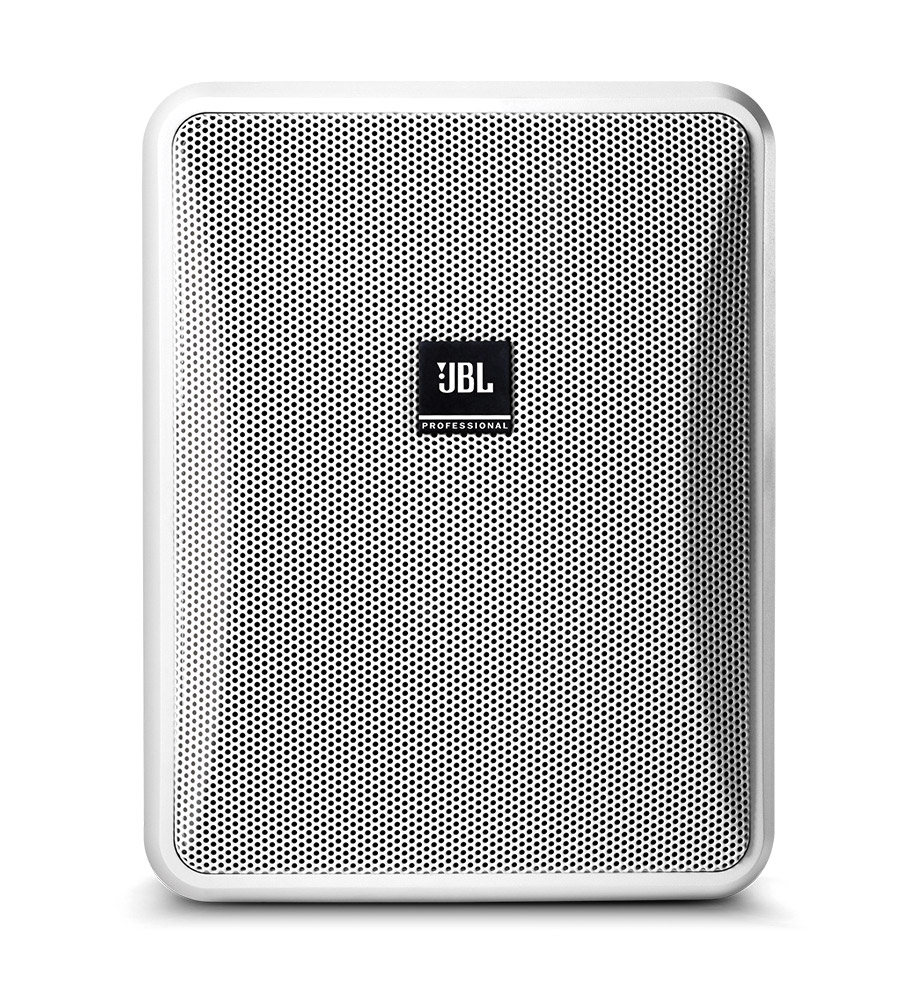

Mid-sized system for sound re-enforcement in larger bars and multi-distribution in larger venues. Cone is 135mm, with 19mm high frequency unit. Control 25-1 has a wide coverage range of 100 degrees horizontal and 100 degrees vertical. Control 25-1 has transformer, with switch selectable taps 3.7, 7.5, 15 and 30W @70V, and 7.5, 15 and 30W @100V.
abgekündigt
25mm high frequency driver and 200mm low frequency driver along with a continuous program power rating of 240watts and a coverage of 100 degrees horizontal and 100 degrees vertical mean this speaker is suitable for retail, health clubs, restaurants and hospitality. Control 28-1L doesn’t feature an internal transformer and therefore is only applicable to 8ohm operation.
Technical Specification:
Notes: *1 +/-10dB; *2 “Continuous Program”; *3 non 'L' versions only
abgekündigt
Slot-loaded, vented, bandpass sub-bass unit featuring dual-coil 254mm bass driver. Enclosure tuning optimised for use with Control Contractor series. Two 8-ohm inputs are provided, intended for a stereo pair, which are fed via a high pass filter out to the satellite speakers, and to the two bass driver coils to produce a summed low frequency signal. Power capacity: 340W continuous, Sensitivity 100dB, 1W, 1m. Frequency range 38Hz–160Hz. Dimensions: 394 ×585 ×343 mm. Weight: 19.1kg net. Not intended for outdoor use. Suitable bracket: MTC-SB2W.
abgekündigt
Control 52 surface mount satellite speakers have been designed to function as part of a low impedance system, or 70/100V line system when used with Control 50S/T subwoofer. The 60mm driver features a ‘secondary bucket magnet for high efficiency’, whilst 19mm copper clad, aluminium voice coil aids reliability. A 150 x 150-degree coverage angle allows for better room coverage.
Available in black or white finish, the satellite speakers have colour-matched wall brackets that allows angles of up to 45-degrees off-axis. Control 52 are often used in conjunction with Control 50S/T for a more rounded sound. A complete kit is available as Control 50 Pack.
Frequency response: 140Hz – 20kHz, -10dB; 180Hz – 17kHz, +/-3dB. Power capacity (continuous): 50W, program (2hrs); 25W, pink noise (2hrs); 30W, program (100hrs); 15W, pink noise (100hrs). Nominal sensitivity: 85dB, 1m, 1W. Maximum SPL (1m): 94dB, average; 100dB, peak. Nominal impedance: 16ohms. Dimensions (HxWxD): 115 x 84 x 96mm, cabinet. Weight: 0.7kg.
abgekündigt
This 150W continuous, 600W peak subwoofer is designed to be wall mounted using a 2-piece mounting wall bracket. The 8-inch driver allows for frequencies down to 32Hz and is a perfect match for up to four Control 52 satellite speakers – utilising the integrated and preset crossover. The mono subwoofer also has a loop output, and 100V input transformer taps of 80/40/20W, and additional tap of 10W at 70V. The sub can also function at 8ohms in bypass or thru mode.
Frequency response: 32Hz – 200Hz, -10dB; 50Hz – 150Hz, +/-3dB. Power capacity (continuous): 300W, program (2hrs); 150W, pink noise (2hrs); 200W, program (100hrs); 100W, pink noise (100hrs). Nominal sensitivity: 95dB, 1m, 1W. Maximum SPL (1m): 115dB, average; 109dB, peak. Nominal impedance: 8ohms, bypass mode. Transformer taps: 80/40/20, 100V; 80/40/20/10, 70V. Dimensions (HxWxD): 356 x 391 x 203mm, cabinet. Weight: 9kg.
abgekündigt
These packs comprise of a single Control 50S/T subwoofer and four Control 52 satellite speakers.
Frequency range: 32Hz – 20kHz, -10dB; 50Hz – 17kHz, +/-3dB.
abgekündigt
A bracket for installing the SB2 subwoofer onto a wall or into a corner. The bracket acts as an enclosed shelf upon which the SB2 sits. The bracket’s outside lip and securing screws keep the subwoofer from sliding off or jumping out of the support.
