ZOOM U-44 USB AUDIO INTERFACE 4x4, mic/line in, S/PDIF I/O, MIDI I/O, modular mic options

Artikelnummer
79-2943
Hersteller
Zoom
Typennummer
  • U-44
ZOOM U-44 USB AUDIO INTERFACE 4x4, mic/line in, S/PDIF I/O, MIDI I/O, modular mic options
ZOOM U-44 USB AUDIO INTERFACE 4x4, mic/line in, S/PDIF I/O, MIDI I/O, modular mic optionsZOOM U-44 USB AUDIO INTERFACE 4x4, mic/line in, S/PDIF I/O, MIDI I/O, modular mic optionsZOOM U-44 USB AUDIO INTERFACE 4x4, mic/line in, S/PDIF I/O, MIDI I/O, modular mic optionsZOOM U-44 USB AUDIO INTERFACE 4x4, mic/line in, S/PDIF I/O, MIDI I/O, modular mic optionsZOOM U-44 USB AUDIO INTERFACE 4x4, mic/line in, S/PDIF I/O, MIDI I/O, modular mic options

Bestellangaben

MwSt. / Versand
Nicht mehr hergestellt. Bitte wenden Sie sich an unser technisches Unterstützungsteam für Informationen über Alternativen.
RoHS Konform

ZOOM USB AUDIO INTERFACES

Zoom USB audio interfaces have been designed to allow mobile or studio recording of audio up to 24-bit/192kHz in resolution, whilst giving a combination of mic, line or digital I/O.

U-Series

U-22

abgekündigt

This stereo audio interface has the smallest form factor in the U series, and has been specifically designed for those on the move. I features connectivity to laptop or iPhone/iPad (via optional cables) and offers line level input on stereo 3.5mm jack connection, along with mic/Hi-Z input on combination XLR/TRS jack connection. Recording can be from one of the inputs where the line level input takes precedence over the XLR/TRS input.

Switching, positioned on the right side of the device, includes power source switching (USB or battery/DC), 48V phantom power on/off, and direct monitoring on/off. Connection to Apple iPhone or iPad requires optional Apple iPad Camera Connections Kit or Lightning to USB camera adapter.

A rotary controller on the front facing panel of the U-22 allows input gain control and is complimented with a multi-coloured clip/signal LED. Output level can be controlled via a larger rotary controller also on the front fascia. Line output is via dual RCA (phono) connections, headphone output is via 3.5mm stereo jack socket, and USB 2.0 output is via type B connection – which also allows bus powering. Direct monitoring offers zero-latency. Optional AD-17 power supply can be used, and U-22 can also be powered with 2x AA battery cells for around 5 hours continuous operation with phantom power off.

Input gain: 0-42dB. Input impedance: 2.6kohm, mic; 484kohm, Hi-Z; 22kohm, line. Maximum input level: -0.8dBu, mic; +8.8dBu, Hi-Z; +1.0dBu, line. Headphone output impedance: 10ohms. Sampling frequencies: 96/88.2/48/44.1kHz. Bit depth: 24-bit. Power consumption: 5W. Dimensions (DxWxH): 119.2 x 91.8 x 44.6mm. Weight: 151g

U-24

abgekündigt

Like the U-22, the U-24 has been designed with a compact form factor for users wishing to use outside of the studio. With the ability to connect to computer (Windows or Mac OSX), or iPhone/iPad using optional accessories, U-24 has an increased I/O capability over the U-22.

The front facing panel has two XLR/TRS jack combo inputs, each utilising a mic preamplifier the same as those employed in the H5 and H6 recorders, and input one with the ability to cater for Hi-Z input. To the left of each input there is a rotary input gain controller, and multi-coloured LED to signify signal or clipping. A Hi-Z on/off switch is positioned to the left of input 1, and a global +48V phantom power on/off switch to the left of input 2. Line outputs in the form of dual RCA (phono) connectors for outputs A and B, and dual unbalanced 6.35mm TRS jack outputs for the main output. Headphone output is via 6.3mm jack connector. Both main output and headphone output have a rotary volume controller associated with them, along with mute status LED buttons. Two further rotary controllers allow the user to control the balance between output 1-2 and 3-4, and the mixing between directly monitoring the input or playback.

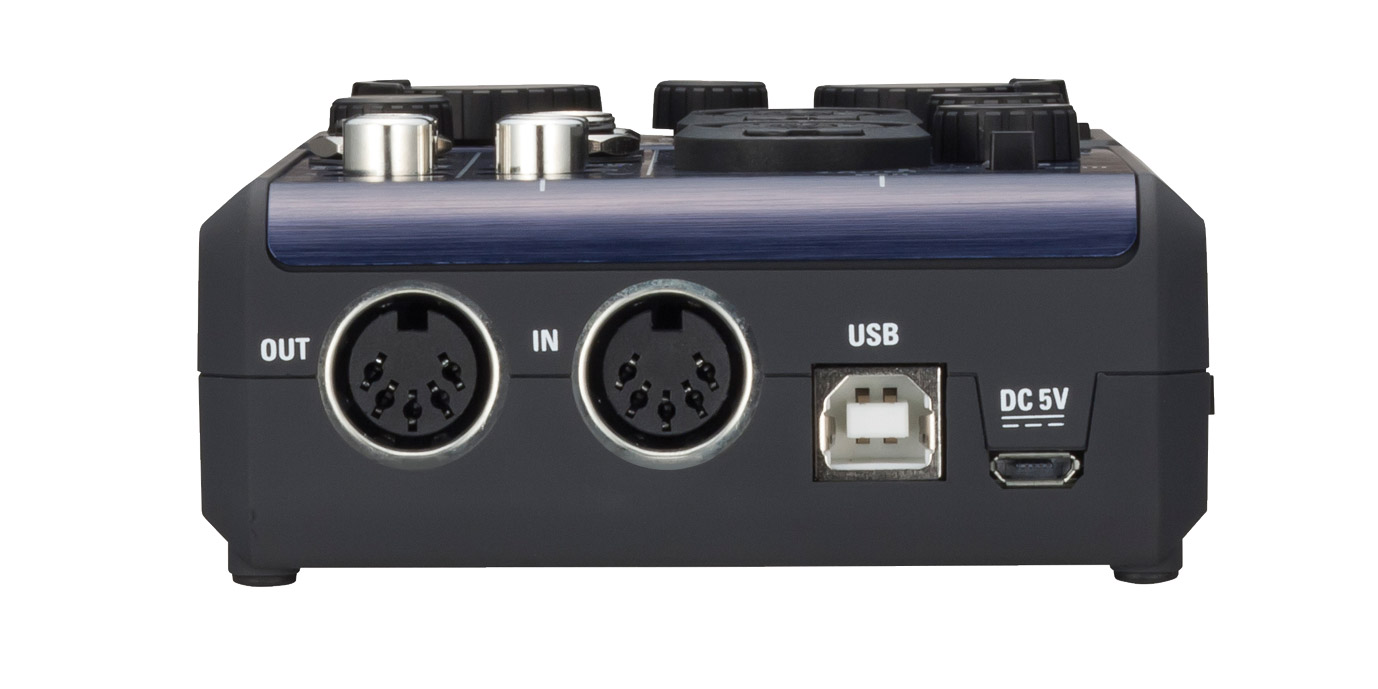

The rear facing panel of the U-24 gives access to MIDI I/O via 5-pin DIN jack connectors, and USB connectivity, along with connection for optional AD-17 power supply. U-24 is able to run from 2x AA battery cells for a continuous 4 hours without phantom powering employed.

Input gain: 0-43dB. Input impedance: 2.6kohm, mic; 1.1Mohm, Hi-Z. Maximum input level: -2.7dBu, mic; +20.7dBu, TRS in. Headphone output impedance: 33ohms. Sampling frequencies: 96/88.2/48/44.1kHz. Bit depth: 24-bit. Power consumption: 5W. Dimensions (DxWxH): 191.8 x 92.3 x 42.7mm. Weight: 285g

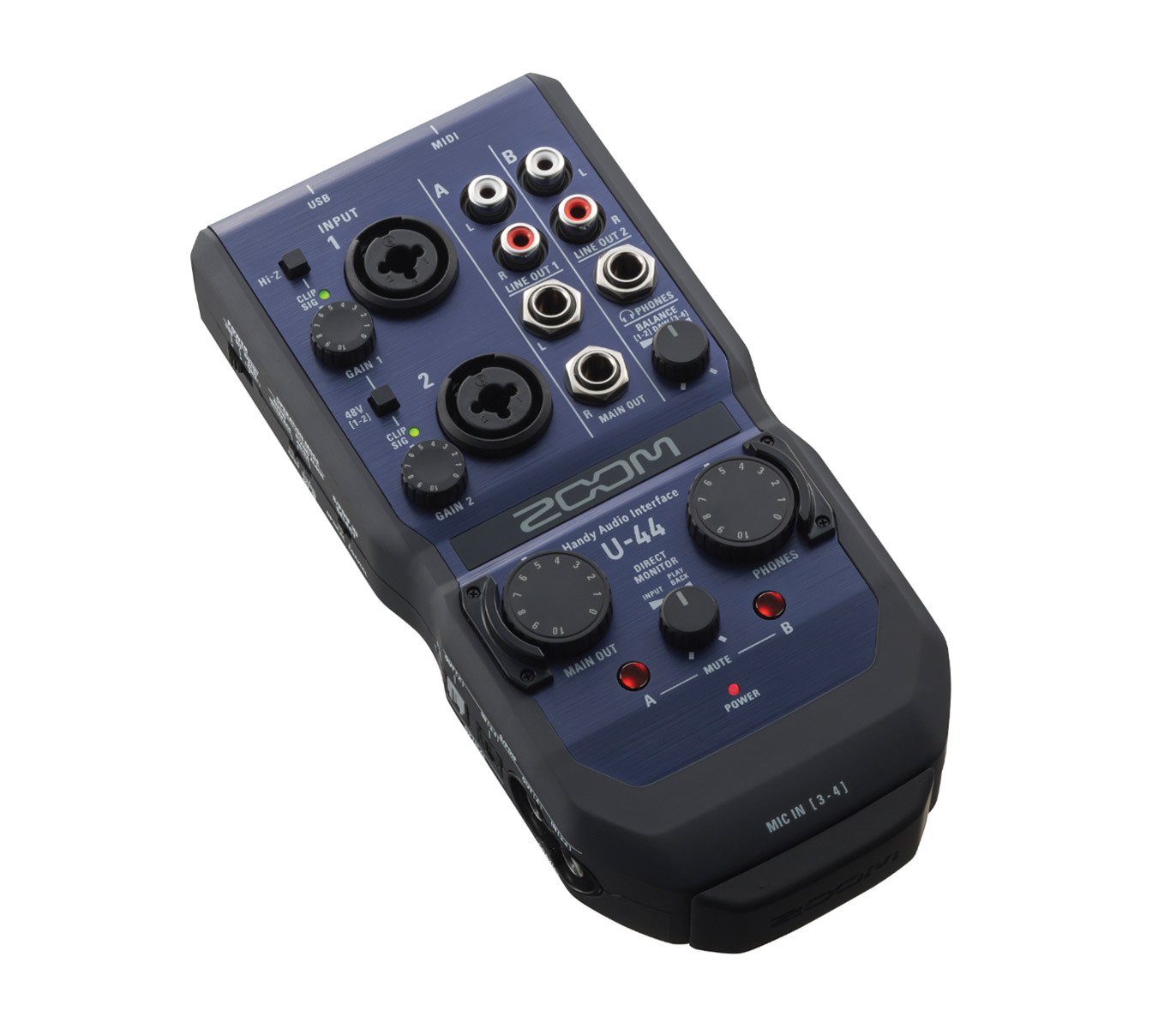

U-44

abgekündigt

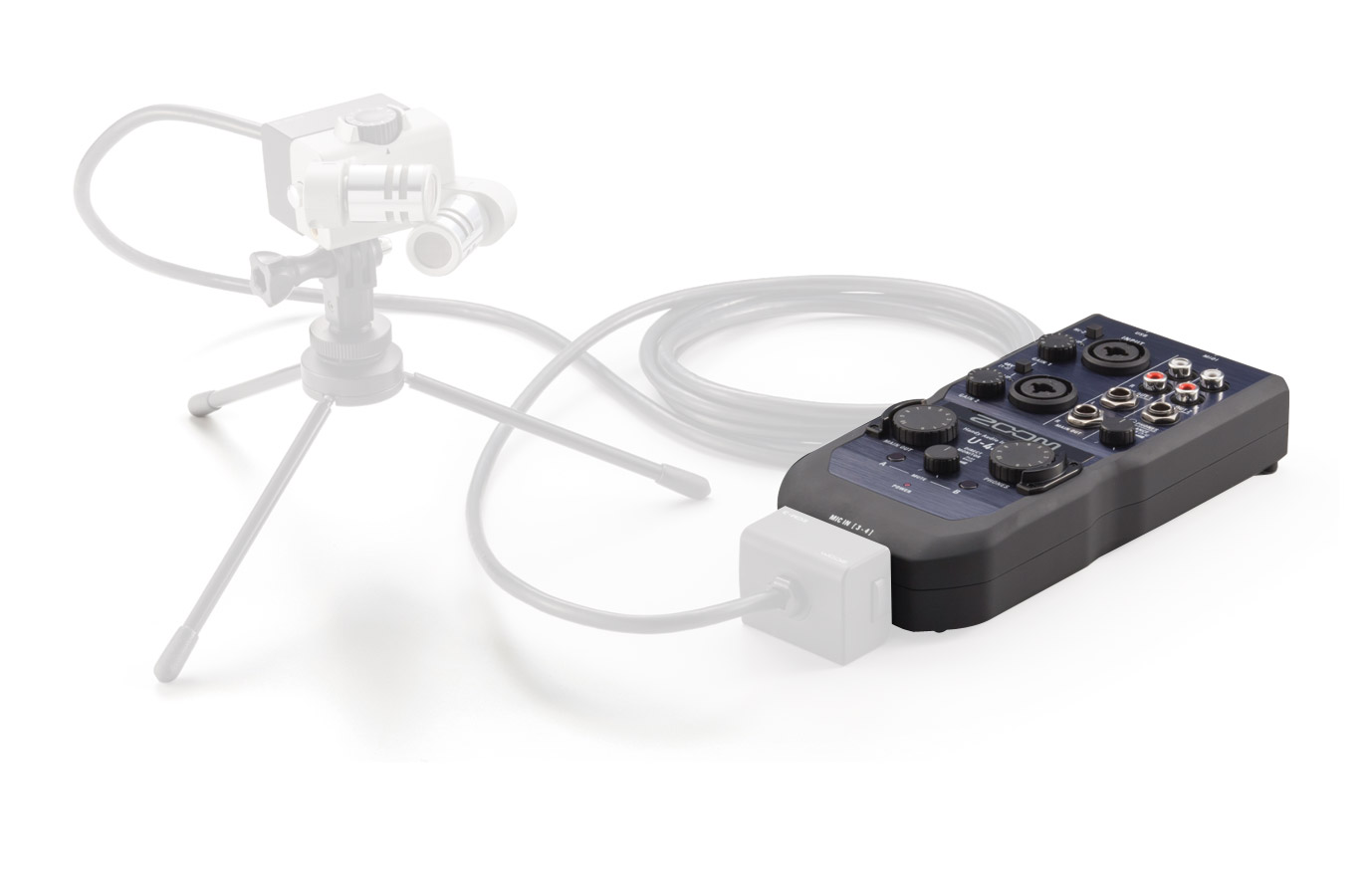

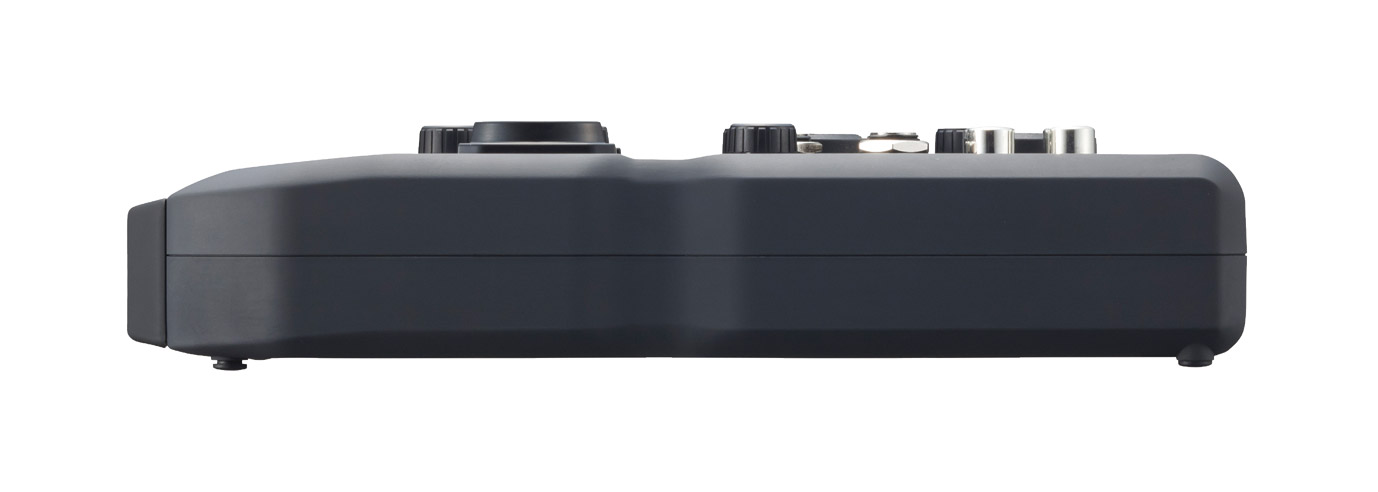

This audio interface has the same features of the U-24, however in addition to inputs one and two, an optional Zoom microphone module can be connected and used for microphone inputs three and four – offering four-channel simultaneous inputs. The left side of the U-24 also has S/PDIF connectivity via optical TOSLINK I/O and RCA coaxial connectors.

Supported microphone modules include XYH-6, MSH-6, SGH-6, EXH-6, SSH-6, and XYH-5.

Input gain: 0-43dB. Input impedance: 2.6kohm, mic; 1.1Mohm, Hi-Z. Maximum input level: -2.7dBu, mic; +20.7dBu, TRS in. Headphone output impedance: 33ohms. Sampling frequencies: 96/88.2/48/44.1kHz. Bit depth: 24-bit. Power consumption: 5W. Dimensions (DxWxH): 198.8 x 92.3 x 42.7mm. Weight: 310g

Comparison chart
U-22 U-24 U-44
Total inputs 2 2 4
Multi-track recording No Yes Yes
MIDI I/O No Yes Yes
Sampling frequencies 96/88/48/44.1kHz 96/88/48/44.1kHz 96/88/48/44.1kHz
Phantom power Yes Yes Yes
Zoom mic capsule option No No Yes
Mic preamps 1 2 2

UAC Series

UAC-2

abgekündigt

This 2-in/2-out, bus or DC powered USB 3.0 audio interface offers 24-bit, 192kHz resolution with two analogue inputs and MIDI I/O. UAC-2 is compatible with Windows based computers, Apple OS X, and iPad via optional Apple Camera Connection kit or Lightning to USB adapter.

UAC-2 utilises components including the Burr Brown PCM4202 analogue to digital converter and AKM AK4396 digital to analogue converter and is capable of upscaling audio during both conversions. When a sampling frequency of 44.1kHz or 48kHz is selected, the signal is processed at 176.4kHz or 192kHz which results in cleaner audio.

The front facing panel hosts the audio input connections by way of XLR/TRS jack combination connectors, each with a dedicated rotary gain controller and Hi-Z on/off switch. An additional latching button allows +48V phantom power to be turned on/off. Phantom power is applied globally. Each input channel has a dedicated LED to signify signal and clip status. To the right of the input section is a large rotary controller for output level, and to the right of that is a 6.35mm headphone jack output with dedicated rotary volume control.

The rear facing panel of the UAC-2 has 5-pin DIN MIDI I/O connections, left and right balanced 6.35mm jack outputs, a direct monitoring switch that allows mono/stereo/off setup for latency free monitoring, and a two-way class compliant mode switch that enables the UAC-2 to be connected to an iPad. A DC 5V connector is available for use with the optional AD-14 PSU, otherwise the unit can be bus powered via the USB 3.0 connection.

UAC-2 is compatible with Zoom’s UAC-2 MixEfx software, which can be downloaded free of charge here > https://zoomcorp.com/en/gb/audio-interface/audio-interfaces/uac-2/uac-2-support/
This product specific software enables the user to edit and set parameters, including mix set up, and add effects such as reverb or echo, and filters including low cut and phase reverse.

Included accessories: Operation manual, 1m USB 3.0 cable, Cubase LE download, Cubase LE startup guide.
Optional accessories: Zoom AD-14 PSU

Input gain: 0-60dB, in 1dB steps. Input impedance: 5kohm, 1Mohm with Hi-Z. Maximum input level: +12dBu. Maximum output level: +14dBu at 0dBFs. Output impedance: 100ohm. Headphone output level: +8dBu at 0dBFs. Headphone output impedance: 33ohm. Dynamic range: 118dB typical; A/D; 120dB typical, D/A. Sampling frequencies: 192/176.4/96/88.2/48/44.1kHz. Bit depth: 24-bit. Power consumption: 5W. Dimensions (DxWxH): 113.9 x 176 x 46.2mm. Weight: 750g.

UAC-8

abgekündigt

This 19-inch rackmount audio interface has the same technical attributes as the UAC-2 however is has 18 inputs and 20 outputs including balanced L/R main outputs and eight line level outputs. UAC-8 also features eight ADAT and stereo S/PDIF digital I/O and built in word clock for system integration, whilst the headphone output capability is doubled to two independent outputs and volume controllers.

UAC-8 is compatible with Zoom’s UAC-8 MixEfx software, which can be downloaded free of charge here > https://zoomcorp.com/en/gb/audio-interface/audio-interfaces/uac-8/uac-8-support/
This product specific software enables the user to edit and set parameters, including mix set up, and add effects such as reverb or echo, and filters including low cut and phase reverse. +48V phantom power is applied in two groups of channels 1-4 and 5-8.

Included accessories: Operation manual, 1m USB 3.0 cable, Cubase LE download, Cubase LE startup guide.
Optional accessories: Zoom AD-19 PSU

Input gain: 0-60dB, in 1dB steps. Input impedance: 5kohm, 1Mohm with Hi-Z. Maximum input level: +13dBu. Maximum line output level: +14dBu at 0dBFs. Line output impedance: 150ohm. Headphone output level: +10dBu. Headphone output impedance: 33ohm. Dynamic range: 120dB typical; A/D; 120dB typical, D/A. Sampling frequencies: 192/176.4/96/88.2/48/44.1kHz. Bit depth: 24-bit. Digital I/O connectors: ADAT Optical (lightpipe) 44.1 kHz/48 kHz, 8-in/8-out; 88.2kHz/96kHz, 4-in/4-out, S/MUX compatible; 176.4kHz/192kHz, 2-in/2-out, S/MUX4 compatible; RCA coaxial, S/PDIF; BNC, 75ohm, word clock. Dimensions (DxWxH): 157.65 x 482.6 x 46.03mm. Weight: 2.02kg.
