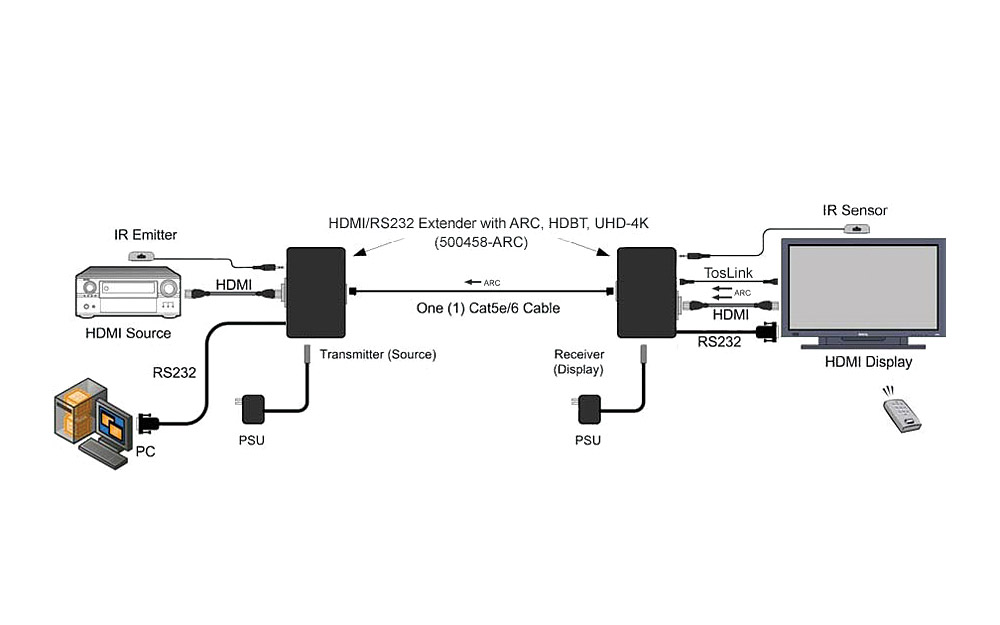

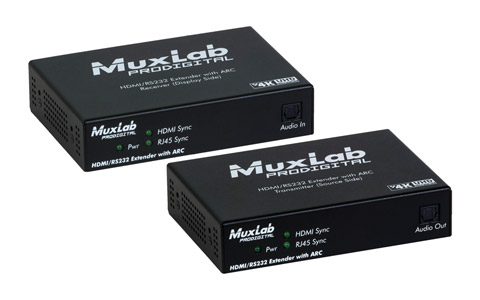

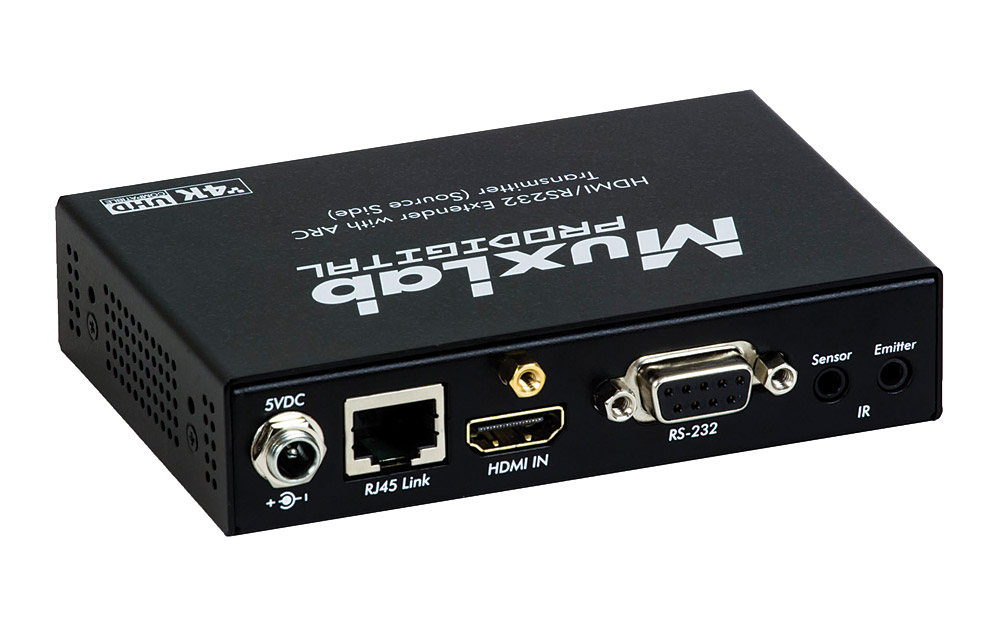

MUXLAB 500458-ARC VIDEO EXTENDER Kit, HDMI/RS232 over Cat5e/6, 4K/60, 40m reach

500040-42PK - VGA Balun, 107m reach

This unit allows the user to connect a VGA source with a VGA destination and link via a single 4-pair Cat5e/6 UTP cable up to distances of 107m at 800x600 resolution. Designed to be used with laptops, PCs, digital signage, projectors, and plasma TVs in locations including the classroom, boardroom, or digital signage in retail.

500700 - SDI, 122m reach

This will transmit 3G-SDI signals over 100 or 122 metres over a single Cat5e or Cat6 cable respectively, in a point-to-point configuration. Transmission of up to 2.97/3.0 Gb/s uncompressed, un-encrypted digital video is supported, optionally including up to 32 channels of embedded Audio and/or embedded time code, for use in such environments as 'within television facilities and between professional video equipment'.

The two cast-aluminium enclosures, encoder and decoder, each have an RJ45 connector for the Cat5/6 cable and a female BNC for the video connection. Power from the included AC adapters connects by a co-axial connector. LEDs indicate 'SDI Sync', 'RJ45 Sync' and 'Pwr' on each unit.

Standards supported: SDI-SMPTE 259M-C (270Mbps), HDSDI-SMPTE 292M (1. 485, 1.485/1.001 Gb/s), HD-SDI-SMPTE 424M/425M (2.97/3.0 Gb/s. Bit rates: 270Mb/s, 1.485Gb/s and 2.97Gb/s, automatically selected. For a detailed listing of the formats supported, please see the datasheet.

Maximum reach: Up to 100 metres using Cat5E UTP, up to 120 metres using Cat6 UTP.

Dimensions: 114 x 76 x 32mm each enclosure. Weight: 1.1kg. Operating temperature: 0-40 degrees C. Power source: 12V DC from the two AC adapters supplied.

500702 - SDI, 150m reach

This 'Longreach' version is similar to the 500700 model, see above, differing in it's capability to transmit 3G-SDI signals over 150 metres of a single Cat5e or Cat6 cable in a point-to-point configuration.

500715 - SDI to HDMI, 122m reach

The 500715 converts 3G-SDI to HDMI and then transmits it over a single Cat5e or Cat6 cable over a distance of up 100 or 122 metres respectively, at all resolutions and in a point-to-point configuration. It supports transmission of up to 2.97/3.0 Gb/s uncompressed, un-encrypted digital video, optionally including embedded audio and/or time code.

The two cast-aluminium enclosures, encoder and decoder, each have an RJ45 connector for the Cat5/6 cable. Power from the two included AC adapters connects by a co-axial connector in each case. The encoder has a female BNC for the video connection and LEDs which indicate 'SDI Sync', 'RJ45 Sync', 'Pwr', 'Video' and 'Sound'. The decoder has an HDMI output socket and LEDs which indicate 'HDMI Sync', 'RJ45 Sync' and 'Pwr'.

Standards supported: SDI-SMPTE 259M-C (270Mbps), HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gb/s) and HD-SDI-SMPTE 424M/425M (2.97/3.0 Gb/s). Sound format support: 48kHz, 24, 20, 16 bits. Bit rates: 270Mb/s, 1.485Gb/s and 2.97Gb/s, automatically selected. For a detailed listing of the formats supported, please see the datasheet. Maximum reach: Up to 100 metres using Cat5E UTP, up to 122 metres using Cat6 UTP. 'Maximum distance applies for all format and speed between boxes'. Dimensions: 114 x 76 x 32mm each enclosure. Weight: 1.1kg. Operating temperature: 0-40 degrees C. Power source: 12V DC from the two AC adapters supplied.

500716 - SDI to HDMI over Cat5E/6, 150m reach

This 'Longreach' version is similar to the 500715 model, see above, differing in it's capability to transmit 3G-SDI signals, converted to HDMI, over 150 metres of a single Cat5e or Cat6 cable in a point-to-point configuration.

500767 - 3G-SDI, 400m

Available as transmitter or receiver for UTP or multimode, 500767 is a gateway converter that allows the transference of uncompressed SDI video up to 3G 1080p at 60Hz. Useful for commercial broadcast, news, sports, and TV station services, the gateway converter can be implemented in a point-to-point or multipoint-to-multipoint configuration. A 1G Ethernet switch port allows the user to connect additional network devices, whilst a RS232 port is included to assist remote control. Supporting SMPTE ST-2110 the unit can be managed via a web interface and an NMOS (Networked Media Open Specifications) system via a RestAPI.

Options:
500767-TX-UTP Transmitter, UTP
500767-RX-UTP Receiver, UTP
500767-TX-MM Transmitter, Multimode
500767-RX-MM Receiver, Multimode

Dimensions : 111 x 120 x 25 (WxDxH) mm. Weight: 0.7kg.

500730 - SDI, 100m reach

This 6G-SDI Extender over UTP will carry a 6G SDI video signal over up to 100 metres of cable between the transmitter and receiver with 4K resolution. A 3G-SDI or HD-SDI signal can be extended up to a maximum of 150m in 'long-reach' mode.

Power is required by the receiver, which remotely powers the transmitter over the Cat5E/Cat6 cable. The input source for the transmitter is 'HD-SDI using single, two or four coax cables, 3G-SDI using single or two coax cables, and 6G-SDI using a single coax cable'. The kit 'supports all 6G channel configurations (1/2/4)', with a maximum supported resolution of 4096x2160 at 24/25 frames per second, 3840x2160 at 30 frames per second. SDI link recognition and configuration is automatic as is 'long-reach' mode, 150 metres, when a 3G-SDI or HD-SDI signal is detected.

The transmitter has, on the front panel, five BNC connectors, for four SDI inputs and one sync connection. The rear has an Ethercon RJ45 socket for the UTP cable, while the top has a mini USB connection for firmware updates and control, as well as status LEDs for each of the four SDI connections plus 'Sync', 'Act' and 'Pwr'. It has multiple 1/4 inch threads 'for camera mounting or equipment attachment'.

The receiver has four BNC connectors for the SDI outputs, plus one for a sync input connection, an RJ45 socket for the UTP cable and a co-axial power inlet, all on the back panel. The front panel has a mini-USB socket, for firmware updates, and status LEDs, one for each SDI channel plus '6G', 'Act', 'Pwr' and 'RJ45 Sync'.

Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M. Control: Serial console emulation with USB interface. Power source: 48V DC, 0.7A from included AC adapter. Dimensions: Approximately 110 x 110 x 32 mm, transmitter; 146 x 105 x 26 mm, receiver.

500733 - SDI, 150m reach

Like the 500730, this is a 6G-SDI extender that works over UTP for distances of up to 100m between transmitter and receiver at 4K resolution. In 'long-reach' mode, a 3G-SDI or HD-SDI signal can be extended up to a maximum distance of 150m. Supporting up to 6Gbps the 500733 can transmit and receive combinations of source including one 6G-SDI source, two 3G-SDI sources or four HD-SDI sources. In addition, two Ethernet signals can be transmitted, which may be used as return channels, as well as a bi-directional RS232 signal pass-through for camera control unit (CCU) or tally light.

The transmitter has one 6G/3G/HD-SDI compatible BNC input, one 3G/HD-SDI compatible BNC input, and two HD-SDI compatible BNC inputs. Each input has an LED indicator that illuminates when a connected SDI link is established. An RS232 and 2.1mm DC power supply connection are located on the side of the unit with mini-USB port, for firmware update, and power status LED positioned on the top panel. The rear of the unit has a single Ethercon connector for UTP link and two RJ45 Ethernet ports. LEDs for 'sync' and 'ACT'. which illuminate to signify HDBase-T link and link traffic are detected.

The receiver has the same connectivity and LED indicators as the transmitter. Although the receiver requires power from the included 48V DC power supply, the transmitter can be powered via POE from the receiver. An additional POE transmitter/receiver can in turn be powered by POE via the Ethernet 'port1' connection.

Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M. Serial console emulation with USB interface. Power source: 48V DC, 0.7A from included AC adapter. Transmitter and receiver dimensions: 109 x 109 x 25.4mm.
