TOA WM-5270 G01 RADIOMIC TRANSMITTER Handheld, dynamic, 606-622MHz

Artikelnummer
91-6254
Hersteller
TOA
Typennummer
  • WM-5270 G01
  • WM-5270
TOA WM-5270 G01 RADIOMIC TRANSMITTER Handheld, dynamic, 606-622MHz
TOA WM-5270 G01 RADIOMIC TRANSMITTER Handheld, dynamic, 606-622MHz

Bestellangaben

MwSt. / Versand
370,80 €
pro Stück (zzgl. MwSt.)
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 4‑6 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
RoHS Konform

TOA WIRELESS SYSTEMS - 5000 Series

TOA 5000 series UHF wireless systems have been designed for corporate presentation, house of worship, and educational environments however the products would also a wider variety of situations whereby a UHF wireless system is required. A range of optional accessories including batteries, chargers, docks, and microphones are also available within the 5000 series range.

Frequency variants:

D04: 863 – 865MHz, channel 70, licence exempt
G01: 606 – 622MHz, channel 38 ready

A licence is required to operate this equipment in channel 38. Up to date information should be available at https://www.ofcom.org.uk/manage-your-licence/radiocommunication-licences/pmse.

Usage Note: Licensing and legal use information for radiomic equipment in this product group is applicable to the UK only. Customers should check with the relevant regulatory body for the territory the equipment is to be used in prior to purchase to ensure appropriate legal usage and local environmental restrictions.

RECEIVERS

WT-5805 Receiver

This half-rack width UHF wireless receiver utilises Phase Locked Loop (PLL) synthesis oscillators to enable up to 64 selectable frequency channels. A space diversity (also known as spatial diversity) system to improve the quality and reliability of the wireless link between transmitter and receiver.

The front panel features a two-line LCD display to show channel name, frequency, and both RF and AF strength, along with menu options. To the right of the front panel is a large output volume rotary control along with menu selection buttons and power on/off switch. LEDs show AF peak at 3dB below the clipping point, battery alarm lamp – which illuminates when the corresponding transmitter’s battery is low; and yellow A-B RF reception indicators.

The rear panel offers channel A/B 75ohm BNC antenna inputs, DC power supply input with cable hanger, unbalanced 6.3mm jack output, balanced 3-pin XLR output with line/mic level switch, and 10kOhm unbalanced 6.3mm jack input for connection to a second receiver’s AF output.

Power consumption: 200mA, 12V DC. Mixing output: -60dB, mic, 600ohm balanced 3-pin XLR; -20dB, line, 600ohm unbalanced 6.3mm jack. Mixing input: -20dB, 10kOhm, unbalanced 6.3mm jack. Antenna input: 75ohm BNC. Receiving sensitivity: 90dB. Squelch: 16-40 dBuV. Dimensions (WxHxD): 210 x 44 x 205.1mm. Weight: 700g.

WT-5800 Receiver

WT-5800 offers many of the same features as the WT-5805 with the added benefit of true diversity operation and antenna outputs for connection to compatible distribution units.

Power consumption: 250mA, 12V DC. Mixing output: -60dB, mic, 600ohm balanced 3-pin XLR; -20dB, line, 600ohm unbalanced 6.3mm jack. Mixing input: -20dB, 10kOhm, unbalanced 6.3mm jack. Antenna input: 75ohm BNC. Antenna output: 75ohm BNC. Receiving sensitivity: 90dB. Squelch: 16-40 dBuV. Dimensions (WxHxD): 210 x 44 x 205.1mm. Weight: 700g.

TRANSMITTERS

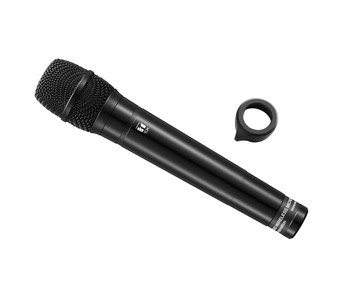

WM-5270 Handheld transmitter

This dynamic handheld transmitter has unidirectional properties and has been designed for vocal use. Up to 16 selectable frequencies within four bank are accessible depending on country of use. A pad switch allows the user to adjust the maximum input level from 130dB SPL to 142dB SPL. The base of the microphone has a power on/off button along with power LED and battery indicator which lights green when battery capacity is sufficient, and red when the battery status is low. Powered by single AA alkaline battery, for up to approximately 10hrs use.

RF carrier power: less than 50mW (factory preset to 10mW). Frequency response: 80Hz – 15kHz. Maximum input level: 142dB SPL. Dimensions (DxL): 48 x 244mm. Weight: 340g, with battery.

WM-5265 Handheld transmitter

TOA WM-5265 is a handheld transmitter with unidirectional, dynamic capsule. Depending upon country of use, one of up to 64 channels can be selected. Power and battery LED indicators are positioned on the shaft of the microphone above the power on/off switch. The battery compartment, which also houses rotary control for frequency selection is hidden behind a screw open part of the microphone casing. Compatible with WB-2000-2 Ni-MH battery or single AA alkaline battery. When using the WB-2000 battery, docked charging via an optional BC-5000 charging dock is accessible. Charging points or located on the bottom end of the microphone.

RF carrier power: less than 50mW (factory preset to 10mW). Frequency response: 100Hz – 15kHz. Maximum input level: 132dB SPL. Dimensions (DxL): 50 x 229mm. Weight: 180g, with battery.

WM-5225 Handheld transmitter

This handheld transmitter has all the features of the WM-5265 however the capsule is of unidirectional electret condenser design. Compatible with WB-2000-2 Ni-MH battery or single AA alkaline battery.

RF carrier power: less than 50mW (factory preset to 10mW). Frequency response: 100Hz – 15kHz. Maximum input level: 126dB SPL. Dimensions (DxL): 48 x 244mm. Weight: 180g, with battery.

WM-5325 Beltpack transmitter

TOA WM-5325 beltpack transmitter is for use with microphones, including lavalier and headsets types, fitted with a 3.5mm jack connector. Phase Locked Loop (PLL) synthesis allows the transmitter to operate on one of up to 64 selectable frequencies dependent upon country specific frequency legislation. Can be powered using a single WB-2000-2 battery to give up to 13hrs of operation, or a single AA alkaline battery to give up to 10hrs of operation. When using the WB-2000 battery, docked charging via an optional BC-5000 charging dock is accessible.

Microphone input, power on/off toggle switch and both battery and power LEDs are situated on the top edge of the transmitter with the manual channel selection dial and battery compartment positioned on the outer face. A belt clip is positioned on the rear face of the transmitter. The optional WH-4000P beltpack pouch is a useful accessory when using for aerobic application.

RF carrier power: less than 50mW (factory preset to 10mW). Maximum input level: -14dB to -29dB, 0dB = 1V. Frequency response: 100Hz – 15kHz. Dimensions (WxHxD): 62 x 102.5 x 23mm. Weight: 90g.

MICROPHONES

WH-4000A Headworn aerobic microphone

This headworn electret condenser microphone has been designed for aerobic use where the microphone is subject to more movement. The headband is manufactured from black Ethylene-vinyl acetate (EVA), and is attached to across the back of the silicon rubber frame. The gooseneck to which the unidirectional microphone capsule is positioned at the end of is manufactured from iron, which is chrome plated before covered in black shrink tubing. The fixed 1.3m cable is terminated with 3.5mm mono jack plug. Optional WH-4000S windscreens can be purchased as replacements to the included single windscreen.

Sensitivity: -66dB, +/-3dB. Maximum input level: 120dB SPL. Weight: 50g

WH-4000H Headworn microphone

WH-4000H has the same electronic principles as the WH-4000A, however this microphone doesn’t include the EVA headband required to eliminate excess movement. Optional WH-4000S windscreens can be purchased as replacements to the included single windscreen.

Sensitivity: -66dB, +/-3dB. Maximum input level: 120dB SPL. Weight: 50g

YP-M5300 Lavalier microphone

This unidirectional, condenser lavalier microphone has a black finish and features a 1.3m cable terminating with 3.5mm mono jack plug. Includes clip for attaching to clothing.

Sensitivity: -66dB, +/-3dB. Frequency response: 100Hz -12kHz. Maximum input level: 120dB SPL. Weight: 20g

YP-M5310 Lavalier microphone

This omnidirectional, condenser lavalier microphone has a dark black finish and features a 1.3m cable terminating with 3.5mm mono jack plug. Includes clip for attaching to clothing.

Sensitivity: -64dB, +/-3dB. Frequency response: 100Hz -15kHz. Maximum input level: 110dB SPL. Weight: 20g

BC-5000 Battery charging dock

The BC-5000 battery charging dock allows the user to insert WM-5265, WM-5225, or WM-5325 transmitters and fully recharge the contained WB-2000-2 Ni-MH (nickel-metal hydride) batteries within 3 hours. LEDs indicate when charging and when the battery capacity is full for easy identification. Power supply not included, see below.

Variants:

BC-5000-2 charges up to two transmitters simultaneously. Requires AD-5000-2 AC adaptor.
BC-5000-6 charges up to six transmitters simultaneously. Requires AD-5000-6 AC adaptor
BC-5000-12 charges up to twelve transmitters simultaneously. Requires AD-5000-6 AC adaptor
