Primarily intended for use with Trantec radiomic belt packs, these microphones may also be used, with appropriate adapters, in wired or wireless applications. Models are offered for use in applications from security through aerobics to stage vocals, with omni-directional and super-cardioid patterns. Over-the-head and over-the-ear styles are included, as well as some models in colour-coordinating blue and yellow!
Connectors
Trantec part numbers are usually prefixed to indicate which connector is fitted as standard. Trantec radiomic belt packs use a variety of connectors, so care should be taken to choose a microphone fitted with the connector to suit the equipment with which it is to be used.
SJ prefix: Trantec screw-jack. 3.5mm 3-pole.
TS prefix: Lemo, 4-pole.
X prefix: Miniature 4-pole XLR style.

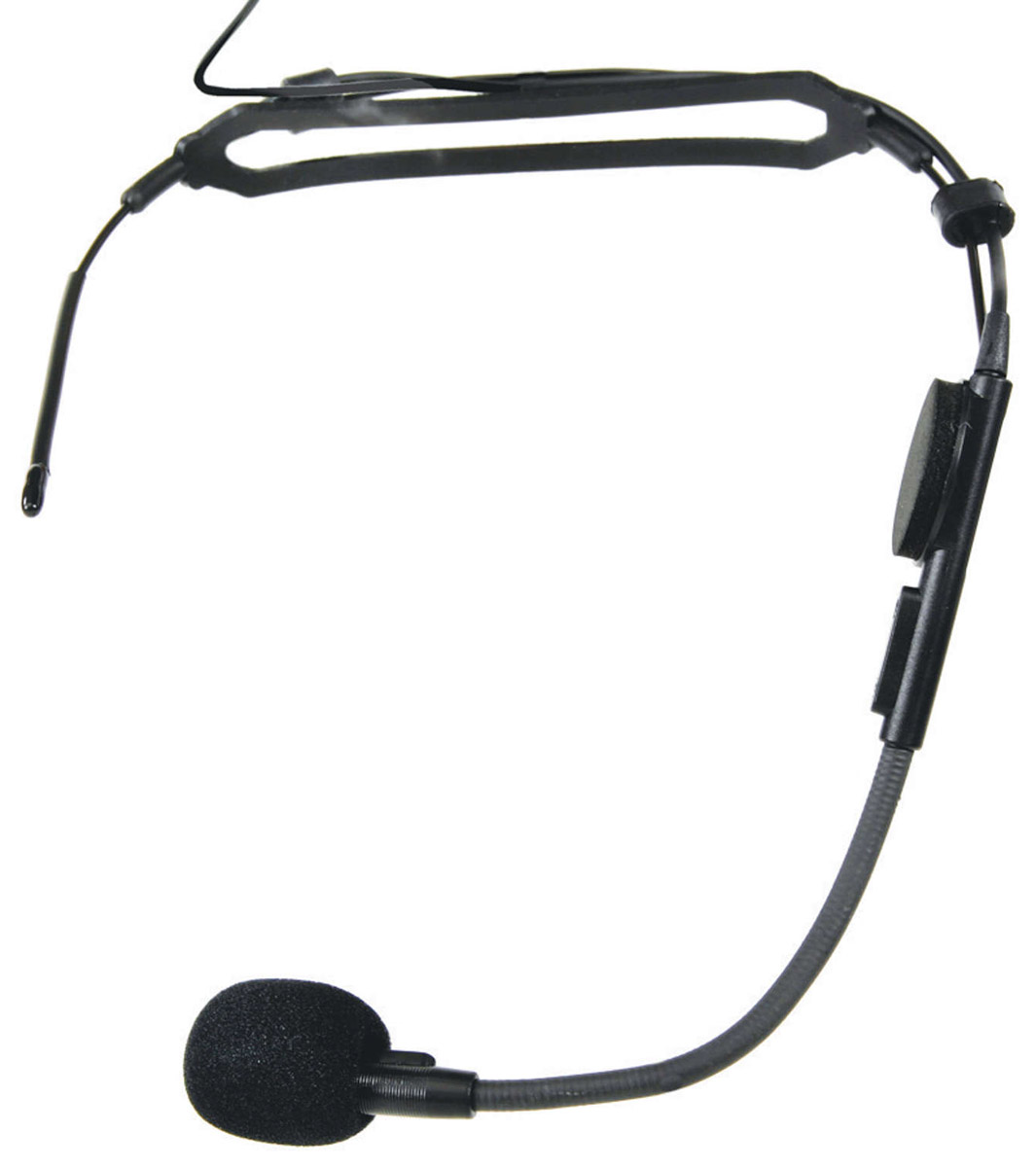

One of the smallest and lightest headband microphones available this is be worn around the head and may be hidden discreetly under the hair. The capsule, optimised for speech and vocals, is mounted on a boom that can be bent into shape for best positioning. A small membrane in the capsule housing protects the capsule from moisture, make-up and any other contaminents. This can be replaced cheaply and simply to preserve optimum performance. The headband is engineered from a hard-wearing nylon composite, selected to withstand the most robust use and yet adjustable to fit the head and ear shape of the user.
The -R (=red dot) suffix indicates that the microphone incorporates a -12dB pad (or attenuator) to avoid preamplifier overload when used with very high sound levels.
Omni-directional electret condenser. Response: 40Hz-18kHz, +/-3dB, Impedance: 4400 ohms. Supply: 2-10V 14-25mA. Cable length: 1.2m.
Included accessories: WS foam windshield.
HM-33
Designed primarily for the active professional who needs hands-free operation in applications such as sports, journalism, event organisation, transportation, warehousing and restaurant industries. The capsule and boom are moisture protected by moulded injections.
Omni-directional electret condenser. Response: 20Hz-16kHz. Impedance: 2000 ohms. Supply: 2-12V. Cable length: 1500mm.
Included accessories: 33WS foam windshield.
This was designed as a rugged hands-free microphone for sports and aerobics; other applications include TV Journalism, transportation, warehousing and the restaurant industries. An adjustable headband, worn behind the head, secures the microphone on an adjustable 4mm gooseneck, which is sealed for protection against water, dust, and perspiration. The capsule has efficient noise cancellation to help prevent feedback and reject interference from background noise of crowds and vehicles. It is available with blue and yellow, as well as black, goosenecks.
Super-cardioid electret condenser. Response: 60Hz-16kHz. Impedance: 3000 ohms. Supply: 2-20V 50uA. Cable length 1.5m.
Included accessories: 44WS foam windshield.
Technical note:
Electret and condenser microphones used with radiomic transmitter body-packs usually require a low voltage supply that is normally provided by the pack. When used with other equipment adapters are required which take the place of the pack, plugging directly into a standard XLR-3 microphone connection. These derive a power supply for the microphone from a mixer or standard phantom power supply, and provides a balanced output.
