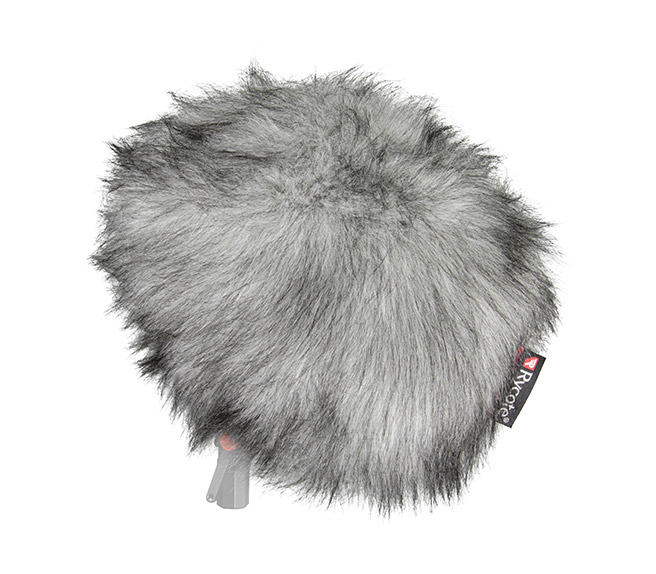

RYCOTE 021628 WINDJAMMER WJ AC

Artikelnummer
92-590
Hersteller
Rycote
Typennummer
  • 021628
RYCOTE 021628 WINDJAMMER WJ AC
RYCOTE 021628 WINDJAMMER WJ AC

RYCOTE MICROPHONE WINDSHIELDS AND SUSPENSIONS - Modular

This modular system can be configured to allow almost any microphone body, capsule or stereo pair, to be shock-mounted and provided with varying degrees of wind-shielding.

Components may be ordered separately, but are also available in a series of kits, which are HIGHLY recommended to simplify the selection process for many common configurations. See RYCOTE MICROPHONE WINDSHIELDS AND SUSPENSIONS - Blimp Style for further details.

Modular Suspensions

The modular suspension provides support for the microphone and the other accessories. It is a central bar fitted with two Lyre clips. The microphone is supported by the Universal Lyre clips (for microphones between diameters of 19-25mm). There are four different bar (module) lengths; 1, 2, 3 correspond to small, medium and large respectively. Half module types are a special case. See below. Sizes 1, 2 and 3 are moulded from a black, reinforced glass polymer incorporating a UV stabilizer to prevent UV light deterioration and a rubber additive to prevent it being brittle, making it up to 60% more stronger than the alternative metal bar. Other sizes are made from machined aluminium and hard-anodized in black.

'Mono' types - Single Microphone Body

These have two Lyre clips, to take a single microphone body. The name 'Mono' should be treated with caution since it refers to the suspension holding a single microphone which may be either mono or stereo. They are offered in three different sizes, each of which can accommodate various different microphones by using five different varieties of Lyre suspensions. Please see the compatibility chart below to select the appropriate size.

Included accessories: Pistol-grip with 3/8″ thread socket, lightweight boom adaptor (also 3/8″ socket), a clip-on XLR holder, a set of virtually unbreakable Universal Lyres for 19-25mm diameter microphones, a pair of square MKH Lyre clips and a hard-wired Connbox 1 (microphone tail for Large Modular Suspensions), a hex key for adjustments.
Optional accessories: Connboxes, Modular Windshields, Hi Wind covers, Windjammers; see below. Lyre clips for microphones with larger diameter (30mm) must be used with some models, with heavier microphones requiring grey, 30mm, 'heavy duty' lyre clips (see chart), order separately.

'Stereo' types - One or Two Microphone Bodies

These have two Lyre clips, to take a single microphone body, and, in general, are supplied with back-to-back clips to suit two microphone bodies mounted parallel to each other. The term 'Stereo' should be treated with caution, because certain larger single-body mono microphones require the larger diameter windshield and accessories in order to fit.

Included accessories: Pistol-grip with 3/8″ thread socket, lightweight boom adaptor (also 3/8″ socket), a clip-on XLR holder, a set of virtually unbreakable Universal Lyres for 19-25mm diameter microphones, a pair of square MKH Lyre clips and a hex key for adjustments.
Optional accessories: Connboxes, Modular Windshields, Hi Wind covers, Windjammers; see below. Lyre clips for microphones with larger diameter (30mm) must be used with some models, with heavier microphones requiring grey, 30mm, 'heavy duty' lyre clips. (see chart), order separately.

'Half Module' - One Microphone Capsule

Referred to by Rycote as a Mono Extended Ballgag (or XBG) due to the parts from a Baby Ballgag used to comprise it, is fitted with one 19/22mm Lyre clip at the front and one 9.5mm Lyre clip at the back.

Included accessories: Lightweight boom adaptor (3/8″ socket), hex key for adjustments and a clip-on XLR holder.
Optional accessories: Alternative Connboxes, Modular Windshields, Hi Wind covers, Windjammers; see below.

'Half Module' - Two Microphone Capsules

These have a single hoop and are supplied with dual clips to take two capsules mounted parallel to each other. The 'mono' size, referred to by Rycote as a Mono Extended Ballgag M/S, with a small hoop, is available with a dual ('MS') clip to take two capsules mounted parallel to each other. The 'stereo' size, referred to by Rycote as a Stereo Extended Ballgag M/S, with larger hoop, has a dual ('MS') clip. See optional accessories for suitable 'XY' clips.

Included accessories: Lightweight boom adaptor (3/8″ socket), replaceable silicone rubber suspension elements in the same 'weight', hex key for adjustments, a clip-on XLR holder and 2 x stepped rivets.
Optional accessories: Connboxes, Modular Windshields, Hi Wind covers, Windjammers; see below. The XY / MS mount fits into the 'stereo' half module 40215 suspension (not the smaller 'mono' version), replacing the standard MS clip, to take 19-20 or 21-22mm capsules such as Neumann AK and Schoeps CCM types. The mount uses an accurate reference pin-location system to provide preset 120, 105, 90, 70 or 0 degrees (MS) inter-capsule angles while maintaining true vertical coincidence.

Connbox

Microphone cable is frequently so stiff that it 'short circuits' acoustic isolation almost completely. The thick or double cables used for stereo microphones are particularly bad in this respect. The Connbox can be fitted to the Modular Suspension to avoid this and isolate and eradicate cable-borne noise. The Connbox acts as a transition connector and anchor point for the microphone cables. Available in mono or stereo models, it has a flexible starquad output cable that terminates in a 3-pin or 5-pin XLR at the pistol grip. The input cable which connects to the microphone(s) is an ultra-thin pluggable tail fitted with either a Lemo or XLR connector. The cable needs no special dressing or positioning.

Connbox 1 For most mono microphones with 3-pin XLR
Connbox 2 For longer mono microphones with 3-pin XLR
Connbox 3 For most stereo arrays with two 3-pin XLRs
Connbox 4 For single-body stereo microphones with 5-pin XLR
Connbox 5 For remotely mounted single microphone capsule with Lemo connector in a mono extended ballgag.
Connbox 6 For a stereo pair with Lemo connectors in a mono extended ballgag.
Connbox 7 For a stereo pair with Lemo connectors in a stereo extended ballgag.
Connbox 8 For a stereo pair with 3-pin XLR and Lemo connector.
Connbox MZL For a single stereo Sennheiser microphone with Sennheiser MZL to 3-pin XLR connector in a mono extended ballgag.

Connbox kits have two (colour coded) elements. The plastic box itself attaches to the suspension; it has one or two miniature input connectors, depending on model, and captive output cable. The input cable(s) connect between the microphone(s) and the box. The Connbox 7 and 8 are both supplied with two input cables of differing lengths (110/130mm (CB7) and 90/200mm (CB 8)) to allow for the vertical displacement of the stereo pair whereas the cables with the Connbox 6 are both 110mm.

Modular Windshields

These are light-grey plastic 'basket' windshields, which slide on to the Modular Suspension surrounding the whole microphone, connector and suspension, to provide excellent wind-noise reduction. Front and rear caps use a fast twist-on bayonet fitting. The basket interfaces to the metal bar of the suspension using an extruded plastic 'filler-strip' which also seals the connection. The modular nature provides for fitting extension pieces to extend the length of the windscreen, so one windshield can be used with several microphones. On 'stereo' baskets, only one end cap is removable. A wide range of sizes are available to cater for almost every microphone, see compatibility charts below. Technical Support can advise suitable models for those microphones not listed.

The 'mono' 100mm diameter and 'stereo' 140mm types fit 'mono' and 'stereo' suspensions respectively. Two sizes are sometimes referred to as 'extended' types, since they are basically two end caps from a 'Baby Ball Gag' (See Rycote non modular windshields) with an extension piece to produce a very short basket. These fit the half-module suspensions. Sizes AA and AC fit 'mono' and 'stereo' versions respectively.

Optional accessories: Hi Wind covers, Windjammers; see below. Filler strips are available as spares.

'Hi Wind' Covers

These can be fitted to windshields and can provide approximately 3-5dB improvement in wind-noise in low wind conditions. These are manufactured from a black fleece material, held in place by "hook and loop" fasteners (Mono Extended Ball Gag HWC uses elastic and not "hook and loop"). Each cover fits one specific size of windshield.

Windjammers

Windjammers are synthetic fur fabric covers in two-tone grey and can give 12dB+ of wind-noise reduction over a standard windshield. They fit securely using a draw-string (zipped versions are available to special order - contact Sales for details). The materials used are exceptionally transparent to audio and will remain so if regularly groomed with the brush provided. Each Windjammer fits one size of windshield.

Included accessories: Rycote 'quick-draw' hairbrush!

Suspension And Windshield Compatibility Chart - 'Mono'

Note: Some stereo microphones have a single body and fit inside 'mono' width suspensions and windshields.

Important: Small, medium and large in the table equate to 1-module, 2-module and 3-module. Mono XBG is a half module, 'mono' suspension, referred to by Rycote as a Mono Extended Ballgag.

Manufacturer Model Wind- Suspension Connbox Modular Modular Wind-
shield Windshield Windshield Jammer
Kit Body Extension /Hi-Wind
AKG CK1 451 2 Medium 1 2 N/A 2
CK1 460 2 Medium 1 2 N/A 2
CK91 SE300 B 2 Medium 1 2 N/A 2
CK92 SE300 B 2 Medium 1 2 N/A 2
CK93 SE300 B 2 Medium 1 2 N/A 2
CK61 C460 B 3 Medium 1 3 N/A 3
CK63 C460 B 3 Medium 1 3 N/A 3
D130 3 Medium 1 3 N/A 3
C568EB 4 Medium 1 4 N/A 4
CK68 C460B (1) 5 Medium 1 4 1 5
CK69 C460B (1) 5 Medium 1 4 1 5
CK98 SE300 B 5 Medium 1 4 1 5
CK8 451 6 Large 1 4 2 6
CK8 460 6 Large 1 4 2 6
CK68 C460B (2) 7 Large 1 4 3 7
CK69 C460B (2) 7 Large 1 4 3 7
Audio Technica ATM 33a 2 Medium 1 2 N/A 2
AT 4021 2 Medium 1 2 N/A 2
AT 875 3 Medium 1 3 N/A 3
AT 822 3 Medium 1 3 N/A 3
AT 825 3 Medium 4 3 N/A 3
BP 4025 3 Medium 4 3 N/A 3
AT 8022 3 Medium 4 3 N/A 3
AT 875R 3 Medium 1 3 N/A 3
AT 4073a 4 Medium 1 4 N/A 4
AT 835ST 4 Medium 4 4 N/A 4
AT 877 4 Medium 1 4 N/A 4
AT 897 4 Medium 1 4 N/A 4
ATR 55 4 Medium 1 3 N/A 3
ATR 6550 4 Medium 1 3 N/A 3
BP 4073 4 Medium 1 3 N/A 3
BP 4029 4 Medium 4 3 N/A 3
AT 835b 6 Large 1 4 2 6
AT 815ST 6 Large 4 4 2 6
AT 4071a 6 Large 1 4 2 6
BP 4071 6 Large 1 4 2 6
BP 4027 6 Large 4 4 2 6
AT 8035 6 Large 1 4 2 6
AT 815b 7 Large 2 4 3 7
AT 8015 7 Large 1 4 3 7
AT 4071AL 8 Large 2 4 4 8
Azden SG(M)-1X 4 Medium 1 4 N/A 4
SG(M)-2X (3) 6 Large 1 4 2 6
Beyer M160 2 Medium 1 2 N/A 2
M88 2 Medium 1 2 N/A 2
M201 2 Medium 1 2 N/A 2
MC713/723 2 Medium 1 2 N/A 2
MCE72 3 Medium 1 3 N/A 3
M69 3 Medium 1 3 N/A 3
MC718/728 3 Medium 1 3 N/A 3
MCE 87vs 4 Medium 1 4 N/A 4
MC 836 4 Medium 1 4 N/A 4
M58 4 Medium 1 4 N/A 4
MC 716/726 4 Medium 1 4 N/A 4
MC 736 5 Medium 1 4 1 5
MCE 86 N (C) S 5 Medium 1 4 1 5
MC 837 8 Large 1 4 4 8
MC 717/727/737 8 Large 1 4 4 8
ClockAudio C850E 4 Medium 1 4 N/A 4
DPA 4006 2 Medium 1 2 N/A 2
4011/4017 3 Medium 1 3 N/A 3
4041-S/4041-SP 3 Medium 1 3 N/A 3
Neumann KM 100 series 1 Small 1 1 N/A 1
KM 180 series 1 Small 1 1 N/A 1
KM 184 1 Small 1 1 N/A 1
KM100F 1 Small 1 1 N/A 1
RSM 191 Special Medium (4) N/A 3 N/A 3
KMR 81i 4 Medium 1 4 N/A 4
KMR 82 6 Large 1 4 2 6
Oktava MC 012 1 Small 1 1 N/A 1
Pearl MS 2/MS 8 Special Medium (4) 4 3 N/A 3
MSH10/20 Special Medium (4) 4 3 N/A 3
Rode NTG-1 3 Medium 1 3 N/A 3
NTG-2/NTG-3 4 Medium 1 4 N/A 4
NT4 Special Medium (4) 4 4 N/A 4
Roland CS-50 3 Medium (4) 4 4 N/A 4
Sanken CS 1 3 Medium 1 3 N/A 3
CMS 2 3 Medium N/A 3 N/A 3
CMS 7 3 Medium N/A 3 N/A 3
CS 2 3 Medium 1 3 N/A 3
CMS 9 4 Medium N/A 4 N/A 4
CS 3 4 Medium 1 4 N/A 4
CSS 5 Special Large (4) 4 4 1 5
Schoeps CCM CCM41 AB Mono XBG 5 AA N/A AA
CMC MK41 (6) AB Mono XBG 5 AA N/A AA
CMC Series 2 Medium 1 2 N/A 2
CMC Series (5) 3 Medium 1 3 N/A 3
CMIT 5U 4 Medium 1 4 N/A 4
Super CMIT 4 Medium 1 4 N/A 4
Sennheiser MKH 20, 40, 50 2 Medium 1 2 N/A 2
MKH 406 2 Medium 1 2 N/A 2
MKH 30 3 Medium 1 3 N/A 3
ME62 K6 3 Medium 1 3 N/A 3
ME64 K6 3 Medium 1 3 N/A 3
MKE 44P 3 Medium 1 3 N/A 3
MKH 416 4 Medium 1 4 N/A 4
MKH 418 4 Medium 4 4 N/A 4
MKH 60 4 Medium 1 4 N/A 4
MKH 8060 (7) 4 Medium 1 4 N/A 4
ME66 K6 5 Medium 1 4 1 5
ME80 K3U 5 Medium 1 4 1 5
MKH 70 6 Large 1 4 2 6
ME67 K6 7 Large 1 4 3 7
MKH 816 8 Large 1 4 4 8
MKH 8070 8 Large 1 4 4 8
Shure SM 81 3 Medium 1 3 N/A 3
VP 82 3 Medium 1 3 N/A 3
VP 89S 4 Medium 1 4 N/A 4
VP 89M 5 Medium 1 4 1 5
VP 89L 8 Large 1 4 4 8
SM 89 8 Large 1 4 4 8
Sony ECM 673 3 Medium 1 3 N/A 3
ECM 959 3 Medium 1 3 N/A 3
ECM MS5 3 Medium 4 3 N/A 3
ECM 680S 4 Medium 1 4 N/A 4
ECM 670 4 Medium 1 4 N/A 4
ECM 674 4 Medium 1 4 N/A 4
ECM 678 4 Medium 1 4 N/A 4
ECM 979 Special Medium (4) 4 4 N/A 4
ECM 999 4 Medium N/A 4 N/A 4
ECM 672 5 Medium 1 4 1 5
C74 7 Large 2 4 3 7
C76 Special Large 2 Special N/A Special

Note (1): Reduced length. (2): Full length. (3): With super-cardioid tube. (4): Special order version using larger lyres required - contact Technical Support for details. (5) With CUT1 filter. (6): With capsule remote. (7) With MZD pre-amp and MZF filter.

Suspension And Windshield Compatibility Chart - 'Stereo'

Note: Some mono microphones with a large body may fit inside 'stereo' suspensions and windshields.

Important: Mono XBG MS is a half module, 'mono' sized suspension with fixed M/S clips, referred to by Rycote as a Mono Extended Ballgag MS. Stereo XBG MS is a half module, 'Stereo' sized suspension with fixed M/S clips, referred to by Rycote as a Stereo Extended Ballgag MS.

Manufacturer(s) Model(s) Windshield Kit Suspension Windshield Windjammer Connbox
AKG C422/C522 (1) AF 30mm (080205) 2 module, Grey 30mm (040240) AF (010905) AF (021904) 4
CK91/CK94 AE (080203) 2 module, Black (040241) AE (010904) AE (021901) 3
AKG CK94/MKH416 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
and Sennheiser CK94/MKH60 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
Beyerdynamic MC833 (1) AF 30mm (080205) 2 module, Grey 30mm (040240) AF (040240) AF (021904) N/A
M130/M160 AE (080203) 2 module, Black (040241) AE (010904) AE (021901) 3
Neumann RSM191 (1) AF 30mm (080205) 2 module, Grey 30mm (040240) AF (010905) AF (021904) N/A
USM69 (1) AG 30mm (080206) 2 module, Grey 30mm (040238) AG (010906) AG (021906) N/A
KM120/KM140 (WKD-KM) AD (080202) 1 module, Grey Single (040243) AD (010903) AD (021635) 3
AK20/AK40 Stereo XBG MS (086022) Stereo XBG MS (040215) AC (010901) AC (021628) N/A
AK20/AK40 Mono XBG MS (086021) Mono XBG MS (040107) AA (010605) AA (021509) N/A
Rode NT4 (1) AF 30mm (080205) 2 module, Grey 30mm (040240) AF (010905) AF (021904) 4
Schoeps CMTS 301/501 (1) AF 30mm (080205) 2 module, Grey 30mm (040240) AF (010905) AF (021904) 4
CMC Series without Cut 1 AE (080203) 2 module, Black (040241) AE (010904) AE (021901) 3
CMC Series with Cut 1 AF (080204) 2 module, Black (040241) AF (010905) AF (021904) 3
CCM CCM41/CCM8 (2) Mono XBG MS (086021) Mono XBG MS (040107) AA (010605) AA (021509) 6
CCM CCM41/CCM8 (2) Stereo XBG MS (086022) Stereo XBG MS (040215) AC (010901) AC (021628) 7
Schoeps CMC/MKH416 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
and Sennheiser CMC/MKH60 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
Sennheiser MKH30/MKH40 AE (080203) 2 module, Black (040241) AE (010904) AE (021901) 3
or MKH20 or MKH50
MKH30/MKH60 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
MKH416/MKH30 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
Sennheiser MKH416/CK94 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
and AKG MKH60/CK94 AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
Sennheiser MKH416/CMC AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
and Schoeps MKH60/CMC AG (080201) 2 module, Grey (040245) AG (010906) AG (021906) 3
Shure VP88 (1) AG 30mm (080206) 2 module, Grey 30mm (040238) AG (010906) AG (021906) 3
Schoeps CMC MK41/MK8 (3) Mono XBG MS (086021) Mono XBG MS (040107) AA (010605) AA (021509) N/A
CMC MK41/MK8 (3) Stereo XBG MS (086022) Stereo XBG MS (040215) AC (010901) AC (021628) N/A

Note (1): Single body stereo. (2): Compact microphones. (3): Remote capsule.
