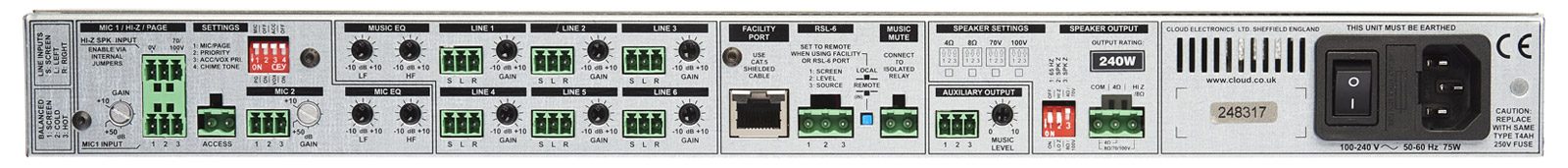

CLOUD MPA240MK2 MIXER AMPLIFIER 240W/4/70V/100V, 4x mic in, 6x line in, 1x mono out, 1U

Artikelnummer
93-0743
Hersteller
Cloud (Cloud Electronics)
Typennummer
  • MPA240MK2
  • MPA240
CLOUD MPA240MK2 MIXER AMPLIFIER 240W/4/70V/100V, 4x mic in, 6x line in, 1x mono out, 1U
CLOUD MPA240MK2 MIXER AMPLIFIER 240W/4/70V/100V, 4x mic in, 6x line in, 1x mono out, 1U

CLOUD MIXER AMPLIFIERS

Cloud mixing amplifiers are intended for single zone commercial audio installations such as airport lounges, restaurants and retail environments where music, announcement and paging are required. Two versions exist, differing in the rated power of the amplifier stage, along with the physical dimensions of the amplifier. The compact design of the MA series ensures the product can be installed into a wall or ceiling, or positioned near the input or output media device.

VMA Series

MPA Series


MPA120MK2

A 1U, 120W mixer amplifier that offers two balanced microphone inputs and six unbalanced stereo line level inputs, all by way of 3-pin, 3.5mm-pitch screw terminal connectors. 12V phantom power is available for use on either or both microphone input channels. VOX mic over music priority is user selectable on both microphone inputs, whilst an automatic Mic 1 over Mic 2 is default in Page mode. Also user selectable is Line 6 input priority with a selection of release times. Ventilation is via ventilation slots on the front and rear facing panels.

The mono summed 120W output can be combined with 4ohm speakers, or either 70V or 100V line speaker system.

A facility port allows the connection of BT-1 series and LM-2 series remote input modules via Cat5 cable. The facility port is equipped with a noise gate threshold that eliminates background noise in the absence of an input signal. MPA120MK2 is also compatible with other standard Cloud remotes including RL-1 and RSL-6 series.


MPA240MK2

With the exception of the total power output, which is 240W; and the forced air cooling fan (as opposed to ventilation slot on the MPA120MK2), MPA240MK2 has the same functionality as MPA120MK2.

Optional accessories: A 'Remote Music Control' input makes MPA mixing amplifiers compatible with Cloud RL-1 and RSL-6 wired remote controls. XLR-F1 and XLR-M1 connector plates available, see CLOUD REMOTE CONNECTOR PLATES for further details). The PM-1 paging microphone is a desk-top gooseneck microphone with a single press-to-talk button.

MA Series
