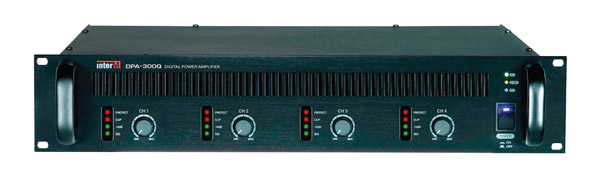

INTER-M DPA300Q POWER AMPLIFIER 4x 300W, AC or DC powered, terminal outputs, 2U

Artikelnummer
93-749
Hersteller
Inter-M
Typennummer
  • DPA300Q
INTER-M DPA300Q POWER AMPLIFIER 4x 300W, AC or DC powered, terminal outputs, 2U
INTER-M DPA300Q POWER AMPLIFIER 4x 300W, AC or DC powered, terminal outputs, 2UINTER-M DPA300Q POWER AMPLIFIER 4x 300W, AC or DC powered, terminal outputs, 2U

Bestellangaben

MwSt. / Versand
1.320,90 
pro Stück (zzgl. MwSt.)
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in Kontaktieren Sie uns.

INTER-M AMPLIFIERS

These general purpose amplifiers from Inter-M offer a range of input and output channels along with different levels of output power. Other model dependant features include 3-pin XLR, balanced 6.35mm Jack inputs, or terminal inputs; Speakon or terminal outputs, thermal and DC output protection along with power on/off muting.

DPA Series

A series of amplifiers that provided audio output to such as small-sized shops to large-sized spaces like office buildings and schools where decentralized control is necessary. DPA amplifiers differ in output power and channel count with a suffix of 'S' denoting single channel, 'D' denoting dual channel, 'T' denoting triple channel, and 'Q' denoting quad channel. The number; 300, 600, 1200 etc denotes the rated output power per channel.

DPA amplifiers are designed with an AC/DC dual power supply that allows DC 24V supply through the battery even if AC power fails due to power outage. Since the DC power supply is an emergency power supply, it operates regardless of whether the power switch is 'on' or 'off'. When AC power is restored during DC power operation, the amplifier automatically switches back to AC. Using a priority function, alarm broadcasts can be configured to be output automatically in an emergency. When a contact is input to the priority terminal on the rear, the signal input is output before the PGM input. Using the AC remote terminal on the rear facing panel of the amplifier, a user can switch the power on/off from a remote location.

Monitoring on the front facing panels include signal, -10dB output level, clip, and protect LEDs. AC/DC power supply and standby status are illustrated by LEDs positioned above the main power on/off switch, which is also illuminated when on. In addition independent volume can be adjusted for each channel via rotary control.

All amplifiers in this series are compatible with 70V, 100V or 8ohm low impedance systems.

Single channel
DPA300S DPA600S DPA600S DPA1200S
Rated output 1x 300W 1x 600W 1x 900W 1x 1200W
Peak output 1x 480W 1x 680W 1x 1050W 1x 1260W
Frequency response 50Hz-20kHz 50Hz-20kHz 60Hz-20kHz 60Hz-20kHz
Weight 6.5kg 6.6kg 7.7kg 7.7kg
Multi-channel
DPA300D DPA600D DPA300T DPA150Q DPA300Q
Rated output 2x 300W 2x 600W 3x 300W 4x 150W 4x 300W
Peak output 2x 350W 2x 680W 3x 350W 4x 180W 4x 350W
Frequency response 50Hz-20kHz 50Hz-20kHz 50Hz-20kHz 50Hz-20kHz 50Hz-20kHz
Weight 7.1kg 8.1kg 8.2kg 6.8kg 8.4kg
Common Specifications

Input sensitivity: 1V, 10kohms. Signal to noise ratio: Greater than 103dB. THD: Less than 0.1%. Power consumption: 120-240V AC, 50/60Hz, DC 24V. Dimensions (WxHxD): 482 x 88 x 397mm, DPA300S/DPA600S/DPA300D/DPA150Q ; 482 x 88 x 450mm, DPA900S/DPA1200S/DPA600D/DPA300T/DPA300Q.
