GLENSOUND GS-CU001B/3 MKII COMMENTARY UNIT For three users, with transformer balancing

Artikelnummer
95-9066
Hersteller
Glensound
Typennummer
  • GS-CU001B/3 MKII
  • GS-CU001B/3
  • GS-CU001B
GLENSOUND GS-CU001B/3 MKII COMMENTARY UNIT For three users, with transformer balancing
GLENSOUND GS-CU001B/3 MKII COMMENTARY UNIT For three users, with transformer balancingGLENSOUND GS-CU001B/3 MKII COMMENTARY UNIT For three users, with transformer balancingGLENSOUND GS-CU001B/3 MKII COMMENTARY UNIT For three users, with transformer balancing

Bestellangaben

MwSt. / Versand
3.010,70 
pro Stück (zzgl. MwSt.)
Dieses Produkt wird speziell für Ihre Bestellung eingekauft. Bei Stornierung können Gebühren entstehen, lieferbar in 3‑4 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an

GLENSOUND COMMENTARY UNITS

This range of commentator units by Glensound provide the facilities required by up to three commentators, some connecting to a Dante network. Dante is a software and hardware solution, offering high-performance audio distribution over standard IP networks, supporting hundreds of simultaneous channels of uncompressed audio with low latency and accurate synchronization.

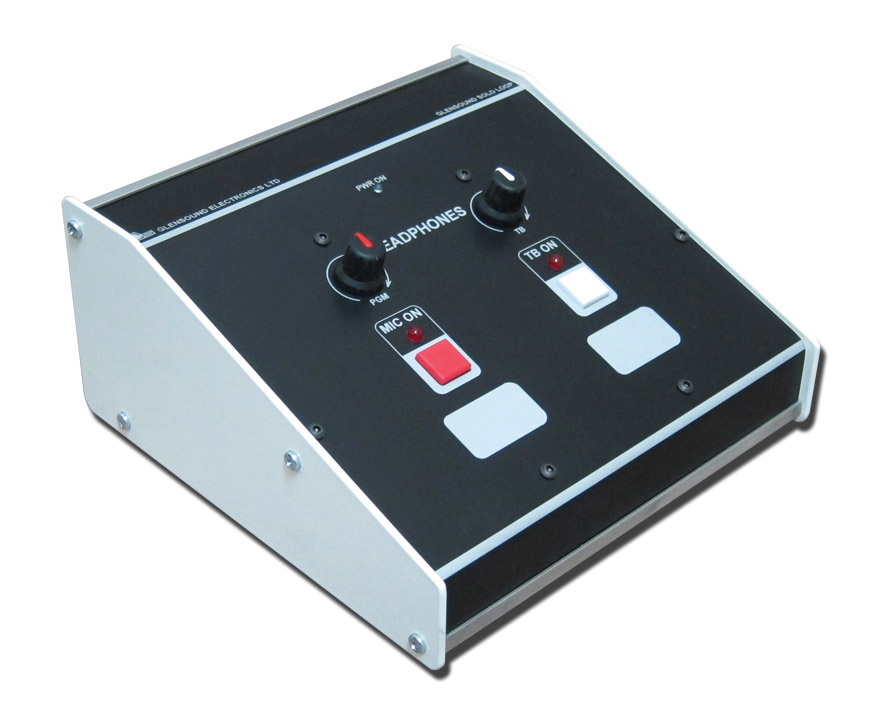

SOLO

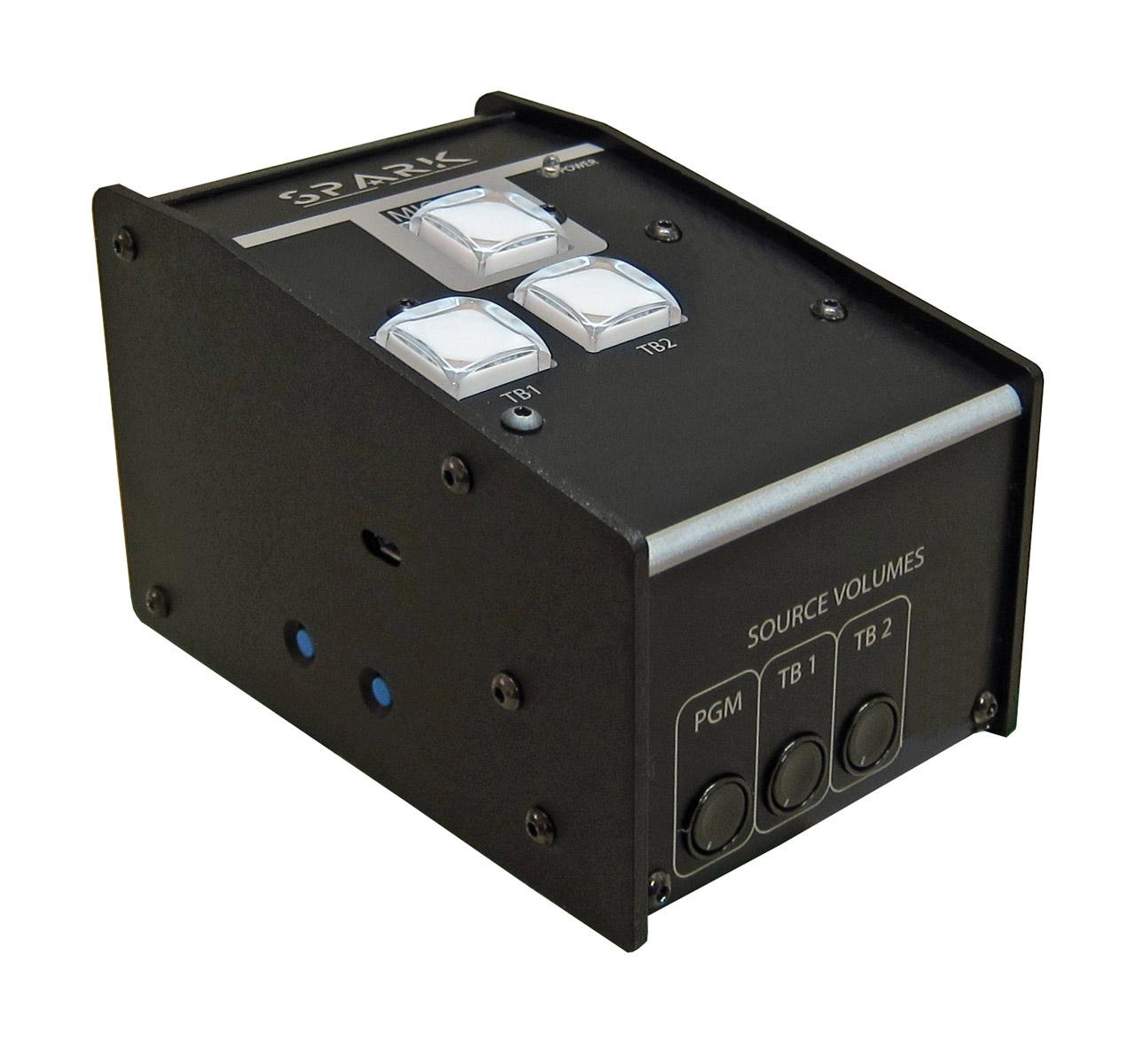

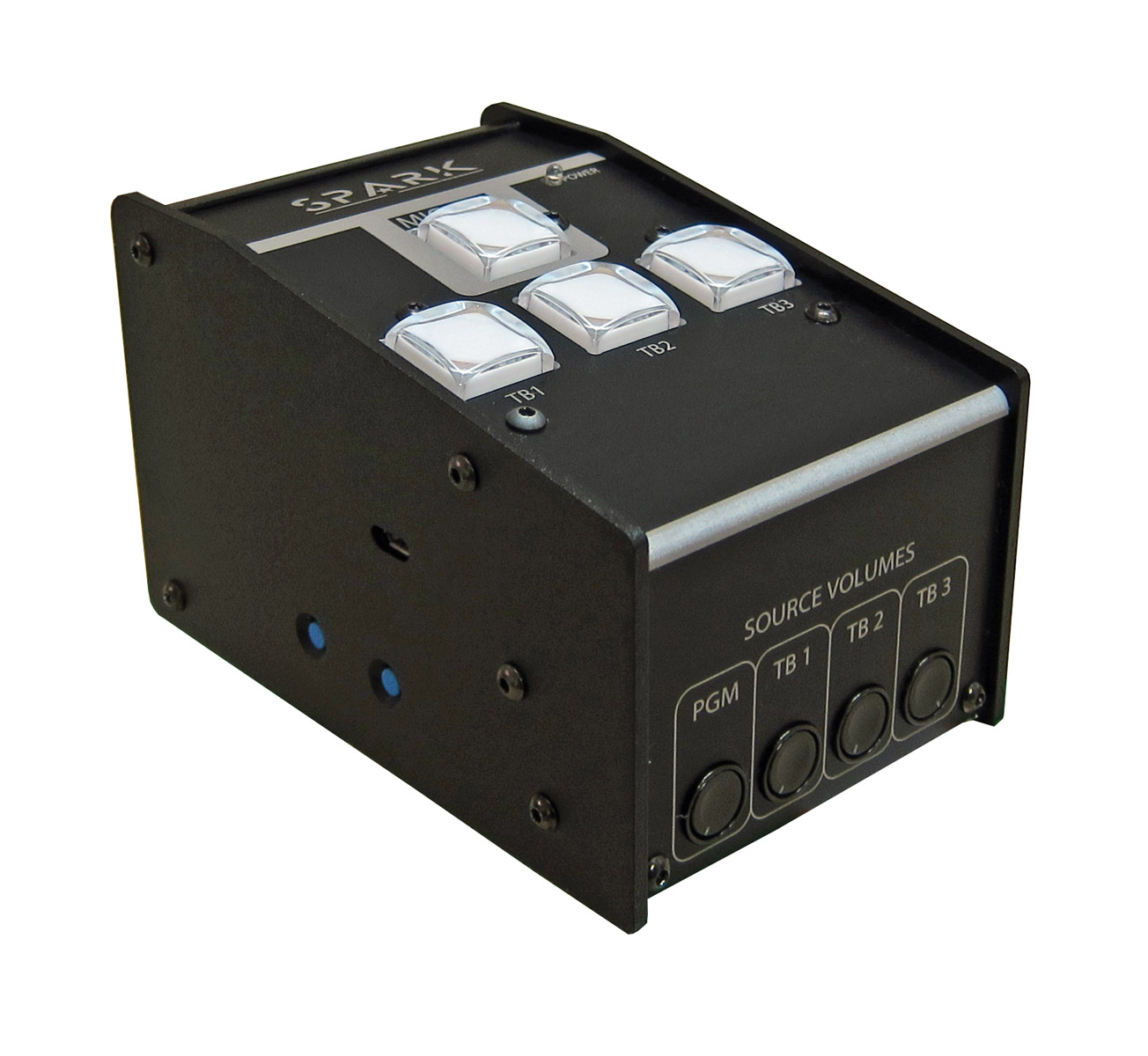

SPARK - Dante

CU001B - Analogue/Dante


GS-CU001B/1 MKII - 3 users, with electronic balancing

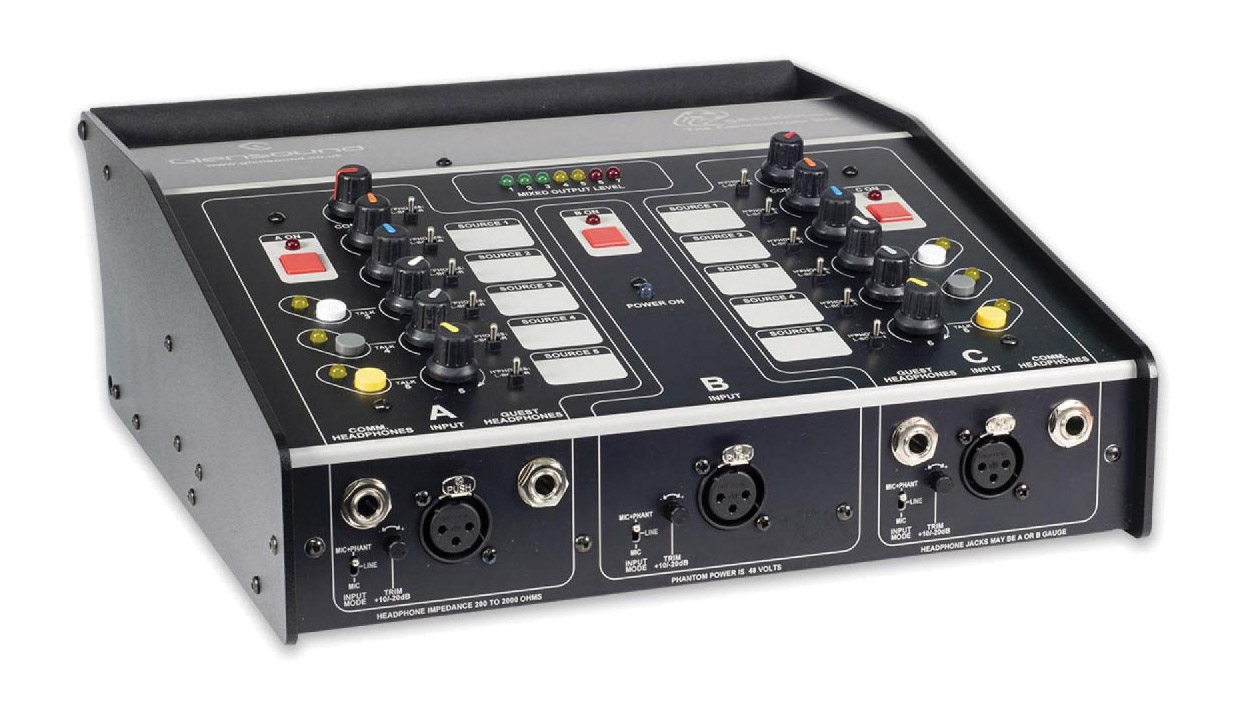

Glensound GS-CU001B is a commentary unit for three users, and features three mic/line inputs – each with independently switched +48V phantom power. GS-CU001B/1 MKII has electronically balanced audio inputs and outputs, however GS-CU001B/3 MKII is available to order and has transformer balanced I/O.

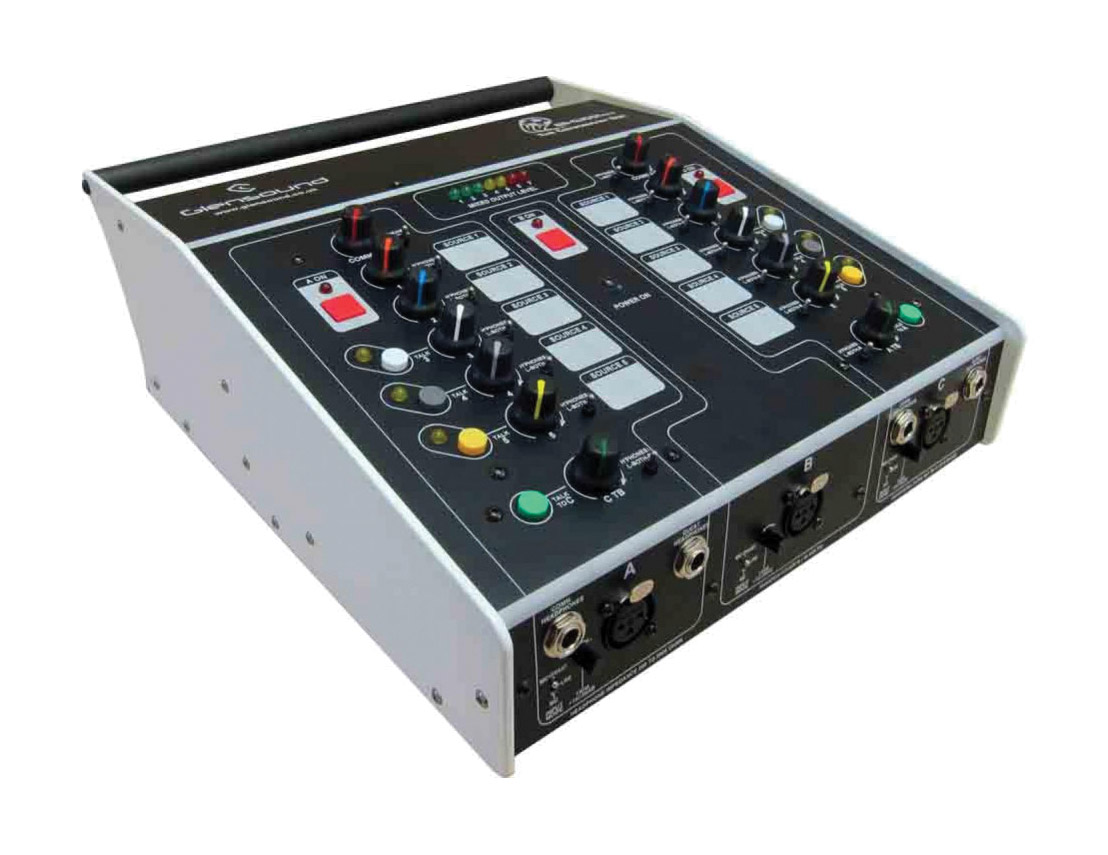

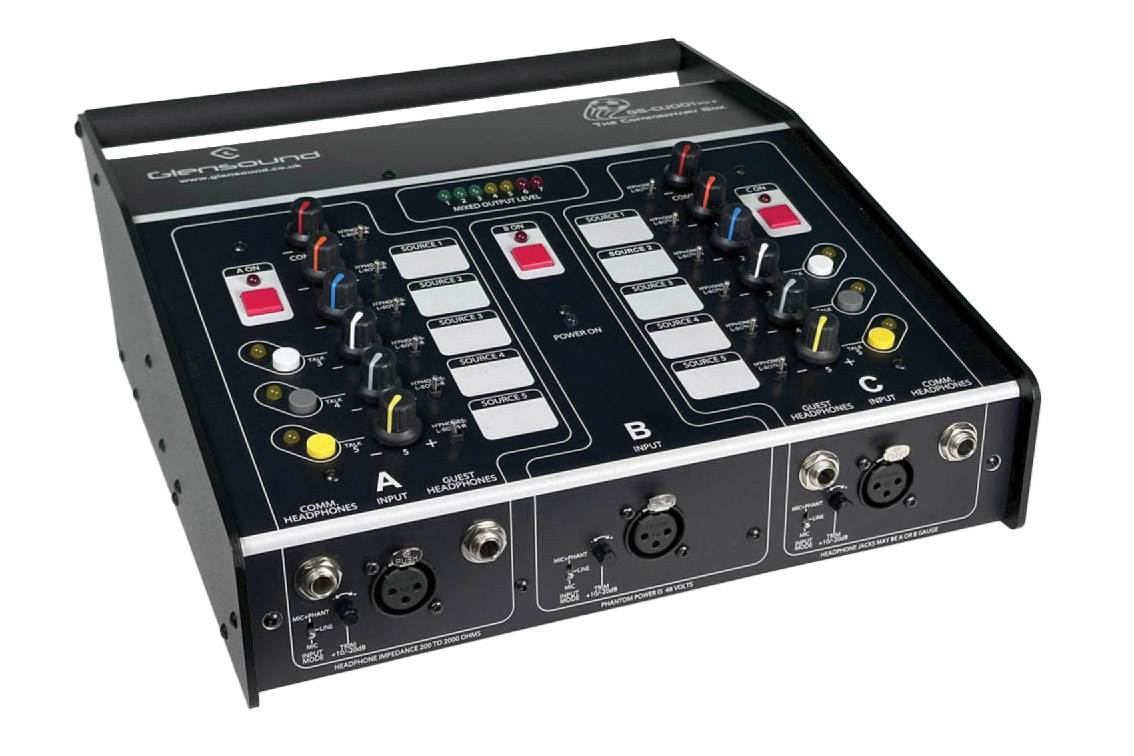

The top panel of the commentary unit has controls for source channels A and C, COMM level control for channels A and C, on switch for microphone, and talkback (TB) switching for channels A and C. Panel indicators display the status of each independent talkback circuits. When talkback is active the channel feeds no signal to either direct or mixed outputs. Glensound note “In many cases, the three talkback circuits will have a corresponding return talkback signal fed back to three of the SOURCE inputs. The talkback circuits are
therefore labelled 3, 4 and 5 in order to provide a loose association with source inputs 3, 4 and 5 under these circumstances. However, the talkback send outputs are entirely independent of the source inputs and may be used in any configuration required.” Headphone routing switches and labelling areas are also positioned on the upper facing panel.

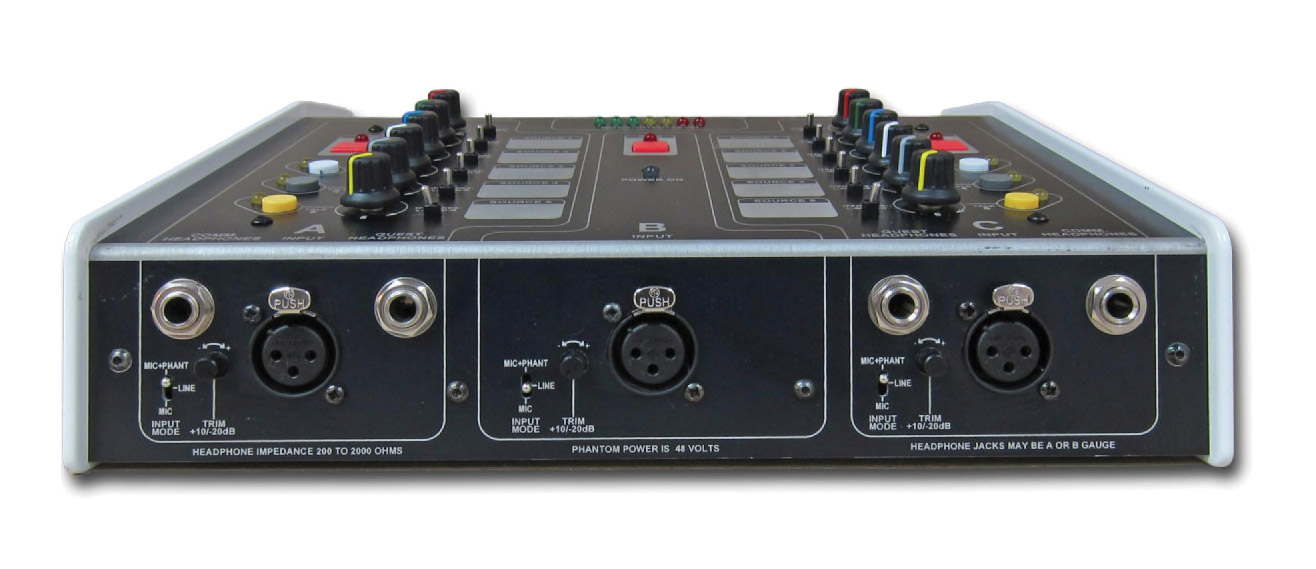

The front facing panel houses 6.35mm jack headphone outputs for bother users and guest. It also houses three channel inputs by way of 3-pin XLR – each with independent phantom power switching and trim control.

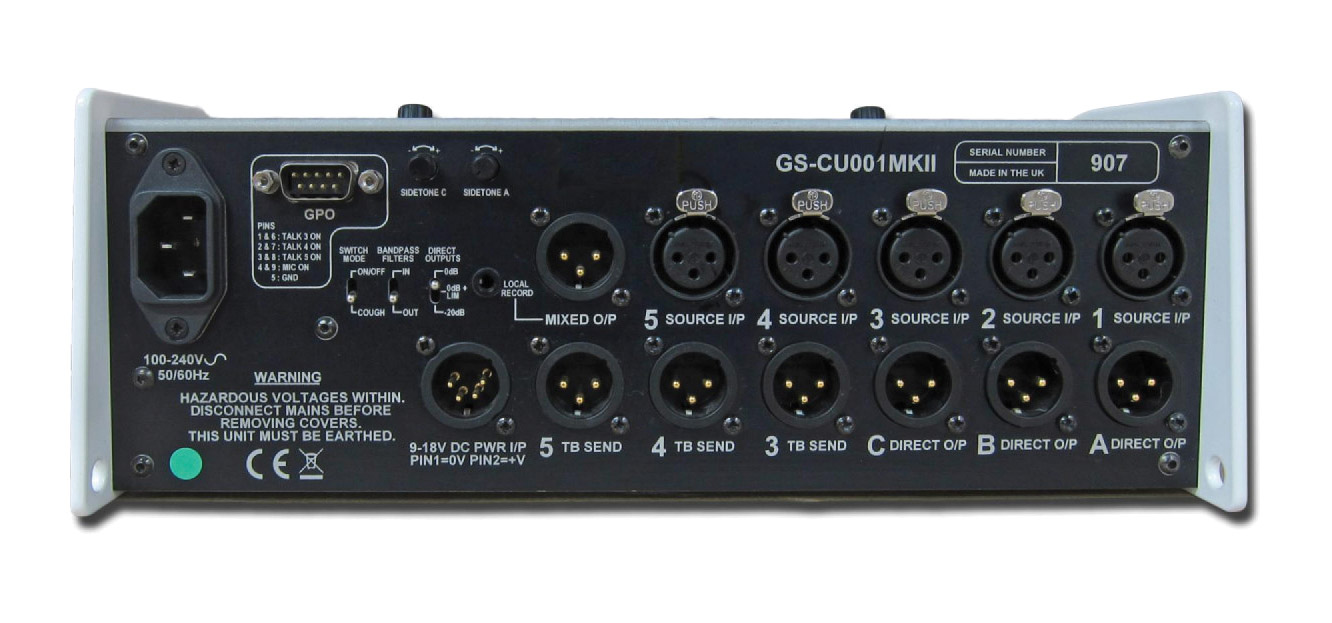

The rear facing panel houses all audio I/O connectivity including source inputs via five balanced mono 3-pin XLR inputs; 9-18V DC power input by way of four-pin male XLR; Talkback send outputs via three balanced mono, 3-pin XLR connections; and three direct outputs. Three switches allow the setting of switch mode, bandpass filter, and direct output level selection.

Microphone input gain: -20dB to +10dB. Mic line up: 60dB, dynamic; 35dB, with phantom. Equivalent noise level: 122dBu, 22-22kHz, RMS. Maximum input level: -20dB, dynamic; +5dB, with phantom. Output impedance: 50ohms. Headphone impedance: 200-2000ohms. Maximum headphone input: +26dBu. Power: 100-240V AC, 47-63Hz. Power consumption: less than 7watts. Dimensions (WxDxH): 279 x 266 x 105mm. Weight: 2.12kg.


GS-CU001B/3 MKII - 3 users, with transformer balancing

This has the same functionality as GS-CU001B/1 MKII, however it has transformer balanced inputs along with Llundhall transformers on the individual microphone outputs. Weight: 2.9kg.


CU001 Dante - 3 users, electronically balanced analogue, and Dante/AES67

In addition to the functionality of GS-CU001B, Glensound CU001 Dante features analogue and Dante/AES67 I/O connectivity, +48V phantom power, increased input gain range of -20 to +10dB, and GPOs on microphone and talkback buttons. When monitoring, the Dante inputs are mixed with the analogue inputs therefore Glensound suggest only one of the analogue or Dante inputs should be used simultaneously.

Dimensions (WxDxH): 277 x 266 x 105mm.

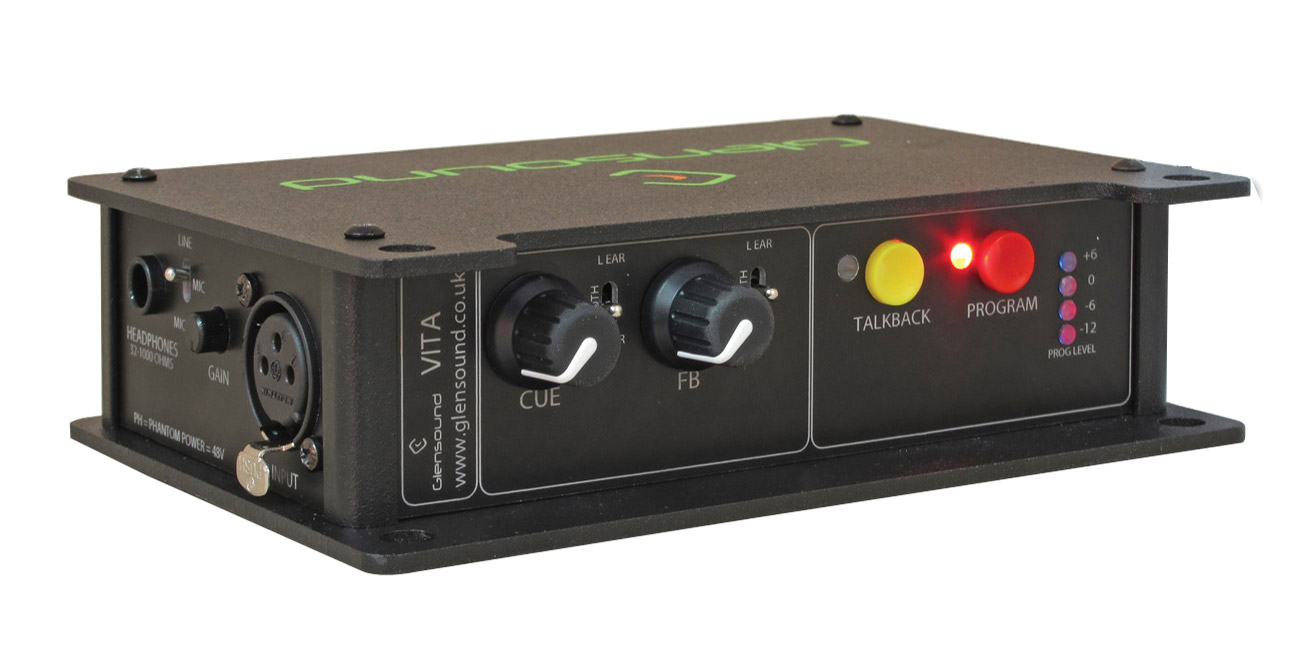

VITA - Danteabgekündigt

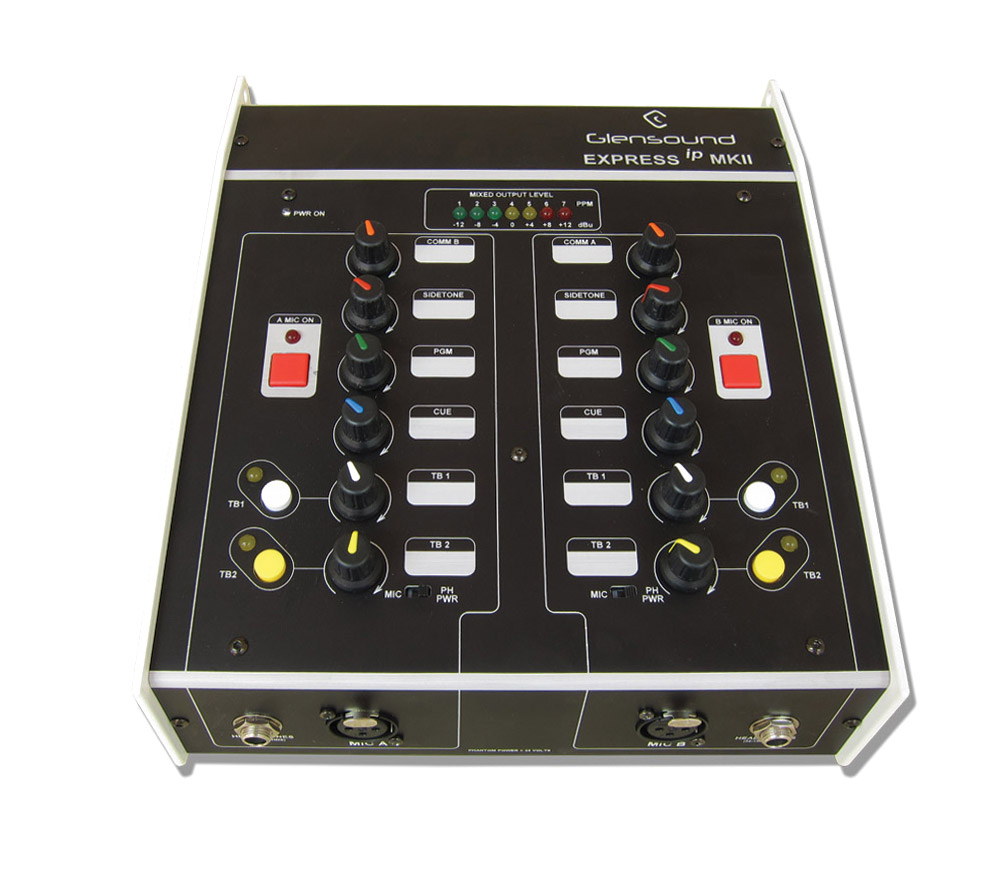

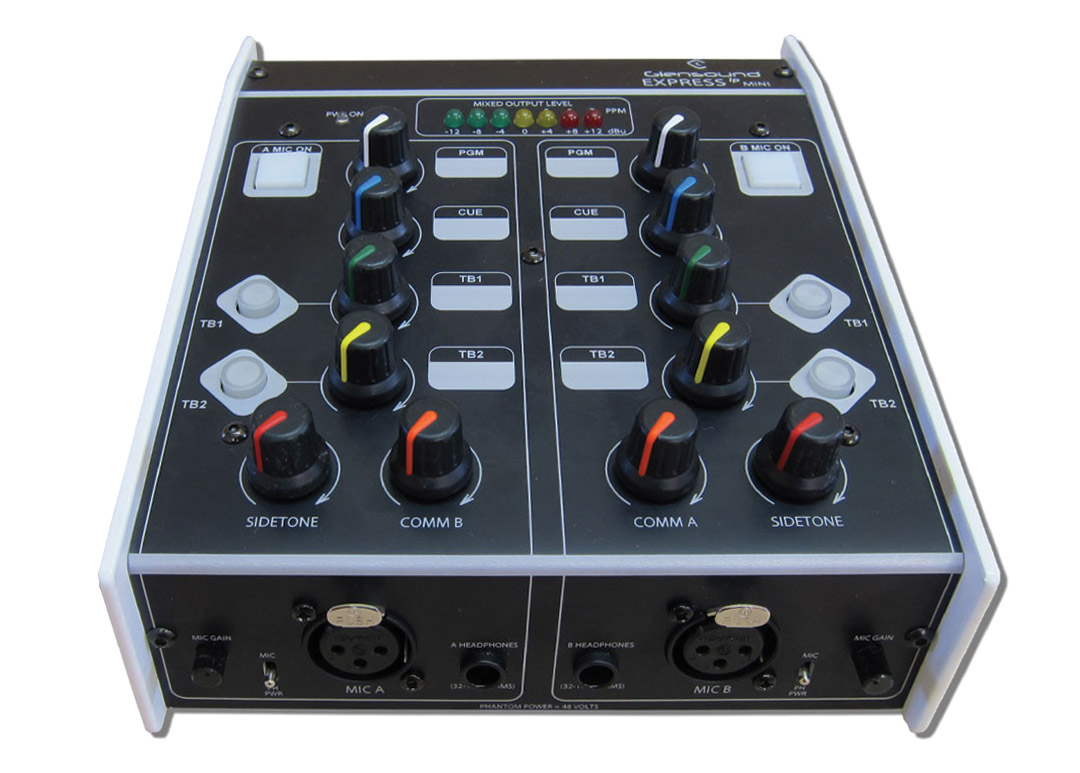

EXPRESS IP - Dante

PARADISO - Dante

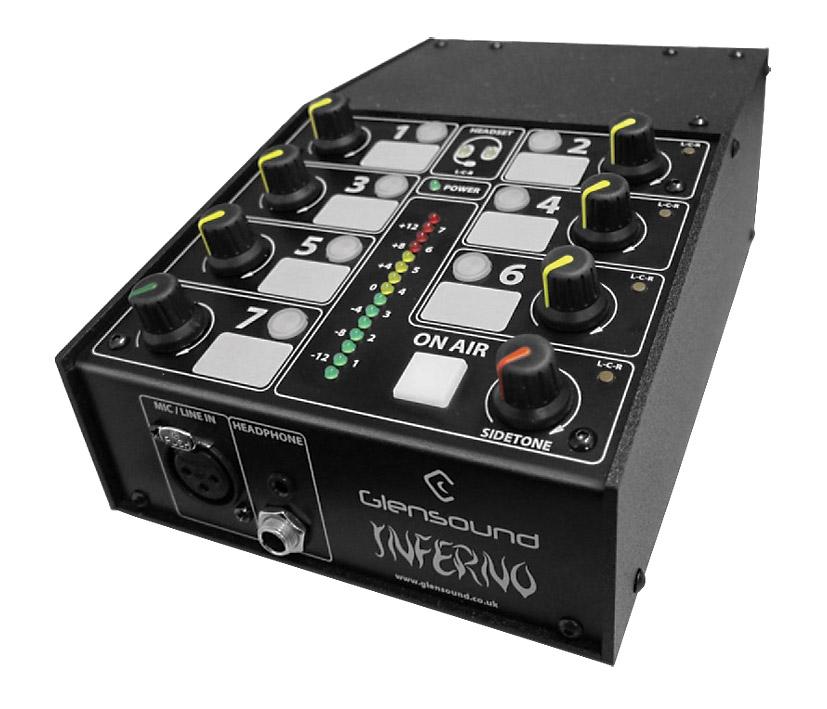

INFERNO - Dante

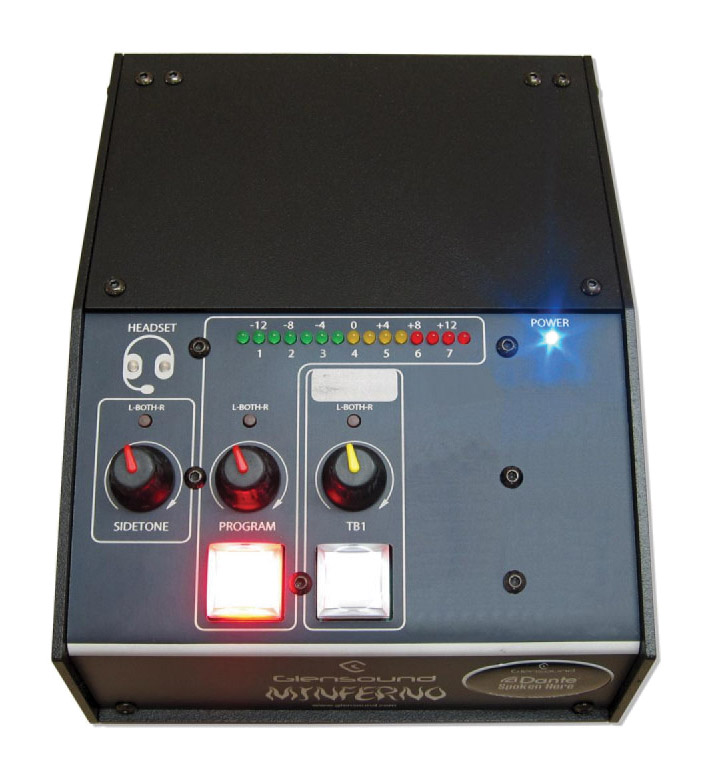

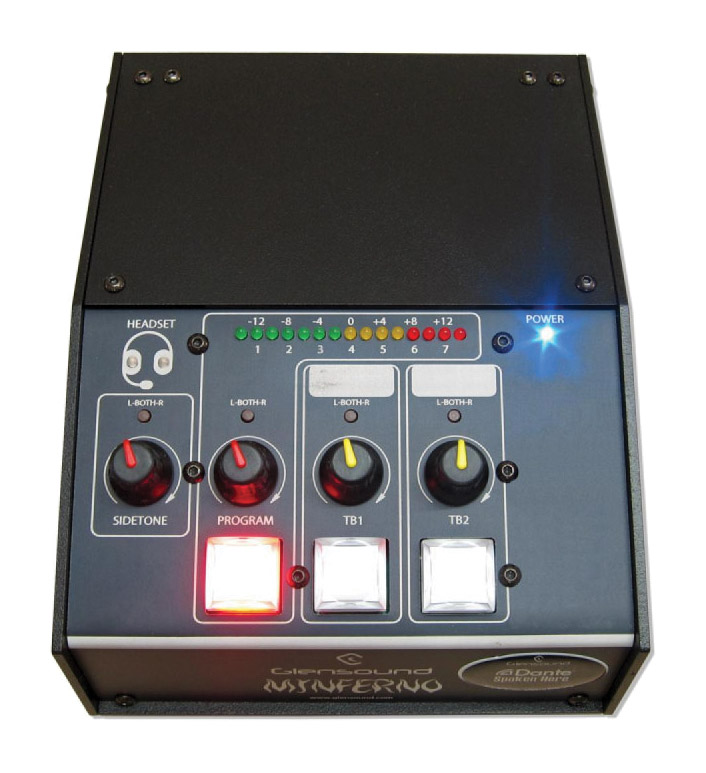

MINFERNO – Dante

Optional Dante SFP Modules

DANTE/SFPS is a single-mode module and DANTE/SFPM is multi-mode. DANTE/SFP1 and DANTE/SFP2 are for use over distances up to 10km and are WDM (wavelength-division multiplexing) types, a multiplexing technology which can be used to enable bi-directional communication over a single fibre. DANTE/SFP1 should be used in a pair with SFP2 Dante breakout boxes: See Dante interfaces.
