Audio-Technica 3000 series wireless in-ear monitoring systems have been designed to bring professional sound quality and features to all levels of performers and performance venues. The systems are affordable, and durable, and have been designed for their ease of use and RF dependability.
ATW3255 complete system is available on band EG2 (580-714MHz) or DF2 (470-608MHz) and includes 1x ATW-R3250 receiver, 1x ATW-T3205, and 1x ATH-E40 earphones.
ATW-R3250 Receiver, bodypack
A portable, diversity, bodypack receiver with removable whip antenna that can be used in stereo or mono operation via pan/mix control. The receiver features an OLED display for clear indication of battery level, signal level, frequency set, and menu options. A 3.5mm headphone jack socket allows connection to the included ATH-E40 earphones, whilst the rotary on/off control doubles as a volume controller. Beneath the fold down compartment cover on the front facing side, buttons allow for menu navigation and selection, IR Sync button and IR Sync window allows the synchronisation with the transmitter, and access to battery tray - which takes two AA battery cells. The upper facing edge of the receiver has an LED that illuminates green when powered on and unmuted, or red when powered on and muted. The OLED screen automatically turns off after a period of 30second without button presses. ATW-R3250 can operate continuously for up to 7 hours when powered by NiMH batteries. Rechargeable battery cells can be charged in situ when using the optional ATW-CHG3 or ATW-CHG3N two-bay charging station.
Included accessories: ATH-E40 earphones.
Image rejection: Greater than 80dB, typical. RF sensitivity: 20dBuV, at 60dBA. Headphone output: 40mW, at 12ohms. EQ adjustment: 80Hz/160Hz/320Hz ±9dB in 3dB steps, LF; 6kHz/8kHz/10kHz ±9dB in 3dB steps, HF. Limiter: -30dB to OFF in 6dB steps. Antenna input: SMA type, 50ohms. Operating temperature: -5 to +45degrees Celsius. Dimensions (WxDxH): 64 x 23 x 82mm. Weight: 102g, without batteries.
ATW-T3205 Transmitter, fixed
A half width, 1U rackmount, stereo transmitter with front panel control and OLED display for easy navigation. The front facing panel has buttons for power on/off, back - to return to previous screen, and a push/turn encoder for menu navigation. A large OLED screen allows visual access to the menu and settings, whilst an IR Sync window allows the user to connect to synchronise with a ATW-R3250 receiver. The rear facing panel houses all audio and data I/O with dual, balanced 3-pin XLR connections affording left (mono) and right audio inputs, 2x 6.35mm jack connections for audio loop output, power input, and network connection via RJ45. A BNC connector allows connection of included and detachable antenna.
Network monitoring and control is available via dedicated Audio-Technica's Wireless Manager software, whilst a cue mode allows audio engineers to monitor multiple channels with a single receiver.

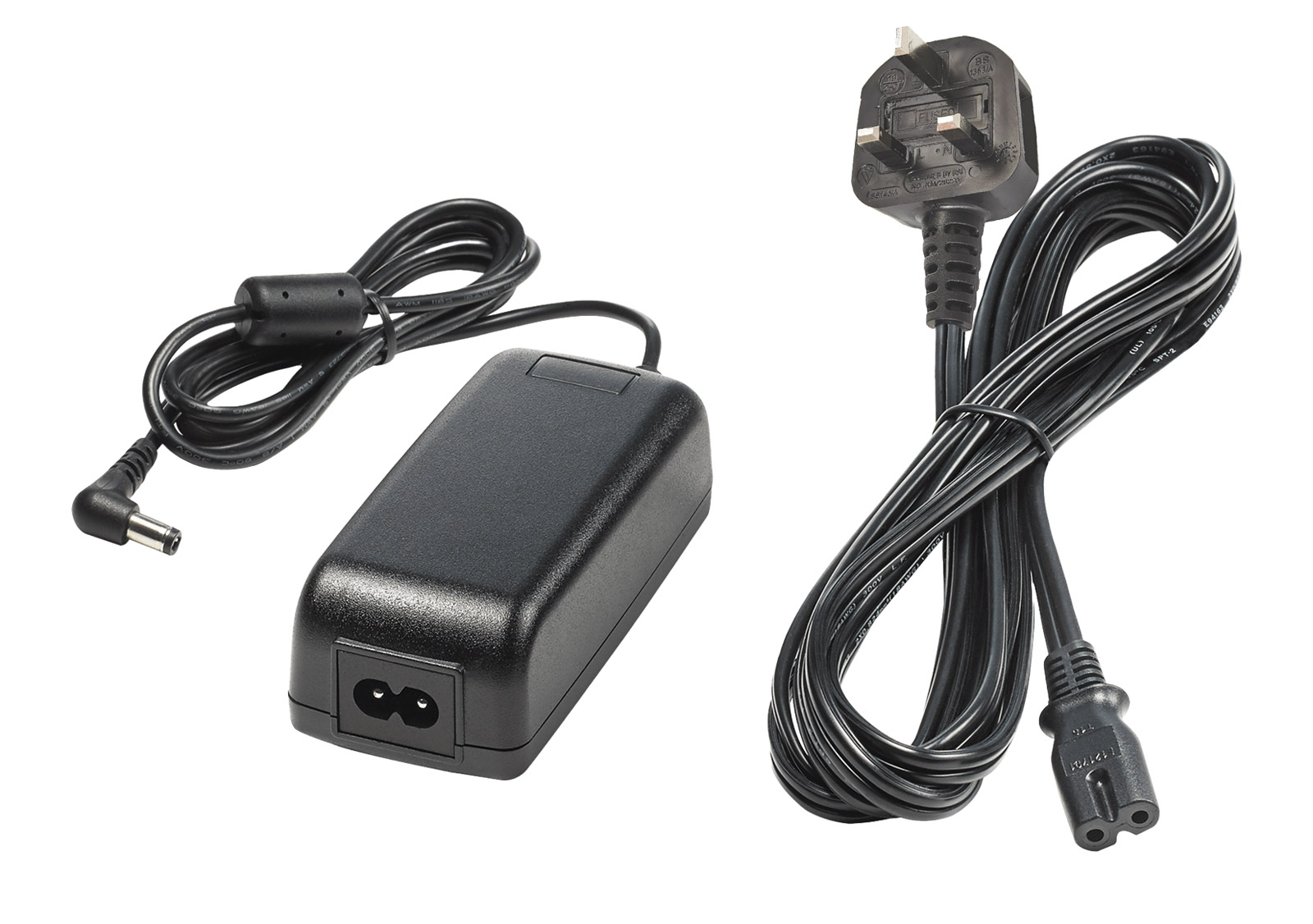

Included accessories: AC adapter rack-mount (large, small), flexible UHF antenna.
RF output power: 50mW, high; 10mW, low, at 50ohms. Maximum input level: +24dBu, at 0dB sensitivity. Network: 100BASE-T. Network port: RJ-45. Power supply: 100 to 240V AC, 50/60Hz, to 12V DC1A (centre positive) switched mode external power supply. Antenna output: BNC-type, 50ohms. Dimensions (WxDxH): 210 x 191 x 43.4mm. Weight: 1.1kg.
Earphones
The proprietary dual phase push-pull driver design of the ATH-E40 in-ear monitor headphones provides a frequency response of 20Hz to 20kHz. The earphones are said to deliver 'powerful bass' along with 'balanced' mid and high frequencies. ATH-E40 features housings that provide a high level of isolation and comfort, something that is enhanced by the four sizes of included silicone ear-tips (XS/S/M/L). The headphones also come with a detachable 1.6m cable, with newly developed A2DC (Audio Designed Detachable Coaxial) connectors at the headphones and a 3.5mm stereo jack plug at as cable termination. Also delivered with a carrying case.
Frequency response: 20Hz-20kHz. Sensitivity: 107dB/mW. Impedance: 12ohms. Weight: 10g, without cable.
ATH-E50 features housings that provide excellent isolation and comfort. The balanced armature type earphones provide a frequency response of 20Hz to 18kHz. Four sizes of included silicone ear-tips (XS/S/M/L) allow the user to find the best fit. ATH-E50 also comes with a detachable 1.6m cable with newly developed A2DC connectors and a 3.5mm stereo jack connector. A carrying case is also included for protection during transport.
Frequency response: 20Hz-18kHz. Sensitivity: 107dB/mW. Impedance: 44ohms. Weight: 9g, without cable.
ATH-E70 balanced armature earphones are the flagship in-ear monitor model in Audio-Technica's E-Series. The accuracy and detail provided allow 'precise' balancing of the mix, making it ideal for monitoring on stage or mixing in the studio. Offering extended frequency response from 20Hz to 19kHz, this model has been designed for sound professional musicians. ATH-E70 is delivered with four sizes of silicone ear-tips (XS/S/M/L) and medium-size pair of Comply T500 foam ear-tips. A detachable 1.6m cable is also included, with both A2DC and 3.5mm jack terminations. A 6.3mm jack adapter, and a carrying case. is also included.
Frequency response: 20Hz-19kHz. Sensitivity: 109dB/mW. Impedance: 39ohms. Weight: 9g, without cable.
