B-TECH PROJECTOR MOUNTS - Ceiling

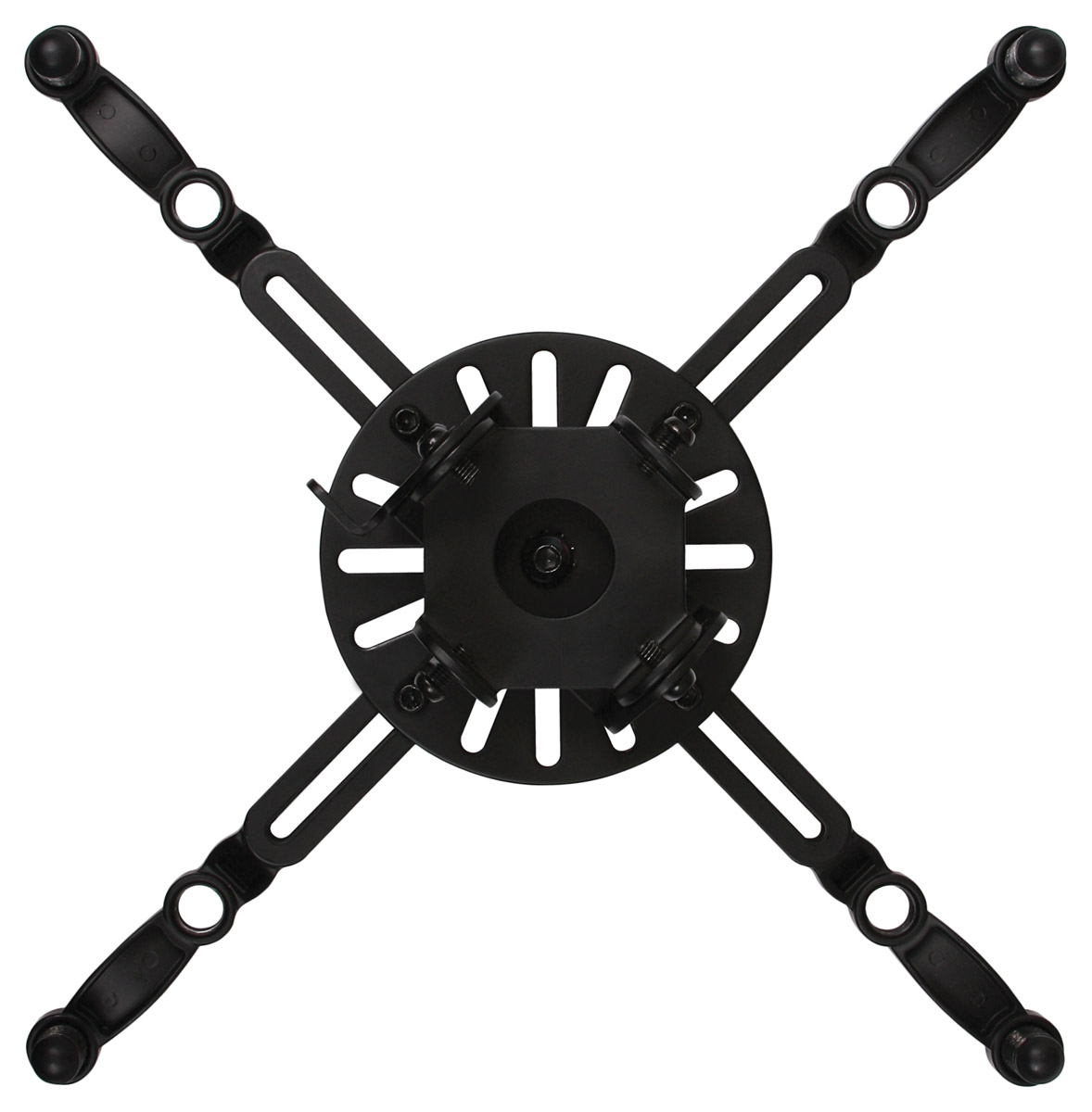

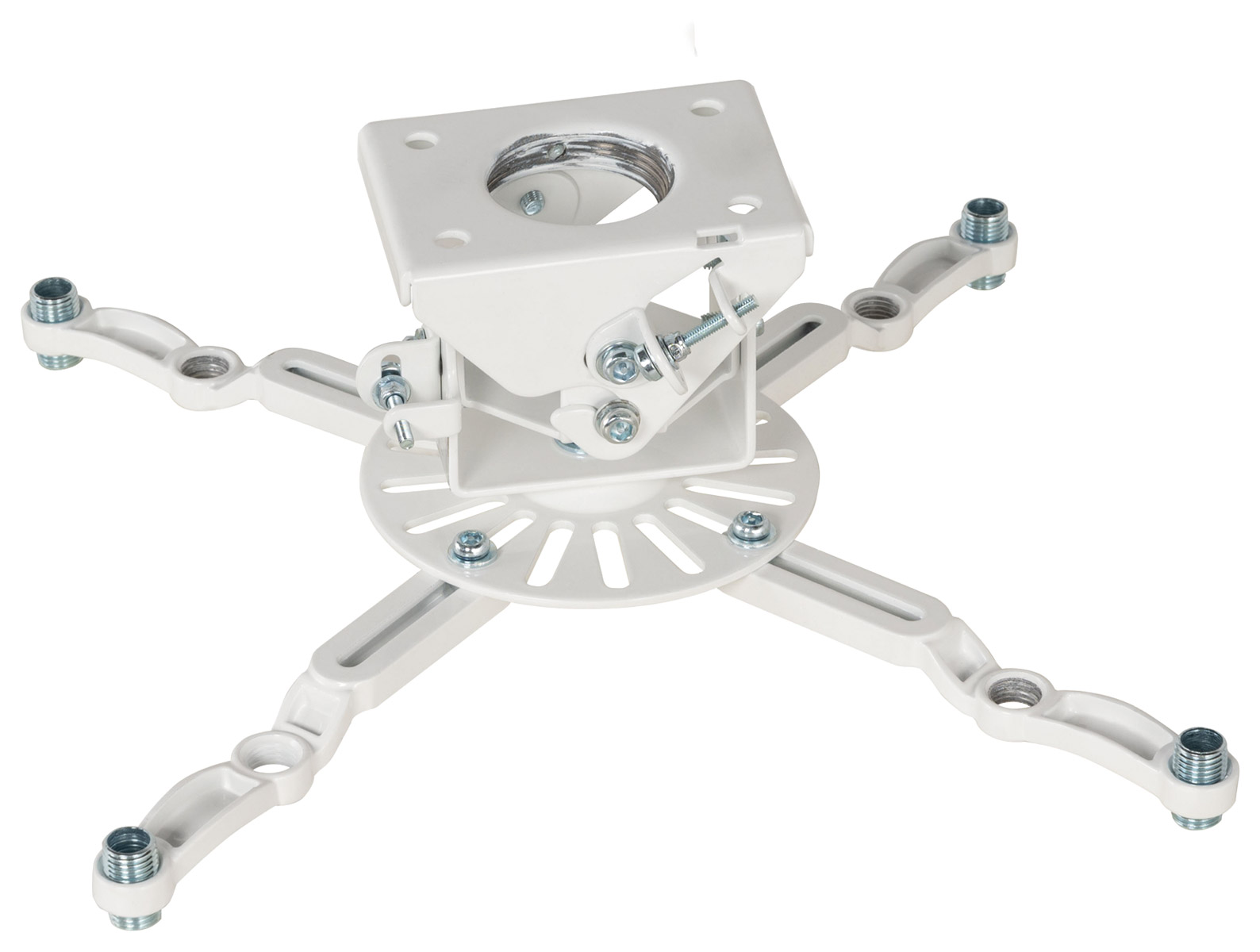

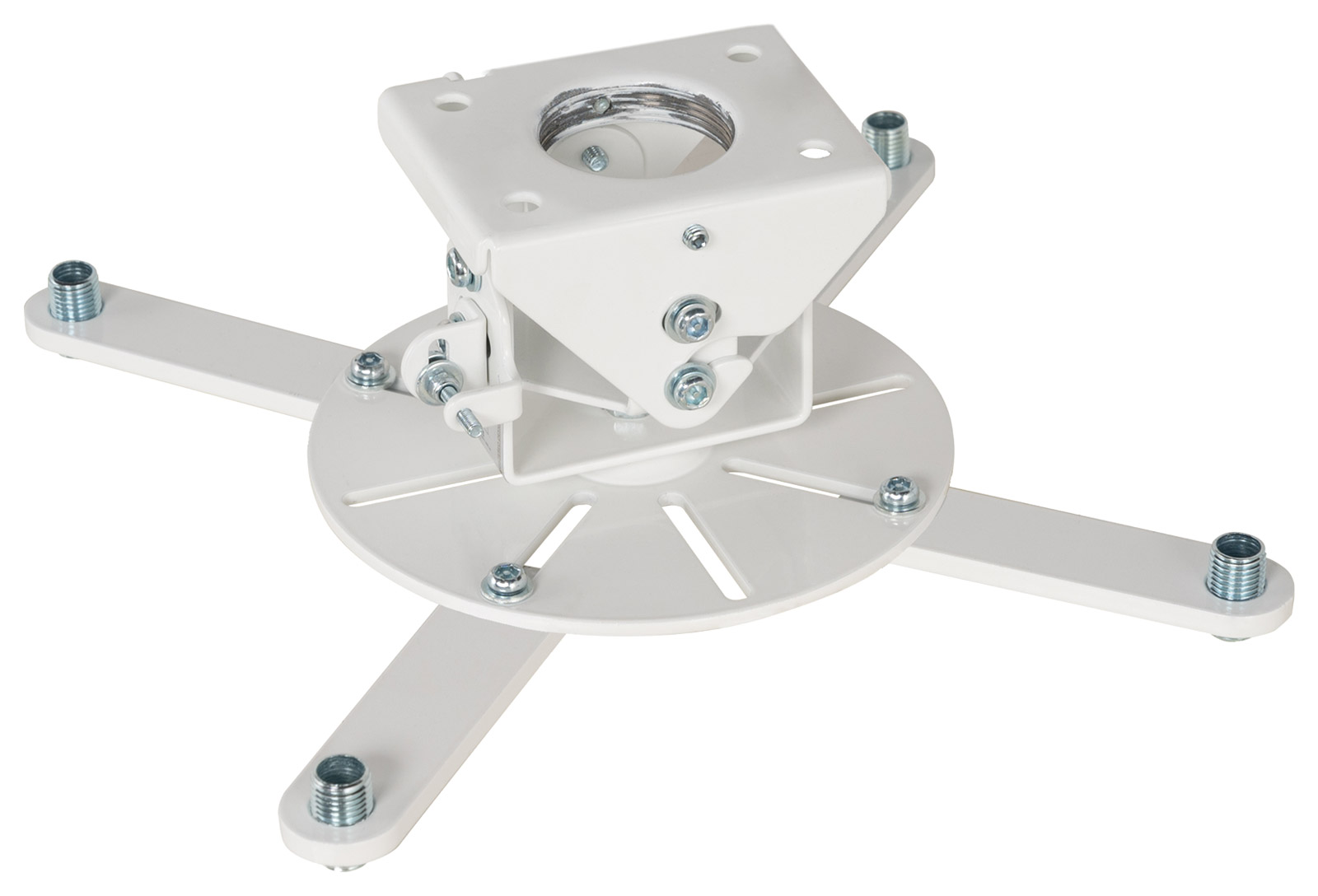

BT899 Flush mount, 25kg capacity

B-Tech BT899 projector ceiling mount is compatible with projectors weighing up to 25kg and having universal fixings measuring a maximum of 370mm apart. The mount can be used with projectors with M2,.5, M3, M4, M5, or M6 fixings. The included locking screws can be used for additional security. BT899 can be mounted straight to the ceiling to give a drop of 122mm, however it is also available with longer, fixed drop as BT899-FD, and with adjustable drop as BT899-AD. Mounting hardware is included.

Ceiling drop: 122mm. Maximum load: 25kg. Tilt (pitch): +/-13 degrees. Roll: +/-6 degrees. Yaw: 360 degrees. Maximum distance between fixings: 370mm

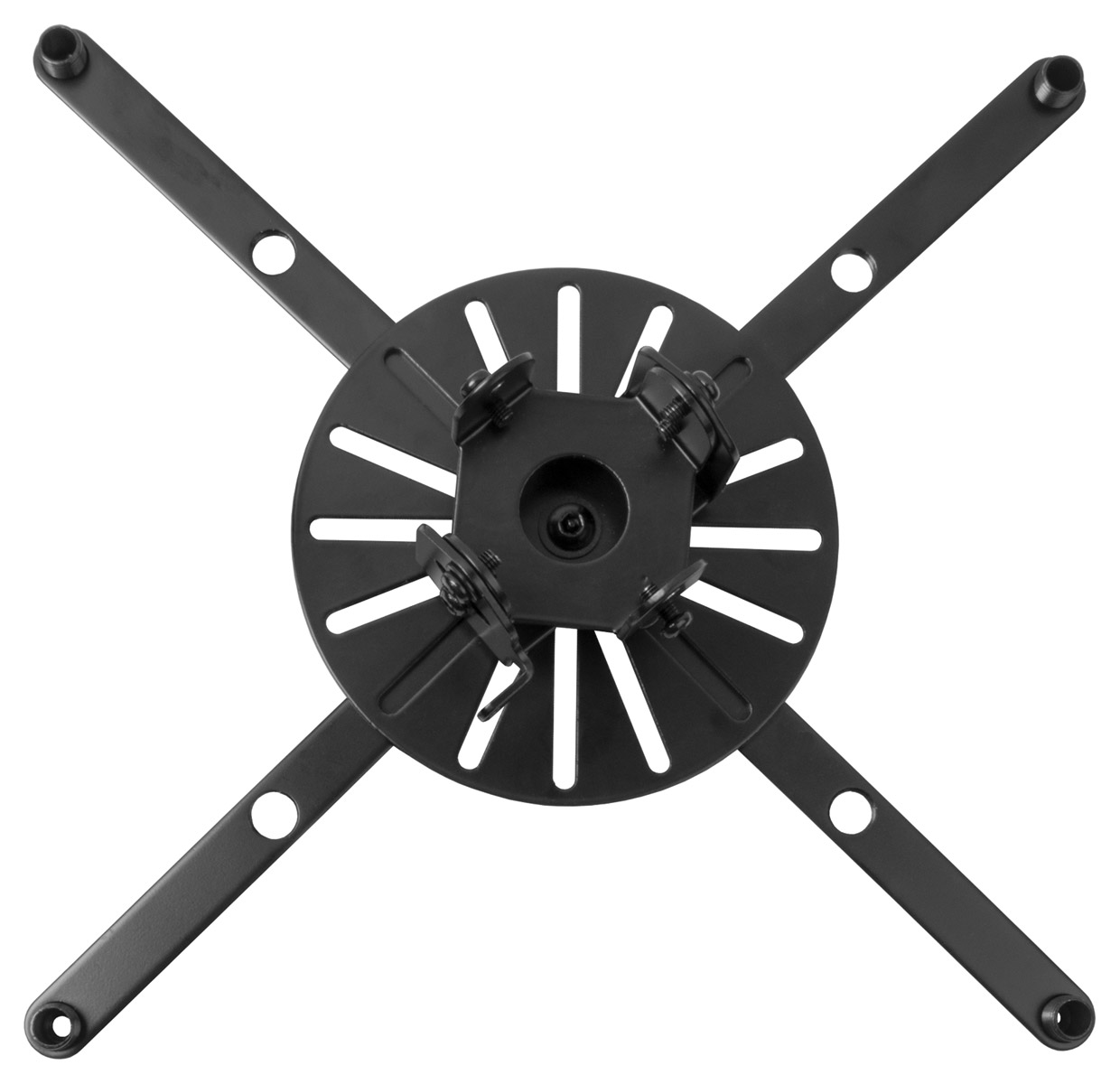

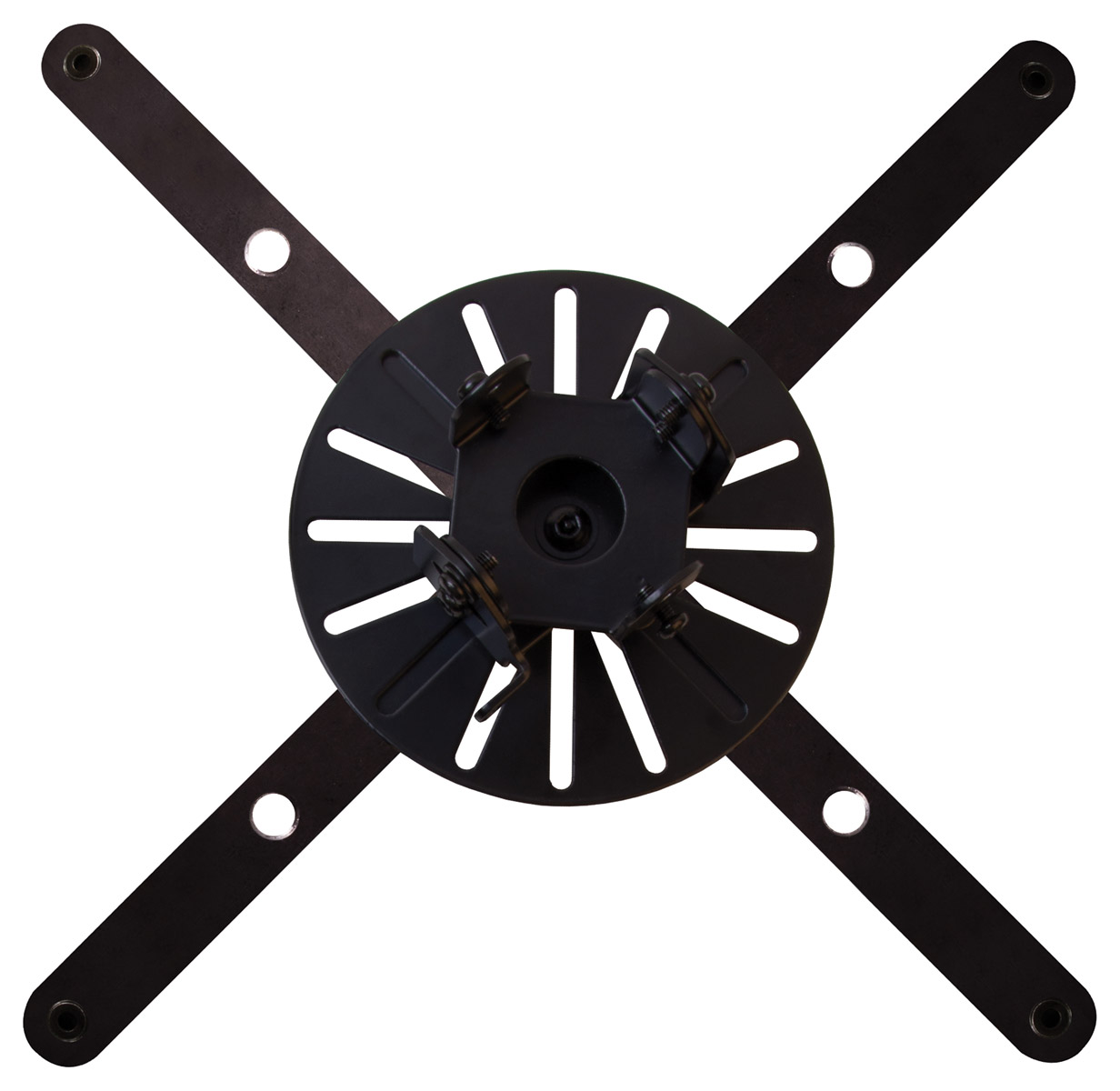

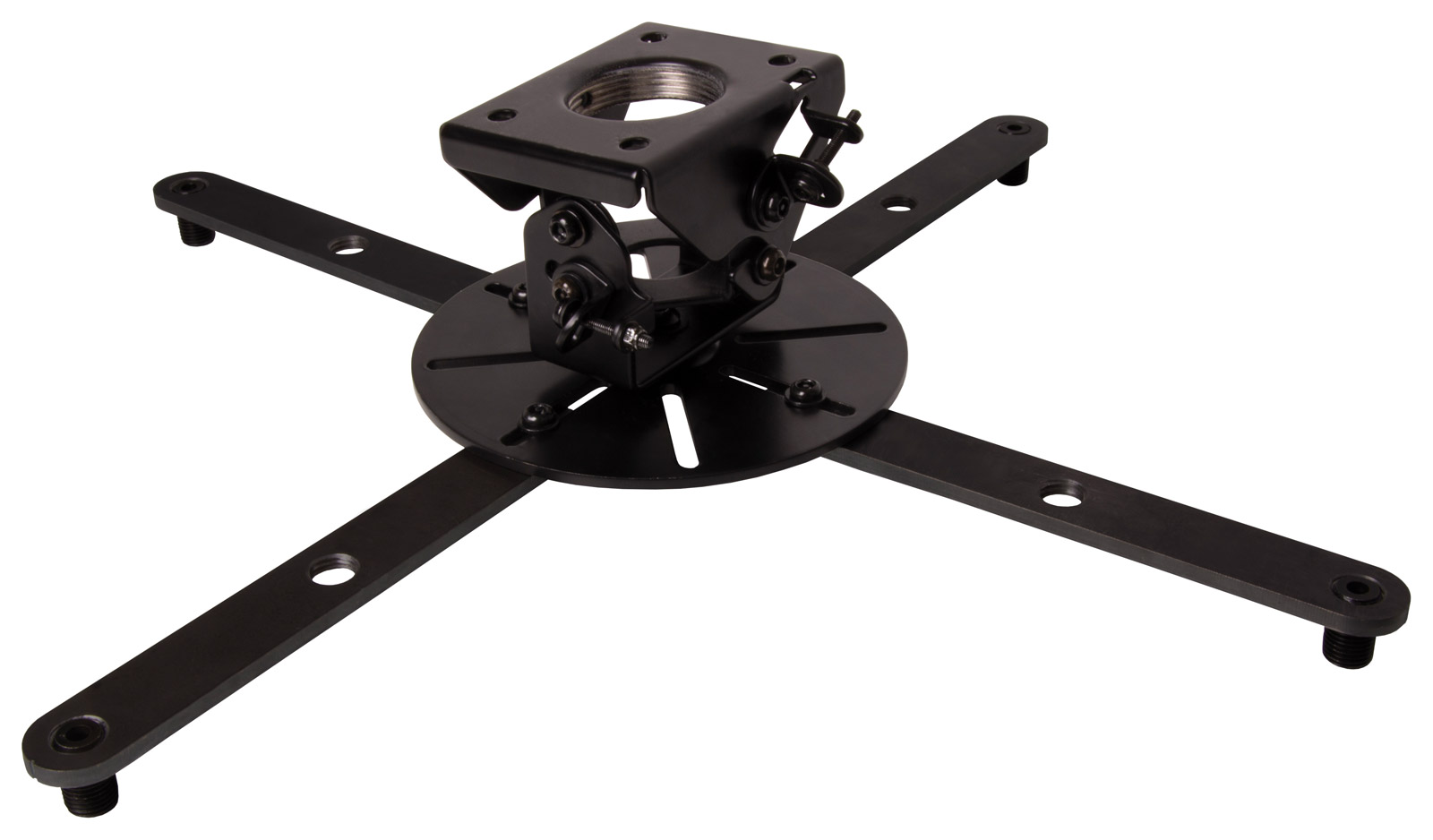

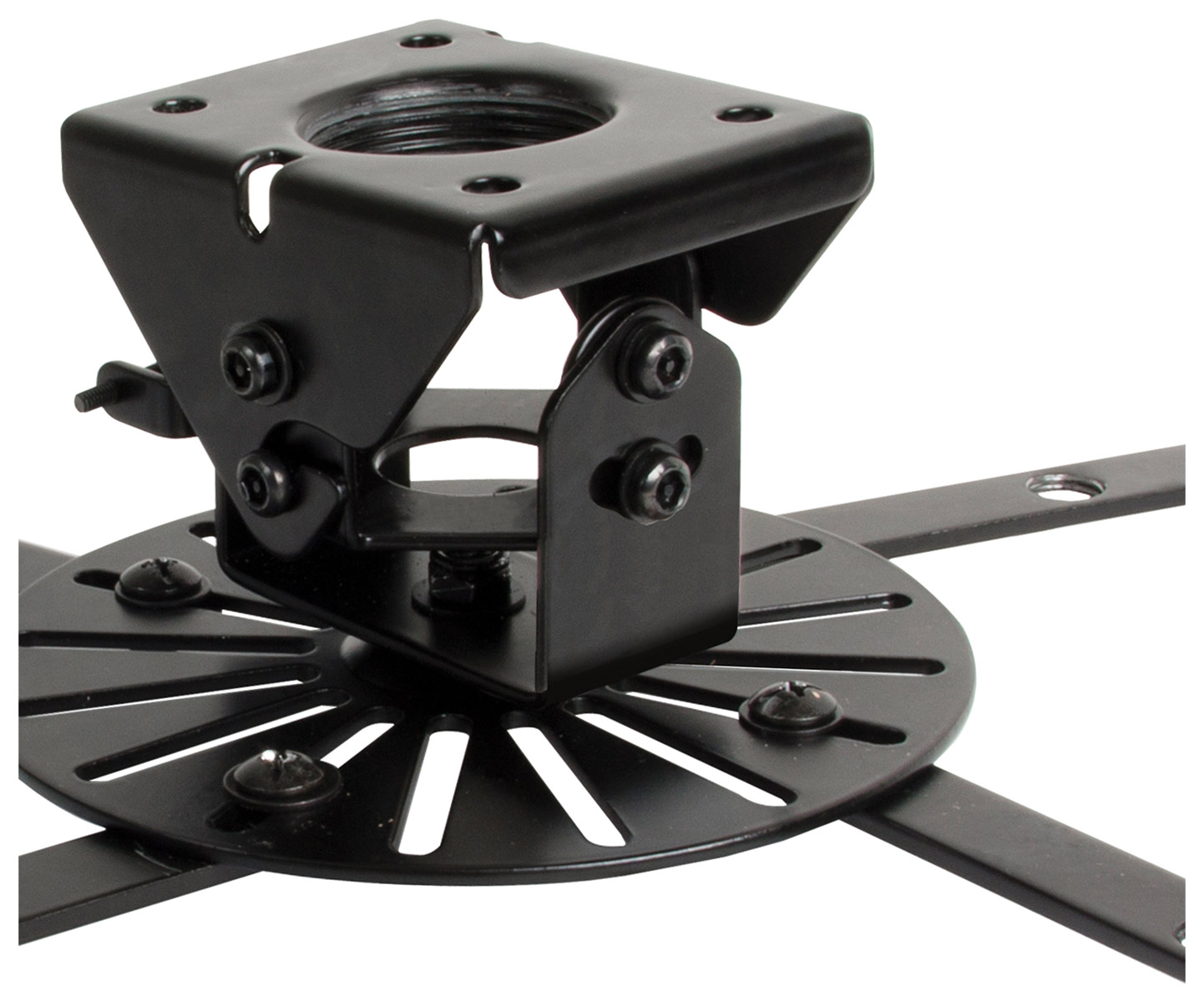

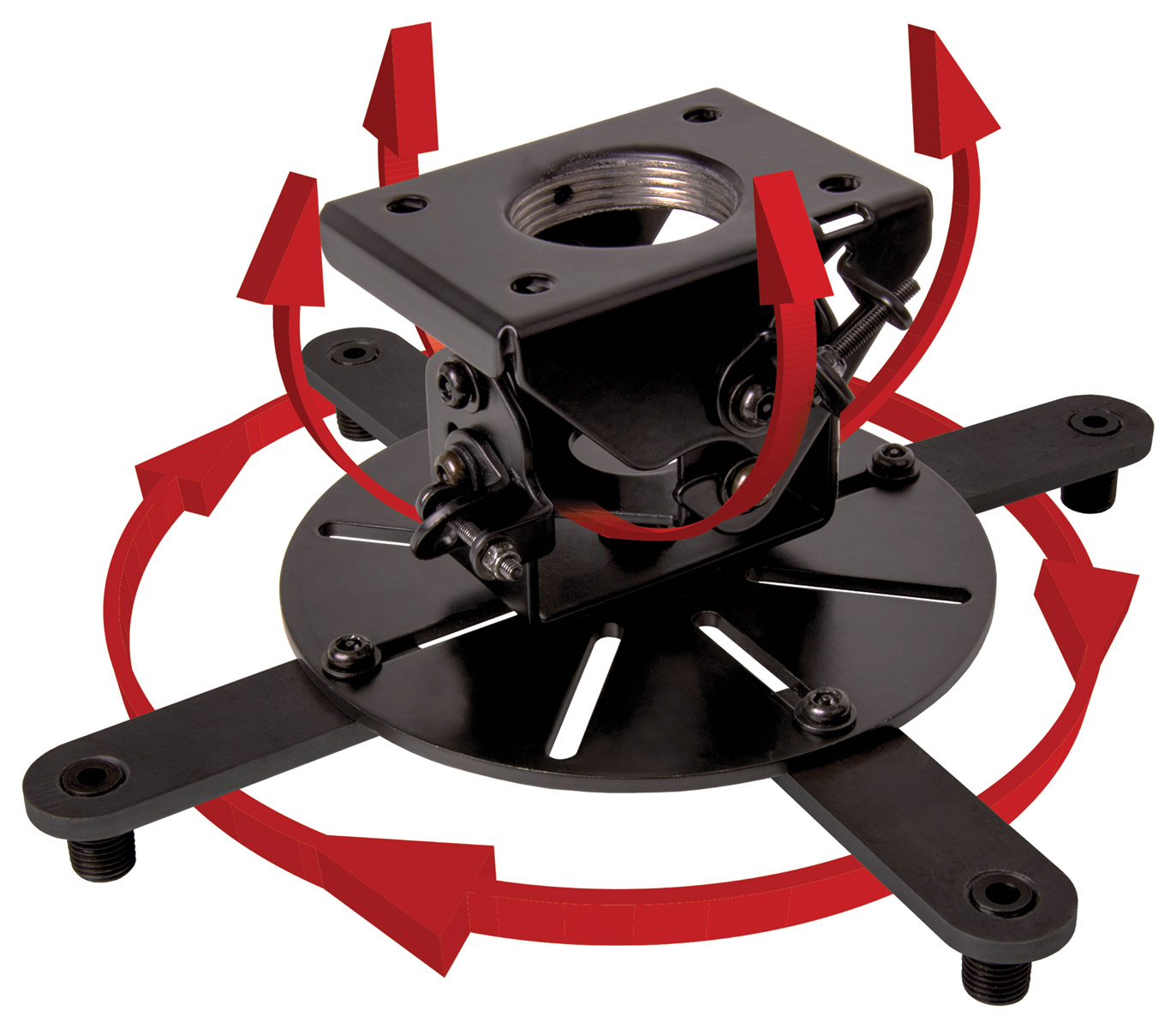

BT899XL Flush mount, 25kg capacity, extra-large

B-Tech BT899XL has the same properties as BT899 however it is designed for extra-large projectors that require up to 493mm between fixings. The mount can be used with projectors with M2,.5, M3, M4, M5, or M6 fixings. The mount can be fixed flush to the ceiling or to a 50mm (diameter) pole using the included 52mm collar; however it is also available with a longer, fixed drop as BT899XL-FD, and with adjustable drop as BT899XL-AD. The included locking screws can be used for additional security. Mounting hardware is included.

Ceiling drop: 98.5mm. Maximum load: 25kg. Tilt (pitch): +/-13 degrees. Roll: +/-6 degrees. Yaw: 360 degrees. Maximum distance between fixings: 493mm

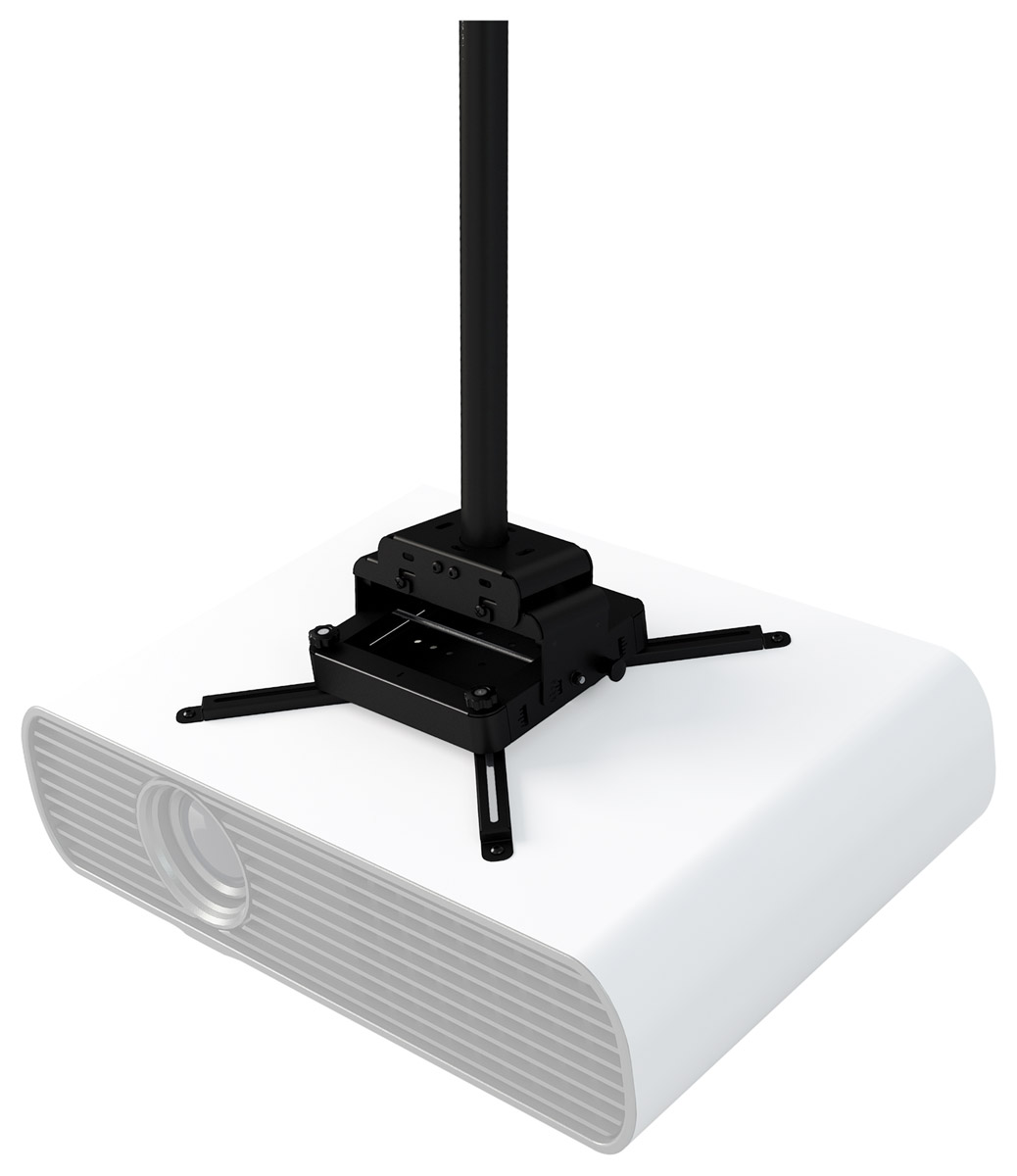

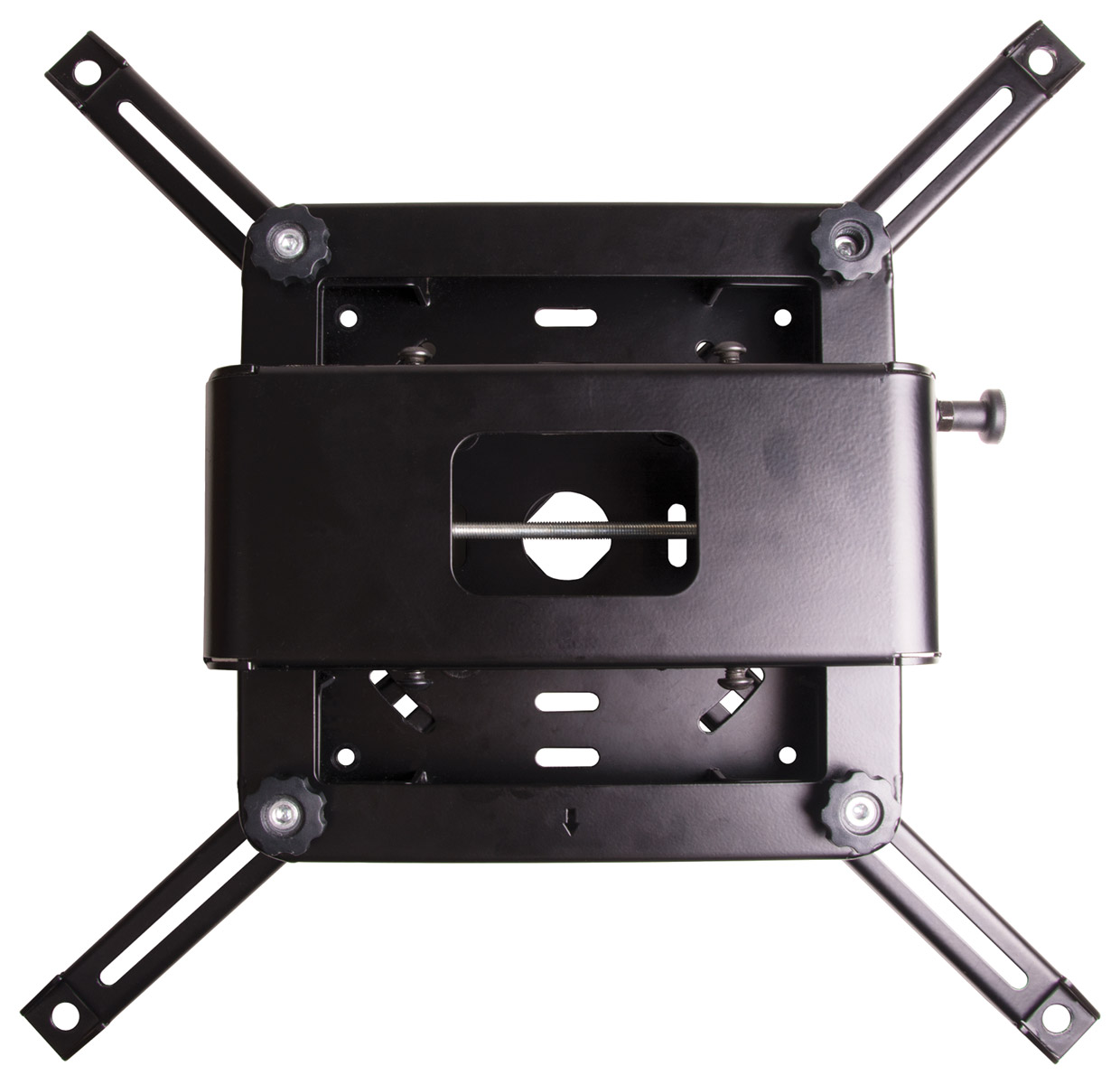

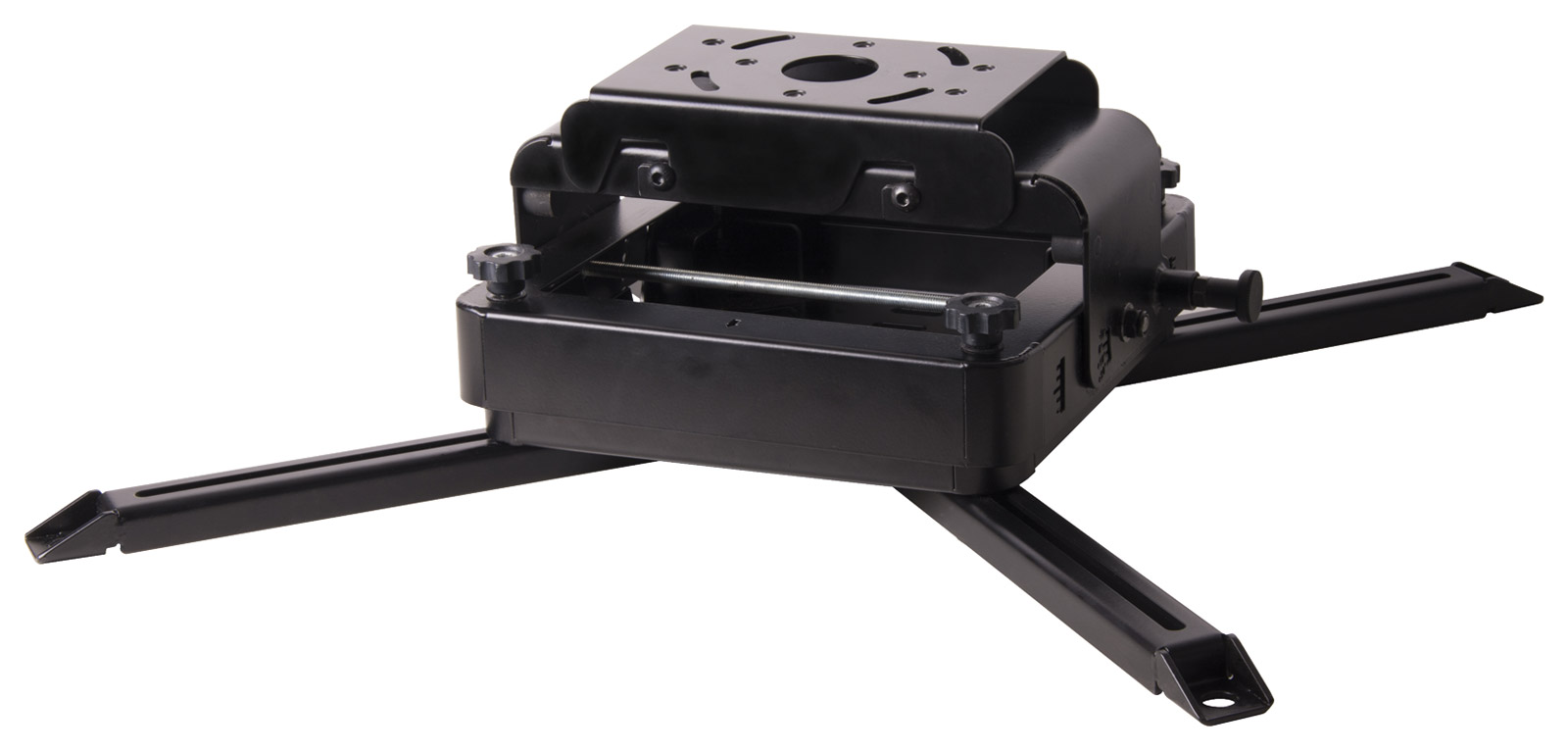

BT893 Flush mount, 70kg capacity, heavy duty

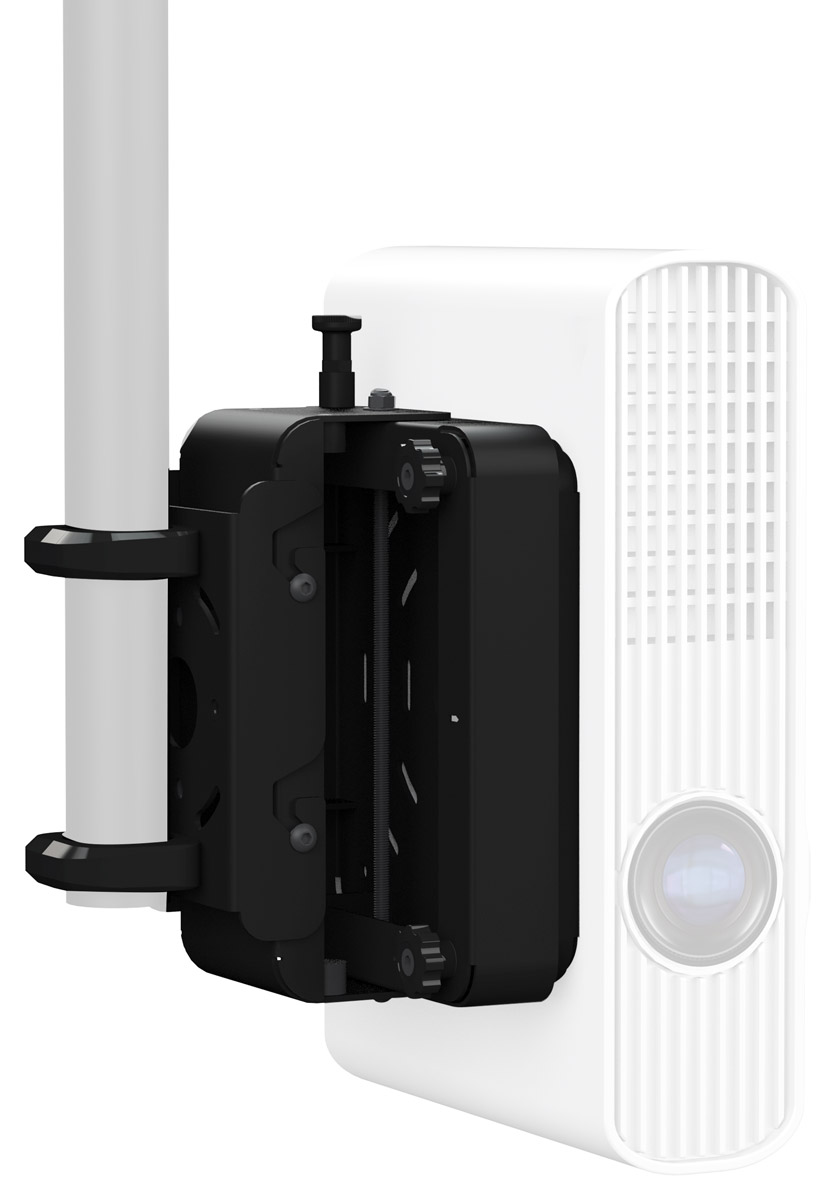

BT893 is a heavy duty ceiling mount for projector weighing up to 70kg. A distance between fixings of 873mm (maximum), or 618mm maximum in a square fixing pattern can be extended using optional extension legs. BT893 can be used with projectors with M6, M8, M10 or M12 fixings. The mount can be fixed directly to the ceiling or 50mm diameter pole, and micro-adjustment thumbwheels allow for precise setup at four points. Available with various fixed drop lengths as BT893-FD, and with adjustable drop as BT893-AD.

Ceiling drop: 153mm, +/-10mm with micro adjustment. Maximum load: 70kg. Tilt (pitch): +20/-10 degrees, +/-5 degrees with micro-adjustment. Roll: +/-5 degrees. Yaw: 25 degrees, ceiling mount; 45 degrees, pole mounted. Maximum distance between fixings: 873mm; 618mm, square pattern.

BT899-FD Fixed drop, 25kg capacity

B-Tech BT899-FD projector ceiling mount is compatible with projectors weighing up to 25kg and having universal fixings measuring a maximum of 370mm apart. The mount uses BT899 mount with a fixed length pole measuring 0.5m, 1m, or 2m. BT899-FD can be used with projectors with M2,.5, M3, M4, M5, or M6 fixings. The included locking screws can be used for additional security. Alternative versions include BT899 which is flush mount, and BT899-AD which has an adjustable drop. Mounting hardware is included.

Note: other fixed lengths including 1.5m, and 3m can be purchased as a special order. Please contact sales@canford.co.uk for more information.

Maximum load: 25kg. Tilt (pitch): +/-13 degrees. Roll: +/-6 degrees. Yaw: 360 degrees. Maximum distance between fixings: 370mm

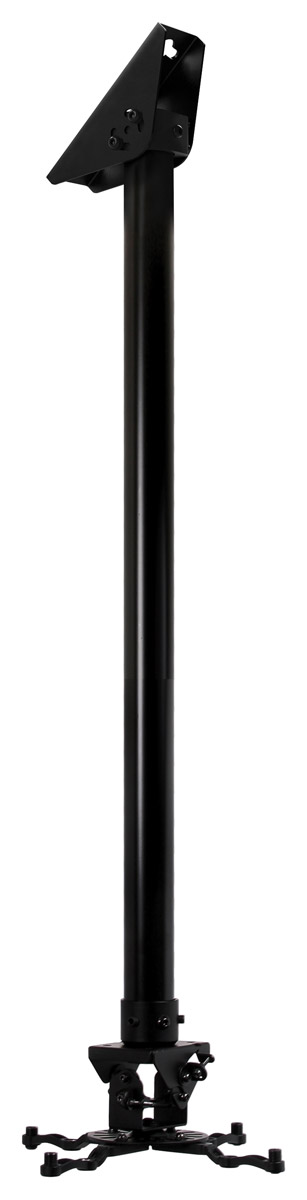

BT899XL-FD Fixed drop, 25kg capacity, extra-large

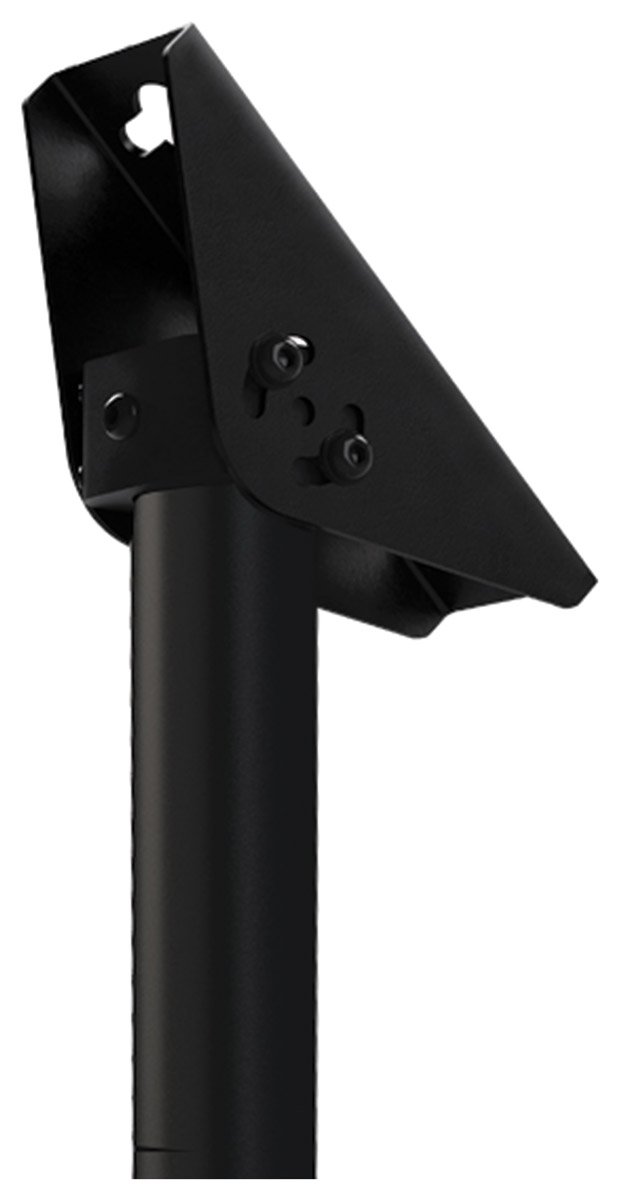

B-Tech BT899XL has the same properties as BT899 however it is designed for extra-large projectors that require up to 493mm between fixings. The mount can be used with projectors with M2,.5, M3, M4, M5, or M6 fixings. The mount is fixed to the ceiling via a pivoting plate that allows tilting through 90 degrees. BT899XL is also available as flush fitting, and with adjustable drop as BT899XL-AD. The included locking screws can be used for additional security. Mounting hardware is included.

Note: other fixed lengths including 1.5m, and 3m can be purchased as a special order. Please contact sales@canford.co.uk for more information.

Maximum load: 25kg. Tilt (pitch): +/-13 degrees. Roll: +/-6 degrees. Yaw: 360 degrees. Maximum distance between fixings: 493mm

BT893-FD Fixed drop, 70kg capacity, heavy duty

BT893-FD is a heavy duty ceiling mount with fixed drop range for projector weighing up to 70kg. A distance between fixings of 873mm (maximum), or 618mm maximum in a square fixing pattern can be extended using optional extension legs. BT893-FD can be used with projectors with M6, M8, M10 or M12 fixings. The mount can be fixed directly to the ceiling or 50mm diameter pole, and micro-adjustment thumbwheels allow for precise setup at four points. Available as flush mount version as BT893, and with adjustable drop as BT893-AD.

Note: other fixed lengths including 0.25m, 1.5m, and 3m can be purchased as a special order. Please contact sales@canford.co.uk for more information.

Micro-adjustment: +/-10mm. Maximum load: 70kg. Tilt (pitch): +20/-10 degrees, +/-5 degrees with micro-adjustment. Roll: +/-5 degrees. Yaw: +/-45 degrees. Maximum distance between fixings: 873mm; 618mm, square pattern.

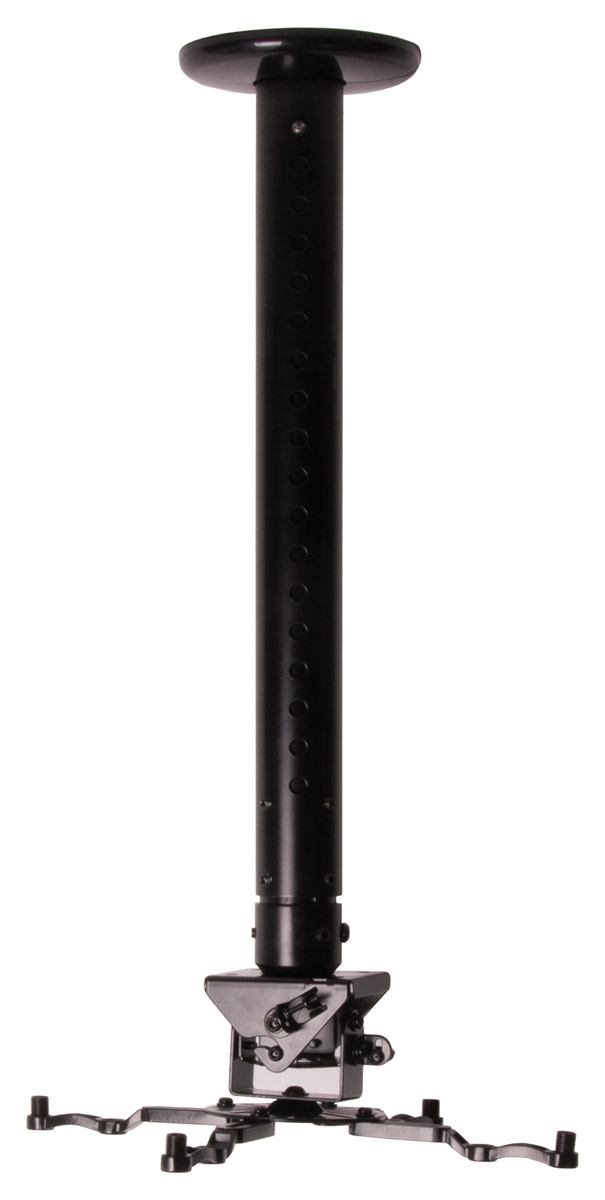

BT899-AD Adjustable drop, 25kg capacity

B-Tech BT899-AD projector ceiling mount is compatible with projectors weighing up to 25kg and having universal fixings measuring a maximum of 370mm apart. The mount uses BT899 mount with an adjustable length pole from 743mm to 1143mm, and locked into position using a sprung button and pre-set hole system. Grub screws are provided to fix the pole into position. BT899-AD can be used with projectors with M2,.5, M3, M4, M5, or M6 fixings. The included locking screws can be used for additional security. Alternative versions include BT899 which is flush mount, and BT899-FD which has various fixed drop versions. Mounting hardware is included.

Drop range: 743 - 1143mm. Maximum load: 25kg. Tilt (pitch): +/-13 degrees. Roll: +/-6 degrees. Yaw: 360 degrees. Maximum distance between fixings: 370mm

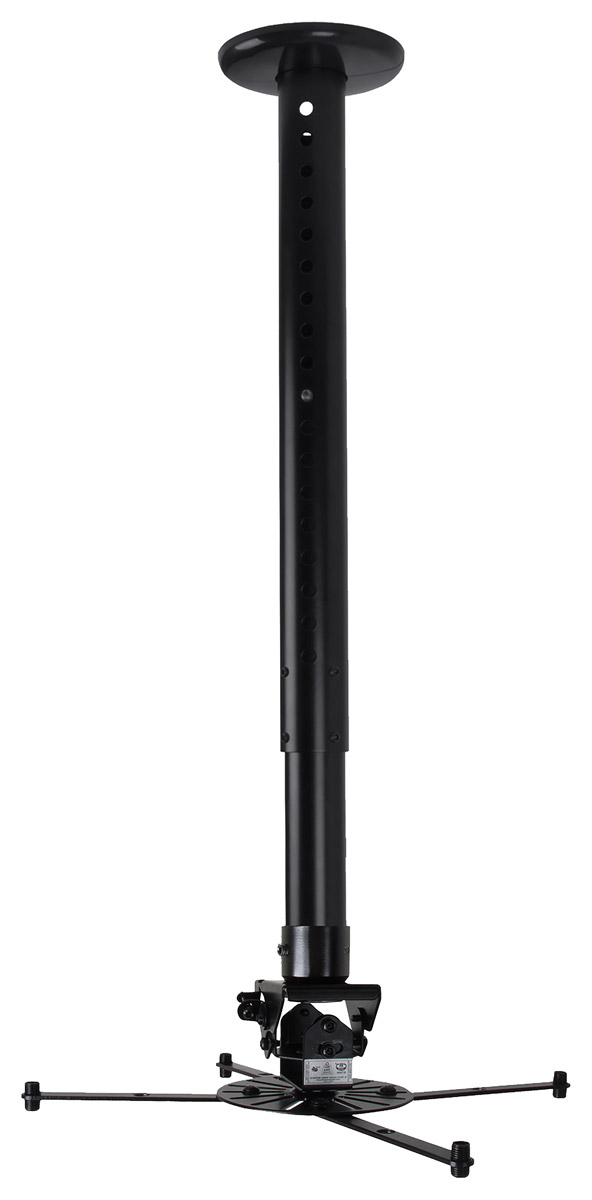

BT899XL-AD Adjustable drop, 25kg capacity, extra-large

B-Tech BT899XL-AD has the same mounting properties as BT899-AD however it is designed for extra-large projectors that require up to 493mm between fixings. The drop from ceiling to plate is adjustable from 728mm to 1128mm, and locked into position using a sprung button and pre-set hole system. Grub screws are provided to fix the pole into position. The mount can be used with projectors with M2,.5, M3, M4, M5, or M6 fixings. The mount is fixed to the ceiling via a circular, non-pivoting plate. BT899XL-FD is also available with fixed drop in varying lengths (BT899XL), and without drop as BT899XL. The included locking screws can be used for additional security. Mounting hardware is included.

Drop range: 728 - 1128mm. Maximum load: 25kg. Tilt (pitch): +/-13 degrees. Roll: +/-6 degrees. Yaw: 360 degrees. Maximum distance between fixings: 493mm

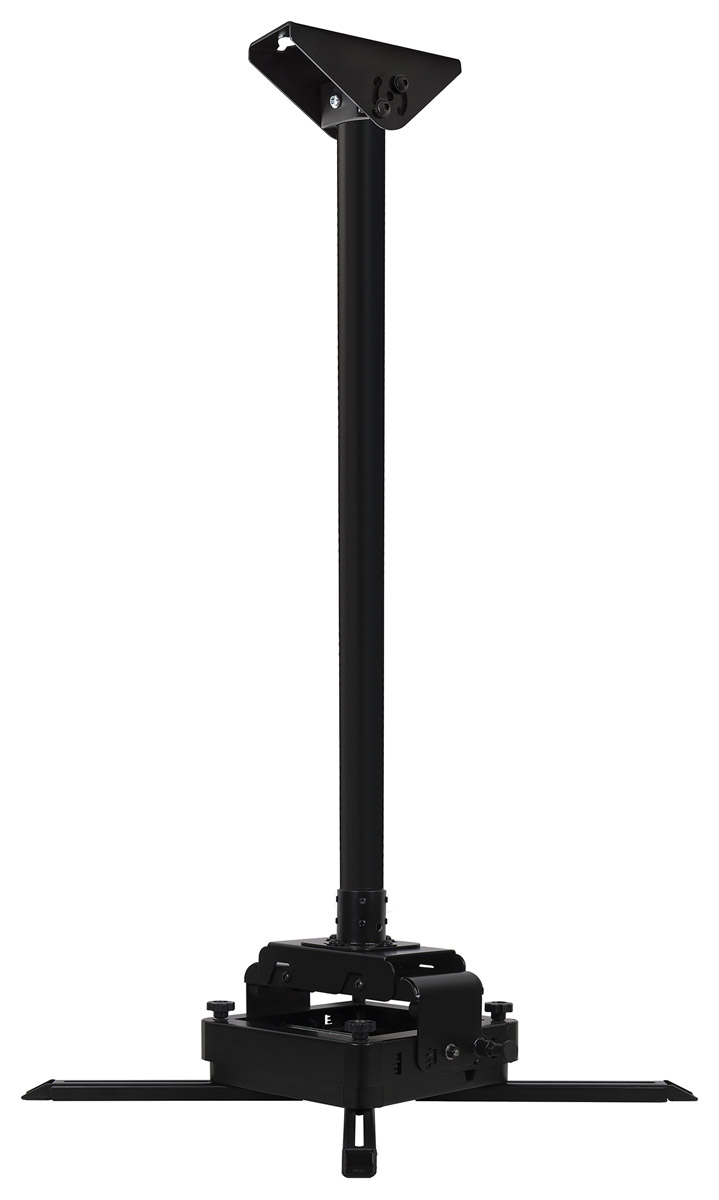

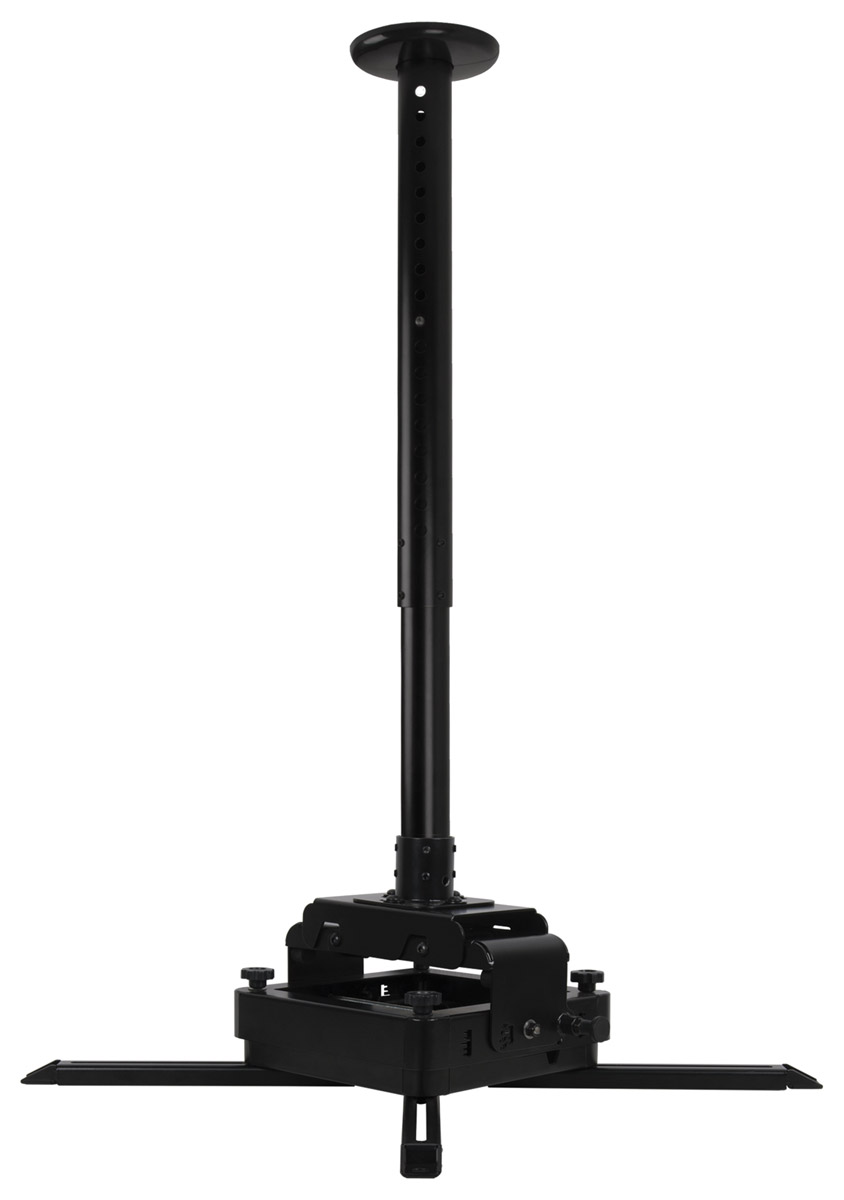

BT893-AD Adjustable drop, 70kg capacity, heavy duty

BT893-AD is a heavy duty ceiling mount with adjustable drop range for projector weighing up to 70kg. A distance between fixings of 873mm (maximum), or 618mm maximum in a square fixing pattern can be extended using optional extension legs. BT893-AD can be used with projectors with M6, M8, M10 or M12 fixings. The mount can be fixed directly to the ceiling or 50mm diameter pole, and micro-adjustment thumbwheels allow for precise setup at four points. Available with various fixed drop lengths as BT893-FD, and as flush mount version as BT893.

Drop range: 766 - 1186mm with micro-adjustment of +/-10mm. Maximum load: 70kg. Tilt (pitch): +20/-10 degrees, +/-5 degrees with micro-adjustment. Roll: +/-5 degrees. Yaw: +/-45 degrees. Maximum distance between fixings: 873mm; 618mm, square pattern.
