BELDEN 1694F - HDTV, SERIAL DIGITAL AND ANALOGUE VIDEO CABLE Flexible, low loss

2 Produkte

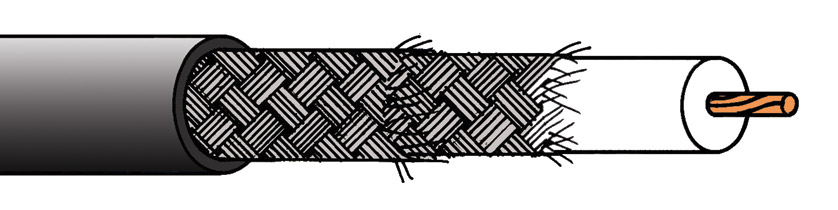

BELDEN 1694F CABLE Black

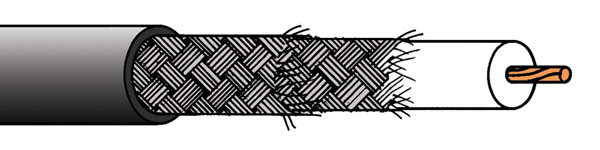

BELDEN 1694F CABLE Black

Flexible low-loss coaxial cable specifically for serial digital video signals.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specifications:
Cable size group: Y (with Neutrik and Canare exceptions)
Inner conductor: 7/0.361mm (19AWG) plain copper (1.016mm O.D.)
Dielectric: Foam polyethylene, 5.72mm O.D.
Screen 1: Tinned copper braid
Screen 2: Tinned copper braid
Construction: Coaxial cable
Jacket: PVC, O.D. 7.01mm, black and violet (other colours available to special order)
Impedance: 75 +/- 1%
Capacitance: 53pF/m nominal
Return loss: 20dB 5-850MHz
15dB 850-4500MHz
Attenuation: MHz 10 71.5 270 360 750 1500 3000 4500
dB/100m 2.4 6.5 13.1 15.4 22.9 34.1 51.1 64.9
Weight: 7.4kg/100m
Reel length: 305m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
Canford Connect 48-6026 CANFORD CONNECT CCBNCY BNC 12G, crimp, 75 ohm, Group Y
COAX Connectors 48-5063 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y
COAX Connectors 48-5073 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y (pack of 100)
Neutrik 48-6376 NEUTRIK NBNC75BUU11X BNC 12G UHD Male cable, rear twist, Canford SDV-L-X-LFH

BNC Male, right-angled - 12G

Brand Code Description
COAX Connectors 48-5082 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group Y
COAX Connectors 48-5092 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp Y (pack of 100)

BNC Male - 3G

Brand Code Description
COAX Connectors 48-5043 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y
COAX Connectors 48-5053 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)
Neutrik 48-622 NEUTRIK NBNC75BRU11 BNC 3G Male cable, rear twist, Belden 1694F
Telegartner 48-788 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y
Telegartner 48-778 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Male - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-714 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y
Telegartner 48-774 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Female, panel mount - 3G

Brand Code Description
Neutrik 48-7991 NEUTRIK NBNB75GUU11 BNC 3G Female panel, grounded, crimp, group Y

DIN 1.0/2.3 Male - 3G

Brand Code Description
COAX Connectors 48-5006 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y
COAX Connectors 48-5016 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y (pack of 100)

MUSA - 3G

Brand Code Description
Canford 48-4436 CANFORD MUSA 3G HD Female, cable, group Y

MUSA Metrology grade

Brand Code Description
Canford 48-4486 CANFORD MUSA Metrology grade, silver, female, cable, group Y

F Connector

Brand Code Description
Telegartner 48-8282 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y
Telegartner 48-8292 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y (pack of 100)
Bezeichnung Preis €
zzgl. MwSt. 		Hinzufügen
Versand
BELDEN 1694F CABLE Black Black Artikelnummer: 60-1694F
Zur Zeit nicht auf Lager, erwartet am: 05.03.2025.
8 kurze Kabellängen verfügbar
1+ 8,87 €
100+ 7,09 €
500+ 6,91 €
1.000+ 6,65 €
pro Meter
BELDEN 1694F CABLE Violet Violet Artikelnummer: 60-1694F-7
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Monate. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
1+ 8,87 €
100+ 7,09 €
500+ 6,91 €
1.000+ 6,65 €
pro Meter
