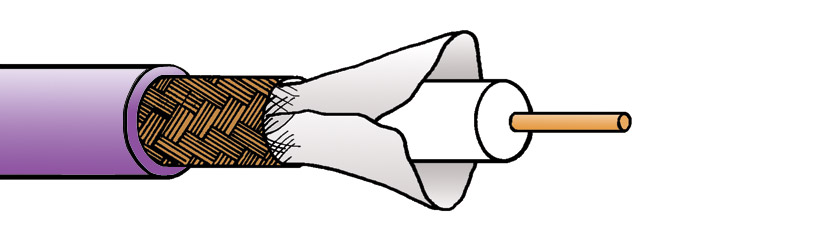

Compact size, coaxial, 75 ohm cable specifically for 4K 12G video signals with PVC outer jacket.
Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.
Technical Specification:
| Cable size group: |
X (with Canare, Canford Connect, Coax Connectors and Neutrik exceptions) |
| Inner conductor: |
(23AWG) 0.58mm silver plated copper |
| Dielectric: |
Foam polyethylene, 2.59mm O.D. |
| Screen 1: |
Aluminium/polypropylene/aluminium tape |
| Screen 2: |
Tinned copper braid, optical coverage 95% |
| Construction: |
Coaxial cable |
| Jacket: |
PVC, black, violet and blue |
| Overall diameter: |
4.04mm |
| Minimum bend radius: |
40.6mm |
| Impedance: |
75 ohms |
| Capacitance: |
53.5pF/m nominal |
| Weight: |
2.53kg/100m |
| Reel length: |
305m |
| Cut lengths: |
Black: Available in any multiple of 1 metre. Blue and violet: 305m reels. |
Suitable crimp connectors outlined below.
BNC Female - HD-SDI - 1.5G
Ordering note: Other colours available to special order, contact sales for further details.
