BELDEN 7794A SERIES - SERIAL DIGITAL AND ANALOGUE VIDEO MULTICORE CABLE

3 Produkte

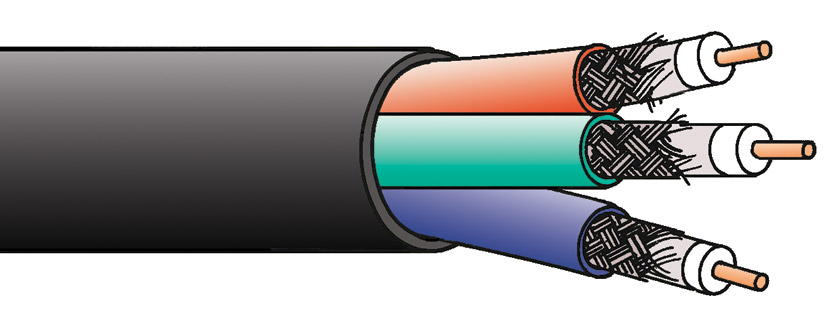

BELDEN 7794A CABLE 3 core (3 x 1505A) black
BELDEN 7794A CABLE 3 core (3 x 1505A) black

A multicore version of 1505A serial digital video cable. Cores are exactly as the standard cable, and have coloured jackets for identification.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specifications:

Cable size group: Q (with Canare and Neutrik exceptions)
Inner conductor: 1/0.813mm (20AWG) (0.52 sq.mm) plain copper
Dielectric: Foam polyethylene, 3.68mm O.D.
Screen 1: Aluminium/polyester/aluminium tape, longitudinally applied
Screen 2: Tinned copper braid, optical coverage 95%
Construction: Coaxial cable
Jacket: PVC, various colours according to code, O.D. 5.92mm
Impedance: 75 +/- 1%
Capacitance: 53pF/m nominal
Return loss: 23dB 5-850MHz
21dB 850-4500MHz
Attenuation: MHz 1 10 270 360 750 1000 2500 3000
dB/100m 1 2.9 12.5 14.4 21.3 24.9 40.7 45.3
Lay up: Individually coloured, 3 cores (7794A), 5 cores (7796A), 10 cores (7798A)
Overall sheath: PVC, matt black, O.D. 16.03mm (7794A), 20.07mm (7796A), 29.62mm (7798A)
Weight: 27.80kg/100m (7794A), 44.45kg/100m (7796A), 92.95kg/100m (7798A)
Reel length: 153m, 305m
Cut lengths: Not available. Orders must be for multiples of 153m
Suitable crimp connectors outlined below.

BNC Male - 12G

BNC Male - 3G

BNC Male - 75Ohm RF

BNC Female, panel mount - 3G

Micro BNC Male - 12G

DIN 1.0/2.3 Male - 3G

F Connector

RCA Phono

Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand
BELDEN 7794A CABLE 3 core (3 x 1505A) black Black Artikelnummer: 60-7794A
152 lieferbar Dieses Produkt muss in Vielfachen von 153 Stück nachbestellt werden. Mehr benötigt?
1+ 30,07 €
100+ 24,06 €
500+ 23,45 €
1.000+ 22,55 €
pro Meter
BELDEN 7796A CABLE 5 core (5 x 1505A), black Black Artikelnummer: 60-7796A
Nicht mehr hergestellt.Leider können wir zur Zeit keine Alternative anbieten.
1 kurze Kabellängen verfügbar
BELDEN 7798A CABLE 10 core (10 x 1505A), black Black Artikelnummer: 60-7798A
Dieses Produkt muss in Vielfachen von 153 Stück nachbestellt werden.Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Monate. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
1+ 89,44 €
100+ 71,55 €
500+ 69,76 €
1.000+ 67,08 €
pro Meter
