DPA MICROPHONES - Adapters and Cables

32 Produkte

A range of DPA MicroLock and MicroDot adapters, and connecting cables that allows the user to extend the distance from microphone to source, along with add compatibility for different wireless system input type.


MicroLock Adapter

MicroLock adapters have designed using the form factor of MicroDot adapters along with an updated locking mechanism to give more reassurance of connection whist eliminating loosening by mistake or through handling alone. The user can connect MicroLock in the same way as if it were a MicroDot, with the only difference is that you do not need to screw it all the way in. The connection is secure, and the connector is considered assembled as soon as you hear the clicking sound or feel the tactile feedback. The clicking sound is produced by the locking teeth being pressed together by the spring, ensuring that the connector does not loosen unintentionally until the user actively unscrews it. To disconnect MicroLock, the sleeve is pulled back by 0.5 mm to compress the spring that locks the teeth. This releases the lock. The connector can then be fully unscrewed. Although the MicroLock adapter is compatible with MicroDot terminated microphones and cables, the lock can only be employed when both connections are of MicroLock type.

Note that the adapters contain circuitry to pass the correct supply voltage to the microphone, so may not be suitable for use with other miniature microphones. Adapters are available for most UHF transmitters. If an adapter is required for a transmitter not listed here, please contact Technical Support.


MicroDot Adapter

MicroDot adapters for wireless systems give you flexible, simple and affordable possibilities, and allow the user to switch the same microphone between transmitter types, or standard 48V phantom power, 3-pin XLR.

Note that the adapters contain circuitry to pass the correct supply voltage to the microphone, so may not be suitable for use with other miniature microphones. Adapters are available for most UHF transmitters. If an adapter is required for a transmitter not listed here, please contact Technical Support.

MicroLock and MicroDot Adapter Compatibility

CM16 Extension cable

Available in black finish, these extension cables have been designed for compatibility with any DPA miniature microphone. The Kevlar reinforced cable is terminated with either MicroLock or MicroDot adapter. Cable diameter: 1.6mm. Length: 1/1.8m options.


CM22 Extension cable

Available in black or white finishes, these Kevlar reinforced, heavy duty extension cable have been designed to work with any DPA miniature microphone. The thicker and more sturdy (in comparison to CM16) allows compatibility to any DPA MicroLock or MicroDot and is ‘perfect for use in physically-challenging environments’ like the live stage. Cable diameter: 2.2mm. Length: 1.8/5/10/20m options.


DAO4010, DAO4020 Extension cable

An installation solution that uses Mogami cable and an ultra-slim XLR housing. It is a cable for suspension or minimal visual appearance, adding only a few millimeters extra length to the microphone.

Most of the connector will be locked and hidden within the microphone, leaving an elegant looking solution for applications in concert halls, conference rooms, TV Broadcast or live sound reinforcement where minimal visual appearance is appreciated. This cable is available in 10m (33 ft) and 20m (66 ft) lengths.

Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand

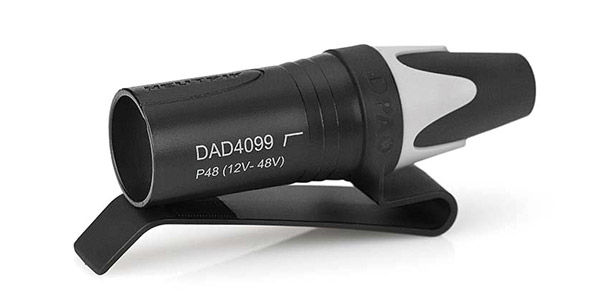

DPA DAD4099-BC ADAPTER MicroDot to XLR3M (P48) connector, low-cut filter, with belt clip Artikelnummer: 74-137
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
101,15 €

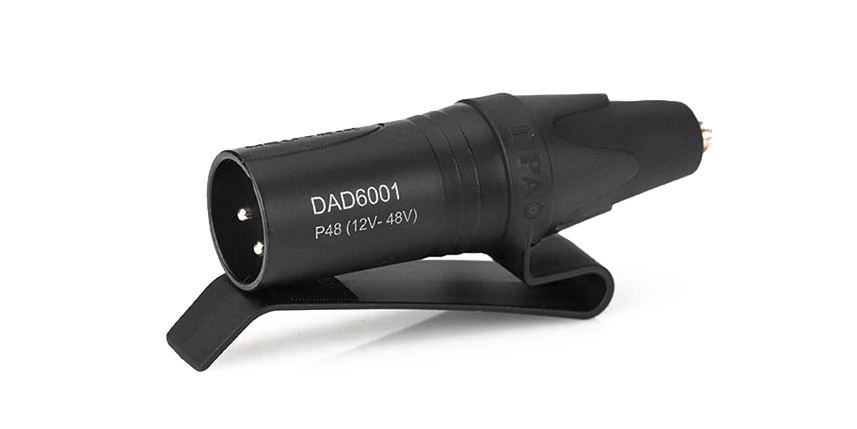

DPA DAD6001-BC ADAPTER MicroDot to XLR3M (P48) connector, with belt clip Artikelnummer: 74-120
1 lieferbar Mehr benötigt?
101,15 €

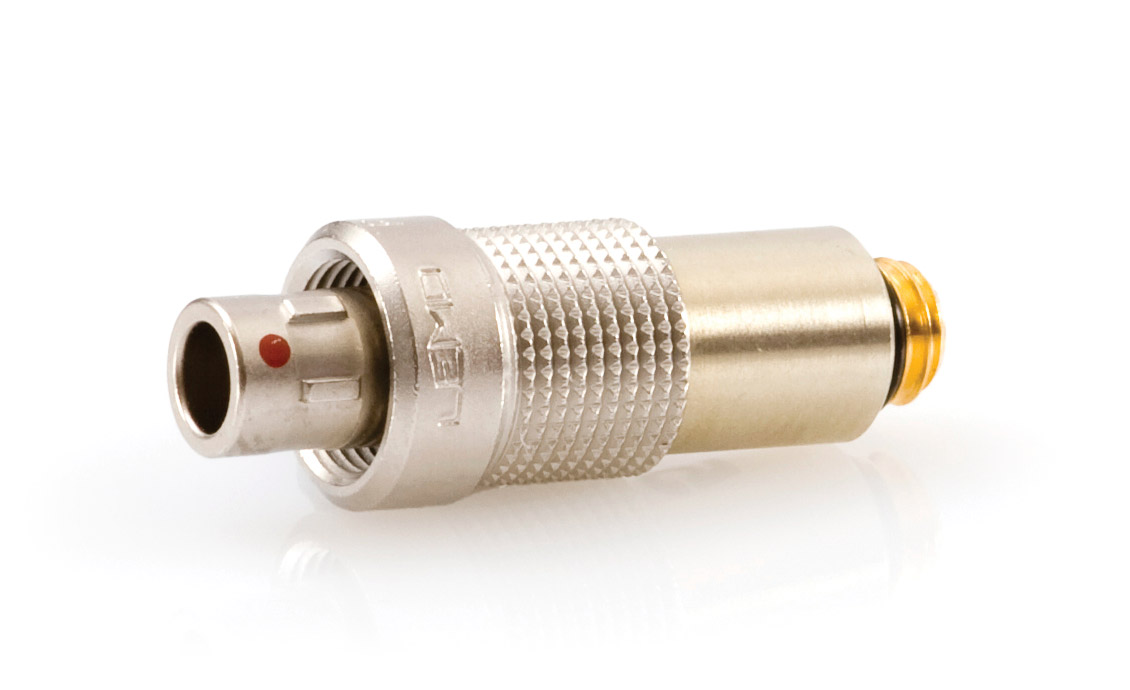

DPA DAD9003 ADAPTER MicroLock to 3-pin Lemo connector Artikelnummer: 74-115
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
89,25 €

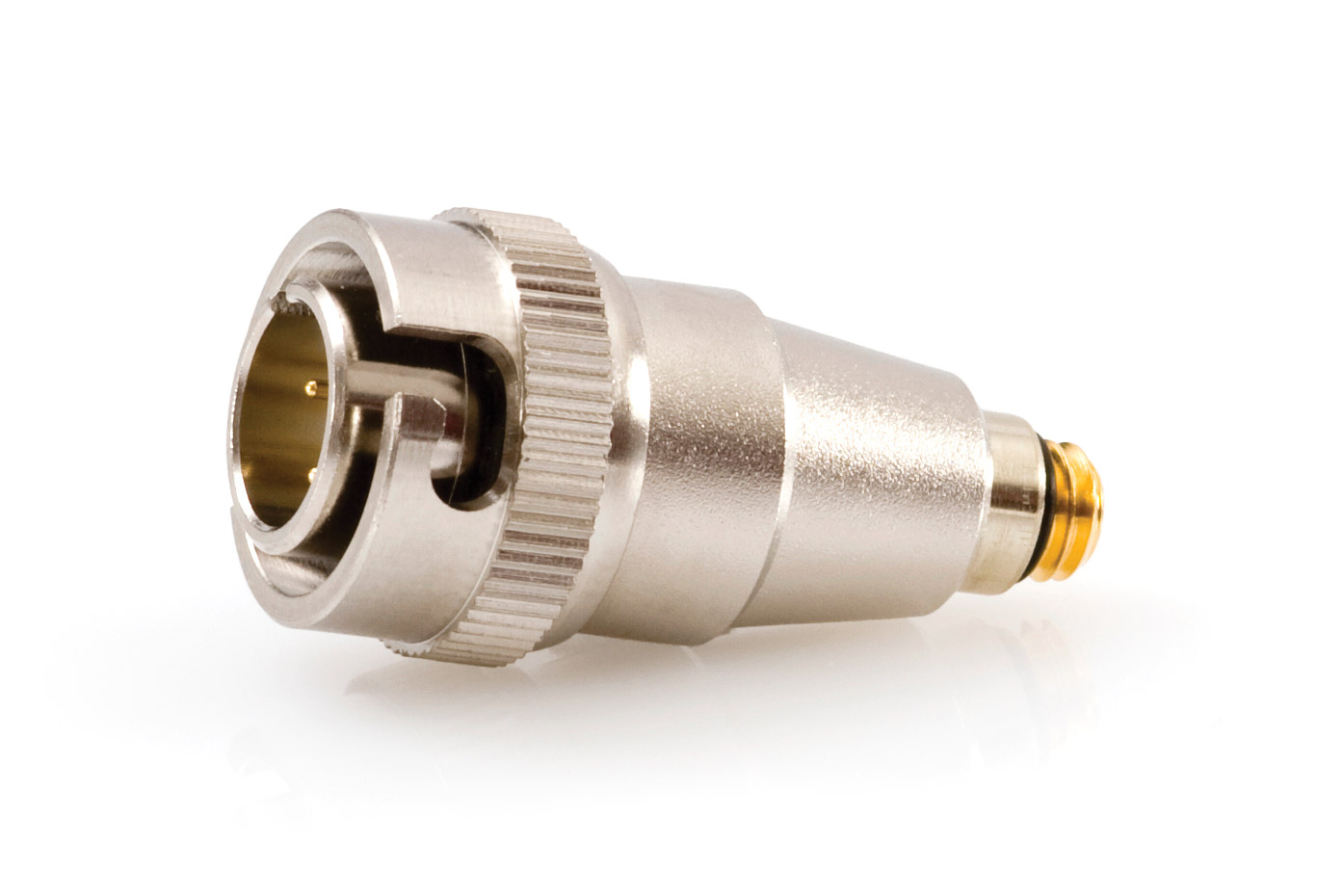

DPA DAD9008 ADAPTER MicroLock to 4-pin Hirose connector, for Sony DWT-B01/WRT820/WRT860/WRT8 Artikelnummer: 74-116
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
101,15 €

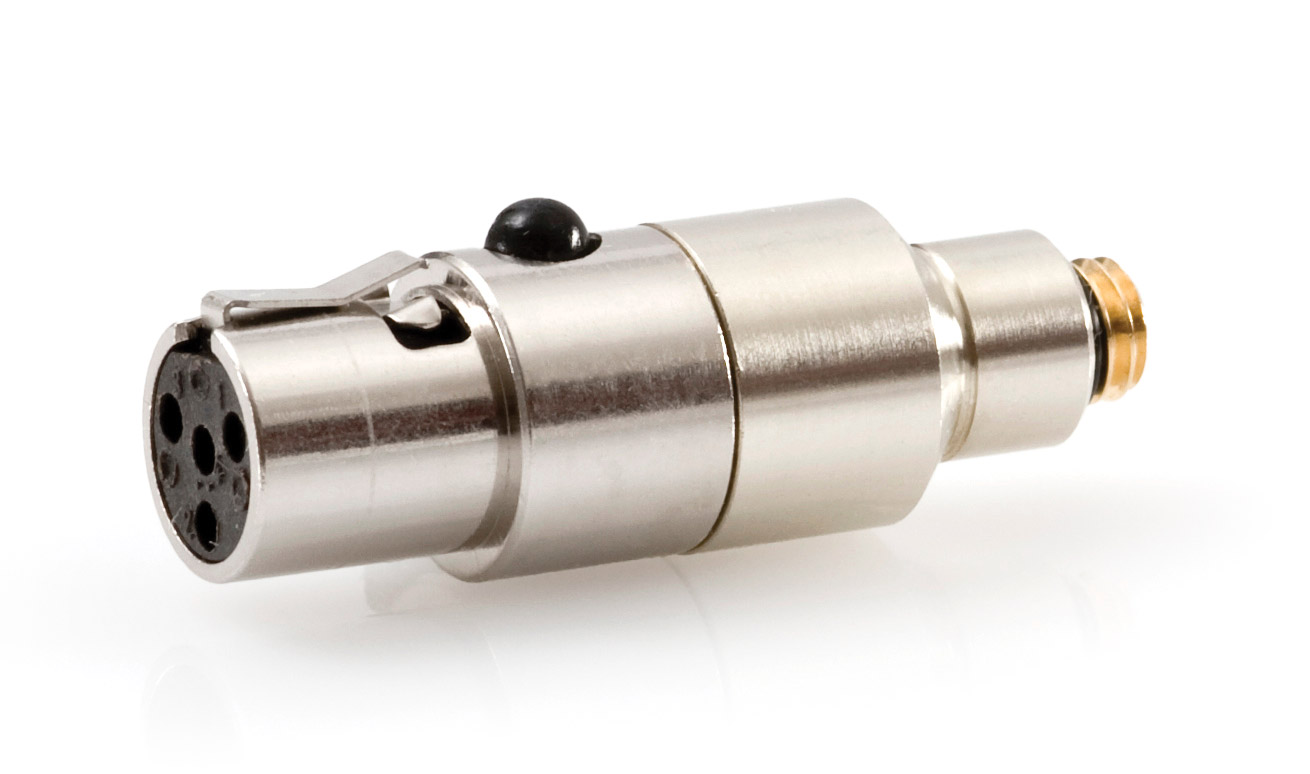

DPA DAD9010 ADAPTER MicroLock to TA4F connector Artikelnummer: 74-117
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
89,25 €

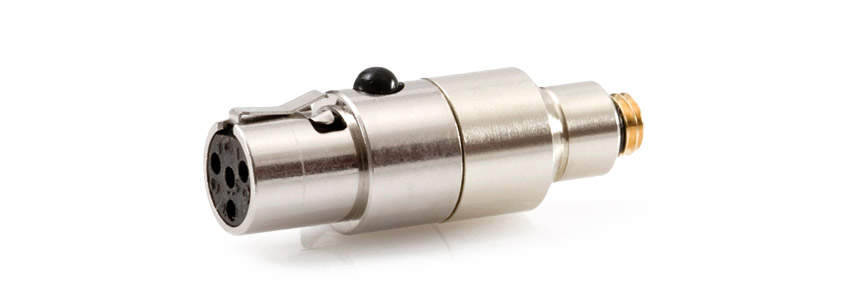

DPA DAD6010 ADAPTER MicroDot to TA4F connector Artikelnummer: 74-130
11 lieferbar Nicht mehr hergestellt, nur noch erhältlich solange der Vorrat reicht.
89,25 €
DPA DAD9019 ADAPTER MicroLock connector to 3.5mm locking jack, for Sony Freedom WRT 805 Artikelnummer: 74-118
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
89,25 €
DPA DAD9034 ADAPTER MicroLock to 3.5mm locking jack connector Artikelnummer: 74-119
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
89,25 €
DPA DAD6034 ADAPTER MicroDot to 3.5mm locking jack connector Artikelnummer: 74-1372
4 lieferbar Nicht mehr hergestellt, nur noch erhältlich solange der Vorrat reicht.
89,25 €
DPA CM16 MICROLOCK EXTENSION CABLE 1.6mm diameter, MicroLock connector, 1.0m, black Black Artikelnummer: 74-1321
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
41,64 €
DPA CM16 MICROLOCK EXTENSION CABLE 1.6mm diameter, MicroLock connector, 1.8m, black Black Artikelnummer: 74-1322
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
41,64 €
DPA CM22 MICROLOCK EXTENSION CABLE 2.2mm diameter, MicroLock connector, 1.8m, black Black Artikelnummer: 74-1323
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
41,64 €
DPA CM22 MICROLOCK EXTENSION CABLE 2.2mm diameter, MicroLock connector, 5m, black Black Artikelnummer: 74-1324
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
77,36 €

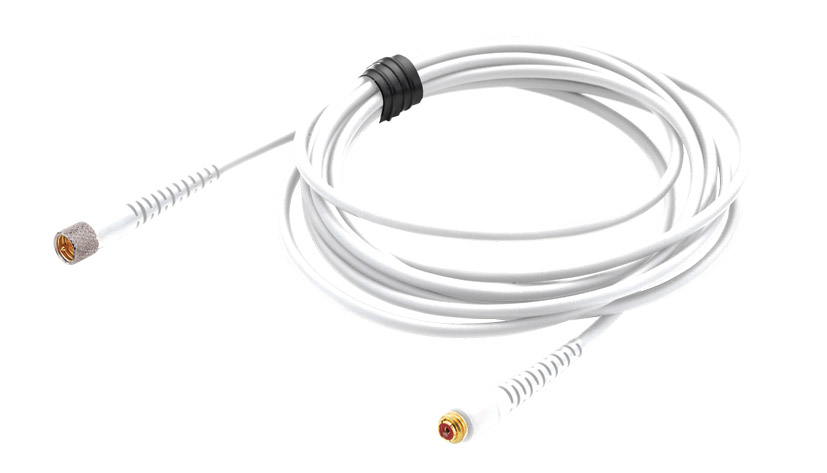

DPA CM22 MICROLOCK EXTENSION CABLE 2.2mm diameter, MicroLock connector, 5m, white White Artikelnummer: 74-1325
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
77,36 €
DPA CM22 MICROLOCK EXTENSION CABLE 2.2mm diameter, MicroLock connector, 10m, black Black Artikelnummer: 74-1326
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
92,82 €
DPA CM22 MICROLOCK EXTENSION CABLE 2.2mm diameter, MicroLock connector, 10m, white White Artikelnummer: 74-1327
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
92,82 €
DPA CM22 MICROLOCK EXTENSION CABLE 2.2mm diameter, MicroLock connector, 20m, black Black Artikelnummer: 74-1328
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
101,15 €
DPA CM22 MICROLOCK EXTENSION CABLE 2.2mm diameter, MicroLock connector, 20m, white White Artikelnummer: 74-1329
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
101,15 €
DPA CM22 MICRODOT EXTENSION CABLE 2.2mm diameter, MicroDot connector, 10m, black Black Artikelnummer: 74-1376
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
76,16 €

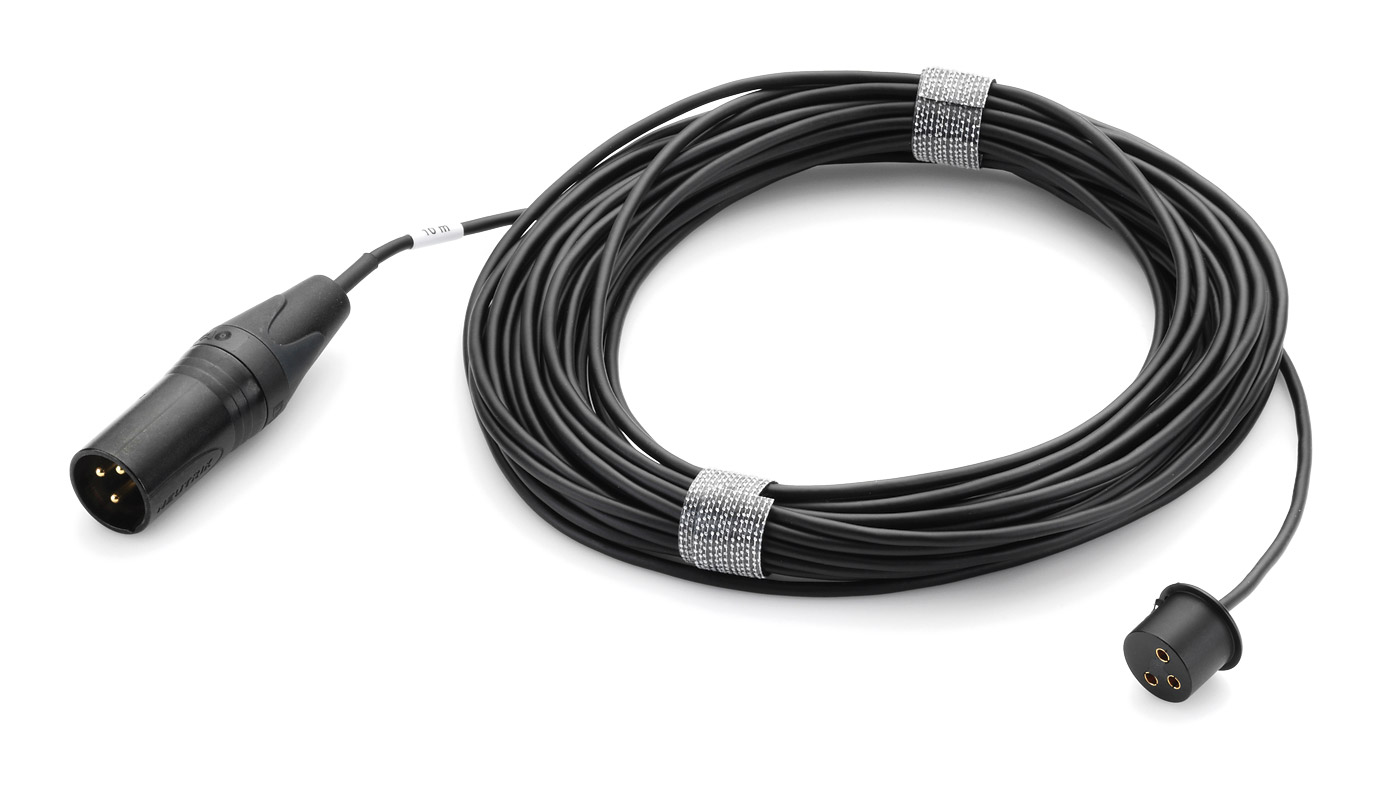

DPA DAO4010 CABLE Slim XLR to 3-pin MXLR, 10m Artikelnummer: 74-1285
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
101,15 €
DPA DAO4020 CABLE Slim XLR to 3-pin MXLR, 20m Artikelnummer: 74-1286
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
130,90 €

Eingestellte Produkte

DPA DAD6003 ADAPTER MicroDot to 3-pin Lemo connector Artikelnummer: 74-123
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.

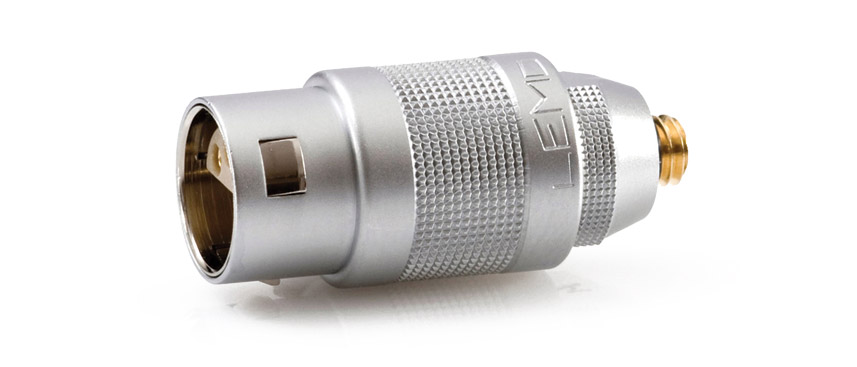

DPA DAD6004 ADAPTER MicroDot to 6-pin Lemo connector Artikelnummer: 74-124
Nicht mehr hergestellt. Bitte wenden Sie sich an unser technisches Unterstützungsteam für Informationen über Alternativen.
DPA DAD6008 ADAPTER MicroDot to 4-pin Hirose connector Artikelnummer: 74-128
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.
DPA DAD6019 ADAPTER MicroDot connector to 3.5mm locking jack, for Sony Freedom WRT 805 Artikelnummer: 74-133
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.

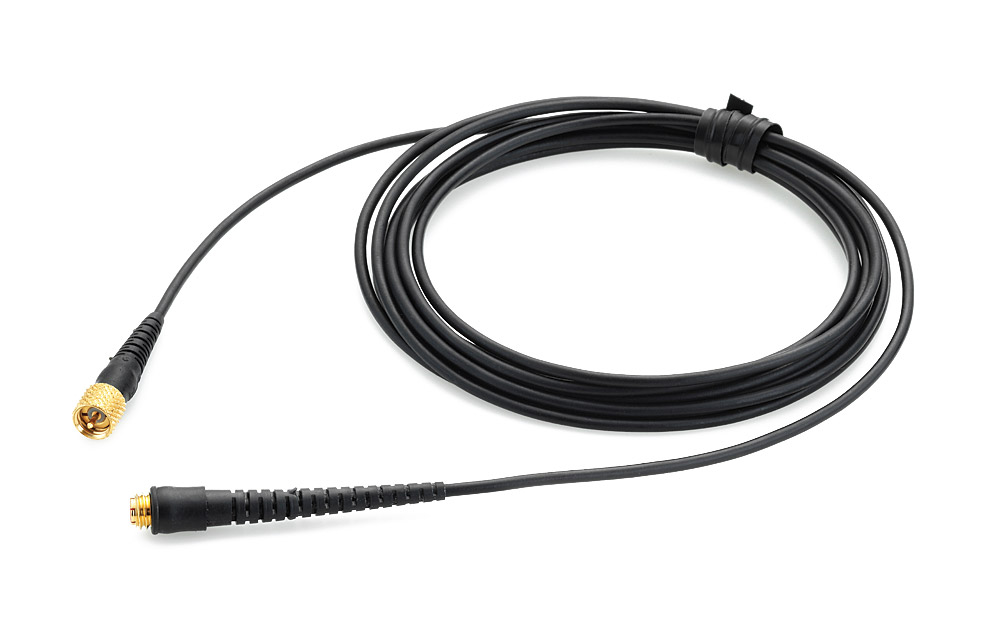

DPA CM16 MICRODOT EXTENSION CABLE 1.6mm diameter, MicroDot connector, 1.8m, black Black Artikelnummer: 74-1373
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.

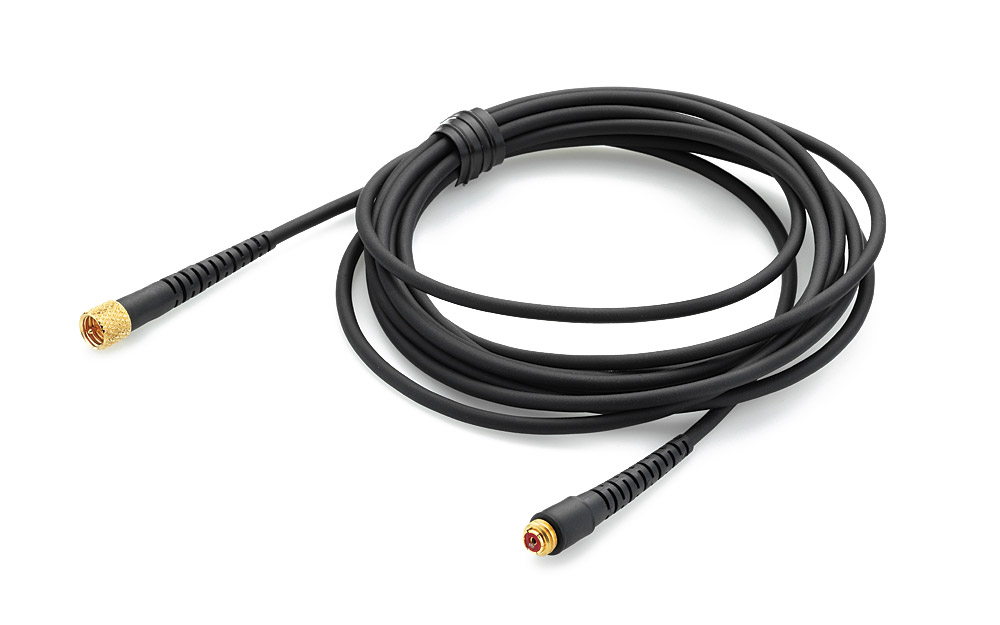

DPA CM22 MICRODOT EXTENSION CABLE 2.2mm diameter, MicroDot connector, 1.8m, black Black Artikelnummer: 74-1374
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.
DPA CM22 MICRODOT EXTENSION CABLE 2.2mm diameter, MicroDot connector, 5m, black Black Artikelnummer: 74-1375
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.
DPA CM22 MICRODOT EXTENSION CABLE 2.2mm diameter, MicroDot connector, 5m, white White Artikelnummer: 74-1361
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.
DPA CM22 MICRODOT EXTENSION CABLE 2.2mm diameter, MicroDot connector, 10m, white White Artikelnummer: 74-1362
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.
DPA CM22 MICRODOT EXTENSION CABLE 2.2mm diameter, MicroDot connector, 20m, black Black Artikelnummer: 74-1377
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.
DPA CM22 MICRODOT EXTENSION CABLE 2.2mm diameter, MicroDot connector, 20m, white White Artikelnummer: 74-1363
Nicht mehr hergestellt.Sehen Sie die Produktseitenfür mögliche Alternativen.
