MuxLab data extenders over Cat5e/6 cable are intended for AV system integration, along with security, industrial control, digital signage, and scientific data acquisition whereby distances of up to 100m are between source and destination.

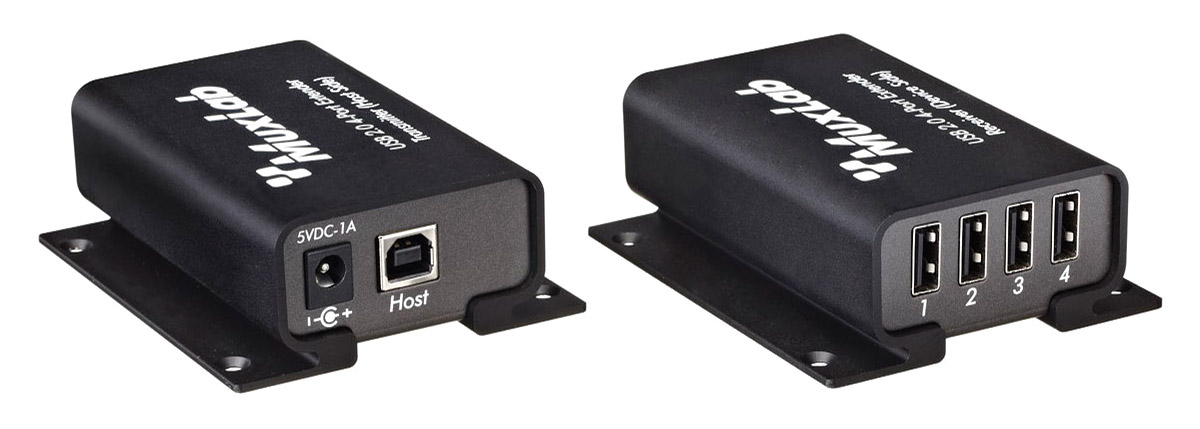

500072 4-port USB 2.0, 100m reach
500072 is a plug-and-play kit that allows the extension of a single host USB 2.0 or 1.1 input up to 100m, and outputs four USB data signals. USB devices including Control, Interrupt, Bulk, and Isochronous are supported at rates up to 480Mbps.

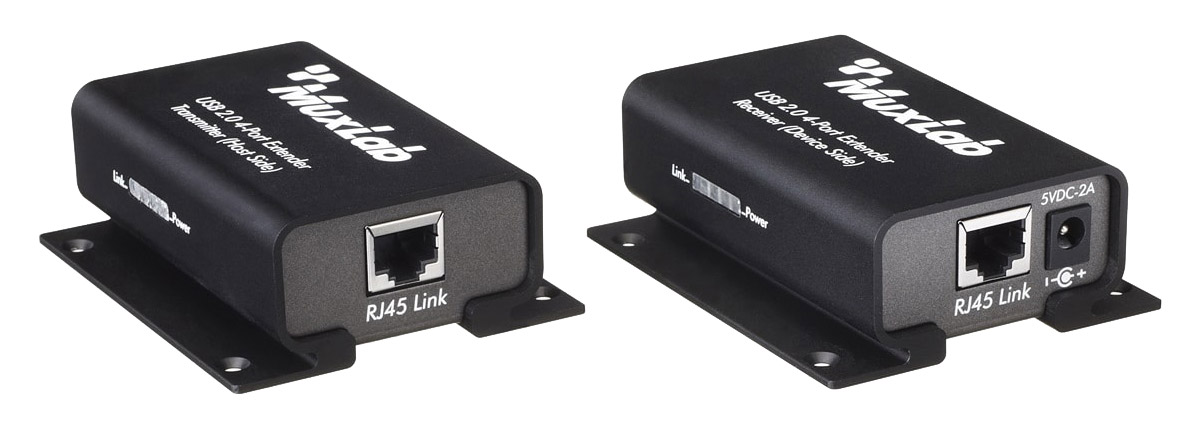

The host or source side hard has a single USB type-B input along with a single RJ45 connection for the extension Cat5e/6 cable, whilst the receiving or device side hardware has a single RJ45 connection and 4x USB type-A connectors. Both units have LEDs to signify power, link, and activity. The host device requires 5VDC, 1A power; and the receiving device requires 5VDC, 2A.
Included parts: 1x transmitter, 1x receiver, 2x 5V DC power adapters, 1x 0.6m USB 2.0 cable.
Dimensions (WxDxH): 90 x 73 x 31mm. Weight: 600g, total.

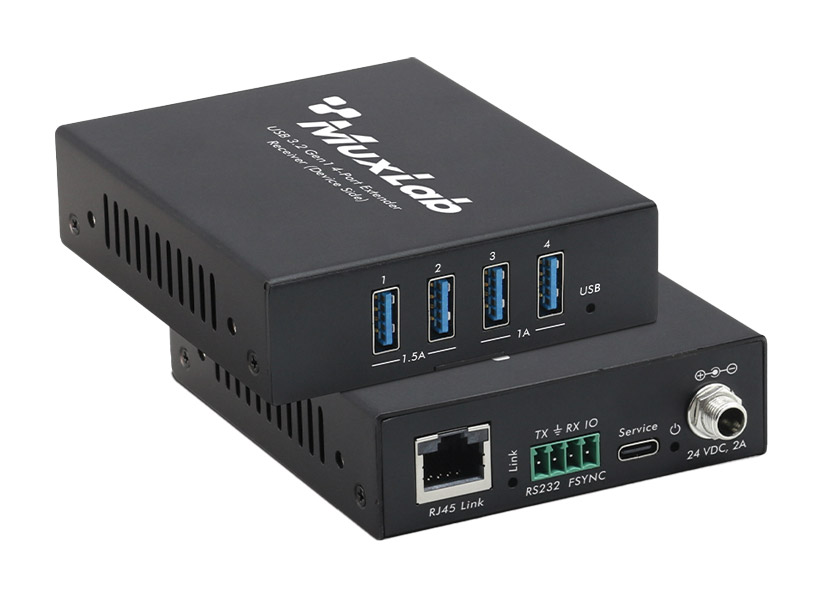

500530 4-port USB 3.2, 100m reach
500530 is a plug and play kit that enables USB 3.2 connectivity at a distance up to 100m. It has been designed for use in applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards. The data is transmitted over standard Cat6a UTP at data rates up to 5Gbps. The transmitter features one USB 3.2 (generation 1) type B input, one FSYSNC GPIO input, and one RS-232 pass-through. The receiver features four USB 3.2 (generation 1) type A outputs, one FSYSNC GPIO output, and one RS-232 pass-through. 500530 also supports 24V Bi-directional PoC (power over coaxial).
Dimensions (WxDxH): 85 x 100 x 25.5mm, transmitter/receiver. Weight: 253g, transmitter; 260g, receiver.
