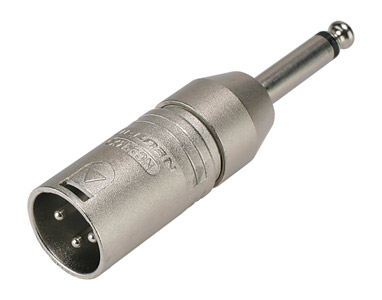

ADAPTER 3MX-2P 3-pin XLR male - 2-pole 6.35mm jack plug

Artikelnummer
49-210
Typennummer
  • 3MX-2P
ADAPTER 3MX-2P 3-pin XLR male - 2-pole 6.35mm jack plug
ADAPTER 3MX-2P 3-pin XLR male - 2-pole 6.35mm jack plugADAPTER 3MX-2P 3-pin XLR male - 2-pole 6.35mm jack plug

Bestellangaben

MwSt. / Versand
14,33 €
pro Stück (zzgl. MwSt.)
Zur Zeit nicht auf Lager, erwartet am: 26.11.2024.
RoHS Konform

XLR ADAPTERS

Designation denotes configuration of adapter contacts. All adapters are supplied pre-wired. 49-219 has “phase reverse” legend engraved in red. 49-200 is XLR male/female unwired, for user’s specially wired applications.

Wiring conventions
XLR Jack DIN MIDI DIN BNC Phono
pin 2 tip Pin 1 Pin 4 centre tip
pin 3 ring Pin 3 Pin 5 shell shell
pin 1 sleeve Pin 2 Pin 2 shell shell
Terminology used in adapter descriptions
3FX 3 pin female XLR
3MX 3 pin male XLR
2P 2 pole 6.35mm jack plug
2JA 2 pole 6.35mm A-gauge jack socket
3P 3 pole 6.35mm A-gauge jack plug
3J 3 pole 6.35mm jack socket (accepts both A and B gauge plugs)
3JA 3 pole 6.35mm jack socket (accepts A gauge plugs only)
PHM RCA (Phono) male
PHF RCA (Phono) female
BNCF BNC socket
BNCM BNC plug
3MJS 3 pole mini jack (3.5mm) socket
3MJP 3 pole mini jack (3.5mm) plug
NLF 4 pole speakon plug
5FX 5 pin female XLR
5MX 5 pin male XLR
