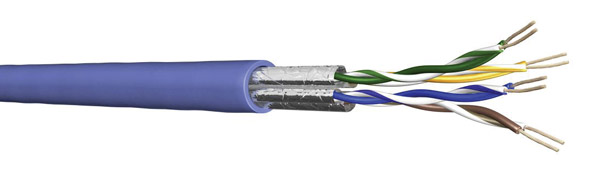

DRAKA CATEGORY 6A CABLE U/FTP (UC500 S23) LFH Dca (s2 d2 a1), Blue

Artikelnummer
31-962
Hersteller
Draka
Farbe
  • BlueBlue
DRAKA CATEGORY 6A CABLE U/FTP (UC500 S23) LFH Dca (s2 d2 a1), Blue
DRAKA CATEGORY 6A CABLE U/FTP (UC500 S23) LFH Dca (s2 d2 a1), BlueDRAKA CATEGORY 6A CABLE U/FTP (UC500 S23) LFH Dca (s2 d2 a1), Blue

Bestellangaben

/
Dieser Artikel wurde eingestellt. Siehe unten für Alternativvorschläge.
? 20 kurze Kabellängen verfügbar
Reststücklängen
1m 96-31962-1
-30%
0,82 € 0,57 €
1 verfügbar

auch gekauft

auch gekauft

DRAKA CAT6A DATA CABLE Solid conductor - Low fire hazard

The computer industry 100 ohm Category 6A standard provides performance up to 500MHz, and is suitable for Gigabit Ethernet and other high speed applications. Category 6A defines more stringent specifications than those applicable to Category 6 at higher frequencies.

They have a Draka patented foil screen over pairs 1 and 2 (blue, orange) and another over pairs 3 and 4 (green and brown). The F/FTP and S/FTP types are like U/FTP but respectively include a foil with drain wire overall screen or tinned copper braid overall screen.

These cables are solid conductor installation types with large overall diameter and are not suitable for use with most RJ45 type connectors.

Technical Specification:
Conductors: 1/0.56mm (23AWG) plain copper
Insulation: Foamed polyethylene, according to Category Cable Colour Codes
Lay-up: Two insulated conductors twisted together, pairs twisted together.
Pair screens: Aluminium/polyester tape (aluminium side in) (see explanatory note in text above)
Overall screen (F/FTP): Aluminium/polyester tape with1/0.4mm tinned copper wire, laid up with cores
Overall screen (S/FTP): Tinned copper wire braid
Overall jacket: Low smoke non-halogen material, blue
Overall diameter: 6.9mm (U/FTP), 7.1mm (F/FTP), 7.4mm (S/FTP)
CPR Euroclass: Eca (31-963), Dca-s2,d2,a1 (31-962), Cca-s1,d1,a1 (31-964, 31-965), B2ca-s1a,d1,a1 (31-967)
Minimum bending radius: 55.2mm (U/FTP), 56.8mm (F/FTP), 59.2mm (S/FTP)
Impedance: 100 +/- 15 ohms
Attenuation: 17.4dB/100m (100MHz)
25.0dB/100m (200MHz)
28.1dB/100m (250MHz)
44.8dB/100m (500MHz)
Near end crosstalk: 100dB (100MHz)
92dB (200MHz)
90dB (250MHz)
86dB (500MHz)
Weight: 4.5kg/100m (31-962, 31-963), 6.2kg/100m (31-964, 31-965), 6.4kg/100m (31-967)
Reel length: 500 metre reels
Cut lengths: Available in any multiple of 1 metre

Manufactured by Draka Comteq Ltd.
