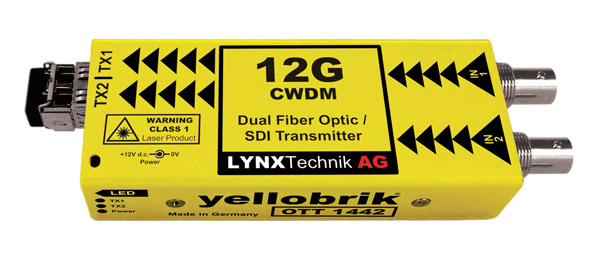

LYNX YELLOBRIK OTT 1442 FIBRE TRANSMITTER DUAL 12G/6G/3G/1.5G-SDI, 2x SM CWDM (yb only without SFP)

OTX 1410 - 12G, 6G, 3G, HD SDI to Fiber Optic Transmitter

OTX 1410 is a compact SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. When paired with the fibre optic to SDI receiver (e.g. yellobrik ORX 1400) you have a very cost-effective optical transmission/receiver system for signals up to 12G (4096×2160 at 60Hz), while preserving full uncompressed quality. Operation of OTX 1410 is fully automatic. The SDI video format is automatically detected, re-clocked and then transmitted over the fibre optic connection. A re-clocked electrical SDI output is also provided. OTX 1410 supports 12G, 6G, 3G and 1.5G SDI video standards and is available in LC, LC-40 and ST variants. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Versions available

OTX 1410-LC Singlemode LC Wavelength of 1310nm Optical power: -3dBm Up to 10km
OTX 1410-ST Singlemode ST Wavelength of 1310nm Optical power: -3dBm Up to 10km

OTX 1440 - 12G, 6G, 3G, HD SDI to Fibre Optic Transmitter (CWDM)

OTX 1440 is a compact CWDM SDI to fibre optic transmitter that when paired with the fibre optic to SDI receiver (e.g. ORX 1400) results in a cost-effective optical transmission/receiver system for signals up to 12G (4096 x 2160 at 60Hz), while preserving full uncompressed quality. Operation of OTX 1440 is fully automatic. The SDI video format is detected, re-clocked and then transmitted over the fibre optic connection. A re-clocked electrical SDI output is also provided. OTX 1440 supports 12G, 6G, 3G and 1.5G SDI video standards. Power: +12V DC at 2.0W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: AC power supply. Note: SFP module not included.

Compatible SPF modules

OH-TX-12G-XXXX-LC
OH-TX-4-XXXX-LC
OH-TX-8-XXXX-LC

OTX 1812 - 3G SDI to Fibre Optic Transmitter

OTX 1812 is a compact SDI to fibre optic transmitter that when paired with the fibre optic to SDI receiver (e.g. yellobrik ORX 1802) results in a cost effective optical transmission/receiver system for signals up to 3G (1080p60), while preserving full uncompressed quality. OTX 1812 provides a looping SDI input and support for LC, ST or SC singlemode fibre connections as well as an LC version suitable for multimode fibre. OTX 1812 will auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI source prior to optical transmission. The module is fully compatible with 3G Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: SFP module, AC power supply

Versions available

OTX 1812-LC Singlemode LC Wavelength of 1310nm Optical power: -5dBm Up to 10km
OTX 1812-SC Singlemode SC Wavelength of 1310nm Optical power: -5dBm Up to 10km
OTX 1812-ST Singlemode ST Wavelength of 1310nm Optical power: -5dBm Up to 10km
OTX 1812-MM Multimode LC Wavelength of 850nm Optical power: -5dBm Up to 300m

OTX 1842 - 3G SDI to Fibre Optic Transmitter (CWDM)

OTX 1842 is a compact CWDM SDI to fibre optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with the fibre optic to SDI receiver (e.g. yellobrik ORX 1802) you have a very cost effective optical transmission/receiver system for signals up to 1080p60 (3G), while preserving full uncompressed quality. OTX 1842 will auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI source prior to optical transmission. The module is fully compatible with 3G Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: AC power supply. Note: SFP module not included.

Compatible SPF modules

OH-TX-4-XXXX-LC

ORX 1400 - 12G, 6G, 3G, HD FibreOptic to SDI Receiver

ORX 1400 is a compact SDI to fibre optic receiver that when paired with the fibre optic to SDI transmitter (e.g. yellobrik OTX 1410) you have a very cost-effective optical transmission/receiver system for signals up to 12G (4096×2160 at 60Hz), while preserving full uncompressed quality. Operation of the ORX 1400 is fully automatic. The SDI video format is automatically detected, re-clocked and provided on two SDI output connections. ORX 1400 supports 12G, 6G, 3G and 1.5G SDI video standards.

Versions available

ORX 1400-LC Singlemode LC Wavelength of 1260-1620nm Sensitivity: -18dBm to -10dBm
ORX 1400-ST Singlemode ST Wavelength of 1260-1620nm Sensitivity: -18dBm to -10dBm

Included accessories: SFP module, AC power supply

ORX 1802 - 3G Fibre Optic to SDI Receiver

ORX 1802 is a compact fibre to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with the fibre optic to SDI transmitters (e.g. yellobrik OTX 1812 or OTX 1842) you have a very cost effective optical transmission/receiver system for signals up to 3G (1080p60), while preserving full uncompressed quality. OTX 1812 provides 2x SDI outputs and support for LC, ST or SC singlemode fibre connections as well as an LC version suitable for multimode fibre. ORX 1802 will auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI fibre source and convert to an electrical signal. The module is fully compatible with 3Gbit Level A and Level B formats. ORX 1802 is compatible with any video signal according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards, as well as DVB-ASI. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Versions available

ORX 1802-LC Singlemode LC Wavelength of 1260-1620nm Sensitivity: -18dBm Up to 10km
ORX 1802-SC Singlemode SC Wavelength of 1260-1620nm Sensitivity: -18dBm Up to 10km
ORX 1802-ST Singlemode ST Wavelength of 1260-1620nm Sensitivity: -18dBm Up to 10km
ORX 1802-MM Multimode LC Wavelength of 780-880nm Sensitivity: 0dBm to -15dBm Up to 300m

Included accessories: SFP module, AC power supply

ORR 1402 - Dual Channel 12G Fibre to SDI Receiver

ORR 1402 is a compact dual channel fibre optical to SDI receiver that when paired with a SDI optical transmitter (e.g. yellobrik OTT 1412, OTX 1410, OTX 1440 etc), results in a cost-effective optical transmission/receiver system for signals up to 12G (4096 x 2160 at 60Hz), while preserving full uncompressed quality. ORR 1402 has two completely independent channels and each will autodetect and re-clock any 1.5G, 3G, 6G, or 12G SDI fibre source prior to electrical conversion. The module is fully compatible with 3G Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: SFP module, AC power supply

ORR 1802 - Dual 3G Fibre Optic to SDI Receiver

ORR 1802-2 is a compact dual channel fibre optical to SDI receiver with 1260nm to 1620nm wavelength input range that has been designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with a SDI optical transmitter (e.g. yellobrik OTT 1812-1, OTX 1812, OTX 1842 etc) you have a cost effective optical transmission/receiver system for signals up to 3G (1080p60), while preserving full uncompressed quality. ORR 1802-2 has two completely independent channels and each will auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI fibre source prior to electrical conversion. The module is fully compatible with 3G Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: SFP module, AC power supply

OBD 1810 - 3G Bidirectional SDI/Fibre Transceiver

OBD 1810 is a bidirectional fibre optic to SDI transmitter and receiver which uses a single fibre link supplied in a compact self contained package. It is a convenient and cost effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. OBD 1810 modules are supplied in pairs, one Type A and one Type B which work together in a WDM closed loop application. Each module has an electrical SDI in and SDI out connection and uses a single fibre link between the two. Each channel is fully independent and can have different standards and formats of SDI video. The modules auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI source prior to conversion. The modules are fully compatible with 3G Level A and Level B formats. Note: This system used WDM optical multiplexing and should only be used in point to point applications. This solution cannot be integrated into a CWDM multiplexed system. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: 2x SFP modules, 2x AC power supplies

OBD 1410 - 12G Bidirectional SDI/Fibre Transceiver

OBD 1410 is a bidirectional fibre optic to SDI transmitter and receiver which uses a single fibre link supplied in a compact self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. OBD 1410 modules are supplied in pairs, one Type A and one Type B which work together in a WDM closed loop application. Each module has an electrical SDI in and SDI out connection and uses a single fibre link between the two. Each channel is fully independent and can have different standards and formats of SDI video. The modules auto-detect and re-clock any 1.5G, 3G, 6G or 12G SDI source prior to conversion. The modules are fully compatible with 3Gbit Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: 2x SFP modules, 2x AC power supplies

OTR 1410 - 12G, 6G, 3G, HD SDI / Fiber Optic Transceiver

OTR 1410 is a fibre/SDI transmitter and receiver combined in a single self contained package. It is a cost-effective solution to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. Each OTR 1410 transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 12G (4096×2160 at 60Hz), while preserving full uncompressed quality. Operation of the receiver and transmitter is automatic. For transmission, the SDI video format is automatically detected, re-clocked and then transmitted over the fibre optic TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, re-clocked and provided on the SDI output connection. OTR 1410 supports 12G, 6G, 3G and 1.5G SDI video standards. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: 2x SFP modules, 2x AC power supplies

OTR 1440 - 12G Bidirectional SDI/Fibre Transceiver (CWDM)

OTR 1440 is a CWDM fibre optic to SDI transmitter and receiver combined in a compact self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. Each OTR 1440 CWDM transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 12G (4096 x 2160 at 60Hz), while preserving full uncompressed quality. Select from 16 transmitter wavelengths for full CWDM compatibility (ITU-T G.694.2). OTR 1440 will auto-detect and re-clock any 1.5G, 3G, 6G, or 12G SDI source prior to conversion. The module is fully compatible with 3Gbit Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: AC power supply. Note: SFP module not included.

Compatible SPF modules

OH-TR-12G-XXXX-XXXX-LC

OTR 1810 - 3G Bidirectional SDI/Fibre Transceiver

This as an independent fibre receiver and transmitter in a single package. Paired with another OTR 1810 module, the combination provides a single-channel bi-directional transmission system for signals up to 3Gb/s (1080p60). Using the same basic module, two versions are available; each has a different SFP installed, providing either singlemode or multimode fibre connections on LC fibre. Singlemode versions offer up to 10km range for 3G SDI, the multimode version offers up to 300m for 3G SDI. They may also be used in conjunction with the appropriate ports and fibre modes of OTX 1812, OTT 1812, ORX 1802 and ORR 1802 modules. Power: +12V DC at 2W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Versions available

OTR 1810-LC Singlemode LC Wavelength of 1260-1620nm Sensitivity: -16dBm Up to 10km
OTR 1810-MM Multimode LC Wavelength of 750-880nm Sensitivity: -15dBm Up to 300m

Included accessories: SFP module, AC power supply

OTR 1840 - 3G Bidirectional SDI/Fibre Transceiver (CWDM)

OTR 1840 is a CWDM fibre optic to SDI transmitter and receiver combined in a compact self contained package. It is a convenient and cost effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. Each OTR 1840 CWDM transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 3G (1080p60) while preserving full uncompressed quality. Select from eighteen transmitter wavelengths for full CWDM compatibility (ITU-T G.694.2). OTR 1840 will auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI source prior to conversion. The module is fully compatible with 3G Level A and Level B formats. Power: +12V DC at 2W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: AC power supply. Note: SFP module not included.

Compatible SPF modules

OH-TR-4-XXXX-LC
