LYNX YELLOBRIK OBD 1514 E FIBRE TRANSCEIVER Bidirectional Ethernet to fibre, singlemode LC

OET 1514 - Ethernet to Fibre Transceiver (switch)

OET 1514 is a compact three-port ethernet switch, designed to extend the reach of electrical ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s optical transceiver speed. When paired with another OET 1514 at the receiving end (using two fibre links) the result is a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit/s error free optical connection between locations. OET 1514 has two standard RJ45 electrical ethernet ports plus fibre I/O and functions as a 3 port ethernet switch. For legacy system use: each electrical ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit/s, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.

Included accessories: SFP module, AC power supply.

Versions available

OET 1910 - 10Gbit/s Ethernet to Fibre Transceiver

OET 1910 is a compact electrical ethernet to fibre optic converter, designed to extend the reach of 1Gbit/s or 10Gbit/s electrical ethernet networks over long distances. When paired with another OET 1910 (using two fibre links) you have a simple cost-effective ethernet extender solution for distances up to 20km providing a stable, high-speed optical ethernet connection between locations.

Included accessories: 2x SFP module, AC power supply.

Versions available

OBD 1514 E - Bidirectional Ethernet to Fibre Transceiver (switch)

OBD 1514 E is a matched pair of compact ethernet switches designed to extend the reach of electrical ethernet signals over long distances. The two switches are linked via single bidirectional fibre link which operates at a constant 1Gbit/s speed. The pair of modules uses WDM (Wavelength-division Multiplexing) fibre technology in a closed loop arrangement and essentially functions as an Ethernet extender solution. The fibre link supports distances up to 10km and provides a single, high speed 1Gbit/s error-free optical connection between the two locations.

Each OBD 1514 module has two standard RJ45 electrical Ethernet ports and the complete system functions as a 4 port ethernet switch, providing two standard RJ45 ethernet ports at each location bridged with fibre. For legacy systems, each electrical ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit/s. Each port uses auto crossover detection or can be forced manually if needed. These functions are available using the dip switch. Note: This system uses WDM and should only be used in point to point applications. WDM cannot be integrated into a CWDM system.

Included accessories: 2x SFP module, 2x AC power supplies.

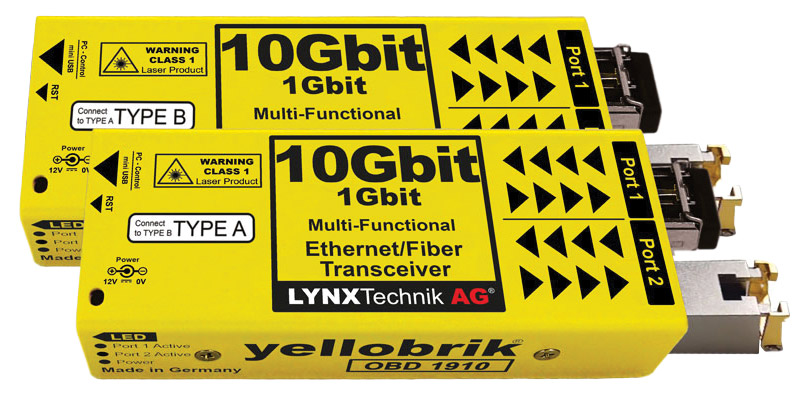

OBD 1910 - 10Gbit/s Ethernet to Fibre bidirectional Transceiver

OBD 1910 kit is a simple, easy to use, plug and play solution which can extend a 1Gbit/s or 10Gbit/s electrical Ethernet network up to 30km over a single fibre link. Usually 2 fibre links are needed between locations (TX and RX) but the OBD 1910 uses WDM multiplexing to use a single bidirectional fibre link (singlemode fibre).

The kit includes 2 modules and 2 power supplies. No complex configurations or set ups needed. The modules will support 1Gbit/s and 10Gbit/s Ethernet networks with a maximum throughput of 20Gbit/s (full duplex) If your current network infrastructure is using multimode fibre in each location, then you are limited on connectivity distance. If you need to extend this multimode network over a long distance to another location, then we have the OBD 1910 MM version of the kit, which will convert the dual multimode RX and TX connections into a single bidirectional link using singlemode fibre.

Included accessories: 4x SFP module, 2x AC power supplies.

Versions available
