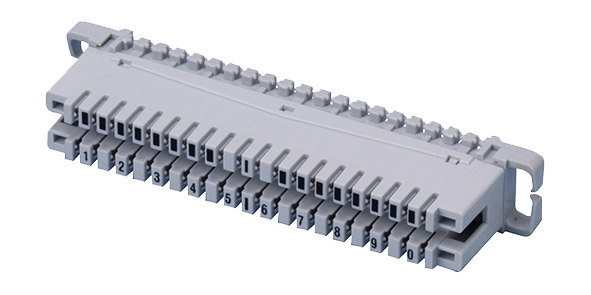

TUK 237B Module, grey base with grey housing

A range of IDC connection modules from TUK that are fully compatible with Commscope (Krone) LSA-Plus and other similar designs.

237A-S 10 pair disconnection module

This is the most popular module used for audio, DC, control and communications. It can be used for termination of unscreened pair cable or for screened audio cable where the screen either common terminates or floats at this connection point. It is available in two colour combinations. Contacts are silver plated, 100 micron thickness. A special version with screw terminals is also available. Dimensions: 123mm x 20.5mm x 39.5mm.
Note: E237CG is virtually identical but with 20 micron silver plating.

237A 10 pair disconnection module - Screw terminals

Screw terminal version of the 237A-S but only available in one colour combination.
Housing: PBT. Contacts are Silver plated. Dimensions: 129mm x 36mm x 36mm. Screw terminals are suitable for wires less than or equal to 2mm diameter.

27AUS 10 pair disconnection module - Economy

Cost effective version of the 237A-S modules but only available in one colour combination. Housing: PBT. Contacts are Silver plated phosphor bronze. Dimensions: 123mm x 20.5mm x 39.5mm.

237B 10 pair connection module

Identical to the 237A-S except that dis-pegs, test jacks and attenuators cannot be used to break the connection between the equipment and jumper side. Used only where hard-wiring is absolutely essential. 100 micron plating. Dimensions: 123mm x 20.5mm x 39.5mm.

ABS 6 pair + screen disconnection module

Introduced to cater for screened data and audio applications, the ABS module allows each screen to be continued through to the jumper side and continued. This ensures proper individual screen continuation and termination for low noise audio applications, and other audio installations where common screen termination would otherwise introduce earth loops. 100 micron plating.

237D 76 way earth modules

Allows bulk termination of earths or screens on a termination frame. Two versions are offered - red block with flying lead fitted with insulated eyelet, or black block with 2 metre unterminated lead.
