CHD 1402 - 4K HDMI to 12G SDI Converter
CHD 1402 is a compact HDMI to SDI converter. It has been designed as a solution for any application which requires a broadcast quality SDI signal derived from an external HDMI source. Currently only PCM audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output. The module is also compatible with the yelloGUI and LynxCentraal control software, which provides access to additional internal settings. An SDI fibre output is also provided with a selection of optional SFPs.
HDMI input: Type A 2.0b connector for up to 2160p60. SDI Outputs: 2x SDI video, 75Ohm BNC (both have the same signal - NOT dual link); SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1. Fibre output: Optional plug in SFP for optical SDI output (see fibre options below). Power source: 12V DC, 9.3W nominal; supports 10-24V DC input range. Dimensions (WxDxH): 123 x 90 x 22mm. Weight: 186g
Included accessories: AC power supply, HDMI + USB cable. Note: SFP module not included.
Compatible SPF modules
OH-TX-12G-LC
OH-TX-4-12G-LC
OH-TX-12G-XXXX-LC

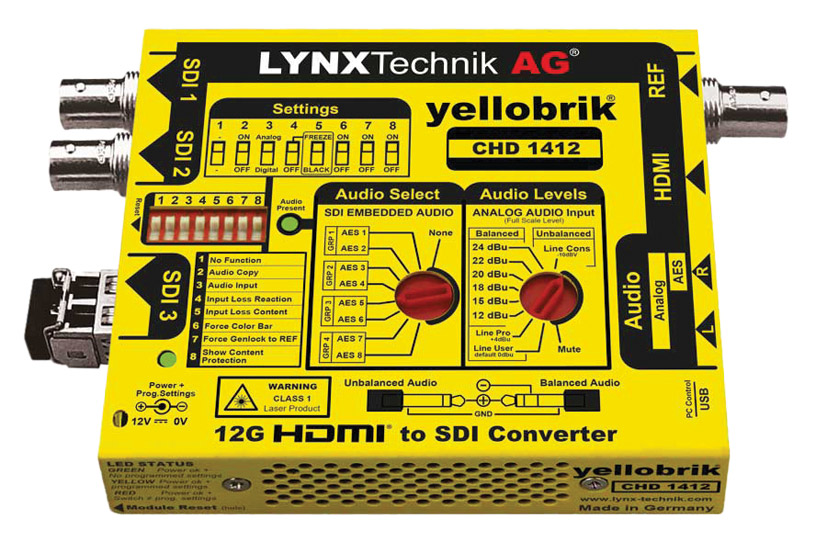

CHD 1412 - 4K HDMI to 12G SDI Converter, with Frame Synchroniser
CHD 1412 is a versatile and compact HDMI to SDI converter with integrated frame synchronizer. It has been designed for any application which requires a fully synchronized SDI input from an external asynchronous HDMI source. The flexible reference sync input will accept any analogue video sync format including SD bi-level sync, black burst, colour-bars and tri-level sync. The sync input is auto detecting and fully cross lock compatible - for example: an SDTV reference can be used to frequency lock a HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion. It can also lock to the HDMI input. A pair of stereo analogue inputs can be embedded into any AES channel. Audio inputs can be either balanced audio with selectable full scale level, or unbalanced consumer line level audio. Currently, PCM and AC3 audio present in HDMI stream are transparently passed through/embedded in self-lock mode. The module is also compatible with LynxCentraal and yelloGUI software packages, which provide access to a host of additional internal settings including adjustable video delay for timing purposes. An SDI fibre output is also provided with a variety of plug in SFP options available. Power source: 12V DC, 10W nominal; supports 10-24V DC input range. Dimensions (WxDxH): 140 x 90 x 22mm. Weight: 207g
Included accessories: AC power supply, RCA (phono) adapters, HDMI + USB cable. Note: SFP module not included.
Compatible SPF modules
OH-TX-12G-LC
OH-TX-4-12G-LC
OH-TX-12G-XXXX-LC
OH-TX-1-LC
OH-TX-1-ST
OH-TX-1-SC
OH-TX-4-XXXX-lC
OH-TX-8-XXXX-LC
CHD 1802 - HDMI to SDI Converter
CHD 1802 is a compact HDMI to SDI converter designed as a solution for any application which requires a broadcast quality SDI signal derived from an external HDMI source. Any audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output. The module is also compatible with the yelloGUI software package, which provides access to a host of additional internal settings. An SDI fibre output is also provided with a variety of plug in SFP options available.
HDMI input: 3D compatible input using type A connecter. SDI outputs: 2x SDI video, 75ohm, BNC; SMPTE 424M, SMPTE 292M, SMPTE 259M, 3G level A and B-DL and B-DS according to SMPTE ST 425-1 and ST 425-2, with image formats 1280 x 720 and 1920 x 1080. Power source: 12V DC, 3.7W nominal; supports 10-14V DC input range. Dimensions (WxDxH): 123 x 90 x 22mm. Weight: 175g
Included accessories: AC power supply, HDMI + USB cable. Note: SFP module not included.
Compatible SPF modules
OH-TX-1-LC
OH-TX-1-ST
OH-TX-1-SC
OH-TX-4-XXXX-LC
CHD 1812 - HDMI to SDI Converter, with Frame Synchronizer
This provides a fully-synchronized SDI output including 3G level A or B, from an external asynchronous HDMI source. 3D is supported. The reference sync input will accept any analogue video sync format including SD bi-level sync, black burst, colour bars and tri-level HD sync. The sync input is auto-detecting and fully cross-lock compatible. For example, an SD black burst reference can be used to frequency lock an HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion. External audio and HDMI inputs are frequency-locked to the external reference.
A stereo pair of analogue inputs can be embedded into any AES channel. A rotary switch selects the audio channels; a second rotary switch selects the full-scale level for the balanced audio outputs, which may also be used unbalanced. Audio present in the HDMI stream will be embedded into the SDI outputs, or can be replaced with the external audio inputs, which over-write the channel. Reference input: SDTV, analogue 525 or 625 bi-level sync, black burst or colour bars; HDTV, all tri-level sync standards (exceptions 1080p 50/59.94/60Hz); SMPTE 274M, SMPTE 296M, 75 ohms, BNC.
| HDMI input: 3D compatible input using type A connecter. Reference input: SDTV, analogue 525 or 625 bi-level sync, black burst, or colour-bars; HDTV, All tri-level sync standards (with the exception of 1080p 50/59/94/60Hz), cross lock compatible. SDI outputs: 2x SDI video, 75ohm, BNC; SMPTE 424M, SMPTE 292M, 3G level A and B-DL and B-DS according to SMPTE ST 425-1 and ST 425-2, with image formats 1280 x 720 and 1920 x 1080. Power source: 12V DC, 3.7W nominal; supports 10-14V DC input range. Dimensions (WxDxH): 138 x 90 x 22mm. Weight: 230g. |
| Included accessories: AC power supply, RCA (phono) adapters, HDMI + USB cable. Note: SFP module not included. |
