Suitable for supporting small to medium loudspeakers up to 25kg, this range includes mounts to attach to walls and ceilings. Most offer tilt and swivel adjustment and are supplied with fixing hardware.
BT332 - Wall mounting - 5kg maximum
Suitable for small home-cinema or similar speakers, these will fit to loudspeakers either fitted with single key-hole fixings, single M5 M6 or UNC 1/4 inch threaded inserts, dual-point M5, M6 or UNC 1/4 inch inserts spaced from 51mm to 67mm, or by screwing directly into the rear of a loudspeaker with no fixing points. A steel plate is fixed to the wall and the mount to the rear of the speaker; the mount is then simply hooked over the plate and secured with a screw.
Vertical tilt: +/- 20 degrees. Horizontal swivel: 180 degrees. Spacing, loudspeaker to wall: 72mm.
BT77 - Wall mounting - 25kg maximum
This design is suitable for most speakers 135 - 280mm wide, including types with curved or bevelled fronts, as the speaker fixing is at the sides using high friction pads. A vertical steel plate with a horizontal arm is fixed to the wall and covered with a decorative cover-plate. A platform is assembled on the arm, the speaker placed on the platform and two clamps are tightened onto the speaker. Available in black or white finish.
Vertical tilt: +/- 7 degrees. Horizontal swivel: 360 degrees.

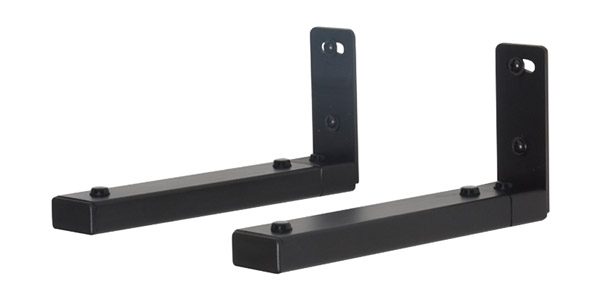

BT15 - Wall mounting - 15kg maximum
This consists of two L-brackets which have extending horizontal arms, adjustable to suit the depth of the object supported. As a result, they may be used with a variety of loudspeakers, particularly centre-speakers in home cinema or AV installations, as well as other AV equipment.
Extension of arms from wall: 189-290mm.
