LYNX PTG CASE For Testor lite 3G pattern generator, fabric case with belt clip

Artikelnummer
90-3027
Hersteller
Lynx (Lynx Technik)
Typennummer
  • PTG CASE
LYNX PTG CASE For Testor lite 3G pattern generator, fabric case with belt clip
LYNX PTG CASE For Testor lite 3G pattern generator, fabric case with belt clip

LYNX SDI VIDEO AND AUDIO PATTERN GENERATOR

A range of test pattern generators from Lynx, designed for the technician and/or engineer to troubleshoot AV issues up to 12G SDI.


TESTOR LITE 3G - 3G SDI test pattern generator

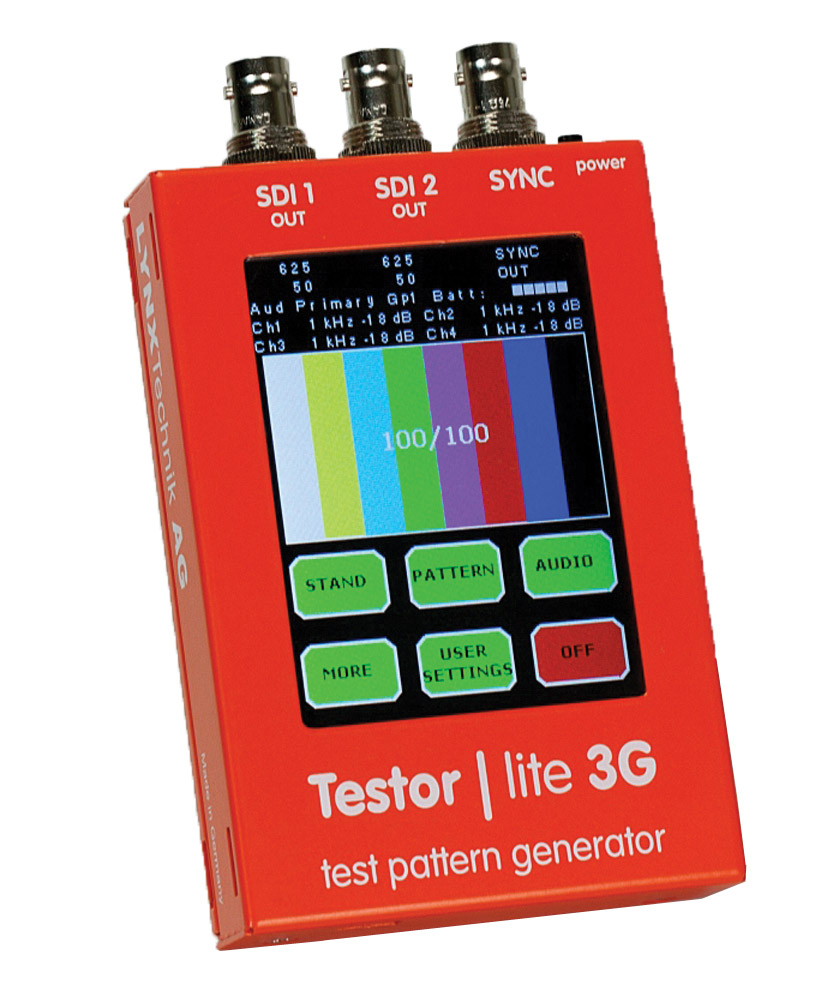

Otherwise known as PTG 1802, Lynx Technik Testor lite 3G is a compact, SDI video and audio test generator, designed to address a multitude of test and verification needs in modern digital infrastructures. The large, colour touch-screen provides a simple, intuitive, user interface, to assign formats, pattern and text content. The integrated rechargeable battery provides up to four hours continuous use; power-saving auto-shutdown options are available. When connected to a standard computer USB 2.0/3.0 port, the Testor lite 3G will draw 500mA maximum to charge the battery. Full charge time is approximately 360 minutes. If the unit is switched on while connected it will use the internal battery and will not charge. If connected to the included USB-DCP power supply, which provides 1.5A, the unit can be powered and charged simultaneously. Full charge time is then approximately100 minutes with the unit switched off or 180 minutes switched on.

Video outputs: Two, multi-format, SDI outputs on BNC connectors; SDTV 270Mb/s, HDTV 1.5Gb/s and HDTV 3Gb/s with multiple 3G streaming modes - 2x standard 3G streams (level A direct mapping), 2x 1.5Gb/s outputs, one per BNC connector (dual link), 2x 1.5Gb/s streams multiplexed into one 3G output (level B dual link).
Embedded audio generator: Four independent audio channels, each with adjustable frequency and amplitude. Eight channels of audio embedded into both SDI outputs. Both SDI embedders can be independently configured.
Analogue reference sync: SDTV Bi-level or HDTV Tri-level sync.
Internal test pattern library: Eighteen static test patterns, four dynamic (moving) test patterns, two 3D test patterns (left eye/right eye).
Multiple selectable overlays: Up to sixteen characters of text overlay on one line, circle overlay, safe action or safe title markers.
Dimensions: 130x77x23mm, including connectors.
Weight: 250g. Operating temperature: 5-40 Degrees C.
Humidity: 90% non condensing.
Warranty: Testor lite 3G; 3 years. Battery; 6 Months

Included accessories: USB-DCP AC power supply with regional AC plug adapters, USB cable, quick reference, user manual.
Optional accessories: PTG Case, PTG BATT-1.

TESTOR - 4k UHD 12G-SDI or 4x 3G-SDI Audio and Video Test Signal Generator

Testor is a multi-format test signal generator and AV sync analyser. It has been designed as a troubleshooting AV solution for technicians and engineers working in the field (OB or temporary installations), in studio applications, and for line-up tasks in master control rooms. Testor supports two configurations: Single channel 4k/UHD: single link and quad-link (2SI) 12G-SDI; and Quad channel 3G: four independent 3G-SDI channels. In addition to the industry standard static and dynamic video test signals and patterns, Testor also provides Zebra pattern and Strobe pattern signals with Zebra being a display tearing and aspect ratio validator. The 45-degree angled, 20px wide, black and white bars move across an entire array of panels at the speed of 1px per frame. Individual delays of panels can easily be noticed this way. A precise delay in frames or ms can be calculated in regards of the frame rate of the display. Strobe pattern is where the background strobes one white frame periodically every 100 frames. If synchronisation of all displays is accurate, a simultaneous strobe will be visible. To verify synchronicity a synchronized (genlocked) or high-speed camera has to film the screens. The counters to the left and right of the sync bar will indicate how many frames ahead or behind any individual display is. The user is also able to upload their own static custom signal patterns. Graphics and text can also be added to the test signals.

SDI inputs: 4x 3G-SDI video on 75 Ohm BNC connector (SMPTE 259M, 292M, 424M ) with automatic video format and standard detection
12G SDI input: 1x 12G-SDI video on 75 Ohm BNC connector 'Input 4' (SMPTE 259M, 292M, 424M, 2082) with automatic video format and standard detection
SDI output: 4x SDI video on 75 Ohm BNC connector (SMPTE 259m, 292M, 424M)
12G SDI output: 1x 12G-SDI video on 75 Ohm BNC connector 'Output 4' (SMPTE 259M, 292M, 424M, 2082)
Reference input: 1x analogue video reference on 75 Ohm BNC connector. Analog bi-level (SDTV) or tri-level (HDTV) auto detect
Reference output: 1x analogu video reference on 75 Ohm BNC connector. Analog bi-level (SDTV) or tri-level (HDTV), cross lock capability
Audio I/O: 4x input and 4x output on Sub-D 25 female connector
Analogue input impedance: Greater than10k Ohm
Analogue output impedance: 150 Ohm
Power: 12V DC at 45W nominal (supports 7 - 24VDC input range). 2x power connections for redundant power supply
Dimensions (WxHxD): 218 x 44 x 225mm - including connectors.
Weight: 1.4kg
Ambient Temperature: 5°C to 40°C, maintaining specification
Humidity: 90% maximum, non-condensing

Included accessories: Primary and redundance power supplies, quick reference, user manual.
Optional accessories: RFR 6000 rackmount chassis, RXT 6001 rack extension, ABS case, and SFP fibre options (see below).

Compatible SFP options

OH-TX-12G-LC
OH-RX-12G-LC
OH-TR-12G-LC
OH-TR-4-XXXX-LC
OH-TR-12G-XXXX-LC
