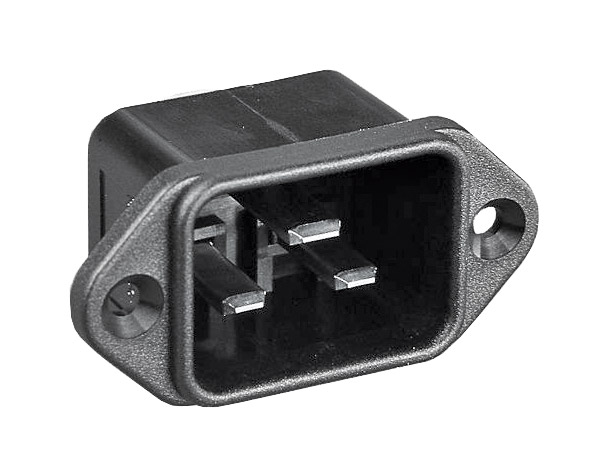

BULGIN PX0596/63 IEC MAINS CONNECTOR C20 type, male, panel

Artikelnummer
42-215
Hersteller
Bulgin
Typennummer
  • PX0596/63
BULGIN PX0596/63 IEC MAINS CONNECTOR C20 type, male, panel
BULGIN PX0596/63 IEC MAINS CONNECTOR C20 type, male, panel

Bestellangaben

MwSt. / Versand
4,00 €
pro Stück (zzgl. MwSt.)
10+ 3,82 €
50+ 3,64 €
100+ 3,46 €
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
RoHS Konform

BULGIN IEC 60320 (CEE22) AC MAINS POWER CONNECTORS

AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz and 16 amp 250VAC 50/60Hz rated, meeting IEC 60320. Approvals: IEC/EN, VDE, UL and CSA.

Cable types

Rewireable mains connectors, with good retention in sockets. Female connectors available in standard C13, 10 amp (uprated from 6 amp) and 16 amp, C19 versions without keyways. Male C14 connector 10 amp rated, shrouded pins, without keyway.

PX0587 Cable type

Female (mains outlet) C13 type, cable connector. Rear cable entry.

PX0588 Cable type

Female (mains outlet) C13 type, cable connector. Vertical side cable entry.

PX0587/SE Cable type

Female (mains outlet) C13 type, cable connector. Horizontal side cable entry.

PX0686 Cable type

Male (mains inlet) C14 type, cable connector. Rear cable entry.

PX0686/SE Cable type

Male (mains inlet) C14 type, cable connector. Horizontal side cable entry.

PX0599 Cable type

Female (mains outlet) C19 type, cable connector. Rear cable entry.

Panel types

PX0580/28 Flange type

Male (mains inlet) C14 type, panel cutout 27.4 ×19.8mm, mounting hole centres 40.00mm. 2.9mm solder terminals.

PF0001/28 Flange type

Male (mains inlet) C14 type with integral 20mm fuse holder, panel cutout 27.3 ×31.2mm, mounting hole centres 36.0mm. 2.9mm solder terminals. Fuse not supplied.

PX0575/15/28 Snap-in type

Male (mains inlet) C14 type, panel cutout 27.4 ×19.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.

PX0675/28 Flange type

Female (mains outlet) C13 type, panel cutout 32.3 ×24.8mm, mounting hole centres 40.0mm. 2.9mm solder terminals.

PX0695/15/28 Snap-in type

Female (mains outlet) C13 type, unshuttered, panel cutout 32.3 ×24.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.

PX0783/15/28 Snap-in type

abgekündigt

Female (mains outlet) C13 type, shuttered, panel cutout 32.3 ×24.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.

PX0592/15/63 Snap-in type

abgekündigt

Female (mains outlet) C19 type, panel cutout 37.6 x 29.65mm, snap-in fixing. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.

PX0596/48 Flange type

Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm. 4.8mm tab termination. Suitable for use with 1.5mm panel thickness.

PX0596/63 Flange type

Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.

PX0598/15/63 Snap-in type

Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm, snap-in fixing. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.

Optional accessories

Moulded PVC insulating covers for rear of panel connectors, stock code 42-159 (C14, male), 42-148 (C13, female), 42-149 (C14, male with fuse) and 42-217 (C20, Male).

Note: sometimes referred to as CEE22, this was the former standard before being eventually incorporated into IEC 60320.
