SENNHEISER SKM 100 G4-S-E RADIOMIC TRANSMITTER Handheld, mute switch, no mic capsule

ew 100 G4 Series

ew 300 G4/ew 500 G4 series

EM 100 G4 - Fixed

With up to twenty compatible channels and up to 42MHz bandwidth, this true-diversity fixed receiver, housed in a metal case, is present in most of the Sennheiser G4 Evolution 100 series wireless systems. It is powered with the included NT2-3 UK power supply and can be secured into a rack case by using the included GA 3 rack mounting adapter. The rear panel houses the DC power inlet and cable grip, balanced audio output via a 3-pin XLR, unbalanced audio output via a 6.35mm jack, 2x data ports for use in connection to a compatible computer running Sennheiser Wireless Systems Manager software, and 2x BNC antenna connections. The white, front facing side of the receiver has an illuminated graphical LCD displaying information including RF signal, AF level, transmitter battery status, frequency selection, group, and menu functionality. Controls include a 'Sync' button for infrared connection between receiver and transmitter, up/down cursors, 'Set' button, 'ESC' escape button and power on/off button. Dimensions (WxDxH): 190 x 212 x 43mm. Weight: 980g.

Included accessories: 2x rod antennas, NT2-3 power supply, RJ10 cable, GA 3 rack mounting set, guides.

EK 100 G4 - Portable

This receiver is designed for applications where portability is essential, such as ENG. It is powered by 2x AA 1.5V batteries for up to 8hrs of operation, or one BA 2015 battery. The audio output connection is by an unbalanced, 3.5 mm, locking jack socket. An illuminated graphical display on the front side shows status and menu options. Dimensions (HxWxD): 82 x 64 x 24mm. Weight: 160g.

Included accessories: CA 2 camera adaptor, 2x AA batteries, CL 1 cable, CL 100 cable, guides.

EM 300-500 G4 - Fixed

This diversity receiver is shared between both 300 and 500 series G4 systems and is present in most Sennheiser Evolution 300 G4 and 500 G4 series wireless systems. It is powered with the included NT2-3 UK power supply and can be secured into a rack case by using the included GA 3 rack mounting adapter. The front facing panel of the all-metal receiver housing has an OLED display, giving access to menu options and displaying information including current frequency, channel number, RF-level metering, AF level, lock status, pilot tone evaluation, muting and battery status of the associated transmitter.

Controls on the front panel include a 'Sync' button for infrared connection between receiver and transmitter; rotary jog wheel with push set, 'ESC' button, and power button. A stereo, 6.35mm jack, headphone output along with a rotary headphone output level control is positioned to the left. The rear panel houses all other connectivity, including the 12V/300mA DC power inlet and cable grip, +18dBu balanced audio output via a 3-pin XLR, +12dBu unbalanced audio output via a 6.35mm jack, and single data port for use in connection to a compatible computer running Sennheiser Wireless Systems Manager software. Two BNC antenna connections allow for attachment of the two included rod antennae or connection to compatible remote antenna hardware. Dimensions (WxDxH): 190 x 212 x 43mm. Weight: 980g.

Included accessories: 2x rod antennas, NT2-3 power supply, RJ10 cable, GA 3 rack mounting set, guides.

EK 500 G4 - Portable

This receiver, with a range of up to 100m, is designed for applications where portability is essential, such as ENG. It is powered by 2x AA 1.5V batteries for up to 8hrs of operation, or one BA 2015 battery. The audio output connection is by an unbalanced, 3.5 mm, locking jack socket. An illuminated graphical display on the front side shows status and menu options. Dimensions (HxWxD): 82 x 64 x 24mm. Weight: 130g.

Included accessories: CA 2 camera adaptor, 2x AA batteries, CL 1 cable, CL 500 cable, guides.

SK 100 G4 - Bodypack

Housed in the same lightweight metal belt pack as the EK 100 G4 receiver, the SK 100 G4 is a transmitter for use with lapel microphones, head worn microphones and higher signal levels from instruments such as guitars. Dimensions (HxWxD): 82 x 64 x 24mm. Weight: 160g

Included accessories: 2x AA batteries, guides.

SKP 100 G4 - Plug-on

When attached to a compatible microphone via the 3-pin XLR connector, the SKP 100 G4 gives the same operational functionality as the SKM100 handheld transmitter, with a range of up to 100m.

Dimensions (HxWxD): 105 x 43 x 43mm. Weight: 195g.

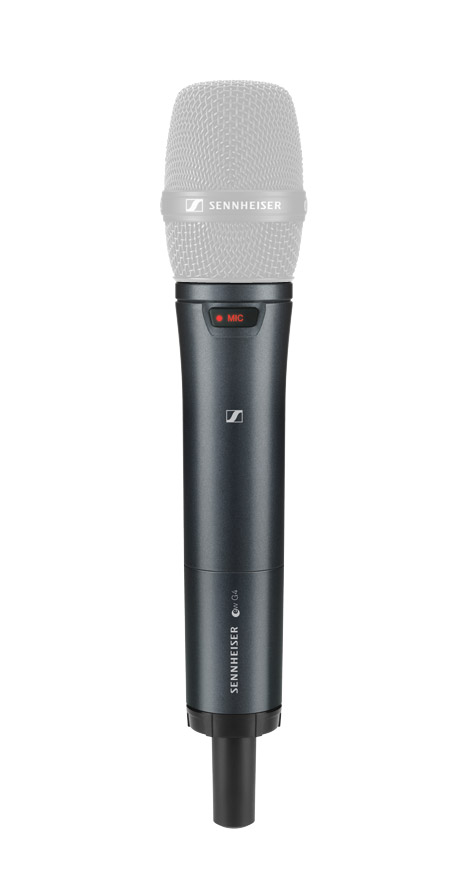

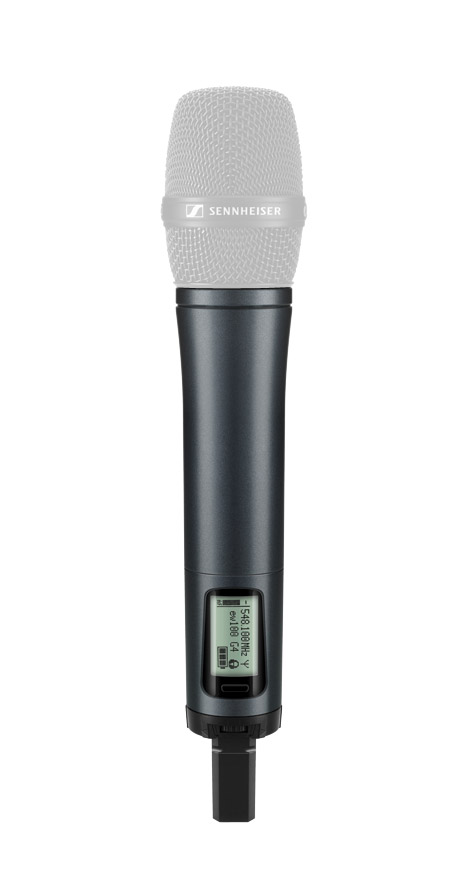

SKM 100 G4 - Handheld

SKM100 G4 is a handheld transmitter with a metal body designed for vocals whether sung or spoken. Powered by two 1.5V AA batteries or a BA 2015 that can be inserted into the body of the microphone via a hidden threaded compartment, the handheld microphone has an operating time of around 8 hours under normal operation. All models have set-up and menu cursor buttons, multi-function switch and fixed antenna at the base of the microphone shaft. A backlit screen gives the user intuitive feedback on current settings.

The transmitter is available in complete systems with a choice of five microphone capsules, all with mute switch. They are also available without capsules, with and without mute switch. The models without capsules are compatible with Sennheiser MMD, MME, and MMK microphone capsules, see below. Each transmitter is offered in two configurations of the operating frequency. One is channel 69/70 ready at 823-865MHz, the other is channel 38 ready at 606-648Mhz. Dimensions (LxD): 265 x 50mm. Weight: 450g, without capsule.

Included accessories: MZQ 1 microphone clamp, 2x AA batteries, guides.

SK 300 G4-RC - Bodypack

SK300 G4 transmitter is housed in a lightweight metal belt pack, and can be used with compatible lapel microphones, head worn microphones and higher signal levels from instruments such as guitars. It is powered by 2x AA 1.5V batteries or a BA 2015 which provide a typical operational time of 8 hours. The audio input is via a locking, 3.5mm, jack socket. An illuminated liquid crystal display (LCD) on the front facing panel indicates status and shows menu options. A 2.5mm jack socket is provided to connect the optional RMS 1 external switch, to control user-assignable options including AF on/off, RF on/off, 'push-to-mute', and 'push-to-talk'. Dimensions (WxDxH): 64 x 24 x 82mm. Weight: 160g.

SKM 300 G4-S - Handheld

This is a handheld transmitter with a metal body, designed for vocals whether sung or spoken. Powered by two 1.5V AA batteries or BA 2015 Accupack that can be inserted into the body of the microphone via a hidden threaded compartment, the microphone has an operating time of around 8 hours under normal operation. All models have set-up and menu cursor buttons, multi-function switch and fixed antenna at the base of the microphone shaft. A backlit screen gives the user feedback on current settings. A mute switch located near the capsule at the top of the microphone allows the operator to switch user-assignable options including AF on/off, RF on/off, 'push-to-mute', and 'push-to-talk', as well as disable the button functionality.

The transmitters are available individually without microphone capsules for use with compatible Sennheiser MMD, MME, and MMK microphone capsules, see below. When supplied as part of a complete system, they have a 865 super-cardioid, condenser capsule. Each transmitter is offered in two configurations of the operating frequency. One is channel 61/70 ready at 790-865MHz, the other is channel 38 ready at 606-648Mhz. Dimensions (LxD): 265 x 50mm. Weight: 450g, including batteries.

Included accessories: MZQ 1 microphone clamp, 2x AA batteries, pouch, guides.

SK 500 G4 - Bodypack

SK500 G4, with up to 50mW RF output power, is housed in a light-weight metal belt pack, and can be used with compatible lapel microphones, head worn microphones and higher-level signals from instruments such as guitars. It is powered by 2x AA 1.5V batteries or a BA 2015 which provide a typical operational time of 8 hours. The audio input is via a locking, 3.5mm, jack socket. An illuminated liquid crystal display (LCD) on the front facing side shows status and menu options. Dimensions (WxDxH): 64 x 24 x 82mm. Weight: 160g.

Included accessories: 2x AA batteries, pouch, guides.

SKP 500 G4 - Plug-on

This transmitter attaches to compatible microphones via a 3-pin XLR connector to give the same operational functionality as the SKM 500 G4 handheld transmitter. Dimensions (WxDxH): 43 x 43 x 105mm. Weight: 195g.

Included accessories: 2x AA batteries, POP 1 pouch with belt clip, guides.

SKM 500 G4 - Handheld

Building on the popularity of the SKM 500 G3, the SKM500 G4 series transmitter, with its lightweight aluminium housing, is designed for vocals whether sung or spoken. It is powered by two 1.5V AA batteries or a single BA 2015 Accupack that can be inserted into the body of the microphone via a hidden threaded compartment, for an operational time of around 8 hours. All models have set-up and menu cursor buttons, multi-function switch, and fixed antenna at the base of the microphone shaft. An orange backlit screen gives the user feedback on current settings.

The transmitter is available in complete systems with a choice of three microphone capsules. They are also available as component versions without capsule, compatible with Sennheiser MMD, MME, and MMK capsules, see below. Each transmitter is offered in two configurations of the operating frequency. One is covers channels 61/70 at 790-865MHz, the other is channel 38 ready at 606-648Mhz. Dimensions (LxD): 265 x 50mm. Weight: 450g, including batteries.

Included accessories: MZQ 1 microphone clamp, pouch, 2x AA batteries, guides.

The following Sennheiser microphone modules are compatible with handheld radiomic transmitters including G3/G4 series SKM 100/300/500, SKM 2000/6000/9000, SKM D1/AVX, and SL Handheld DW.

MMD 835-1 BK - Dynamic, cardioid

'Balanced frequency response maintains signal quality when moving on and off-axis during performance'. 'High sound pressure handling capability'.

MMD 845-1 BK - Dynamic, super-cardioid

'High feedback rejection and powerful sound are the main features of this microphone'.

MME 865-1 BK - Electret condenser, super-cardioid

'Top-notch' microphone for 'nuanced vocal reproduction'. 'Breath taking vocal sound'. Feedback-rejecting capsule. 'High brilliance', 'applicable for either voice or speech'.

MMD 935-1 BK - Dynamic, cardioid

This 'features the excellent acoustic properties of the wired e 935 vocal microphone'. Cardioid pick-up pattern 'provides isolation from other on-stage signals'; 'uniform on-axis and off-axis response'. 'Specially developed for use under loud on-stage conditions'. 'Makes vocals cut through the mix'.

MMD 945-1 BK - Dynamic, super-cardioid

'Unsurpassed in its class with a smooth, natural sound' with 'tremendous sound clarity and feedback rejection', the MMD 945 'features the excellent acoustic properties of the wired e 945 vocal microphone'.

MMK 965-1 BK - Large diaphragm true condenser - cardioid or super-cardioid, switched

'Powerful, high-definition sound makes it one of the best microphone heads of all time. Due to its dual-membrane technology, the pick-up pattern can be easily switched between cardioid and super-cardioid for extreme versatility'.

MM 435 - Dynamic, cardioid

Sennheiser describe the MM 435 capsule to have 'nuanced resolution and transparency'. It has a large diaphragm diameter and a frequency response of 40-20,000Hz. With a maximum SPL of 163dB and dynamic range of 146dB(A), MM 435 is designed for live vocals in high volume conditions.

MM 445 - Dynamic, super-cardioid

This microphone head has very similar attributes as the MM 435 however the pickup pattern is super-cardioid and is therefore more resistant to background noise and feedback.
