AUDIO-TECHNICA ATND971A MICROPHONE Boundary, Dante, cardioid condenser, PoE, black

Artikelnummer
74-6691
Hersteller
Audio-Technica
Typennummer
  • ATND971A
Farbe
  • BlackBlack
AUDIO-TECHNICA ATND971A MICROPHONE Boundary, Dante, cardioid condenser, PoE, black
AUDIO-TECHNICA ATND971A MICROPHONE Boundary, Dante, cardioid condenser, PoE, blackAUDIO-TECHNICA ATND971A MICROPHONE Boundary, Dante, cardioid condenser, PoE, blackAUDIO-TECHNICA ATND971A MICROPHONE Boundary, Dante, cardioid condenser, PoE, blackAUDIO-TECHNICA ATND971A MICROPHONE Boundary, Dante, cardioid condenser, PoE, blackAUDIO-TECHNICA ATND971A MICROPHONE Boundary, Dante, cardioid condenser, PoE, black

Bestellangaben

MwSt. / Versand
598,92 
pro Stück (zzgl. MwSt.)
Dieses Produkt wird speziell für Ihre Bestellung eingekauft. Bei Stornierung können Gebühren entstehen, lieferbar in 2‑3 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an

AUDIO-TECHNICA DANTE MICROPHONES AND INTERFACES

Intended for use in conference rooms, boardrooms, classrooms and video-conferencing, these Audio-Technica Dante enabled microphones can connect to compatible Dante equipment via a network, using an RJ45 terminated cable.


ATND971A

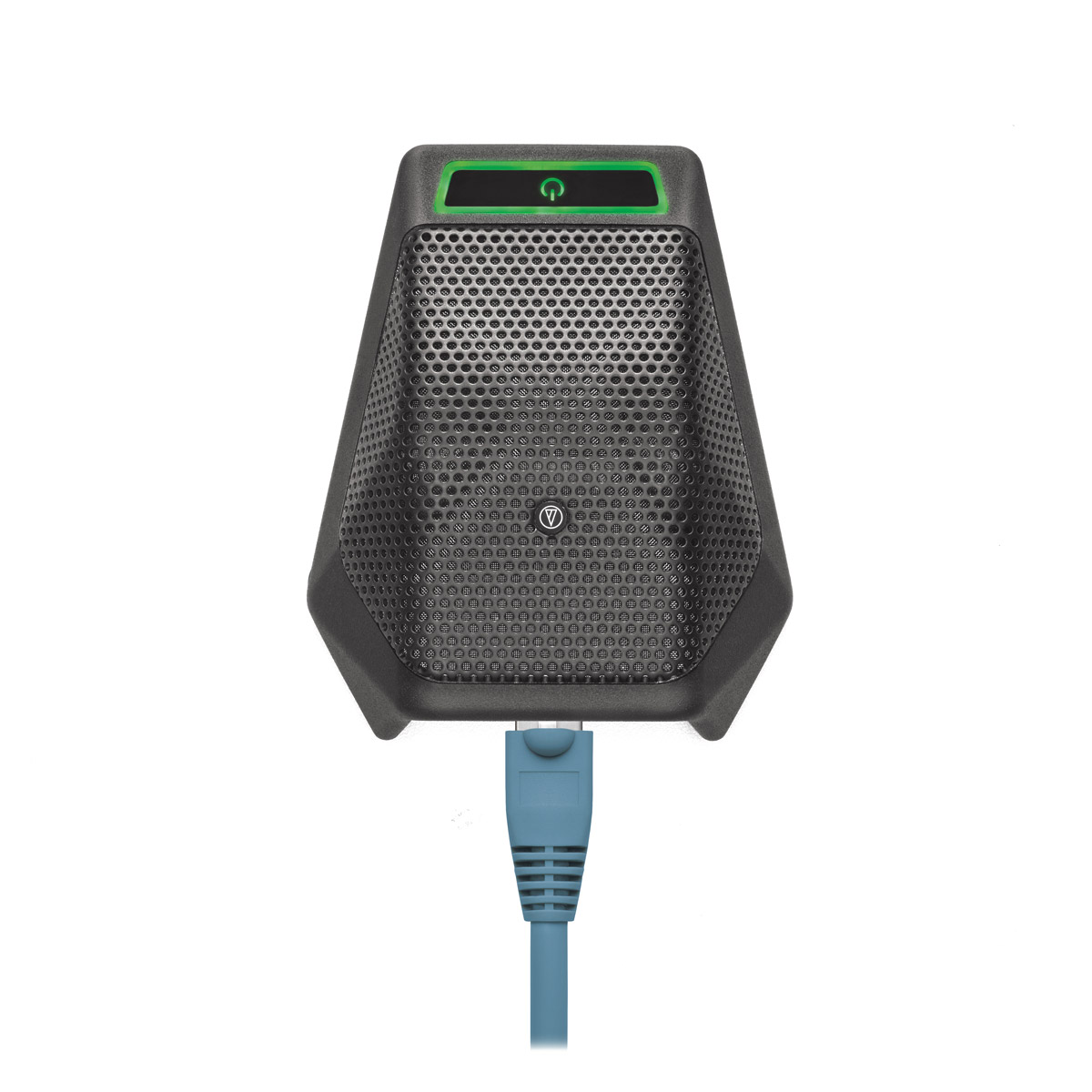

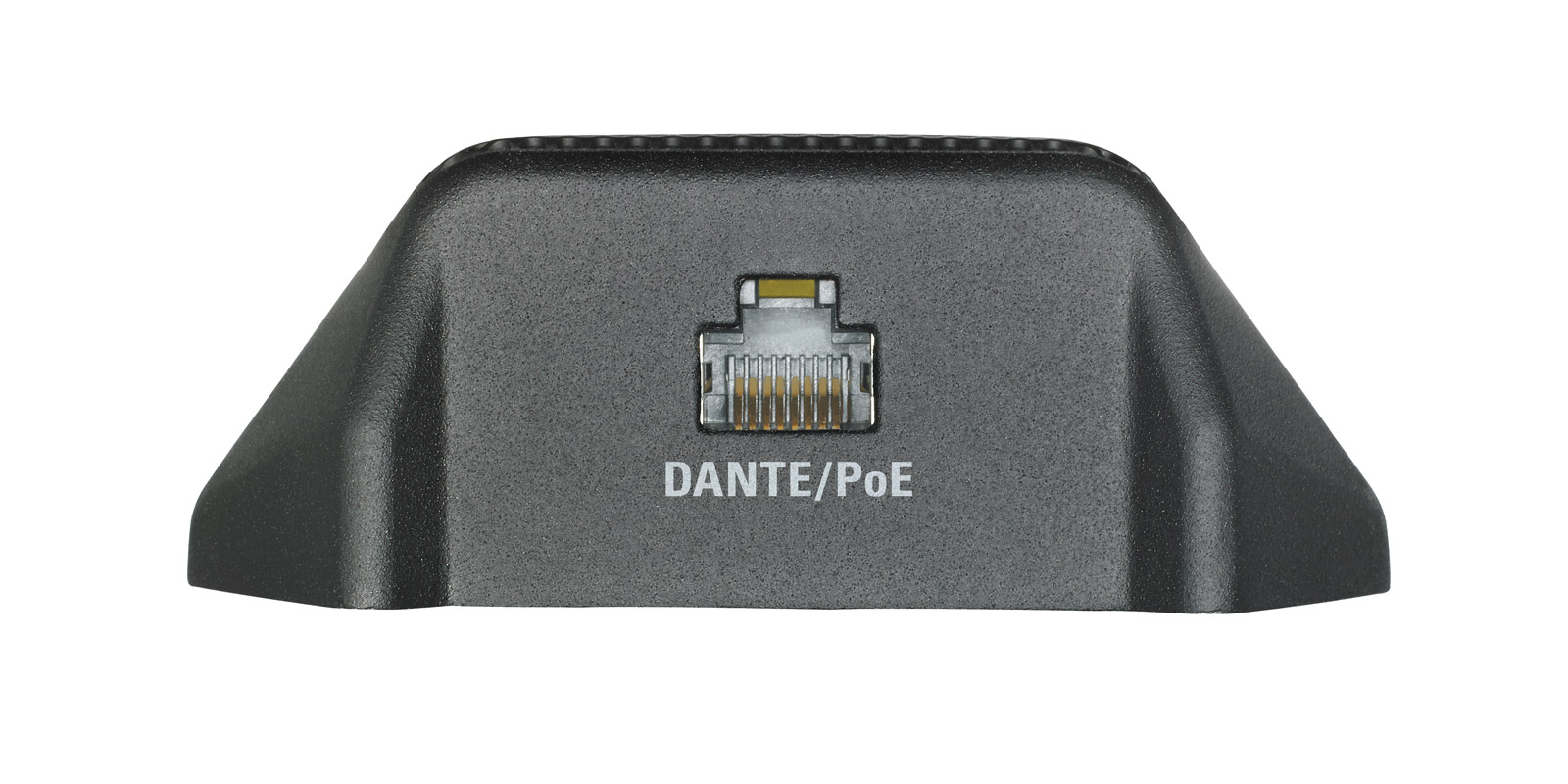

Audio-Technica’s ATND971a boundary microphone has a cardioid pickup pattern and permanently polarised condenser capsule. The microphone's output is via RJ45 connection and connects to compatible Dante enabled equipment via a shielded CAT5 or CAT6 network cable. This network connection also provides the 1.5W power requirement via PoE. The microphone is compatible with AES67 networks including Livewire, RAVENNA and Q-LAN AoIP (audio over internet protocol).

A touch-sensitive switch, with red/green LED, is positioned on the front of the microphone and allow users to quickly determine toggle/talk/mute status as well as toggle between talk and mute modes. The switch also functions as a press-to-talk or press-to-mute button or can also be used to trigger external equipment – such as pan/tilt of a video camera, or the room’s lighting should the infrastructure and connected equipment be equipped. The microphone has recessed local control on the underside that allows a technician to alter the input gain between +30dB, +40dB and +50dB, add a low-cut filter (flat/roll-off), LED indicator, and lock settings. Settings can also be adjusted remotely.

Frequency response: 30Hz-20kHz. Low frequency roll-off: 80Hz, 18dB/octave. Maximum input: 117dB SPL, 1kHz at 1% THD. Signal to noise: 68dB, 1kHz at 1Pa. Transmission speed: 100Mbps. Power consumption: 1.5W. Weight: 393g. Dimensions (HxWxL): 35.8 x 89.5 x 110mm.

Included accessories: Soft protective pouch.


ATND8677A

This Dante enabled microphone desk stand has the network functionality of the ATND971A, however in place of the integrated microphone a 3-pin XLR socket allows the user to use with a compatible gooseneck microphone.

Frequency response: 20Hz-20kHz. Low frequency roll-off: 80Hz, 18dB/octave. Maximum input: -10dBu, +30dB; -20dBu, +40dB; -30dBu, +50dB. Signal to noise: 68dB, 1kHz at 1Pa. Transmission speed: 100Mbps. Power consumption: 1.5W. Phantom power requirements: 12V DC. Weight: 770g. Dimensions (HxWxL): 46.2 x 93.8 x 133mm.


ATND8734A

The ATND8734a is a power module with the Dante network and switching functionality of the ATND971a. It has been designed for mounting a gooseneck or hanging microphone with TA3F connector – such as ES933C/MIC, ES933H/MIC, ES933ML/MIC, ES931C/MIC, ES931H/MIC, or ES931ML/MIC. Connection to a network using CAT5e or CAT6 cable is via RJ45 socket. Logic screw terminals can be to trigger functions on compatible Dante enabled devices.

Frequency response: 20Hz-20kHz. Low frequency roll-off: 80Hz, 18dB/octave. Maximum input: -15dBu, +30dB; -25dBu, +40dB; -35dBu, +50dB. Transmission speed: 100Mbps. Weight: 330g. Dimensions (Diameter x Depth): 148 x 47mm.

Included accessories: 4x fixing screws.
