EMO E618 STROMVERTEILER

Artikelnummer
42-618
Hersteller
EMO
Typennummer
  • E618
EMO E618 STROMVERTEILER
EMO E618 STROMVERTEILEREMO E618 STROMVERTEILEREMO E618 STROMVERTEILER

EMO STROMVERTEILER

Diese Reihe von modernen 1HE und 2HE Rackmontageplatten und Bodenkasten wurden von Canford entwickelt um speziell eine vielseitige, robuste und sichere Lösung für die Stromversorgung einer vielfältigen Gerätekombination zur Verfügung zu stellen. Sie werden am häufigsten in mobilen Racks oder Flightcases für temporäre Installationen bei LIVE-Veranstaltungen, einschließlich Theater, Touringsysteme, Vor-Ort-Aufnahme und Übertragungsarbeit verwendet. Diese Geräte können jedoch auf Grund ihres Designs und Konfiguration auch in festen Installationen eingesetzt werden.

1HE Varianten (E611, E612, E613, E614, E615)

2HE 16A Varianten (E616, E617, E671, E672)

2HE 32A Variante (E618, E673)

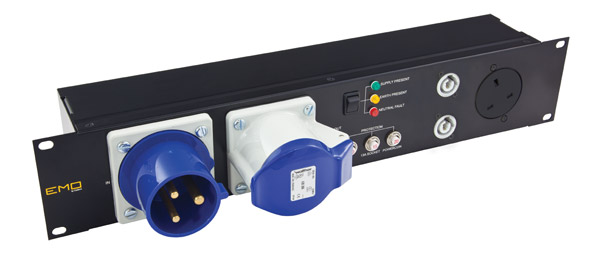

Sehr ähnlich in Entwurf und Funktion zu den 16 Ampere Versionen, wurde der E618 32 Ampere Typ für Verwendung mit Hochleistungsgeräten wie Verstärker entworfen. Die Frontplatte ist mit einem 32 Ampere CEEform Eingang und einem direkt verdrahten Loop-Out Ausgang, 2 x 20 Ampere Powercon Ausgängen und einem UK 13 Ampere Ausgang, plus thermische Überstromschutzschalter und LED- ‘Ampel’ Anzeigen wie die 16 Ampere Varianten ausgestattet.

Die Rückseite der Platte bietet 12 x 10 Ampere verriegelbare Überstromschutz-Ausgängen mit einer gesamten Stromgrenze von 10 Amp zuzüglich 12 x 20 Ampere verriegelbare Überstromschutz,-Ausgängen mit einer gesamten Stromgrenze von 20 Ampere.
Die 32 Ampere Version bietet einen geraden Eingang und Loop-Ausgang dar. Die Verriegelung befindet sich auf dem Gehäuse des Eingangsteckverbinders.

Typ Eingang Frontseite Rückseite
E618 32A CEEform In/Loop Out 1 x UK 13A, 2 x 20A Powercon, 12 x 10A verriegelbare IEC,
15A & 20A thermische Überstromschutzschalter 12 x 20A Powercon
E673 32A CEEform In/Loop Out 1 x Schuko 16A, 2 x 20A Powercon, 12 x 10A verriegelbare IEC,
15A & 20A thermischer Überstromschutzschalter 12 x 20A Powercon

EMO POWER DISTRIBUTION PANELS

This range of modern 1U and 2U rack-mounting panels and floor boxes have been engineered by Canford specifically to provide a versatile, robust and safe solution suitable for powering a diverse combination of equipment. They are more commonly used in mobile racks and flight cases for temporary installations in live entertainment, including theatre, touring systems, location recording and outside broadcast work, though their unique design and configuration makes them also equally suited to many fixed installs.

1U Models (E611, E612, E613, E614, E615)

2U 16A Models (E616, E617, E671, E672)

2U 32A Model (E618, E673)

Very similar in design and function to the 16 Amp versions, the E618 32 Amp model is designed for use with higher power equipment such as amplifiers. The front panel is fitted with one 32 Amp CEEform inlet and a directly wired loop-out outlet, 2 x 20A Powercon outputs and either one UK 13 Amp or Shuko 16A output, plus overcurrent thermal circuit breakers and LED "traffic light" power status indicators as per the 16 Amp models.

The rear panel offers 12 x 10 Amp overcurrent protected locking IEC outputs with an overall current limit of 10 Amps, plus 12 x 20 Amp overcurrent protected Powercon outputs with an overall current limit of 20 Amps. 100mm depth rear steel enclosure.

The 32 Amp version, featuring a straight inlet and loop outlet, has the latch on the inlet body.

Code Model Inlet Front Panel Rear Panel
42-618 E618 32A CEEform In/Loop Out 1 x UK 13A, 2 x 20A Powercon, 12 x 10A locking IEC,
15A & 20A overcurrent thermal circuit breakers 12 x 20A Powercon
42-673 E673 32A CEEform In/Loop Out 1 x Shuko 16A, 2 x 20A Powercon, 12 x 10A locking IEC,
15A & 20A overcurrent thermal circuit breakers 12 x 20A Powercon
