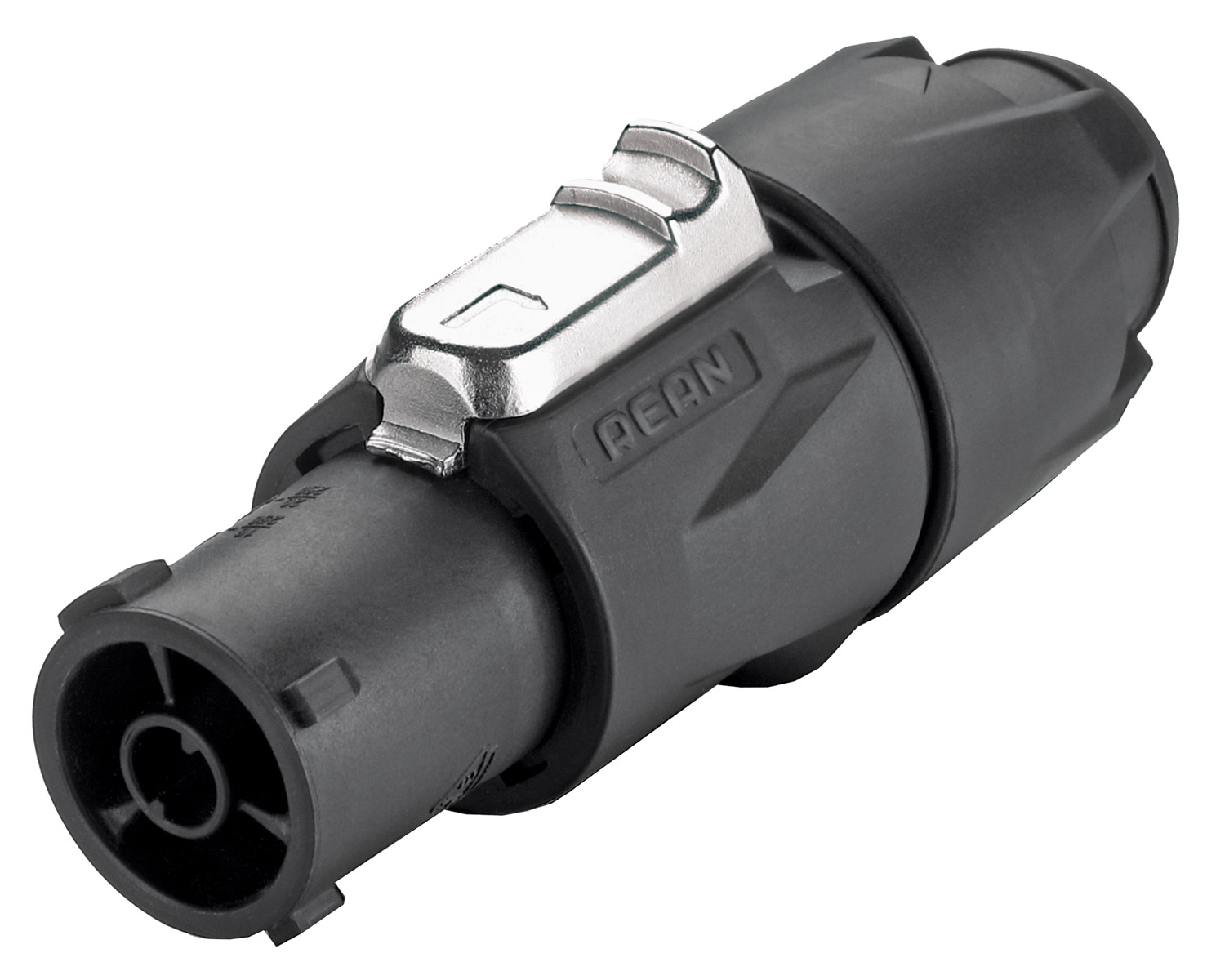

REAN RCAC3F-X-000 POWER CONNECTOR Outdoor power input cable connector, 16A, IP65

IP65 mains power connectors from Rean offering 16 amp rating (20 amp at their peak) with secure twist lock retention and suitability for cables with outer diameters of 6 - 12mm. Designed for outdoor applications with weather resistant IP65 protection. The connectors also have breaking capacity (CBC), enabling them to be connected or disconnected under load.

The power inlet connector has the standard Neutrik 'D' series housing dimensions with 24mm cutout and fits cutouts on Canford "universal series" panels; the power outlet uses a larger housing with 28.7mm cutout and will NOT fit cutouts on Canford "universal series" panels. Cable connectors have screw terminals (wire size 1.0 to 2.5mm / 12 AWG), panel connectors have 6.35 x 0.8mm flat tabs and have two plain holes for M3 screws and bolts.

Cable connector contacts: Copper alloy, Ag plating. Panel connector contacts: Copper alloy, Ag plating. Temperature range: -30 degrees Celsius to +80 degrees Celsius. Flammability: UL94 V-0. Lifetime: 5000 mating cycles. Rated to IP65 when connectors are mated or in combination with a sealing cover.
