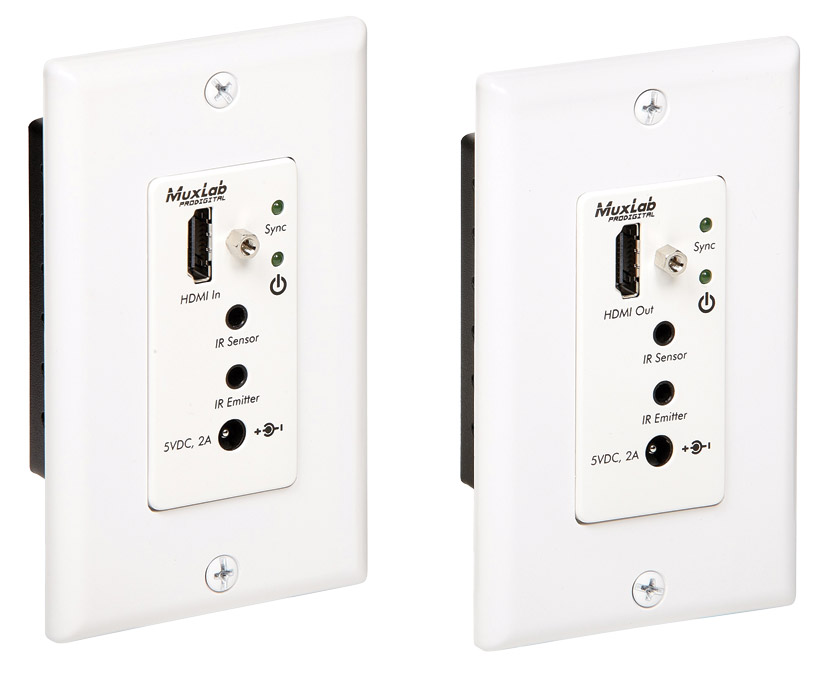

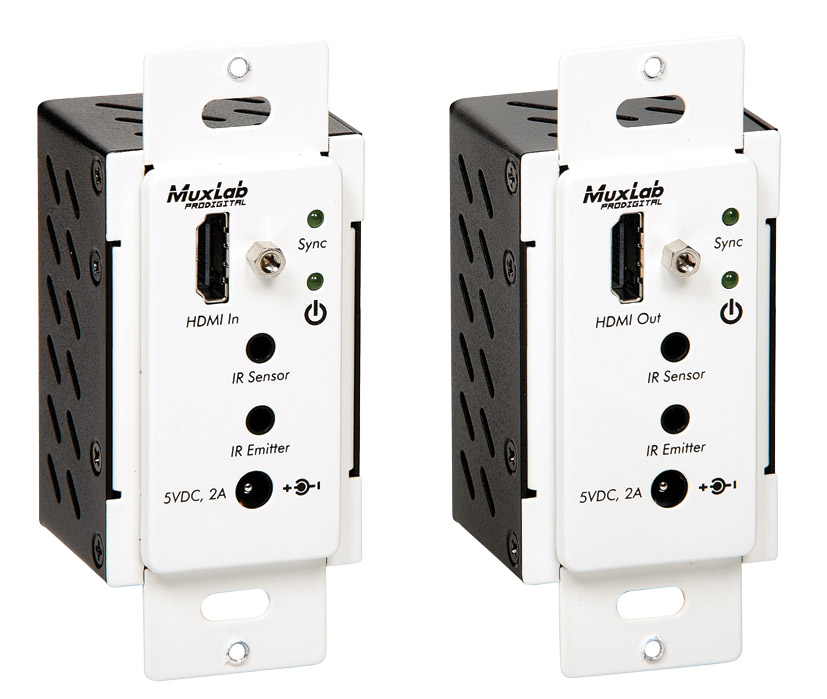

MUXLAB 500451-WP VIDEO EXTENDER KIT Wallplate, HDMI, UHD-4K, 1-gang US, Decora, white

500028-WP - Stereo Audio Balun

MuxLab Stereo Hi-Fi Wall-Plate Balun allows an unbalanced line-level Hi-Fi stereo analogue audio to be transmitted via single Cat5e/6 cable in a point-to-point connection to distances of up to 3,250ft / 1km. The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required. Sold individually but used in pairs, the Stereo Hi-Fi Balun can be also used with the 500028 (male RCA connectors) or the 500028-F (female RCA connectors).

Versions

Required accessories: Single back box (country compatible).

Frequency response: 20Hz-20kHz, 3dB. Maximum input: 1.1Vp-p, unbalanced. Insertion loss: Less than 2dB, per pair. THD: 0.007%, 1kHz. Audio impedance: 100ohms maximum, source; 10kohms, minimum, receiver. Weight: 115g.

500033-WP - Quad Audio Balun

500033-WP is a quad audio balun that allows up to four analogue line audio signals to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection up to 1km. Sold individually but normally used in pairs, the balun allows up to four coax audio cables to be replaced by a single Cat5e/6 cable. 500033-WP also works in conjunction with other MuxLab analogue audio baluns such as 500019. Audio inputs are by way of female RCA (phono) connections.

Versions

Required accessories: Single back box (country compatible).

Frequency response: 20Hz-20kHz, 3dB. Maximum input: 1.1Vp-p, unbalanced. Insertion loss: Less than 2dB, per pair. THD: 0.007%, 1kHz. Audio impedance: 100ohms maximum, source; 10kohms, minimum, receiver. Weight: 115g.

500038-WP - S-Video/Hi-Fi Balun

Designed for application including classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks, 500038-WP is an S-Video/Hi-Fi wall balun that allows a single S-Video signal to be transmitted via unshielded twisted pair (UTP) cable up to 305m in a point-to-point connection. It features an audio bandwidth response of 20Hz to 20kHz for high fidelity applications, and works in pairs or in conjunction with the 500038 or 500017.

Versions

500049-WP - Stereo AV/Infrared Pass-thru Balun

Designed for application including classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks, 500049-WP is a stereo AV/infrared pass-through balun that allows a one stereo audio and one infrared emitter signal to be transmitted via a single Cat5e/6 cable in a point-to-point connection. It features an audio bandwidth response of 20Hz to 20kHz, and works in pairs or in conjunction with the 500048 or 500049.

Versions

500053-WP - Component Video/Mono Audio Balun

Designed for commercial and residential HDTV applications, 500053-WP is a component video and analogue audio balun that allows one component video (YPbPr or RGB) signal and one analogue audio signal to be transmitted via one Category 5e/6 twisted pair cable for more cost-efficient cabling. 500053-WP supports 480i/p up to 305m, and 720p/1080i/p up to 152m. Normally employed in pairs or in conjunction with 500052/500053.

Versions

500058-WP - Component Video/Stereo Audio Balun

Designed for commercial or residential AV applications, 500058-WP is a component video and stereo audio balun housed in a wall plate. 500058-WP allows one component video (YPbPr or RGB) signal and one stereo audio channel to be transmitted via a single Cat5e/6 twisted pair cable for more cost-efficient cabling. Supports 720p/1080i/p up to 152m via Cat5E/6. Can be employed in pairs or in conjunction with the 500058.

Note: 500058-WP is not compatible with 500050, 500051, 500052, 500053, 500054, 500055, 500056, 500057, 500250, 500251, 500252, or 500253.

Versions

500041-WP - VGA Balun, Display Side

500041-WP is a balun that eliminates costly and bulky VGA cable, allowing a VGA source to be connected to a VGA monitor via a single Cat5e/6 cable. The VGA wall balun allows VGA video to be transmitted up to 107m at 800 x 600 resolution. 500041-WP works with the 500043-WP or in conjunction with 500040 or 500043.

Note: 500041-WP is not compatible with 500010, 500011 nor 500014, and does not support DDC handshaking.

Versions

500043-WP - VGA Balun, PC side

500043-WP is designed for positioning at the PC side of the chain and works with 500041-WP or in conjunction with the 500041 or 500042. 500043-WP is not compatible with 500010, 500011 nor 500014, and does not support DDC handshaking.

Versions

500554 - Bluetooth to Dante

This Bluetooth 5.0 audio to Dante interface allows 2-way audio transmission and has been designed to be compatible with a standard single gang US wall box with Decora faceplate. The wall panel connects to mobile phones, iPad, and other devices via a Bluetooth interface, and converts the received audio signal into digital signal transmission through Dante network. A status LED on the front panel illustrated valid connection. Power, control, and audio data are transmitted by a single network cable. PoE (IEEE802.3af) is supported.

Versions

Included accessories: Single Decora faceplate of matching colour with fixing screws, metallic box.

Bluetooth interface: Bluetooth 5.0, stereo I/O. Bluetooth range: 15-23m, maximum. Dante interface: RJ45, stereo I/O. Frequency response: 20Hz-20kHz. Sampling rate: 48kHz, 24bit. Floor noise: -90dB. Power consumption: 2W. Dimensions (LxWxH): 123.5 x 79 x 35mm. Weight: 156g

500555 - Bluetooth/Analogue to Dante

This faceplate has the Bluetooth and Dante functionality of 500554, however in addition analogue audio via dual RCA (phono)/3.5mm jack input connection or 3.5mm jack output is available. The panel has been designed to be compatible with a standard dual-gang US back box with Decora faceplate.

Versions

Included accessories: Dual Decora faceplate of matching colour with fixing screws, metallic box.

Bluetooth interface: Bluetooth 5.0, stereo I/O. Analogue inputs: 2x RCA (phono), unbalanced; 1x 3.5mm TRS jack, balanced. Dante interface: RJ45, stereo I/O. Frequency response: 20Hz-20kHz. Sampling rate: 48kHz, 24bit. Signal to noise: Greater than 100dB. Floor noise: -90dB. Power consumption: 2W. Dimensions (LxWxH): 123.5 x 109.1 x 30mm. Weight: 310g

500559 - Bluetooth/Analogue to Dante

Designed for education, hotel rooms, restaurants, conference centres and fitness facilities, 500559 is a Bluetooth and analogue audio to Dante device that has been designed to connect to mobile phones, iPad, and other devices through Bluetooth interface or to analogue audio sources, and convert the received audio signal into digital signal transmission through Dante network. The wall plate includes wireless stereo audio input via Bluetooth, analogue stereo audio input via 3.5mm TRS jack and dual RCA (phono) connections. Outputs include wireless mono audio output via Bluetooth, and analogue stereo audio output via 3.5mm TRS jack and dual RCA (phono) connections. Power, control, and audio data are transmitted by only one network cable. Q-Sys plug is available to download for 500559. Powered via PoE.

Versions

Included accessories: Decora faceplate of matching size and colour with fixing screws.

Bluetooth interface: Bluetooth 5.3, stereo I/O. Analogue inputs: 2x RCA (phono), unbalanced; 1x 3.5mm TRS jack, balanced. Dante interface: RJ45, stereo I/O. Frequency response: 20Hz-20kHz. Sampling rate: 48kHz, 24bit. Signal to noise: Greater than 90dB. Output noise: Less than -79dB. Power consumption: 4.22W. Dimensions (WxHxD): 104.5 x 89 x 43.7mm. Weight: 265g

500558 - Analogue to Dante

This faceplate allows two channels of analogue audio in and out via 3-pin XLR to be interfaced with Dante compatible equipment. The analogue inputs offer a frequency response of 20Hz to 20kHz either balanced or unbalanced signal. The panel has been designed to be compatible with a dual-gang US wall box and features +48V phantom power switching per channel, and 0-20dB attenuation per channel.

Versions

Included accessories: Decora faceplate of matching size and colour with fixing screws, metallic back box, and flat headed screwdriver.

Analogue impedance: 20kohm, balanced, input; 100ohm, balanced, output. Dante interface: RJ45 with PoE. Frequency response: 20Hz - 20kHz. Sampling rate: 48kHz, 24bit. Floor noise: -90dB. Power consumption 2W. Dimensions (LxWxH): 135.5 x 79 x 35mm. Weight: 156g

500817 - Touch Control Panel

Designed for use in commercial, classroom, and residential AV systems, and boardroom systems, 500817 is a 5-inch touch control panel that allows control over compatible MuxLab devices and third-party products. The device combines the capabilities of an in-wall touch panel and an advanced control processor. The 5-inch high-resolution colour touch screen supports two-way feedback and the addition of various programmable buttons that can be placed on different pages as required. 500817 supports 1x Ethernet port (for TCP/IP, HTTP, UDP, and Telnet), 2x RS-232 ports, 1x RS-485port, 1x infrared port, 2x voltage sense ports, and 2x relay ports for control of end devices.

Compatible MuxLab products include AV over IP system via the 500812 Pro Digital Network Controller, MuxLab’s TCP/IP, Telnet and RS-232 managed Matrix Switches, as well as third party devices such as projectors, projector screens, displays, AV sources, and other similar devices. 500817 Touch Control Panel can be programmed, configured, and managed via the web interface.

Versions

Included accessories: Plastic Frame, spatula, IR emitter, and PSU with US/UK/EU blades.
Required accessories: 1-gang US decora style back box.

Output ports: 1x Ethernet for TCP/IP via RJ45, 2x RS232 via 3-pin terminal blocks, 1x RS485 via 3-pin terminal block, 1x infrared emitter via 2-pin terminal block, 2x low voltage relay ports via 2-pin terminal blocks. Input ports: 2x low level detection via 2-pin terminal blocks. Other connections: 1x 2-pin terminal block power input, 1x USB type-B connection for firmware updates. Dimensions (WxDxH): 145 x 37 x 100mm. Weight: 0.34kg

500816-IP-V2 - 8-Button Control Panel

This control panel has been designed for installation in a wall or flat surface such as a table-top. Having eight backlit, individually programmable buttons, 500816-IP allows the user to remotely control MuxLab AV over IP devices when used in conjunction with 500811, along with MuxLab matrix switches. Supporting PoE, the controller supports a single Ethernet port for TCP/IP and Telnet, 2x RS232 ports, 1x infrared port, and 2x relay ports.

Versions

Included accessories: IR emitter, 2x sucking cups, and PSU with US/UK/EU blades.
Required accessories: 1-gang US decora style back box.

Dimensions (WxDxH): 114 x 70 x 36mm. Weight: 0.34kg
