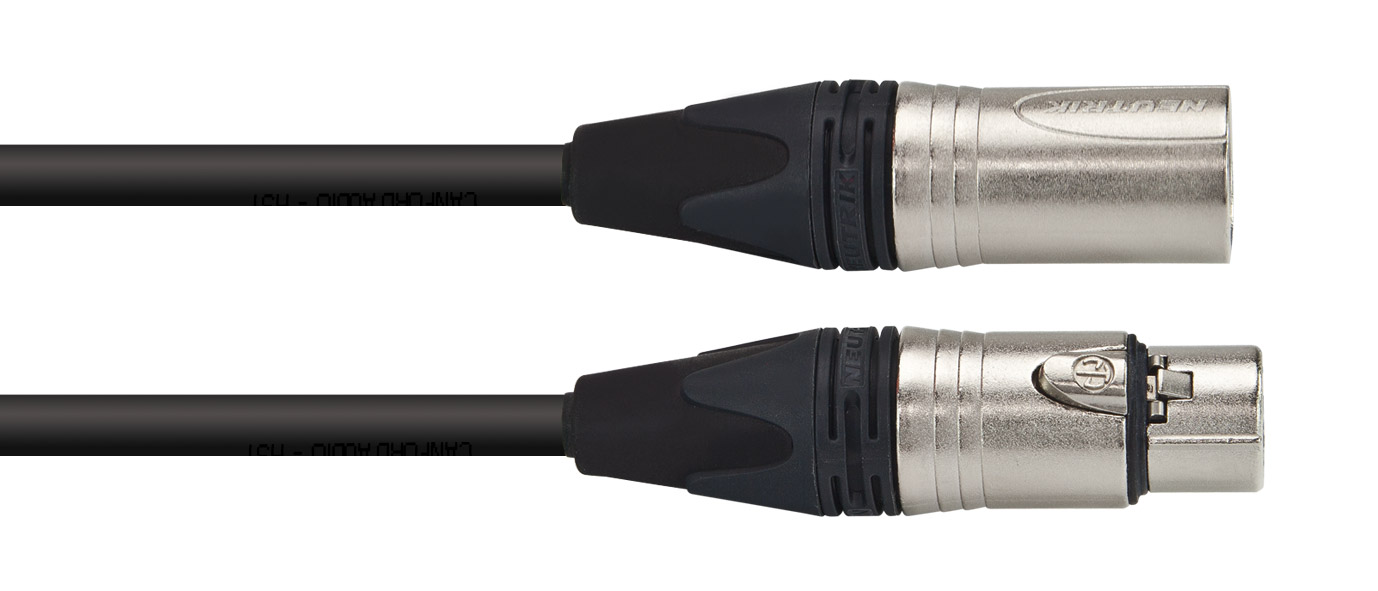

Prewired cables, ready for use. HST-R Ruggedised, flexible, screened twisted-pair cable.
Each individual cable is described in detail by the use of an abbreviated sequence in the form:
Canford Cable - 1st connector - 2nd connector - cable type - cable length - cable colour.
Detailed specifications for the connectors and cables are given in their appropriate entries elsewhere. All XLR connectors are solder connection type, not IDC. Abbreviations used in the descriptions are as follows:
3FXX |
Neutrik XLR 3-pin female connector 41-031 |
3MXX |
Neutrik XLR 3-pin male connector 41-032 |
HST-R |
Canford HST-R ruggedised cable 30-160 |
Note: This range of cables comes fitted with 100mm lengths of clear heat-shrink sleeving on the cable as standard, to enable fitting of labels by users. The un-shrunk sleeve can easily be cut off if not required. Cable lengths and the number of sleeves is outlined below:
0.5 - 1m |
0 sleeve |
1.5 - 3m |
1 sleeve |
4 - 20m |
2 sleeve |
Note: A range of Audio cable drums with a variety of connector, cable and length combinations is now available, see CANFORD CABLE DRUMS - AUDIO - Plastic and metal drum, supplied with cables
Assembled by Canford in the UK.
ORDERING NOTE: Residual stock from discontinued lines (5 digit stock codes) will not be supplied fitted with 100mm lengths of clear heat-shrink sleeving on the cable as outlined in the text above.
'HST' is a registered trademark of Canford Audio Limited.
