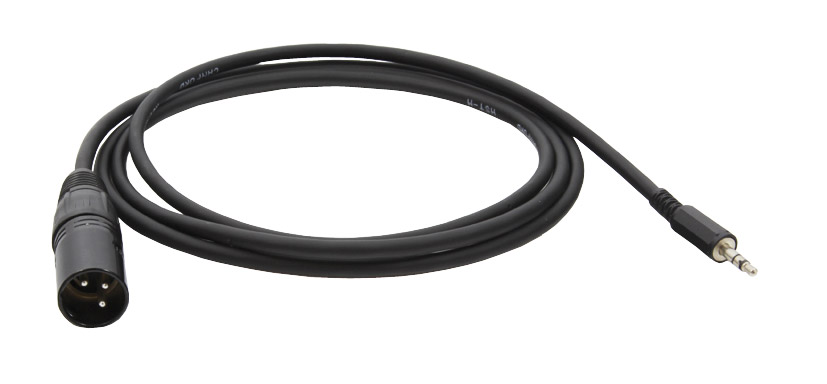

CANFORD CABLE 3MXXB-3.5mm 3-pole jack plug, straight, 1.5m, recorder line output

Artikelnummer
38-789
Hersteller
Canford
GTIN
5056704792210
CANFORD CABLE 3MXXB-3.5mm 3-pole jack plug, straight, 1.5m, recorder line output
CANFORD CABLE 3MXXB-3.5mm 3-pole jack plug, straight, 1.5m, recorder line output

CANFORD XLR MALE - 3.5mm 3-POLE JACK CABLES

These pre-wired audio output cables are for use with most small portable audio recorders, iPods, phones, radiomics and IEM receivers.

Black XLR 3-pin male for mixer or other device input and 3.5mm 3-pole, straight jack plug for the outputs commonly found on small portable audio recorders, iPods, phones etc. Also available with locking 3.5mm jack plug for use with radiomic and IEM receivers.

Tip and ring on the jack plug (left and right channels) are wired to pin 2 (signal) on the XLR. Sleeve on the jack plug (ground) is wired to pins 3 and 1 on the XLR. Note that these cables include resistors to mix the stereo output of the device to mono on the XLR.
