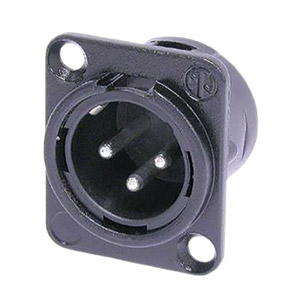

Universal metal-bodied housing common to most Neutrik connector ranges allows simpler metalworking and more flexibility of use. Panel cutout 24mm, connector can be mounted front or rear of panel. Available in 3, 4, 5, 6 and 7-pin configurations. Metal body offers RF protection. The NC3FD-L-0 is a latchless version of the NC3FD-L.
Standard connectors have countersunk clearance mounting holes to accept M3 bolts. The special ‘M3’ version of the connector has an M3 tapped thread, for speed of mounting. This obviously means that they can only be used rear-of-panel mounted.
B suffix = black shell, gold plated contacts, BAG = black shell with silver plated contacts.
SCDR - Rear Cover
This soft plastic cover fits the rear end of several D-size chassis connectors. It is used to protect the gap between connector and cable. The protection cover works with all common wires, cables and fibres, simply cut off the cover end to the required diameter.
