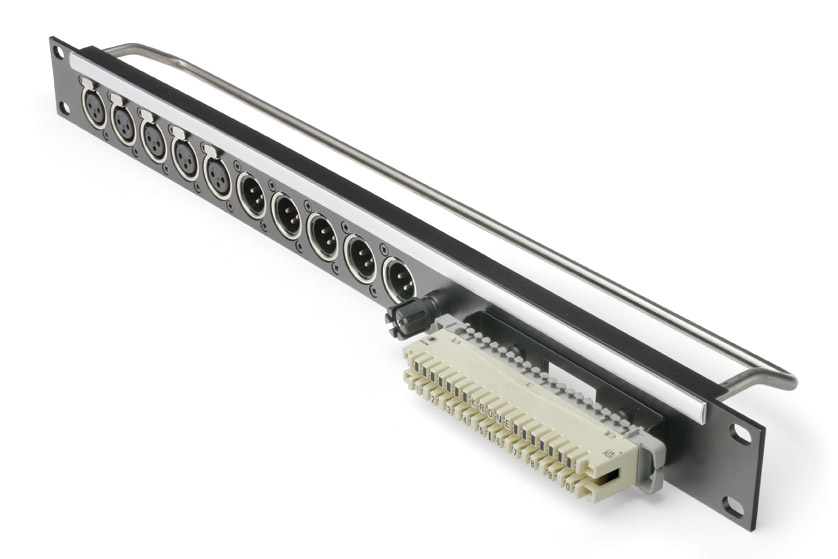

CANFORD KRONE CONNECTION PANEL Type 237A-10XF, black

These 1U panels, machined from an extruded aluminium profile, permit the mounting of one Krone, or equivalent, connection block plus 10 D-series XLR or any other connector from the Canford 'Universal' series. Both Krone block and XLR connectors are on the external face of the panel. Applications typically include temporary rigs where a multipair cable is used between locations for communications and other signals, this panel permits a convenient termination and breakout. All panels are fitted with a single binding post terminal adjacent to the Krone block for termination of cable earth screens if required.

They are available as unpopulated panels (with pre-fitted binding post), or complete with either a Krone 237A 10-pair block or a Krone ABS 6-circuit block for applications where individual pair screens need to be terminated, together with 10 Neutrik DLX series XLR connectors. The XLR configuration is denoted in the price line. XF = Female 3-pin XLR. XM = Male 3-pin XLR.

Other combinations of XLR or Universal series connectors can be supplied to special order. Panels can also be supplied prewired to special order.

Manufactured by Canford.
