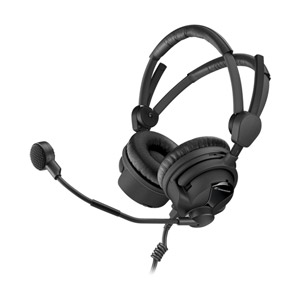

SENNHEISER HMD 26-II-100 HEADSET Stereo, 100 ohms, 300 ohm dyn mic, without cable

These broadcast headsets are said to offer ‘clear communication, even in high-volume backstage environments’. The closed circumaural design provides a frequency response of 60Hz to 25kHz whilst Sennheiser’s ‘ActiveGard’ limiting technology prevents sudden bursts of high level audio. The hypercardioid, dynamic boom microphone can rotated such that it can be worn on either left or right side, while the split headband alleviates pressure for long-term use.
Headphone frequency response: 60Hz - 25kHz. SPL: 96dB, characteristic; 123dB, maximum. Impedance: 64ohm. Contact pressure: 6.0N. Microphone type: BMD 434-300. Transducer principle: Dynamic. Directivity: Hypercardioid. Impedance: 300ohms. Sensitivity: 0.5mV/Pa, 1kHz. Frequency response: 40Hz - 18kHz. Weight (without cable): 320g, dual-sided; 240g, single-sided.

Variants

HMD 300

A dual-sided headset supplied without cable.

HMD 300 X3K1

A dual-sided headset supplied with CABLE-X3K1 2m cable terminated with 3-pin male XLR and 6.35mm jack.

HMD 300-S

A single-sided headset supplied without cable.

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)

Designed primarily for outside broadcasters, HMD 26 features a hypercardioid, dynamic microphone with supra-aural, closed-back earphones. Commonly used for outdoor TV or radio applications, the headset features Sennheiser’s ActiveGard limiting technology with three switchable attenuation settings to prioritize isolation, noise reduction, and hearing protection. The shock-mounted microphone capsule has a frequency response of 40Hz - 20kHz and delivers ‘excellent acoustic performance’ whilst absorbing structure-born noise.

Headphone frequency response: 6Hz - 18kHz. SPL: 105dB, characteristic; 128dB, maximum; 95/110dB, ActiveGard. Impedance: 64ohm. Contact pressure: 3.6N. Microphone type: BMD 434. Transducer principle: Dynamic. Directivity: Hypercardioid. Impedance: 300ohms. Sensitivity: 0.5mV/Pa, 1kHz. Frequency response: 40Hz - 18kHz. Weight (without cable): 200g, dual-sided; 130g, single-sided.

Variants

HMD 26

A dual-sided headset supplied without cable.

HMD 26-S

A single-sided headset supplied without cable.

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)

Like HMD 26, HME 26 has been designed primarily for outside broadcasters and features the same supra-aural, closed-back headphones but with accompanying pre-polarized condenser microphone capsule as opposed to dynamic. The headset features Sennheiser’s ActiveGard limiting technology with three switchable attenuation settings to prioritize isolation, noise reduction, and hearing protection. The shock-mounted microphone capsule has a frequency response of 40Hz - 20kHz and delivers ‘excellent acoustic performance’ whilst absorbing structure-born noise.

Headphone frequency response: 6Hz - 18kHz. SPL: 105dB, characteristic; 128dB, maximum; 95/110dB, ActiveGard. Impedance: 64ohm. Contact pressure: 3.6N. Microphone type: BKE 10-4. Transducer principle: Pre-polarized condenser. Directivity: Cardioid. Sensitivity: 16mV/Pa, 1kHz. Frequency response: 40Hz - 20kHz. Weight (without cable): 200g, dual-sided; 130g, single-sided.

Variants

HME 26

A dual-sided headset supplied without cable. Requires +48V phantom power.

HME 26-S

A single-sided headset supplied without cable. Requires +48V phantom power.

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)

HMD 27 has been tailored for use for commentators, audio engineers, or those who require ‘the highest levels of audio performance’. The headset has a closed, circumaural earpiece design that features Sennheiser’s ActiveGard limiting technology with three-step switchable attenuation. This inbuilt limiting technology protects the user from sharp spikes in audio volume. The dynamic microphone capsule has a hypercardioid pickup pattern and a frequency response of 40Hz to 18kHz. The headset’s lightweight build, soft earpads, and two-piece headband provide a more comfortable wear for prolonged periods of use. This headset is supplied without cable and therefore one of the optional cables listed is required for use.

Headphone frequency response: 4Hz - 21kHz. SPL: 102dB, characteristic; 125dB, maximum; 95/110dB, ActiveGard. Impedance: 64ohm. Contact pressure: 3.6N. Microphone type: BMD 434. Transducer principle: Dynamic. Directivity: Hypercardioid. Impedance: 300ohms. Sensitivity: 0.5mV/Pa, 1kHz. Frequency response: 40Hz - 18kHz. Weight (without cable): 240g

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)

HMDC 27 has the same feature set as HMD 27, however HMDC has a greater impedance of 130ohms, features ActiveGard limiting technology for protection from noise peaks greater than 110dB, and switchable NoiseGard technology that increases intelligibility and reduces noise by an additional 15dB for operation in the noisiest environments.

This headset is supplied without cable and therefore one of the optional cables listed is required for use.

Headphone frequency response: 4Hz - 21kHz. SPL: 105dB, characteristic; 125dB, maximum; 110dB, ActiveGard. Impedance: 130ohm. Contact pressure: 3.6N. Microphone type: BMD 434. Transducer principle: Dynamic. Directivity: Hypercardioid. Impedance: 300ohms. Sensitivity: 0.5mV/Pa, 1kHz. Frequency response: 40Hz - 18kHz. Weight (without cable): 250g.

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)

Like HMD 27, HME 27 has been designed primarily for commentators and audio engineers, however in place of the dynamic microphone capsule, HME 27 houses a pre-polarized condenser microphone capsule that requires +48V phantom power. HME 27 also has ActiveGard with three-step switchable attenuation.

This headset is supplied without cable and therefore one of the optional cables listed is required for use.

Headphone frequency response: 4Hz - 21kHz. SPL: 102dB, characteristic; 125dB, maximum; 95/110dB, ActiveGard. Impedance: 64ohm. Contact pressure: 3.6N. Microphone type: BKE 10-4. Transducer principle: Pre-polarized condenser. Directivity: Cardioid. Sensitivity: 16mV/Pa, 1kHz. Frequency response: 40Hz - 20kHz. Weight (without cable): 240g.

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)

HMD 46 headset has been designed for use in broadcasting and intercom communication applications. The lightweight, open-back headsets have a frequency range of 16Hz - 20kHz and a patented two-piece automatic headband and soft ear pad design. The microphone, with passive noise reduction, is positioned on a rotating boom arm that allows for use on either left or right side. The headset has a single-sided cable entry. This headset is supplied without cable and therefore one of the optional cables listed is required for use.

Headphone frequency response: 16Hz - 20kHz. SPL: 100dB, characteristic; 123dB, maximum. Impedance: 200ohm. Contact pressure: 2.5N. Microphone type: BMD 434-46. Transducer principle: Dynamic. Directivity: Hypercardioid. Impedance: 300ohms. Sensitivity: 0.5mV/Pa, 1kHz. Frequency response: 40Hz - 18kHz. Weight (without cable): 150g

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)

HME 46 has the same properties as HMD 46, however in place of the dynamic microphone HME 46 has a pre-polarized condenser capsule for noise cancelling, close-talking pickup. This headset is supplied without cable and therefore one of the optional cables listed is required for use.

Headphone frequency response: 4Hz - 21kHz. SPL: 102dB, characteristic; 125dB, maximum; 95/110dB, ActiveGard. Impedance: 64ohm. Contact pressure: 3.6N. Microphone type: BMD 46S. Transducer principle: Pre-polarized condenser. Directivity: Close-talking. Sensitivity: 30mV/Pa, 1kHz. Frequency response: 100Hz - 15kHz. Weight (without cable): 150g

Compatible cables

CABLE-II-X3K1-GOLD (508546)
CABLE-II-X4F (505784)
CABLE-II-X5 (505785)
CABLE-II-8 (505797)
CABLE-II-6 (508545)
