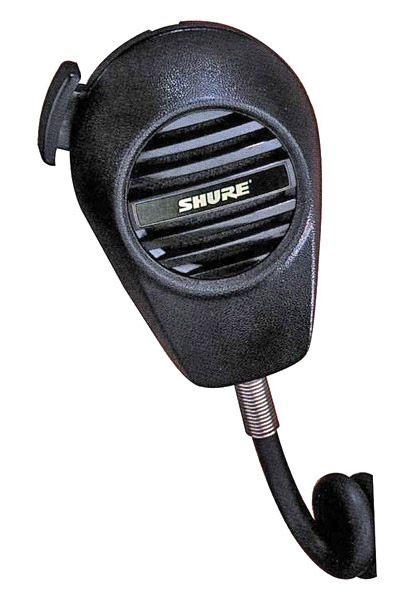

SHURE 527B MICROPHONE Handheld, omnidirectional, 300Hz-5kHz

Artikelnummer
74-6213
Hersteller
Shure
Typennummer
  • 527B
SHURE 527B MICROPHONE Handheld, omnidirectional, 300Hz-5kHz
SHURE 527B MICROPHONE Handheld, omnidirectional, 300Hz-5kHz

Bestellangaben

MwSt. / Versand
Nicht mehr hergestellt. Siehe unten für Alternativvorschläge.
RoHS Konform

527B Microphone

The 527B is wired for balanced-line operation and is recommended for use where long cable lengths are required, or areas where strong noise fields may exist. The 527B microphone can be fed directly into a standard low-impedance amplifier, or a Shure A95 Series Line Matching Transformer can be used for coupling the 527B to the input of a high-impedance amplifier. A two-conductor shielded cable can be used for extending only the microphone circuit. If both the microphone circuit and the remote circuit are to be extended, a four-conductor cable, having two shielded conductors for the microphone, should be used.

  • 527B Omnidirectional, low impedance

Features

An extremely reliable handheld dynamic microphone with an extended low- and high-frequency response, particularly suited to ham radio use, mobile FM transmission, and top-quality paging systems. It features small size, light weight, and modular construction.

  • Extended low- and high-frequency response
  • Highly intelligible voice response
  • Unparalleled ruggedness and reliability
  • Moving coil (dynamic) element
  • ARMO-DUR case
  • “Million-Cycle” leaf-type switch controlling microphone and external relay or switching circuits
  • Modular construction for easy field service
  • “Lifetime” hang-up button and mounting bracket
  • Long-life neoprene-jacketed coil cord

Specifications

Type
Dynamic
Frequency Response
300 to 5,000 Hz

view larger
Sensitivity (at 1,000 Hz)
Open Circuit Voltage* ... -53 dBV/Pa (2.2 mV)
*1 Pascal=94 dB SPL
Impedance
Microphone impedance rating is 150 ohms (200 ohms actual) for connection to microphone inputs rated at 19 to 300 ohms
Switch
Double-pole, single-throw, leaf-type
Cable
Attached, 1.8 m (6 ft), 4-conductor (2 shielded), neoprene-jacketed
Dimensions
See User Guide
Net Weight
337 g (11.9 oz)
Packaged Weight
533 g (18.8 oz)

User Guides

SHURE MICROPHONES - Fist microphones

Handheld microphones with press-to-talk switches, for use with paging, public address and communications systems.

596LB

abgekündigt

A low impedance, omnidirectional, dynamic, microphone, this is 'designed especially for voice communications use'. It is an 'economical unit for applications in budget-restricted paging and other installations'. Vinyl coated coiled cable, no connector. Supplied mounting bracket fits hang-up button on back of microphone.

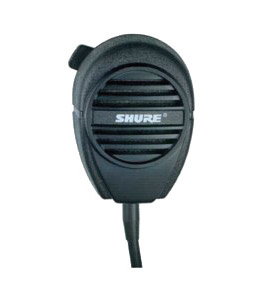

514B

abgekündigt

The Shure 514B is a low impedance, omnidirectional, dynamic, handheld microphone designed for paging and public address systems. It provides 'clear, natural voice response and high intelligibility'. Neoprene-jacketed, coiled cable, no connector. Supplied mounting bracket fits hang-up button on back of microphone.

527B

abgekündigt

An 'extremely reliable', low impedance, omnidirectional, dynamic microphone with an extended low- and high-frequency response, 'particularly suited to ham radio use, mobile FM transmission, and top-quality paging systems'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.

527C

abgekündigt

This is similar to the 527B, an 'extremely reliable', low impedance, omnidirectional, dynamic microphone with an extended low- and high-frequency response, fitted with an internal pre-amplifier to reduce sensitivity to hum and RF interference. It is 'designed for use in a variety of mobile and fixed station applications, including police, transportation, amateur radio and similar applications'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.

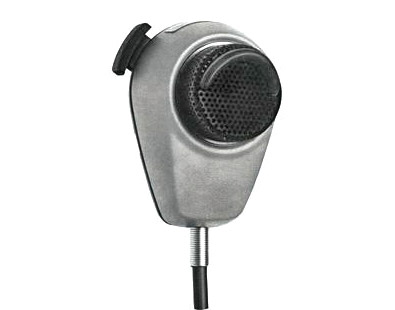

577B

abgekündigt

This is a low impedance, cardioid, dynamic, microphone using the pressure gradient between two entry points to provide noise cancelling. Designed for 'communications and paging applications that require highly intelligible, low noise output', it can be used in 'all types of mobile communications, from amateur radio to helicopter news and traffic reports'. It is also 'suitable for public address and paging systems in noisy areas such as factories, airport terminals, and restaurants'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.
