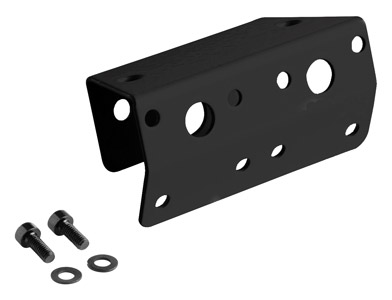

GENELEC 8010-410B LOUDSPEAKER MOUNT Wall, fixed 30-degree tilt, black

Artikelnummer
76-1111
Hersteller
Genelec
Typennummer
  • 8010-410B
  • 8010-410
Farbe
  • BlackBlack
GENELEC 8010-410B LOUDSPEAKER MOUNT Wall, fixed 30-degree tilt, black
GENELEC 8010-410B LOUDSPEAKER MOUNT Wall, fixed 30-degree tilt, blackGENELEC 8010-410B LOUDSPEAKER MOUNT Wall, fixed 30-degree tilt, black

GENELEC LOUDSPEAKERS - Mounting Accessories

A series of Genelec loudspeaker mounting accessories and stands compatible with varying loudspeaker series.

FLOOR/TABLE STANDS


8000-403 Floor Stand

A floor stand with 250mm diameter cast iron base and anti-vibration ring. The stand is adjustable in height from 870-1565mm and is compatible with Genelec monitors between models 8010 and 8330. Genelec don't advise using this stand with the 8331 loudspeaker. Note: The stand is also available as 53-260 with the only difference being the branding. Weight: 5.4kg.


8000-409B Floor Stand

A floor stand with 450mm diameter cast iron base and anti-vibration ring. The stand is adjustable in height from 950-1430mm, has a load capacity of 35kg, and is compatible with Genelec monitors between models 8010 and 8351. Weight: 10.6kg.


8000-400 Floor Stand

A steel manufactured floor stand with a 420x420mm cast base and 'oversized' rod. The height can be adjusted from 1100-1700mm height, and is compatible with 8040, 8050, 8340, 8350, 8341, 8351, and 4040. Genelec 8000-438 is required for horizontal monitor mounting. Weight: 19kg.


8000-406 Table Stand

A short, 170mm tall table stand in black. A 17mm (diameter) cast iron base has an anti-vibration rubber ring to prevent unwanted bass transfer. Genelec suggest the stand is used in conjunction with compatible adapter plate for preferred loudspeaker. This stand is not suitable for use with 8331 loudspeaker. Weight: 2.62kg.


8000-425B Table Stand

An adjustable table stand with height adjustment of 301-527mm, and designed to be used with loudspeaker compatible Iso-Pod mount. The stand features a 104mm diameter base plate that requires fixing to a desktop or table surface. Screws and fixing nuts are included, and are compatible with surfaces of 40mm thickness. Weight: 0.73kg.

WALL MOUNTS


4000-410

A fixed, 'simple' wall mount bracket for 8020, 8030 and 8130 loudspeaker. Available in black or white finish and complete with bolts and washers for fixing to loudspeaker.


8010-410

A fixed 30-degree tilt designed for the Genelec 4010 loudspeaker. Available in black or white finish and complete with bolts and washers for fixing to loudspeaker.


8000-402

A pan/tilt wall mounting bracket in black or white finish. Tilt is adjustable though 30-degrees, and lockable in position. The compatible K&M 24463 wall bracket cover allows the installer to hide the fixing and make more pleasant on the eye. Dimensions (HxW): 160 x 90mm. Weight: 1.04kg


8000-422

A pan/tilt wall mounting bracket designed for 8020, 4020, 8320, 8030, 4030, or 8330 loudspeaker. Once fixed, the loudspeaker is able to pan from 70 to 115-degrees, and tilt up from 30 to 60-degrees, or down from 20 to 30-degrees. Available in white or black finish. Dimensions (HxW): 115 x 95mm. Weight: 0.39kg

CEILING MOUNTS


8000-202

A ceiling mounting bracket for select Genelec Loudspeaker models. The mount enables the user to rotate the connected loudspeaker through 360-degrees of rotation and 90-degrees of tilt. Available in black or white finish. Dimensions (WxH): 95 x 158.5mm. Weight: 0.63kg


8000-436

A short, fixed 250mm length ceiling mount for 8000 series and G series Genelec loudspeaker. The bracket offers 0 to 90-degree tilt and +/-45-degree pan. Weight: 1.97kg


8000-442

A short, length adjustable ceiling mount for Genelec 8000 series loudspeakers. 8000-454 T-adapter plate is also required when mounting 8320 or 8330 loudspeaker. The mount is manufactured from 50mm tubing that allows cable through, and is adjustable in length in three preset positions - 400mm, 500mm, and 600mm. The bracket that fixes to the loudspeaker enables the user to tilt through 90-degrees. Available in black or white finish. Weight: 2.74kg


8000-444

A long, length adjustable ceiling mount for Genelec 8000 series loudspeakers. 8000-454 T-adapter plate is also required when mounting 8320 or 8330 loudspeaker. The mount is manufactured from 50mm tubing that allows cable through, and is adjustable in length in six preset positions - 700mm, 800mm, 900mm, 1000mm, 1100mm, and 1200mm. The bracket that fixes to the loudspeaker enables the user to tilt through 90-degrees. Available in black or white finish. Weight: 5.3kg

VESA MOUNT


8000-437B

A VESA adapter that suitable for Genelec studio monitors including 8000 series, 8300 series, 8430, 4000 series, and G series. Compatible with VESA 75 and VESA 100 fixings. Maximum load capacity: 15kg.

TRUSS MOUNTS

8000-416B Truss Mount, fixed

A short truss mount clamp that allows the user to mount an 8000 series or 4000 series Genelec monitor to 50mm (diameter) tubing. 8000-416B has a maximum load capacity of 10kg. Weight: 1.02kg


8000-446B Truss Mount, adjustable

A length adjustable trussing mount for Genelec 8000 series loudspeakers. The mount is adjustable in length in three preset positions - 355mm, 430mm, and 505mm. The bracket that fixes to the loudspeaker enables the user to tilt through 90-degrees and +/-45-degree pan. Weight: 2.28kg

FLUSH MOUNTS


8341-450B

A flush, wall-mounting kit that is compatible with Genelec 8040, 8340, 8341, 4040, and G Four loudspeaker. The mount can be used in either vertical or horizontal orientation. Dimensions (WxHxD): 310 x 460 x 250mm.


8351-450B

A flush, wall-mounting kit that is compatible with Genelec 8050, 8350, 8351, and G Five loudspeaker. The mount can be used in either vertical or horizontal orientation. Dimensions (WxHxD): 360 x 575 x 286mm.

ADAPTER PLATES


8010-408

An adapter stand plate to be used with Iso-Pod stands. The compatible Iso-Pod fits over the four pins of the stand plate. Fits 8010A/4010 to Genelec loudspeaker. Available in black or white finish. Weight: 0.2kg


8020-408

As 8010-408, however designed to fit 8020D to Genelec loudspeaker stand. Weight: 0.45kg


8030-408

As 8010-408, however designed to fit 8030C to Genelec loudspeaker stand. Weight: 0.5kg


8040-408

As 8010-408, however designed to fit 8040B to Genelec loudspeaker stand. Weight: 0.74kg


8051-408

As 8010-408, however designed to fit 8050B to Genelec loudspeaker stand. Weight: 1.11kg


8000-454B

A T-Mounting bracket designed for Genelec 8320/8330/8331. Finish: Black Weight: 0.19kg

Compatibility

8010A 8020D 8030C 8040B 8050B 8331A 8341A 8351B 8361A
4010A 4020C 4030C 4040A
8320A 8330A 8340A 8350A
STANDS
8000-400 - -
8000-403 - - - - - - -
8000-406 - - - - -
8000-409 - -
8000-425 -
WALL MOUNTS
8000-402 - -
4000-410 - - - - - - -
8010-410 - - - - - - - -
8000-422 - - - - - - -
CEILING MOUNTS
8000-202 - - - - - - -
8000-436 - -
8000-442 - -
8000-444 - -
VESA MOUNTS
8000-437B - - - -
TRUSS MOUNTS
8000-416
8000-446 - -
FLUSH MOUNTS
8341-450 - - - - - - -
8351-450 - - - - - - -
ADAPTER PLATES
8010-408 - - - - - - - -
8020-408 - - - - - - - -
8030-408 - - - - - - -
8040-408 - - - - - - -
8051-408 - - - - - - -
8000-454 - - - - - -
