This range of Bluetooth receivers from Denon Professional have been designed to facilitate current day audio connectivity from devices including iOS mobile devices, smartphones and other audio players with Bluetooth connectivity. These are particularly popular devices in retail, sports bars, hotel, conferencing, and educational establishments.
Denon DN-200BR is a compact Bluetooth audio receiver intended for integration with back ground music systems in retail environments, restaurants, houses of worship and multi-purpose studios within leisure facilities. It provides for wireless playback of audio content stored on Bluetooth enabled mobile devices or computers. The audio receiver uses Bluetooth version 2.1 + Enhanced Data Rate (EDR). It provides a wireless range of approximately 25 metres.
Offering simple operation, a single button press initiates the Bluetooth pairing between the DN-200BR and a Bluetooth audio source. An LED indicates Bluetooth pairing status. Output is dual mono, available via balanced (L/R) 3-pin male XLR connectors or unbalanced via 6.35mm jack sockets. A rotary knob adjusts the output level. Antenna is by way of removable remote Bluetooth antenna on BNC connection.
Eyelets in the metal chassis enable screw-fixing to walls or similar. This enables convenient positioning and may be particularly useful in applications where the equipment rack is located otherwise beyond the range of Bluetooth.
Frequency response: 20 Hz - 20 KHz, +1 dBu. Signal-to-Noise ratio: Greater than 75dB. THD: Less than 0.01%. Balanced analogue output (XLR): +4 dBu, +1 dBu. Unbalanced analogue output (6.35mm): -2 dBu, +1 dBu. Supported codec: SBC, MP3, AAC, aptX. Power adapter (supplied): 5V DC, 3A, centre-positive. Dimensions (WxDxH): 149 x 117 x 45mm. Weight: 0.6kg
DN-300BR

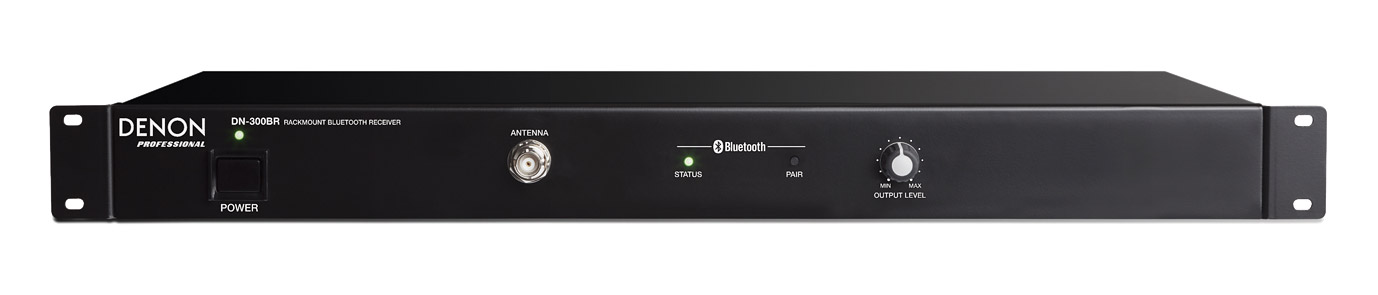

This ‘professional-grade’ 1U rackmount Bluetooth receiver has been designed to suit sports bars, hotel and conferencing, and retail sectors, and enables the user to pair up to eight compatible Bluetooth audio players such as iOS mobile devices or smartphones within a range of up to 30.5 metres.
Using Bluetooth version 4.0, the receiver has a remote antenna (included) which connects via single BNC connector on the rear facing panel of the receiver. Along with balanced 3-pin XLR output connections and unbalanced RCA (phono) outputs, the rear facing panel has an IEC mains input connection, aforementioned BNC antenna connection, and 2-pin Euroblock connection for pairing. This connection is a useful addition for using a remote pairing switch if the pairing button on the front facing panel is inaccessible due to receivers installed position.
The front facing panel has a rotary output level controller, latching power switch, pairing button with associated status LED, and second BNC antenna connection. It is advised only one (front or rear positioned) antenna is used at any point in time to achieve the best performance.
Frequency response: 20 Hz - 18 KHz, +1dBu. Signal-to-Noise ratio: Greater than 83dB. THD: Less than 0.33%. Channel separation: Less than -68dB, 1kHz. Balanced analogue output (XLR): +4dBu. Unbalanced analogue output (RCA): -10dBv. Supported codec: SBC, MP3, AAC, aptX. Power: 100-240V AC, 50/60Hz. Power consumption: Less than 2W. Dimensions (WxDxH): 483 x 271 x 44mm, with rack ears; 434 x 271 x 44mm, without rack ears. Weight: 3kg
abgekündigt
With similar form to the DN-200BR, DN-200AZB is a Bluetooth audio receiver with inbuilt Class D, 20W RMS amplifier. Utilising Bluetooth CSR 4.0 technology, the receiver can connect with compatible devices with a range of up to 30.5 metres. It is also able to drive 4ohm speakers, or 70/100V line systems – making it a popular choice for restaurants and retail.
The front facing panel has a latching on/off power button with associated blue LED to indicate power on, a pairing button with associated status LED, and a rotary output level controller. The rear facing panel has a DC 15V power supply input, BNC connection for the included remote antenna, and balanced input connections on 3-pin Euroblock connector. Common/4ohm/70V/100V outputs are also by way of Euroblock connector.
Frequency response: 50Hz - 23KHz. Signal-to-Noise ratio: 90dB. THD: Less than 0.1%. Supported codec: SBC, MP3, AAC, aptX. Power adapter (supplied): 15V DC, 2.5A, centre-positive. Dimensions (WxDxH): 163 x 153 x 48mm. Weight: 1.4kg
