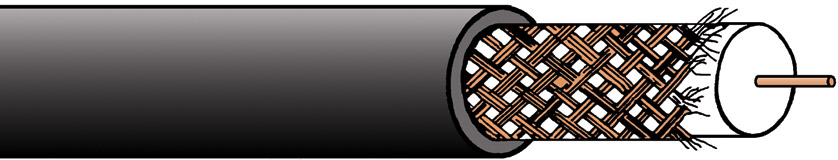

RG59B/U RF/VIDEO CABLE

RG59B/U RF/VIDEO CABLE
RG59B/U RF/VIDEO CABLE

75 ohm cable commonly used for video and other RF applications. Equivalent to URM90, IEC 75-4-1, MIL-C-17D/29.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:

Cable size group: Q (Canford Connect Q group exception)
Centre wire: 0.574mm copperweld
Dielectric: Polyethylene, 3.7mm OD
Braid: 24/5/0.15mm bare copper
Braid coverage: 96%
Jacket: PVC 6.15mm OD, black
Impedance at 2MHz: 75 ohms ±3
Capacitance (nom.): 67.5 pf/m
Velocity ratio: (nom.): 0.66
Conductor DC resistance: 157.5 ohms/km maximum at 20°C
Attenuation: MHz 5 10 30 100
dB/100m: 2.7 3.6 6.0 11.2 (±0.1dB)
Weight: 5.5kg/100m
Reel length: 100 metres
Cut lengths: Available in any multiple of 1 metre
Suitable connectors outlined below.

BNC Male - 12G

Brand Code Description
COAX Connectors 48-5062 COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q
COAX Connectors 48-5072 COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100)

BNC Male - 3G

Brand Code Description
COAX Connectors 48-5042 COAX CONNS 10-005-B36-FB BNC 3G HD Male cable, crimp, 75 ohm, group Q
COAX Connectors 48-5052 COAX CONNS 10-005-B36-FB BNC 3G HD Male cable, crimp, 75 ohm, group Q (pack of 100)
Neutrik 48-612 NEUTRIK NBNC75BLP7 BNC 3G Male cable, rear twist, group Q
Neutrik 48-6312 NEUTRIK NBNC75BLP7-D BNC 3G Male cable, rear twist, group Q (pack of 100, disassembled)
Telegartner 48-786 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Q
Telegartner 48-776 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Q (pack of 100)

BNC Male - 75Ohm RF

Brand Code Description
Belden 48-8245 BELDEN FS59BNCU BNC CONNECTOR Compression, group Q

Micro BNC Male - 12G

Brand Code Description
COAX Connectors 48-5024 COAX CONNS 67-005-B66-FB MICRO BNC 12G UHD Male cable, crimp, group Q
COAX Connectors 48-5034 COAX CONNS 67-005-B66-FB MICRO BNC 12G UHD Male cable, crimp, group Q (pack of 100)

DIN 1.0/2.3 Male - 3G

Brand Code Description
COAX Connectors 48-5004 COAX CONNS 52-005-B6-FB DIN 1.0/2.3 3G HD Male cable, crimp, group Q
COAX Connectors 48-5014 COAX CONNS 52-005-B6-FB DIN 1.0/2.3 3G HD Male cable, crimp, group Q (pack of 100)

F Connector

Brand Code Description
Belden 48-8225 BELDEN FSNS59U F CONNECTOR Compression, group Q
Canare 48-847 CANARE FP-C4 F CONNECTOR Male cable, group Q
Canare 48-848 CANARE FP-C4 F CONNECTOR Male cable, group Q (pack of 100)

RCA Phono

Brand Code Description
Belden 48-8265 BELDEN FSNS59RCAU RCA(PHONO) CONNECTOR, Group Q
Belden 48-8275 BELDEN FSNS59RCAU RCA(PHONO) CONNECTOR, Group Q (pack of 100)
Canare 43-067 CANARE RCAP-C4A RCA (PHONO) PLUG Group Q
Canare 43-068 CANARE RCAP-C4A RCA (PHONO) PLUG Group Q (bulk pack of 100)

Manufactured by Draka Prysmium Multimedia.

Bezeichnung Preis €
zzgl. MwSt. 		Hinzufügen
Versand
RG59B/U CABLE, Black Black Artikelnummer: 36-359
482 lieferbar Mehr benötigt?
2 kurze Kabellängen verfügbar
1+ 1,37 €
100+ 1,09 €
500+ 1,07 €
1.000+ 1,03 €
pro Meter
