WOHLER UPGRADE OPTIONS

A series of upgrade options for Wohler hardware audio and audio/video monitors. Some of the listed items, where denoted, are software key only whereas some are hardware and software package.

OPT-AES (829080)

A software key upgrade option for iAM Series products. Enables decoding and monitoring of 4x AES input pairs on either BNC or HD-15. AES outputs also included.

OPT-ANLG/TOS (829170)

Enable monitoring of 8 Analog channels on DB-25. This card also enables routing of 8 Analog outputs on DB-25 from the input or from other sources. Hardware card with software activation key. Includes Optical TOSLINK Input.

OPT-DANTE (829078)

A hardware with software key upgrade option that enables monitoring from up to 64-channel Dante input. Connection is via primary RJ45 port.

OPT-DANTE 12G (829164)

A hardware card with activation key that enables monitoring from up to a 64-channel Dante input. It includes primary and secondary RJ-45 for hitless/2022-7 support (for Dante and 2110-30 signals). This card also enables monitoring of 8x analogue channels on DB-25 connector, an optical TOSlink Input, monitoring of 1x MADI64 input via BNC, and an SFP Cage that accepts MADI optical inputs.

OPT-DANTE (829171), OPT-DANTE ANLG (829171-1)

A hardware with software key upgrade option that enables monitoring from up to 64-channel Dante input. Connection is via primary and secondary RJ45 ports, along with TOSlink and SFP connector. It includes an AoIP card enabling primary and secondary RJ-45 for hitless/2022-7 support (for Dante and 2110-30 signals). A Gigabit SFP cage allows multi-mode and single mode network SFPs for AoIP signals is also included.

The OPT-DANTE option card is available in two options - either with optical TOSLINK input (829171), or two unbalanced analogue inputs (829171-1).

OPT-DOLBY iVAM (829174)

A software key upgrade option that enables decoding and monitoring of Dolby D, DD+, & E streams.

OPT-DOLBY 12G (829167)

A hardware and software key upgrade option that enables decoding and monitoring of Dolby D, DD+, & E streams.

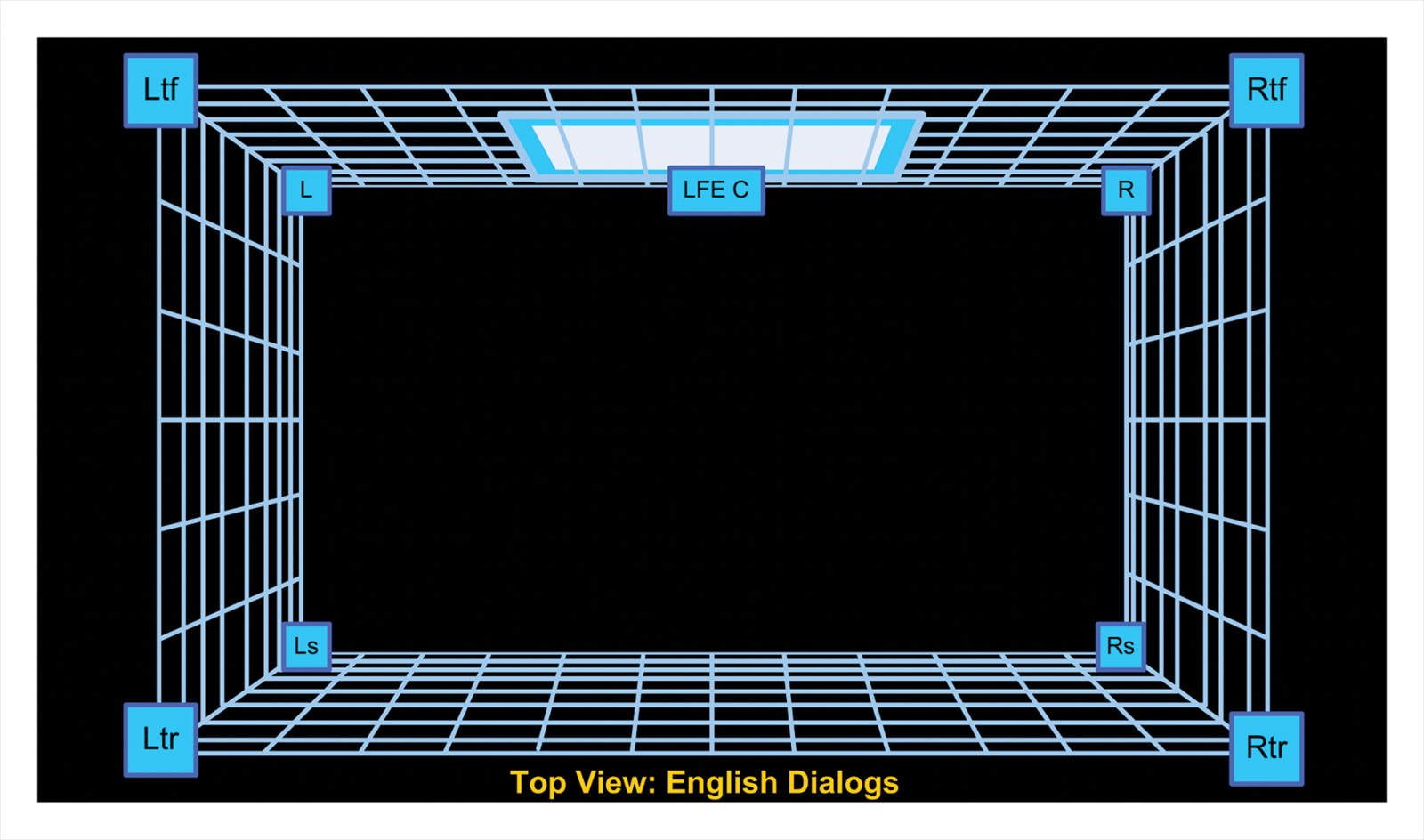

OPT-DOLBY ATMOS (829163)

A software key option that enables monitoring of Dolby Atmos, D, DD+ or E streams. Integrates the Dolby Audio Professional Decoder enabling customers to monitor in Dolby Atmos. With this option, the user can confidence monitor the Dolby Atmos signal on Wohler speakers and headphone output, view meters, access Wohler’s proprietary Dolby Zoom functionality, review related metadata, and route the audio externally to SDI or analogue outputs on the rear panel. Also, the user can monitor other traditional Dolby Audio technologies, such as Dolby D, Dolby Digital +, Dolby E and Dolby ED2.

OPT-e Package (829186)

Adds Loudness monitoring, presets, web metering/monitoring/configuration, and output routing.

OPT-MADI (829092)

A software key update option that enables decoding and monitoring of 1x MADI64 input via BNC. Includes 1x looped output.

OPT-MADI/ANLG/TOS (829168)

This card enables monitoring of 8x analogue channels on DB-25, an optical TOSlink input, monitoring of 1x MADI64 input via BNC, and an SFP Cage that accepts MADI optical inputs.

OPT-OUTPUT ROUTING (829159)

A software key update option that enables the ability to flexibly route or combined and route, input signals in custom ways to various destination outputs. Inputs can be monitored in stereo or mono only through the internal speakers. The headphone jack, the analogue XLR outputs, and the first AES output will follow whatever is directed to the speakers.

When COR (Common Output Routing) is licensed via Wohler, select Common Output Routing under Configuration. This will display the Common Output Routing (COR) screen. This screen contains a matrix which forms an easy way to set up the variety of input to output routing and mixing capabilities.

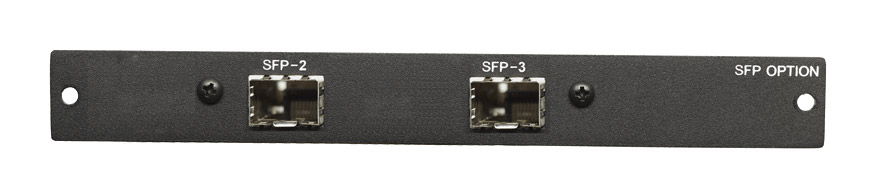

OPT-SFP CARD (829179)

Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products.

SFP-2022-6 (829088)

A multimode 850 NM, SMPTE 2022-6 only receiver with LC (fibre) connectors. SFP module with software activation key.

SFP-2110 w/Ember+ (829086), SFP-2110 w/NMOS (829086-1)

A multimode 850 NM, SMPTE 2110 only receiver with LC (fibre) connectors. SFP module with software activation key. 829086-1 is compatible with NMOS and 829086 is compatible with Ember+.

SFP-2110 w/Ember+ +2022-6 (829087), SFP-2110 w/NMOS+2022-6 (829087-1)

A multimode 850 NM, SMPTE 2110 or 2022-6 receiver with LC (fibre) connectors. SFP module with software activation key. 829087-1 is compatible with NMOS and 829087 is compatible with Ember+.

SFP-Madi-MM-Fiber (829081), SFP-Madi-SM-Fiber (829082)

A MADI optical fibre receiver with multimode or singlemode options on LC (fibre) Connectors. SFP module with software activation key.

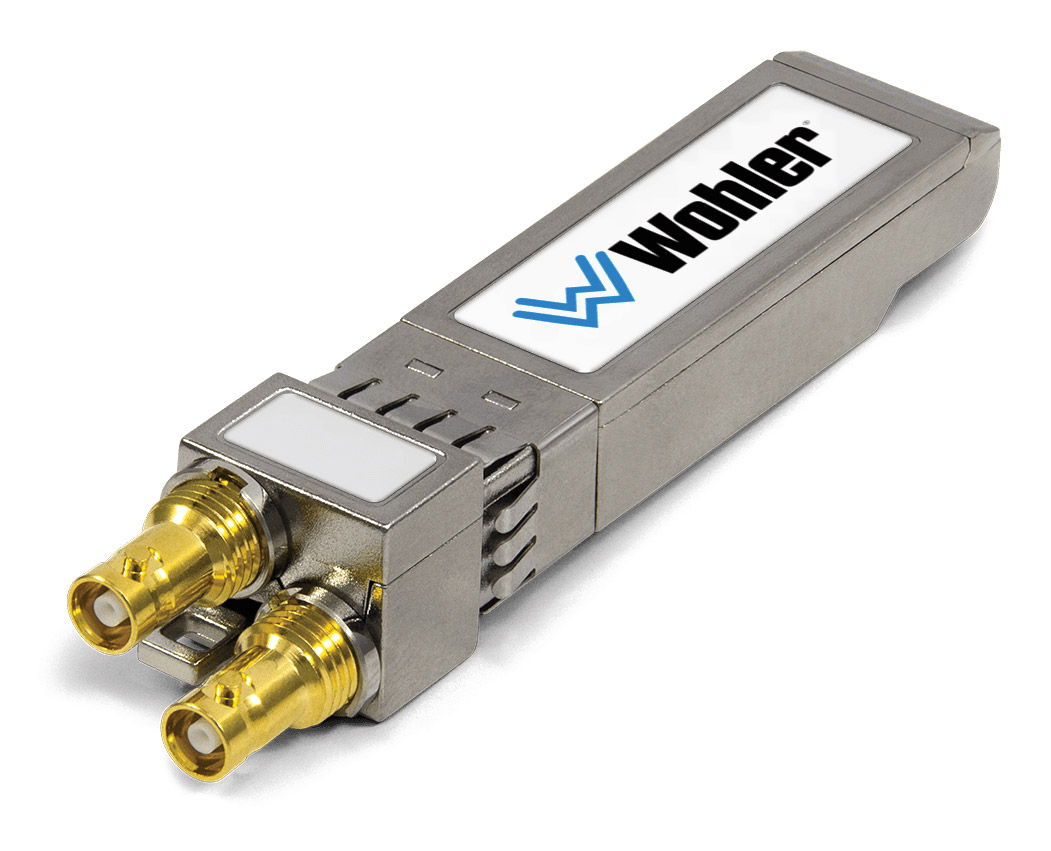

SFP-SDI (829089)

A 3G/HD/SD-SDI single video receiver with active loopback, HD-BNC Connectors. SFP module with software activation key.

SFP-SDI-FIBER (829084)

An SDI single mode optical LC (fibre) video receiver that enables up to 12G-SDI depending on base unit. Only required if 12G-SDI input is needed via fibre or an additional 12G/3G SDI input is required beyond what is available in the applicable base unit.
