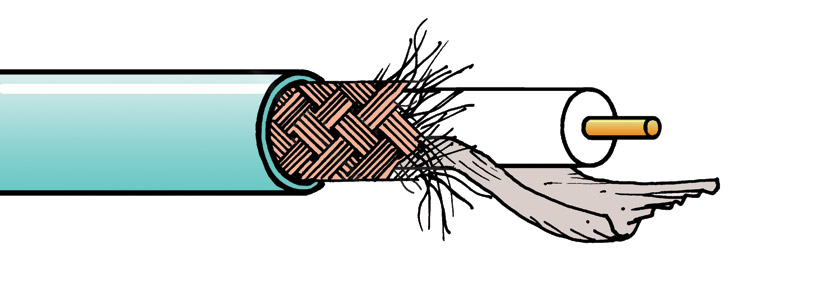

CANFORD SDV-L-UHD-LFH - HDTV DIGITAL VIDEO CABLE (1.2/4.9) Low loss, low fire hazard

CANFORD SDV-L-UHD-LFH - HDTV DIGITAL VIDEO CABLE (1.2/4.9) Low loss, low fire hazard
CANFORD SDV-L-UHD-LFH - HDTV DIGITAL VIDEO CABLE (1.2/4.9) Low loss, low fire hazard

Low-loss coaxial 75 ohm cable designed specifically for 12G, 4K (SMPTE 2082), UHD applications with low-smoke, zero-halogen material outer jacket.

Technical Specification:
Cable size group: Not in Canford scheme
Inner conductor: Solid copper, silver plated, 1.20mm OD
Dielectric: Gas injected foam high density polyethylene, 4.90mm OD
Screen 1: Aluminium/polyester/aluminium tape
Screen 2: Tinned copper braid, 5.7mm OD
Construction: Coaxial cable
Jacket: Low smoke zero halogen material (FRNC IEC60332-1), turquoise.
CPR Euroclass: Eca
Overall diameter: 7.0mm
Minimum bend radius: 70.0mm
Impedance: 75 ohms
Capacitance: 56pf/m nominal
Return loss: 26dB 50-300MHz
22dB 300-3000MHz
Attenuation: MHz 1 10 100 300 500
dB/100m 1.80 1.60 5.30 9.30 12.30
Contd: MHz 1000 2000 3000 5000 10000
dB/100m 17.40 25.60 31.00 41.00 57.70
Velocity of propagation: 78%
Temperature range: -30° to +75°C
Weight: 6.3kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
COAX Connectors 48-5070 COAX CONNS 10-005-W126-FF BNC 12G UHD Male cable, crimp, 75 ohm, black, Canford SDV-F-HD
COAX Connectors 48-5080 COAX CONNS 10-005-W126-FF BNC 12G UHD Male cable, crimp, 75 ohm, black, Canford SDV-F-HD (pk of 100)
Neutrik 48-6378 NEUTRIK NBNC75BXU13X BNC 12G UHD Male cable, rear twist, Canford SDV-L-UHD-LFH, Draka UHD100

BNC Male - 3G

Brand Code Description
Neutrik 48-617 NEUTRIK NBNC75BWU13 BNC 3G Male cable, rear twist, Canford SDV-F-HD
Telegartner 48-788 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y
Telegartner 48-778 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)

Manufactured specifically for Canford by Draka Prysmium Multimedia.

'SDV' and 'LFH' are registered trademarks of Canford Audio Limited.

Bezeichnung Preis €
zzgl. MwSt. 		Hinzufügen
Versand
CANFORD SDV-L-UHD-LFH CABLE 4K, Eca, turquoise Turquoise Artikelnummer: 36-716
3990 lieferbar Mehr benötigt?
1 kurze Kabellängen verfügbar
1+ 4,16 €
100+ 3,34 €
500+ 3,25 €
1.000+ 3,12 €
pro Meter
