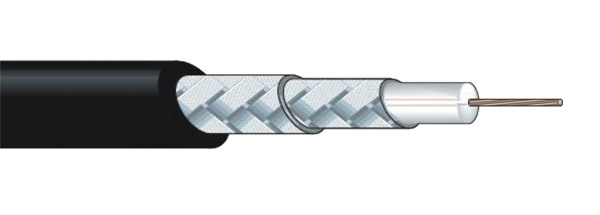

Flexible and durable coaxial cable, suitable for mobile HD and UHD applications. Designed to withstand repeated bending, it has a stranded centre conductor, with a high-density, double-braided shield and high density foam dielectric insulation.
Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.
Technical Specification:
| Cable size group: |
Not in Canford scheme |
| Inner conductor: |
7/0.2mm (0.6mm O.D. 24AWG) |
| Dielectric: |
High density foam, 2.6mm O.D. |
| Screen 1: |
0.10mm/8/16, coverage 95% or more |
| Screen 2: |
0.10mm/9/16, coverage 94% or more |
| Construction: |
Coaxial cable |
| Jacket: |
PVC, 4.2mm OD. |
| Impedance: |
75 ohms |
| Capacitance: |
53 pF/m |
| Inner conductor resistance: |
8.5 ohms/100m |
| Screen resistance: |
1.0 ohms/100m |
| Weight: |
3.2kg/100m |
| Reel Length: |
500m |
| Cut lengths: |
Available in any multiple of 1 metre. |
Suitable crimp connectors outlined below.
